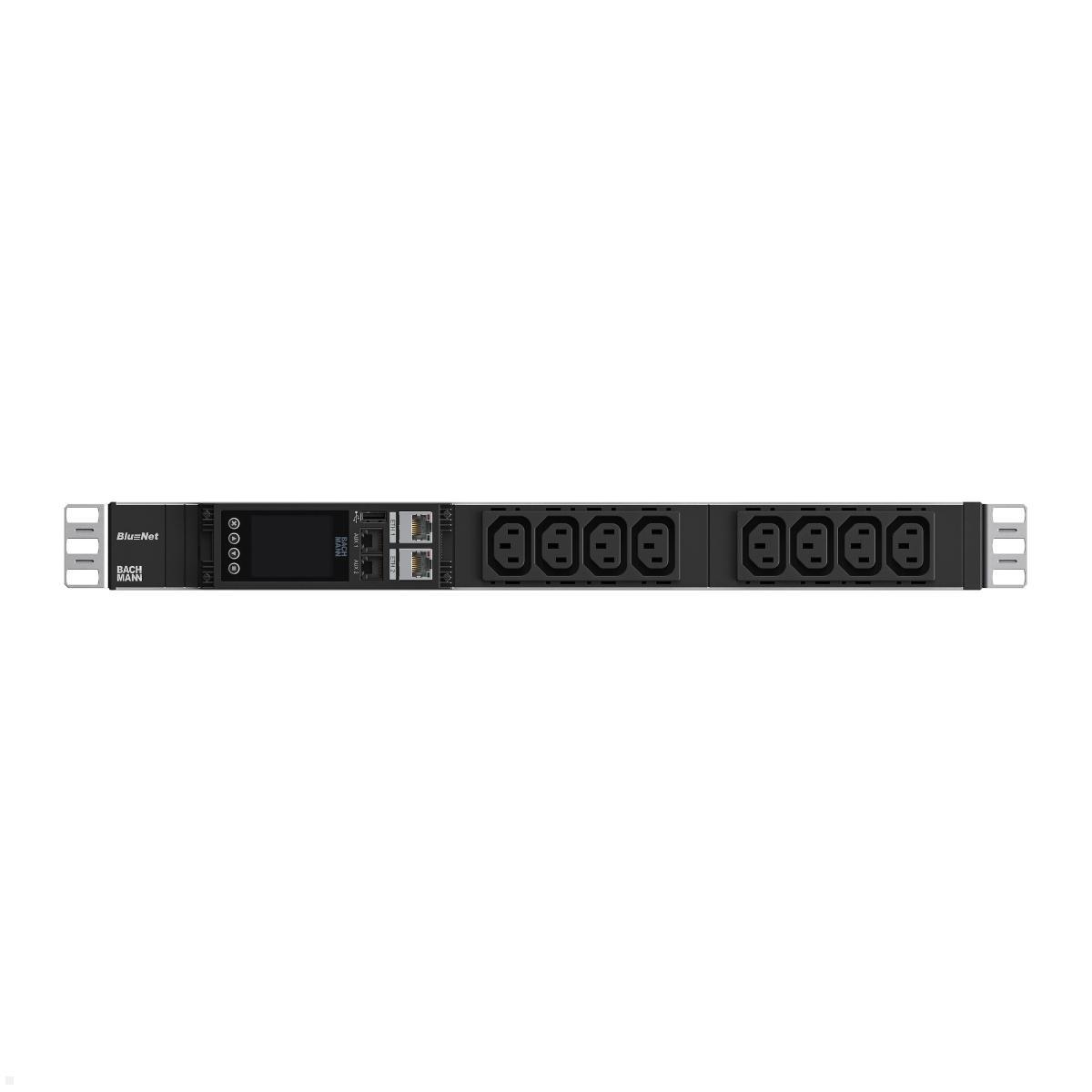

Bachmann BN ESSENTIAL Metered - 19" PDU with 8xC13 & Display (BM0023691)
Highlights
- Energy measurement per phase for full control
- Integrated display for direct on-site readout
- 8x IEC C13 outlets for IT equipment
- Network-capable with web interface and SNMP
- Compact 19" form factor – ideal for any rack
Bachmann ESSENTIAL Metered – Intelligent power distribution in 19" rack
The Bachmann BN ESSENTIAL Metered PDU is the ideal entry-level solution for professional energy management in 19" racks. It was specially developed for use in data centers and network infrastructures where energy consumption needs to be recorded, analyzed and optimized transparently. Thanks to phase-by-phase measurement, the PDU provides precise data on current, voltage as well as active, apparent and reactive power. All values can be read directly on the device via the integrated 2" TFT color display or conveniently evaluated centrally over the network and an integrated web interface. This way you always keep an eye on the energy consumption of your IT systems while meeting requirements for energy efficiency and documentation.
The compact design based on the BlueNet architecture allows space-saving integration into the rack and ensures optimal conditions for cabling and air circulation. Support for external sensors (e.g. temperature and humidity) allows monitoring to be further expanded. With its robust construction, high measurement accuracy and network capability, the BN ESSENTIAL Metered PDU is particularly suitable for companies that want to retrofit existing infrastructures and sustainably increase their operational reliability.
Technical Details and Features of the BN ESSENTIAL Metered (8x C13)
- Energy measurement per phase
- Non-switchable outlets
- 16 A / 230 V / 3.6 kW input
- Supply cable 2.0 m | 1.5 mm² with CEE 7/7 Schuko plug (angled)
- 8x IEC C13 outlets (0°)
- Measurement of current, voltage, reactive power, apparent power and active power
- Measurement of active energy as well as monitoring of frequency and power factor
- 2x Ethernet ports (1 Gbit/s)
- 2x interfaces for external sensors (e.g. temperature, humidity)
- 1x USB-A port
- Hot-swappable controller (Hot Swap)
- Integrated web server with web interface
- SNMP support
- 2.0" TFT color display

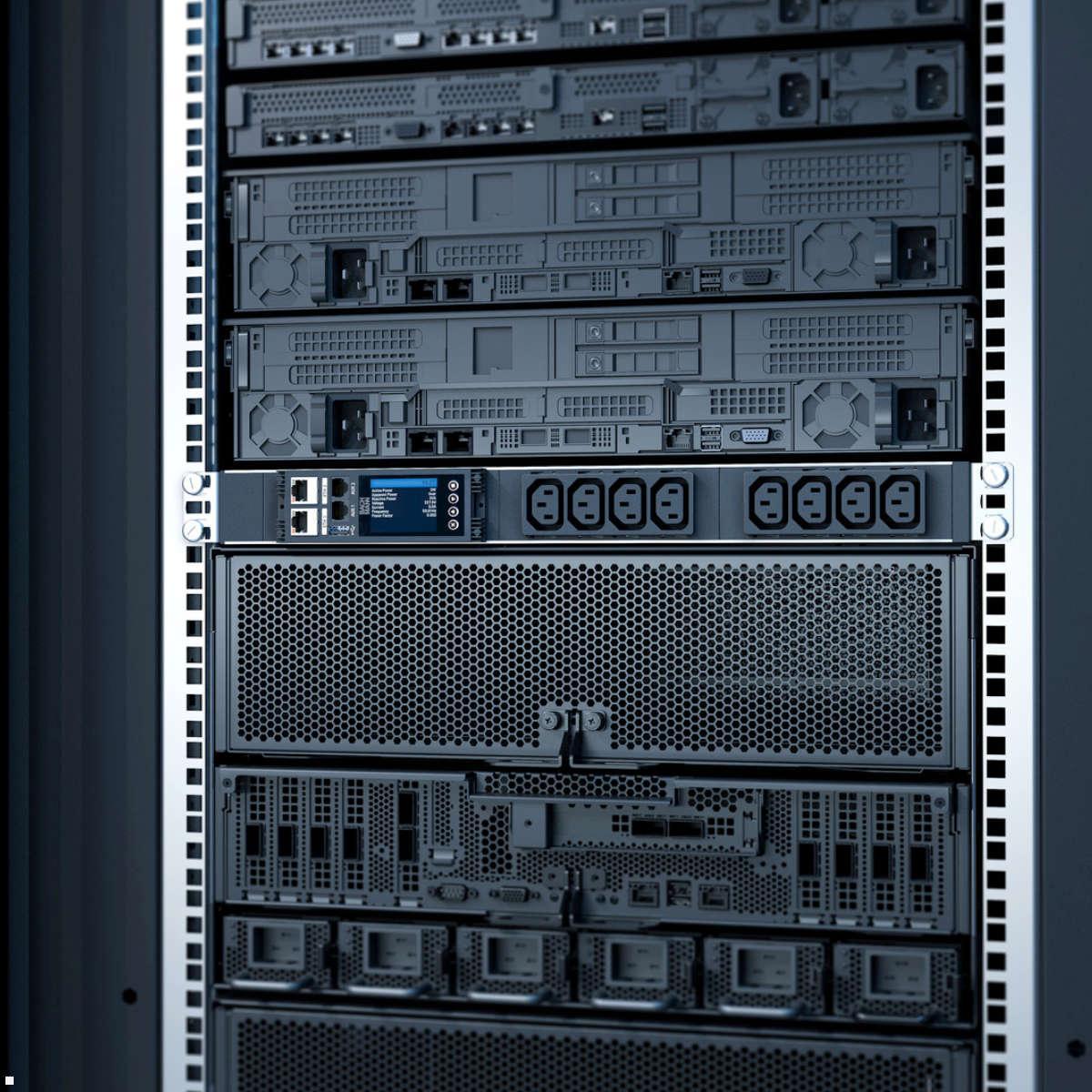

- Mountable horizontally or vertically in the 19" rack
- Compact BlueNet form factor for optimal cable management

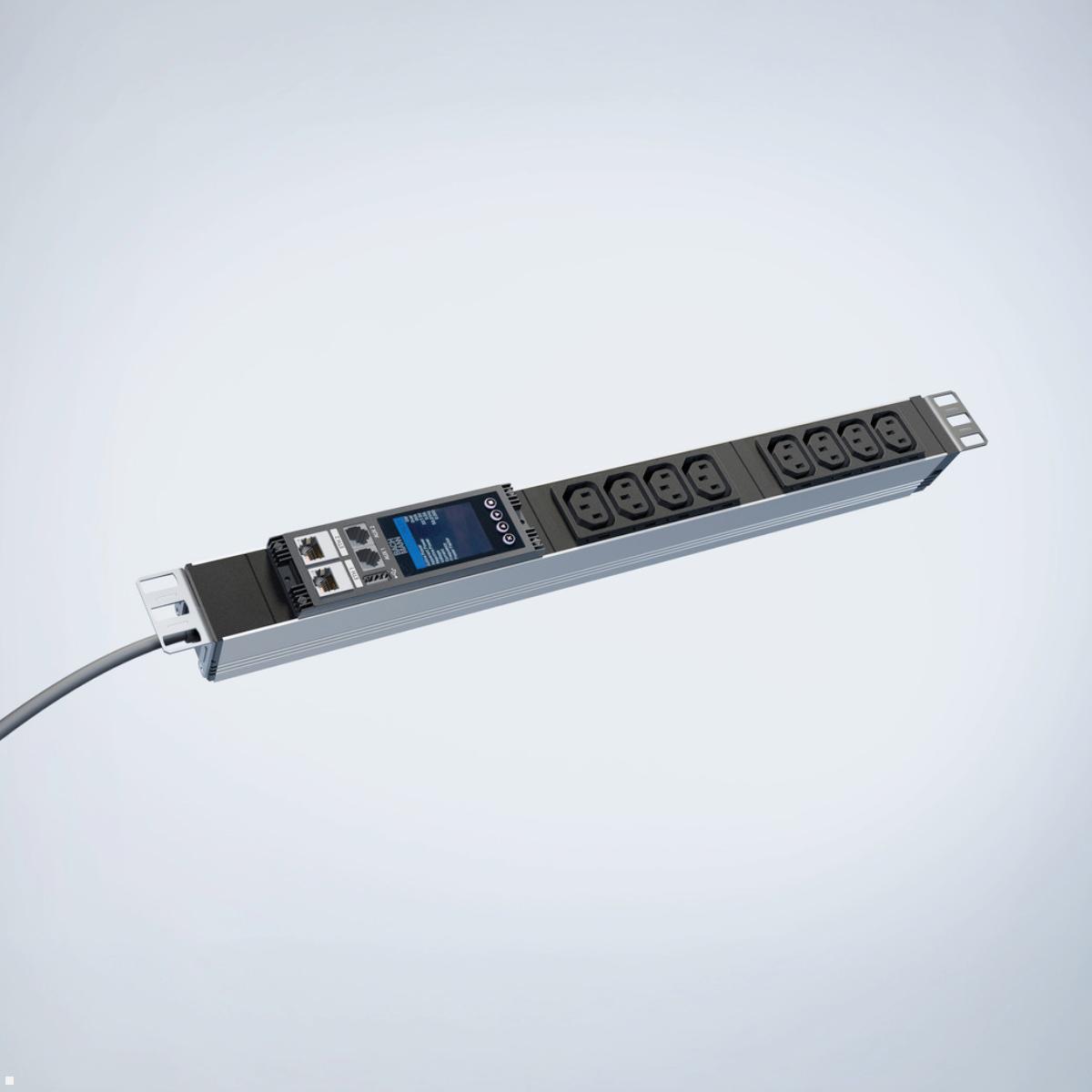

- Robust aluminium housing

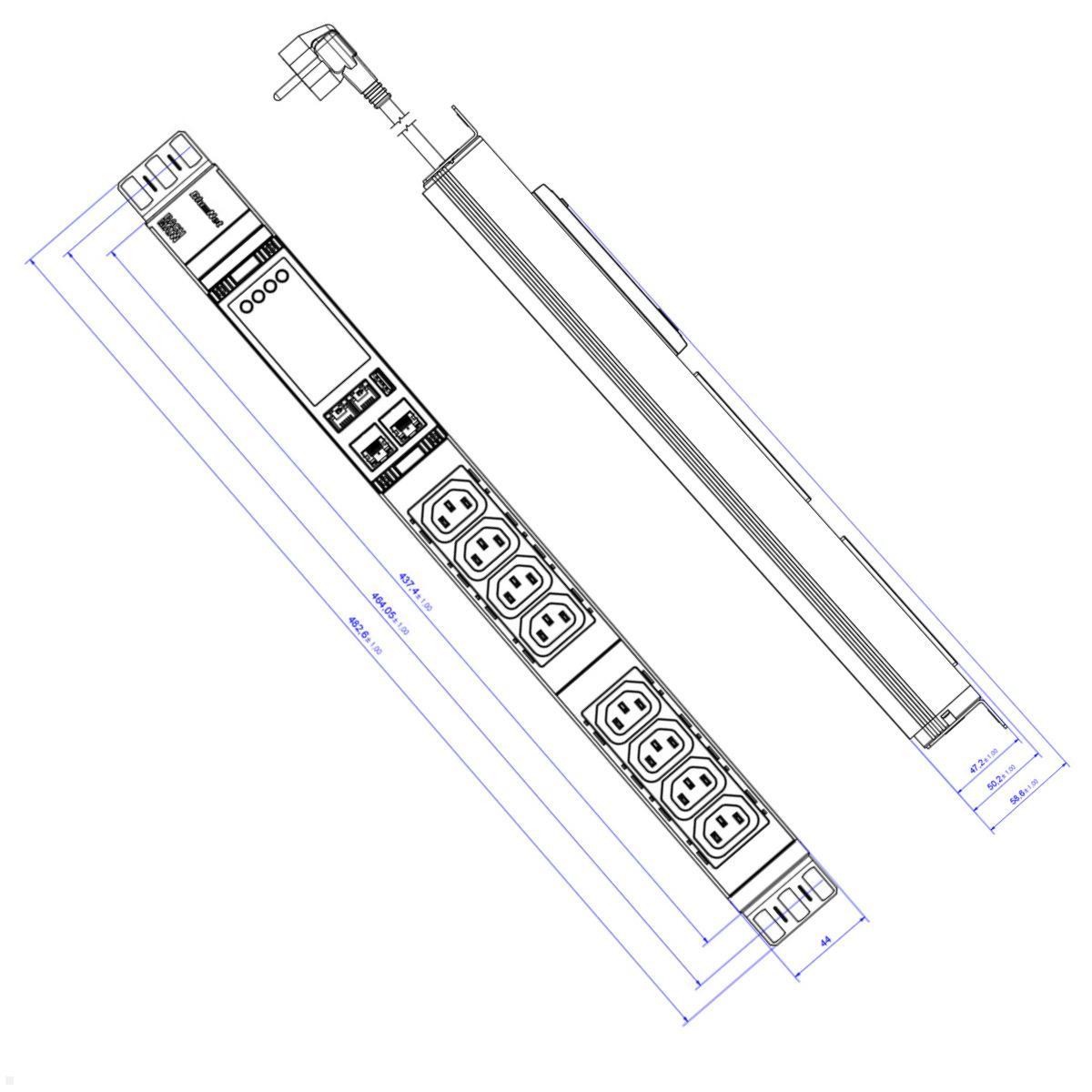

- Dimensions (L x W x H): approx. 482.8 x 437.4 x 44 mm
- 1U height
- Integrated neutral conductor monitoring
- Including mounting brackets and fastening material
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 8 Outlets |
| Phasen: | 1-phasig |
| Steckerart: | C13 |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB-A |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the BN ESSENTIAL Metered PDU?
The BN ESSENTIAL Metered is an intelligent 19" PDU for transparent energy management in data centres and network infrastructure, with per-phase metering of current, voltage and power quantities.
-
How many outlets and what type are there?
It has 8x IEC C13 outlets and an input rating of 16 A / 230 V / 3.6 kW; a 2.0 m lead with a CEE 7/7 angled plug.
-
What measurements does it provide?
It measures current, voltage, reactive, apparent and real power, plus energy and monitors frequency and power factor.
-
How can data be read or centrally evaluated?
Values can be read on the 2-inch colour TFT display or centrally via the network using the built-in web interface. SNMP support is also provided.
-
How can it be mounted?
It can be mounted horizontally or vertically in a 19" rack and has a 1U height.
-
What network and sensor interfaces does it offer?
It features two Ethernet ports (1 Gbit/s), two interfaces for external sensors, a USB-A port and an integrated web server with a web interface; SNMP support is available.
-
Can external sensors be connected?
Yes, via two interfaces for external sensors (e.g. temperature and humidity).
-
What are the physical characteristics?
Compact BlueNet form factor in an aluminium housing; dimensions approx. 482.8 x 437.4 x 44 mm, 1U height; includes neutral conductor monitoring and mounting brackets.
The Bachmann BN ESSENTIAL Metered PDU is the ideal solution for reliable power distribution and precise energy monitoring in modern IT environments. Specifically designed for use in 19" server and network cabinets, this PDU combines a compact form factor with powerful metering technology. Companies benefit from transparent recording of their energy consumption and can thus operate their infrastructure more efficiently and future-proof. With 8x IEC C13 outlets, the PDU provides sufficient capacity for connecting servers, switches and other IT hardware. Thanks to the integrated per-phase metering function, you always keep track of current, voltage and power values. The data can be read directly via the integrated display or conveniently analyzed over the network.
Why is a PDU with energy monitoring useful?
A PDU with integrated energy monitoring makes it possible to precisely monitor the power consumption of individual IT components or entire rack structures. This is particularly important for reducing energy costs and optimizing infrastructure utilization. The BN ESSENTIAL Metered delivers precise values for current, voltage as well as active, apparent and reactive power and thus supports professional energy management. Furthermore, continuous monitoring helps to detect potential overloads early and prevent failures. Especially in critical IT environments, this is a decisive advantage for operational reliability.
What advantages does the integrated display offer?
The integrated TFT color display enables quick and uncomplicated checking of all relevant measured values directly on the device. Technicians can immediately see how energy consumption is developing on site without having to use additional tools. This saves time and greatly simplifies maintenance work. Additionally, the clear presentation ensures that even complex values can be easily interpreted – a real added value in daily operations.
How can the PDU be integrated into existing systems?
The Bachmann BN ESSENTIAL Metered - 19" PDU with 8xC13 & display (BM0023691) is fully network-capable and features an integrated web interface. Via the Ethernet interfaces, all measurement data can be centrally collected and evaluated. Thanks to SNMP support, the device can be easily integrated into existing monitoring systems. The compact design based on the BlueNet architecture allows both horizontal and vertical mounting in the rack. This leaves sufficient space for cabling and air circulation – an important factor for the efficiency and longevity of the entire IT infrastructure. Overall, the BN ESSENTIAL Metered PDU is a powerful and at the same time economical solution for companies that value transparency, security and efficiency in their power supply. It is ideal for retrofitting existing systems and provides a solid foundation for modern energy management in the rack.
