Bachmann BN PRO M+ Metered RCM – 32A Rack PDU with 24x C13 4x Combo 2x MCB, 3.0m CEE 32A/3p (BM0024756)

Why is the Bachmann BN PRO M+ Metered RCM BM0024756 the ideal rack PDU for safety-critical data centers?

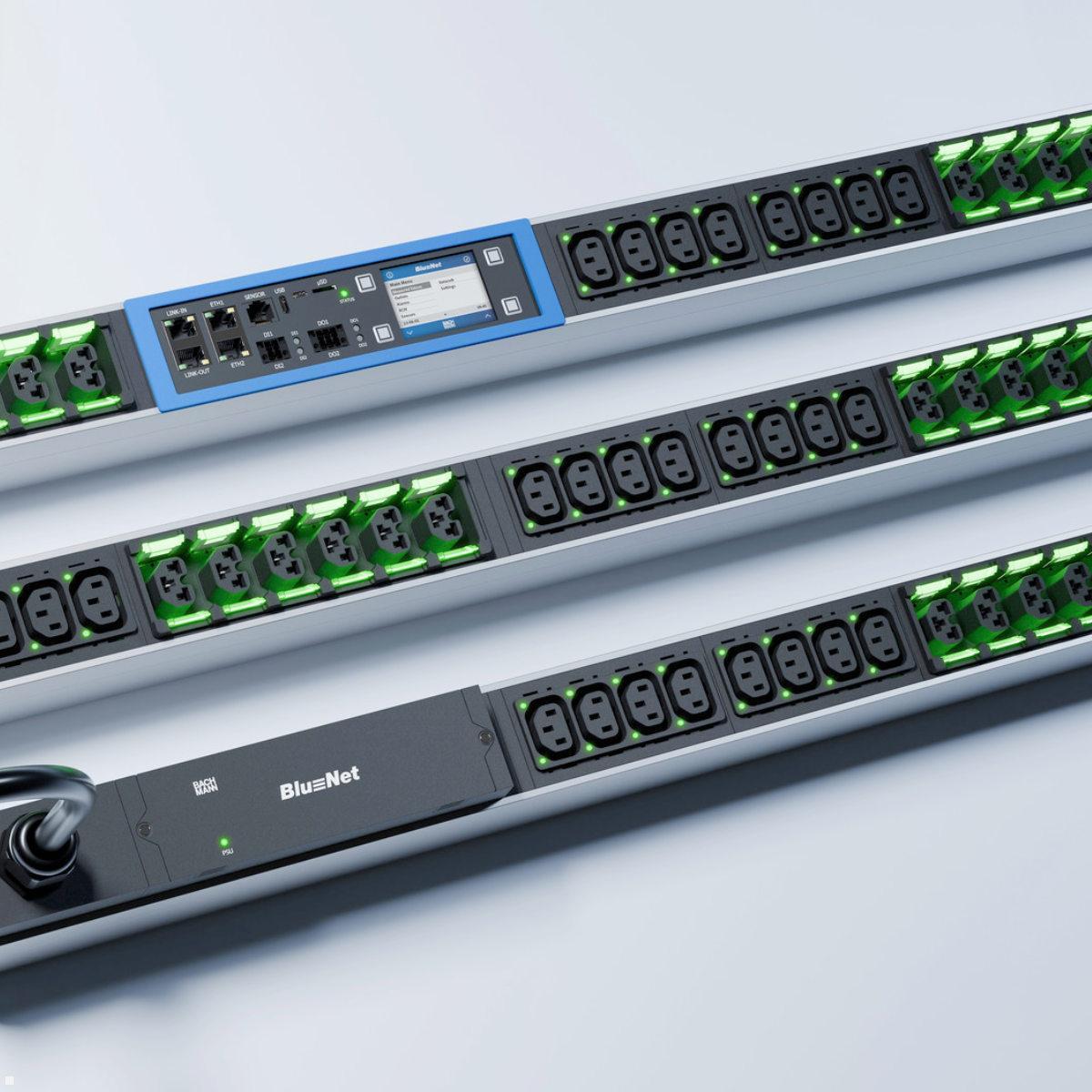

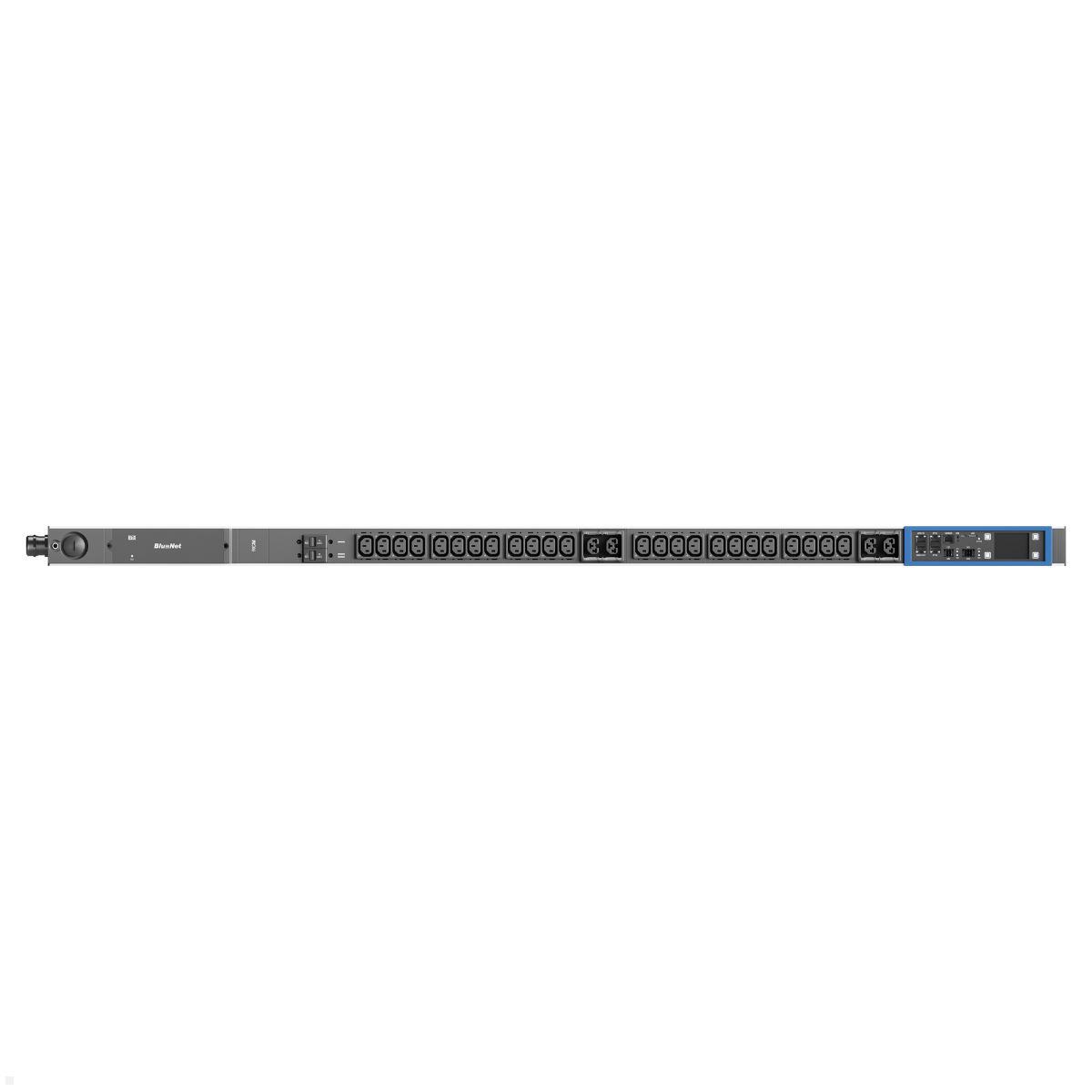

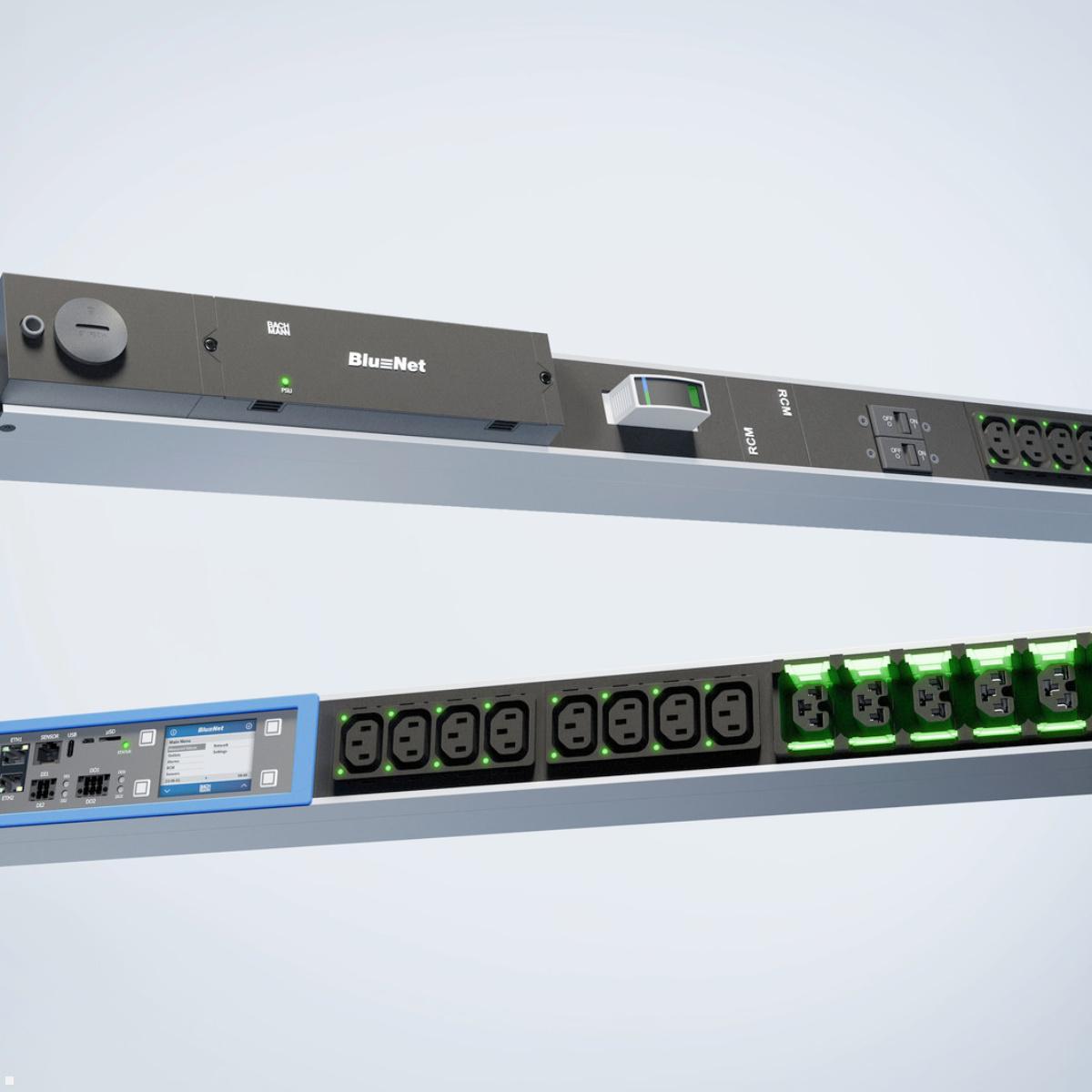

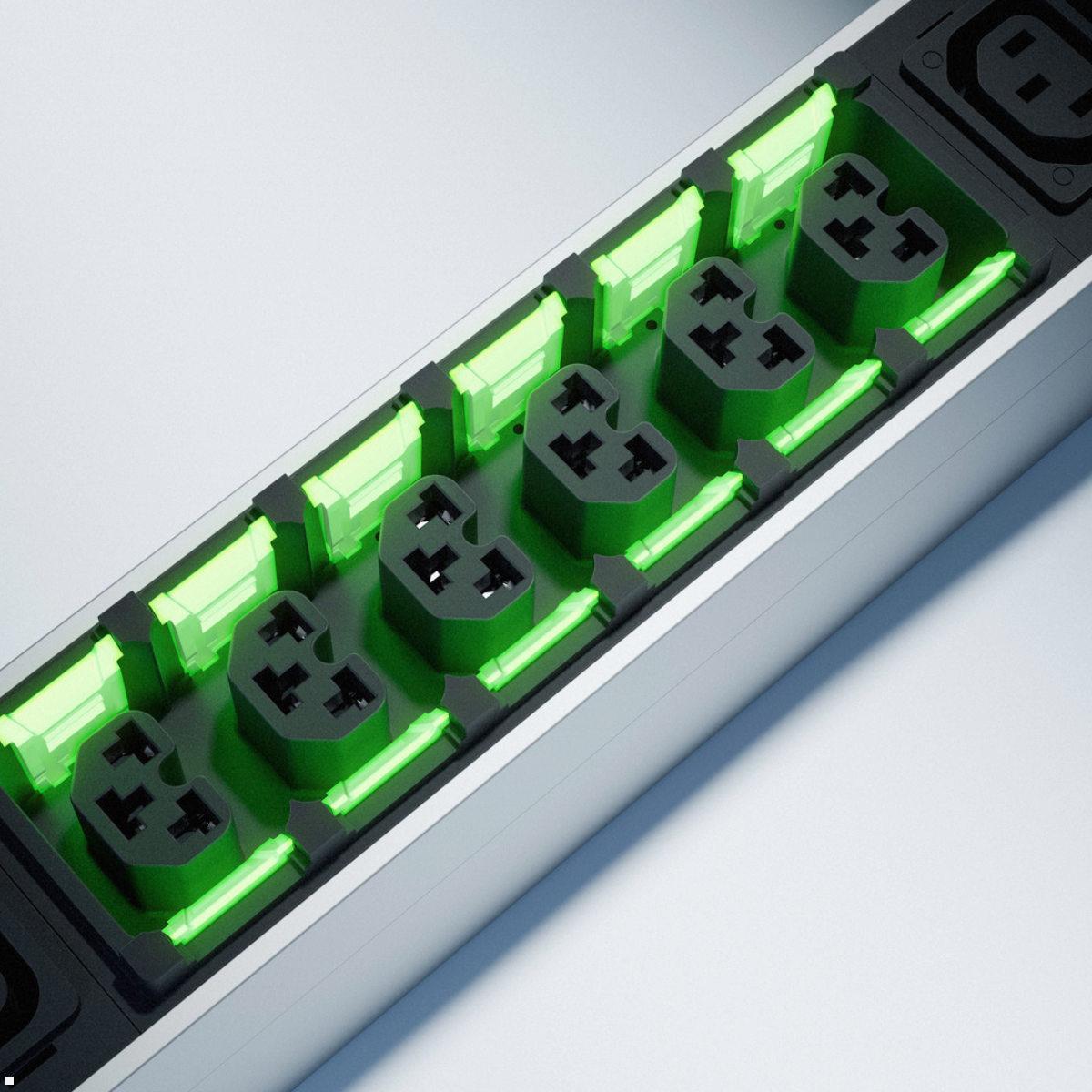

Die Bachmann BN PRO M+ Metered RCM BM0024756 is a vertical rack PDU with integrated residual current monitoring (RCM) of type B per phase — a decisive safety advantage for data centers, server rooms, and critical IT infrastructures with high protection and availability requirements. With 24 IEC C13 outlets and 4 combo outlets of type C13/C15/C19/C21 it supplies up to 28 devices reliably and efficiently with a power capacity of 7.2 kW (32A/230V). The integrated RCM function continuously monitors residual currents per phase and detects fault currents early, before dangerous situations can develop. This protects both the connected IT infrastructure and operational staff sustainably and reliably around the clock. Individual per-outlet metering provides detailed and precise data on current, voltage, reactive power, apparent power, active power, reactive energy, apparent energy, active energy, frequency and power factor — for complete energy transparency at outlet level and optimal energy management in the data center. Two hydraulic-magnetic circuit breakers, each rated at 16 amperes, provide additional reliable overload protection. The high-resolution 2.4-inch TFT color display as well as color-coded frames in blue and red facilitate quick identification and management of the PDU directly at the rack. The supplied L-shaped mounting bracket allows quick, secure and uncomplicated installation without additional accessories.

What remote management and networking options does the Bachmann BN PRO M+ RCM BM0024756 offer?

The BN PRO M+ Metered RCM BM0024756 offers a comprehensive package of remote management and networking options that fully meet the requirements of modern data centers. The integrated web server with a full-featured web interface enables convenient access to all functions and measurement data via any standard browser — without installing additional software or special drivers. Two independent Ethernet ports are available: a Gigabit port with PoE support for the primary network connection and a 10/100 Mbps port for redundant connectivity. SNMP support ensures seamless integration into existing IT monitoring and management systems such as Nagios, Zabbix, PRTG or professional DCIM solutions. Via the PDU chaining interface up to 20 PDUs can be networked and centrally managed — ideal for large data centers with many rack units. An RJ45 port for up to ten external sensors enables monitoring of temperature, humidity, water leaks and other environmental parameters. A USB-C port (USB 2.0) as well as automated provisioning options and alerting functions complete the management package of the Bachmann BN PRO M+ Metered RCM BM0024756.

How does the Bachmann BN PRO M+ RCM rack PDU ensure maximum operational safety and availability?

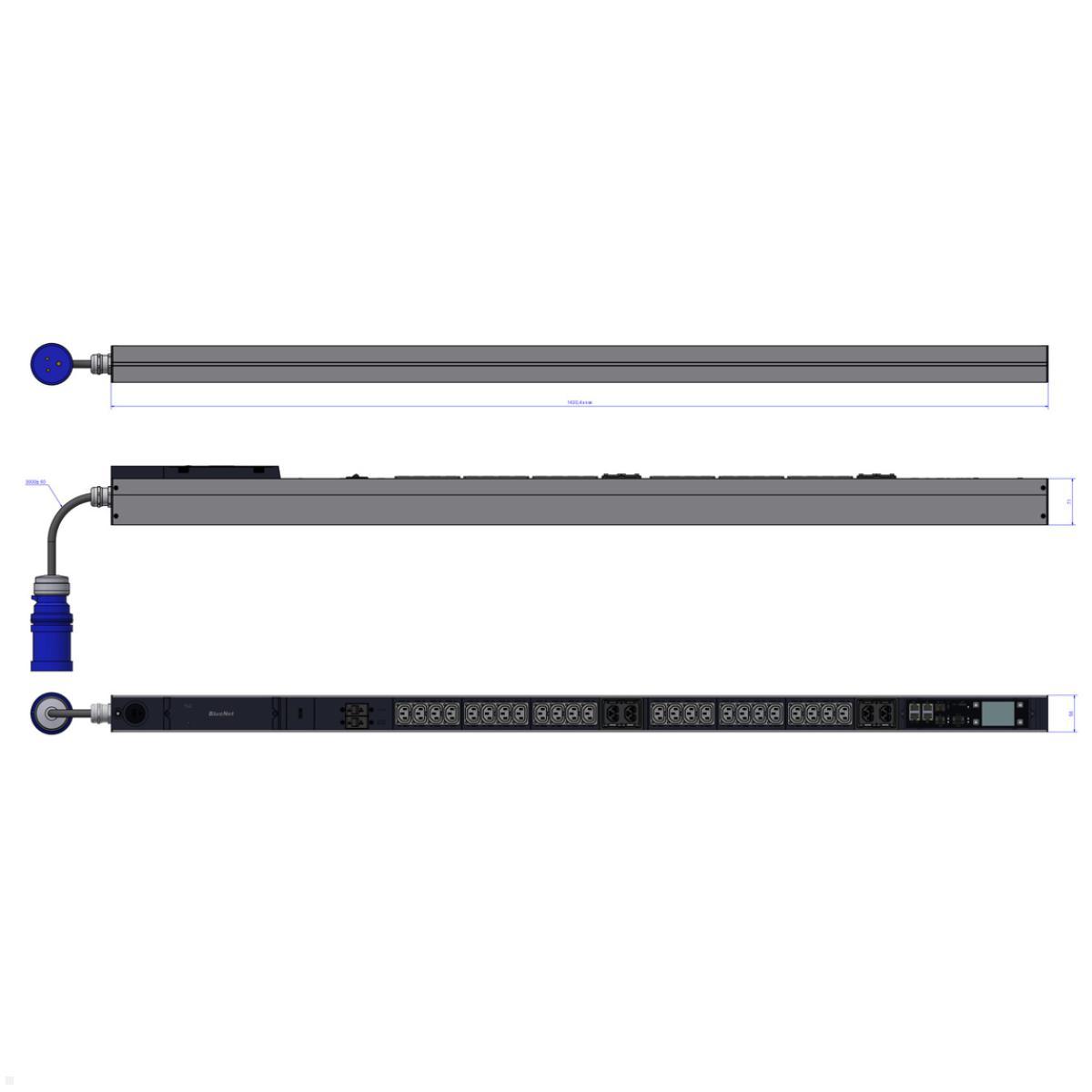

The Bachmann BN PRO M+ Metered RCM BM0024756 consistently focuses on highest operational safety through fully hot-swappable main components. Both the controller and the power supply can be replaced while the unit is running — without shutting down connected devices and without any interruption of the power supply. This virtually eliminates unplanned downtime and greatly simplifies maintenance work, even in critical 24/7 environments with strict SLAs. With a length of 1430 mm, a 3.0 m supply cable (4 mm²) with a blue CEE 32A plug and the supplied L-shaped mounting bracket, the Bachmann BN PRO M+ Metered RCM BM0024756 is ready for immediate deployment. For operators who demand the highest standards of safety, energy transparency and availability for their IT infrastructure, the Bachmann BN PRO M+ Metered RCM BM0024756 is the optimal choice. The combination of precise per-outlet metering, type B RCM protection, hot-swap capability and comprehensive remote management makes it a complete management solution for professional data centers of any size — from small server rooms to large enterprise environments.
