Bachmann BN PRO M+ Metered RCM – 32A Rack PDU with 24xCombo 2xMCB, 3.0m CEE 32A/3p (BM0024757)

Why is the Bachmann BN PRO M+ RCM BM0024757 particularly suitable for safety-critical server rooms?

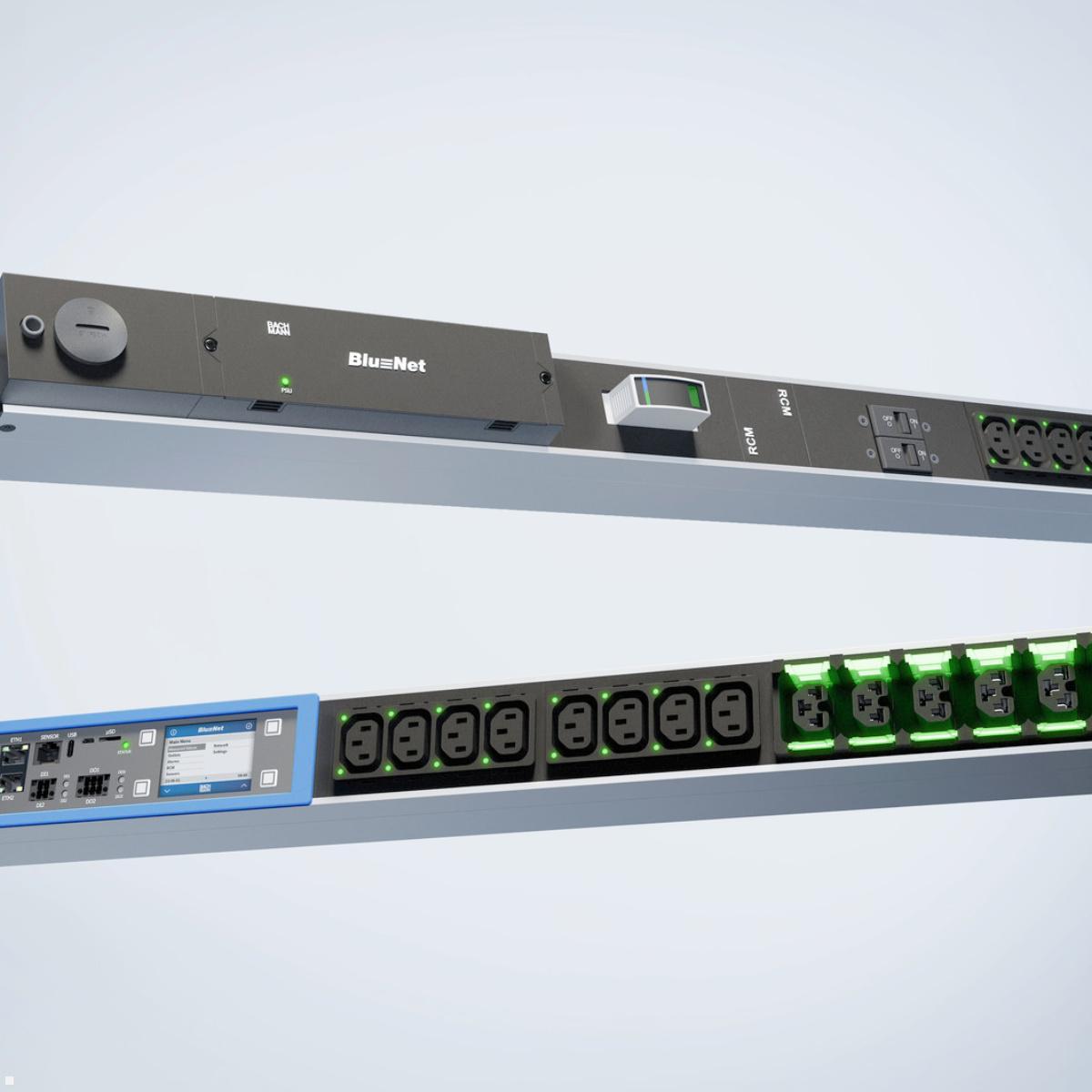

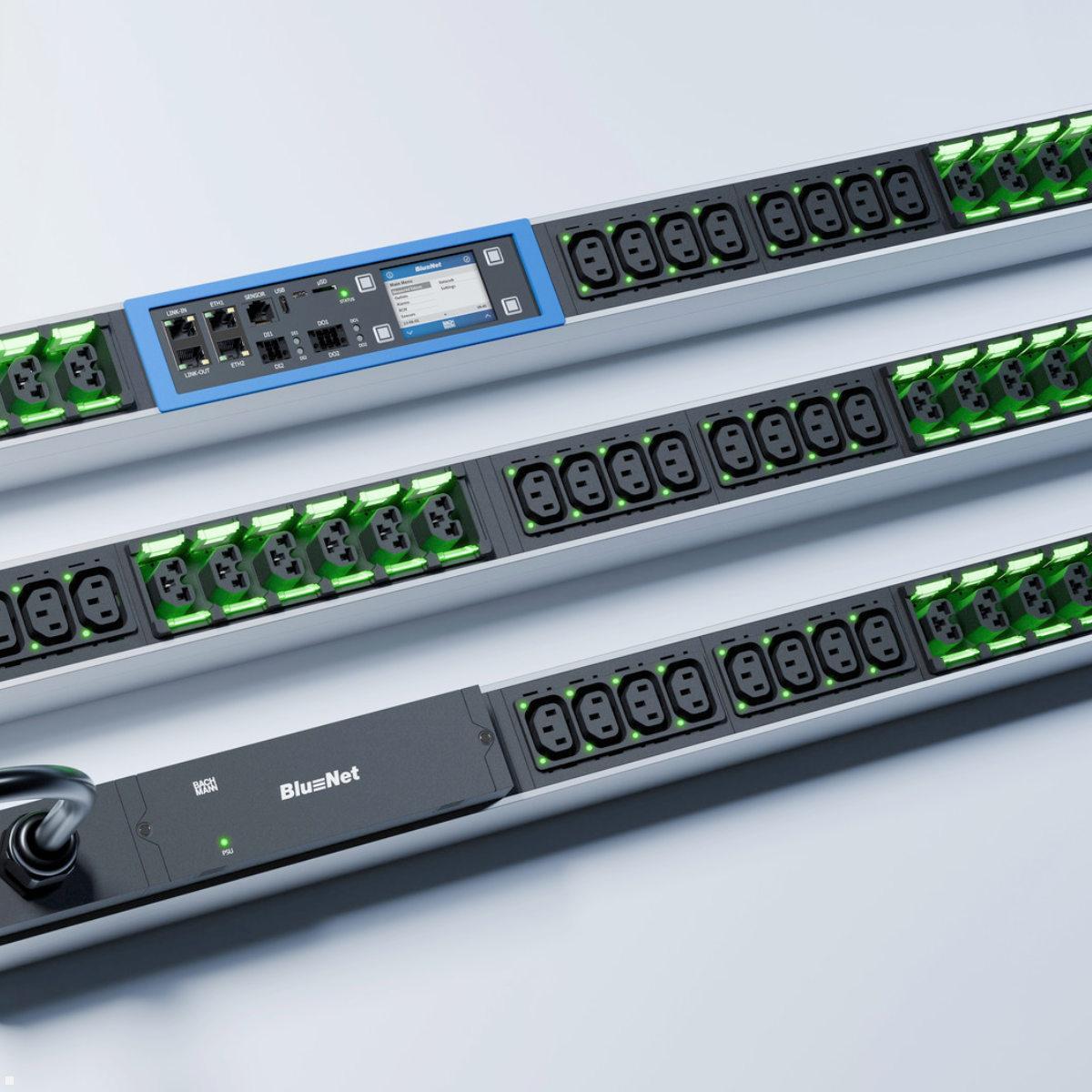

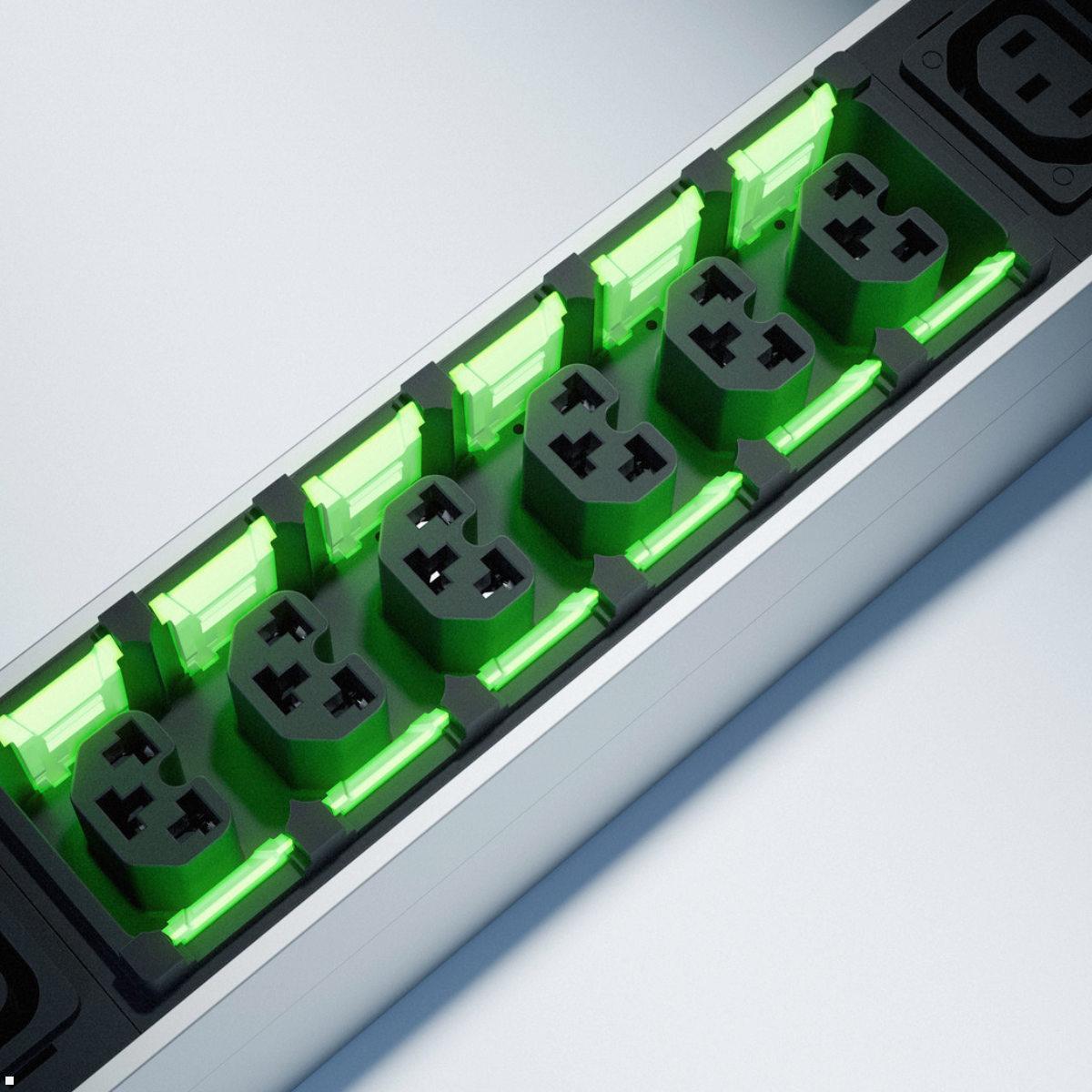

The Bachmann BN PRO M+ Metered RCM BM0024757 combines intelligent single-phase power distribution with integrated type B residual current monitoring (RCM) per phase — a key safety advantage for data centers and server rooms with high availability, protection and compliance requirements. With 24 combo sockets of types C13/C15/C19/C21 and a power capacity of 7.2 kW at 32A/230V, the PDU reliably and efficiently supplies up to 24 devices with power. The RCM function continuously monitors the residual currents per phase and detects fault currents early, before dangerous situations can arise — a decisive advantage for safe continuous operation in critical environments. This protects both the connected IT infrastructure and operating personnel effectively and sustainably around the clock. Individual outlet-level measurement records precise and comprehensive data on current, voltage, reactive power, apparent power, active power, reactive energy, apparent energy, active energy, frequency and power factor — for full energy transparency at outlet level and optimal energy management in professional data centers. Two hydraulic-magnetic circuit breakers rated at 16 amperes each provide additional reliable overload protection. The 2.4-inch TFT color display as well as color-coded frames in blue and red facilitate quick identification and direct management of the PDU at the rack. The supplied L-shaped mounting bracket enables quick and uncomplicated installation.

What network and remote management options does the Bachmann Rack PDU BM0024757 offer in detail?

The BN PRO M+ Metered RCM BM0024757 offers comprehensive remote management options that fully meet the requirements of modern data centers. The integrated web server with a full web interface enables convenient access via any standard browser without installing additional software or special drivers. Two independent Ethernet ports are available: a gigabit port with PoE support and a 10/100 Mbps port for redundant connectivity and maximum management connection fault tolerance. SNMP support allows seamless integration into existing monitoring systems such as Nagios, Zabbix, PRTG or DCIM solutions. Up to 20 PDUs can be centrally managed via the PDU cascade interface. An RJ45 connector for up to ten external sensors and a USB-C port (USB 2.0) complete the set of interfaces. Data logging, automated provisioning and alerting functions round out the management package of the Bachmann BN PRO M+ Metered RCM BM0024757.

How does the Bachmann BN PRO M+ RCM PDU guarantee maximum operational continuity and fault tolerance?

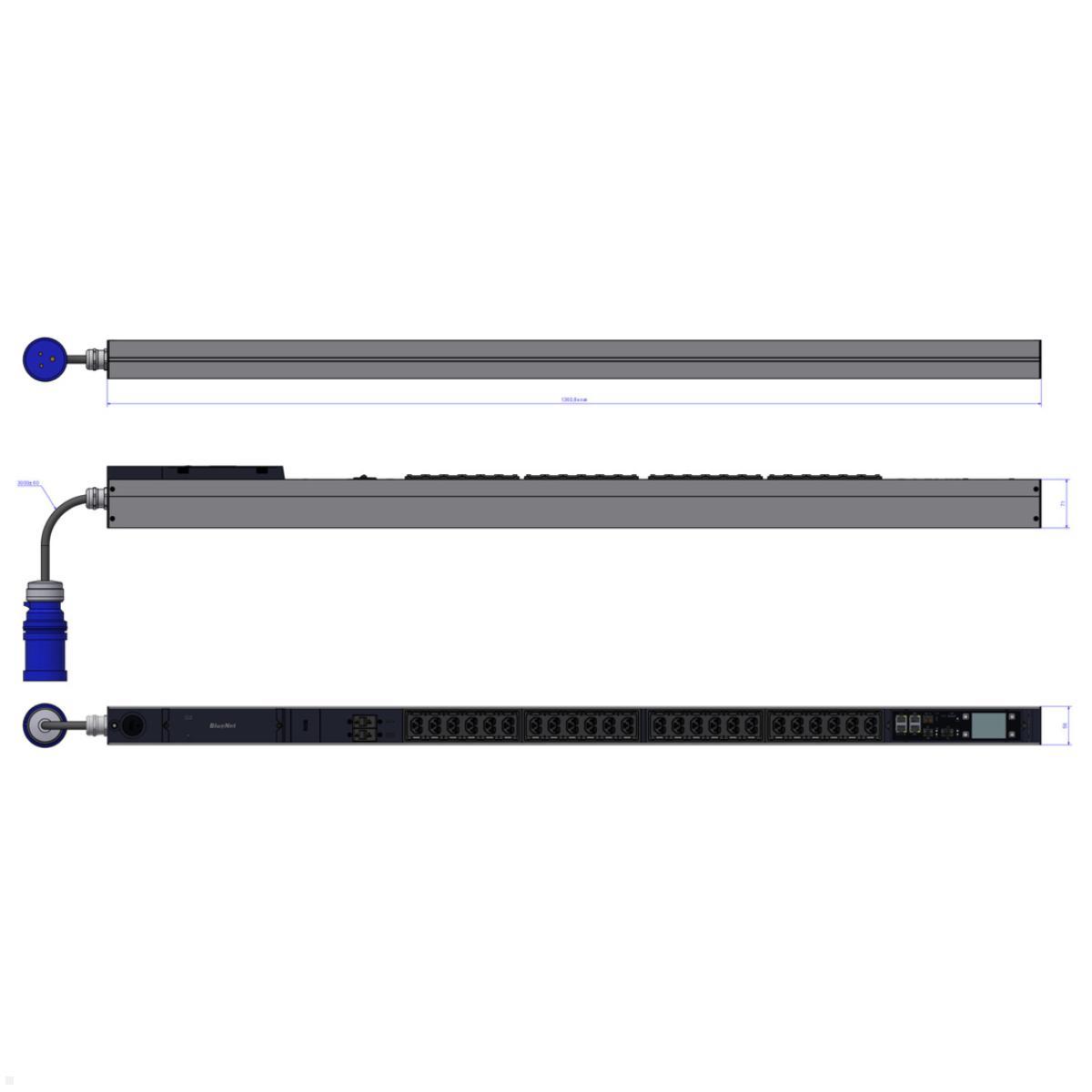

The Bachmann BN PRO M+ Metered RCM BM0024757 relies on fully hot-swappable components for highest operational continuity and maximum fault tolerance. Both the controller and the power supply can be swapped while running — without shutting down connected equipment and without any interruption of power. This minimizes unplanned downtime almost entirely and significantly simplifies maintenance work, even in critical 24/7 environments with strict SLAs and highest availability requirements. The integrated type B RCM residual current monitoring continuously oversees fault currents per phase. With a compact length of 1361 mm, a 3.0 m supply cable (4 mm²) with a blue CEE-32A plug and the supplied L-shaped mounting bracket, the Bachmann BN PRO M+ Metered RCM Rack PDU BM0024757 is ready for immediate deployment. For operators who demand the highest standards of safety, energy transparency and availability for their IT infrastructure, the Bachmann BN PRO M+ Metered RCM BM0024757 is the optimal choice. The combination of precise per-socket measurement, type B RCM protection, hot-swap capability and extensive remote management makes it a complete management solution for professional data centers of any size — from small server rooms to large enterprise environments.
