Bachmann BN PRO M+ Metered – 32A Rack PDU with 24xCombo 6xMCB, 3,0m CEE 32A/5p (BM0024760)

Why is the Bachmann BN PRO M+ BM0024760 the ideal 3-phase rack PDU for your server room?

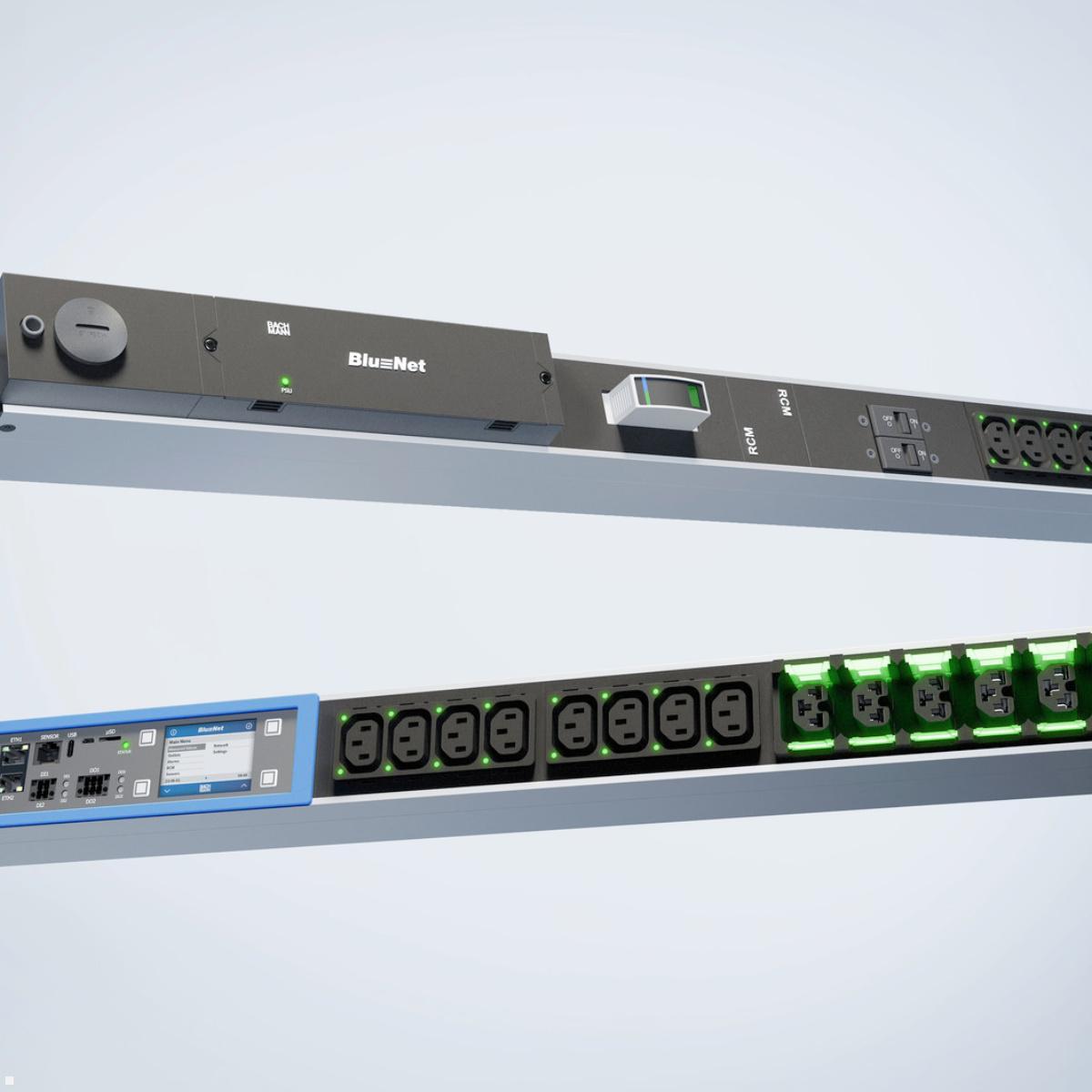

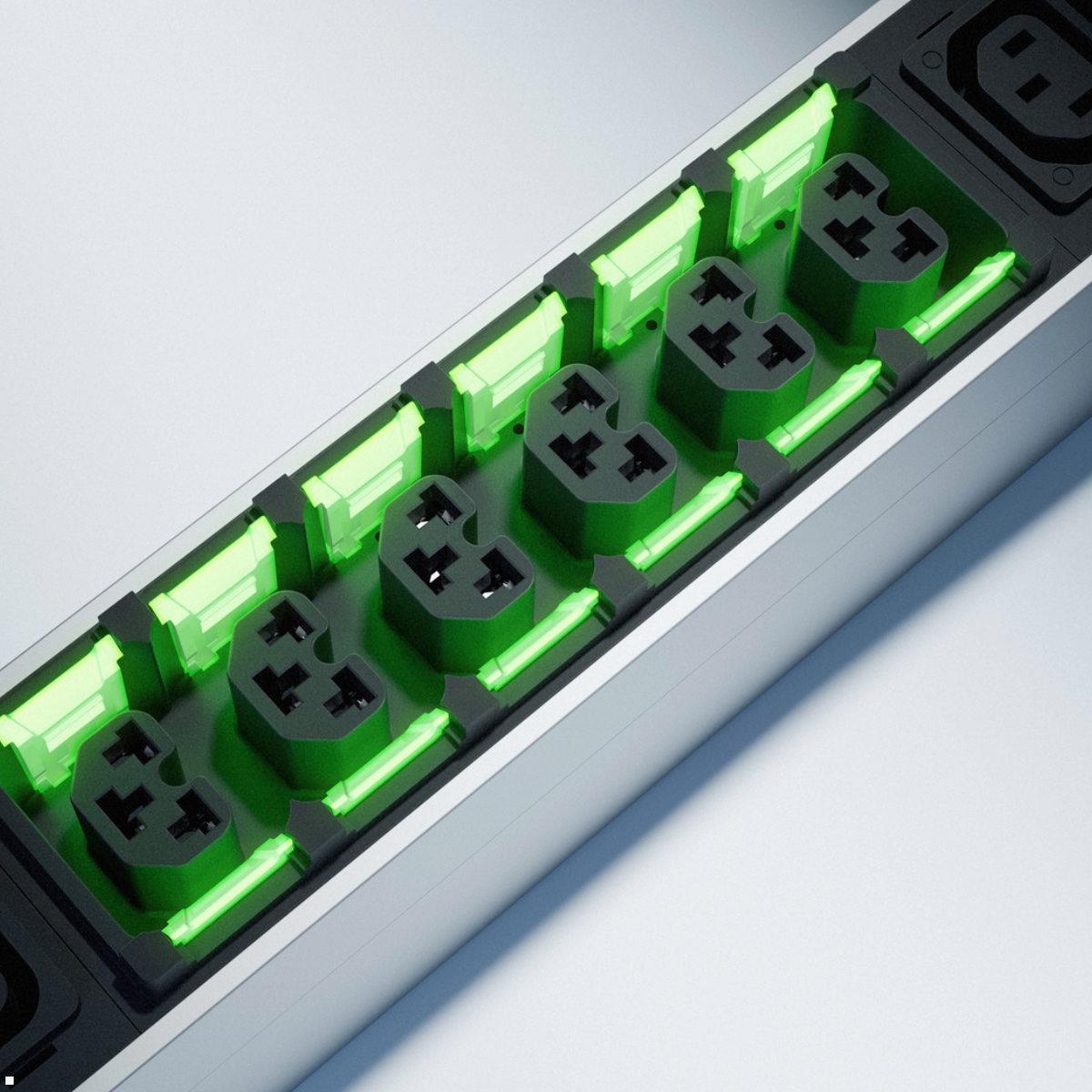

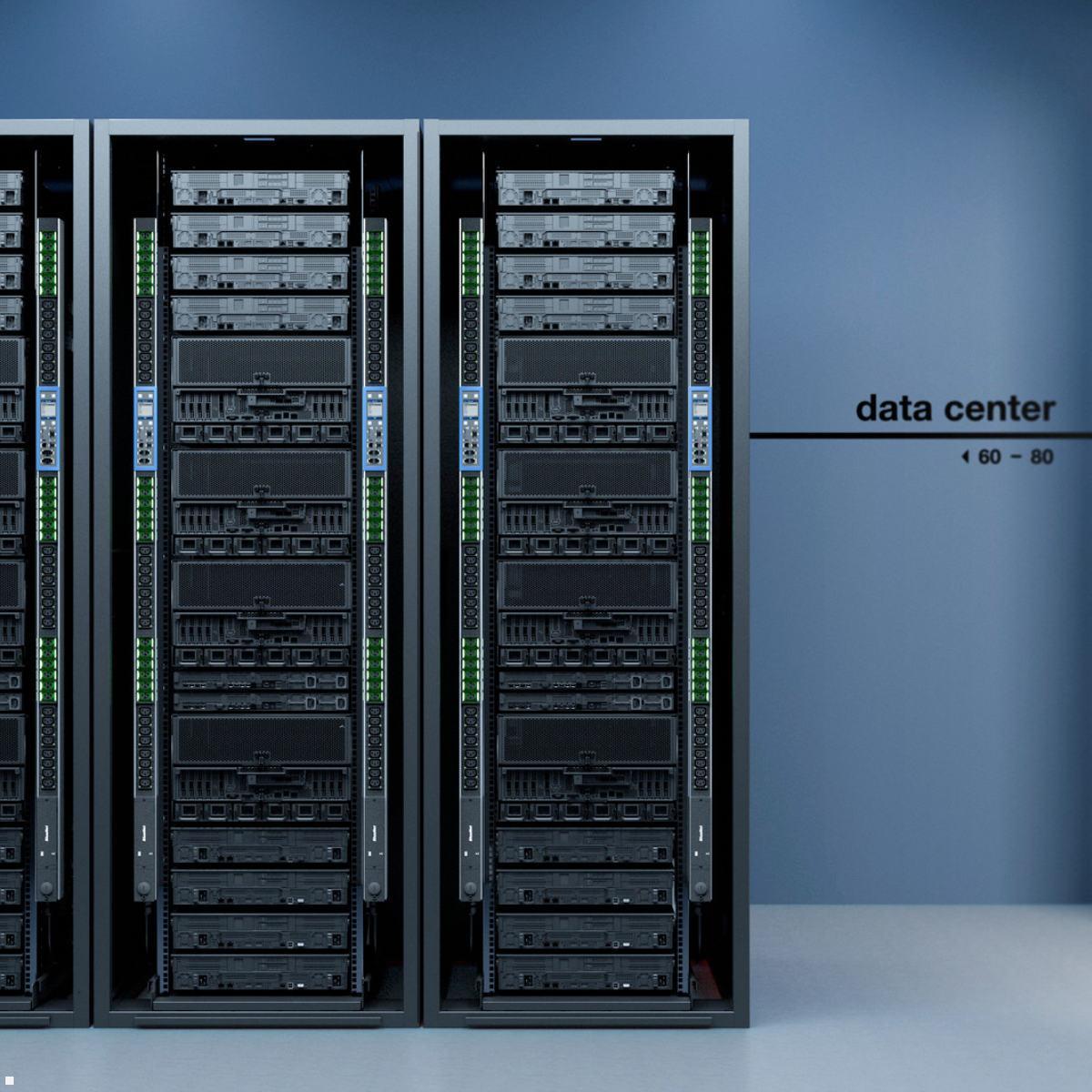

The Bachmann BN PRO M+ Metered BM0024760 was specifically developed for 3-phase data center environments with high power demands and stringent requirements for energy management and availability. With 24 combo outlets of types C13/C15/C19/C21, it offers maximum connection flexibility for a wide range of servers, storage systems and network components. With a power capacity of 22 kW (32A/400V) it reliably and efficiently supplies demanding server infrastructures with power across all three phases simultaneously. Six hydraulic-magnetic circuit breakers rated at 16 amperes each distribute overload protection evenly across all three phases and reliably protect the entire connected IT infrastructure against overvoltage and overload. Individual per-outlet measurement captures precise and complete data for current, voltage, reactive power, apparent power, active power, reactive energy, apparent energy, active energy, frequency and power factor — for full energy transparency at the outlet level and optimal, cost-efficient energy management in professional data centers. The 2.4-inch TFT color display as well as color-coded frames in blue and red make quick identification and direct management of the PDU in the rack easier. The supplied L-shaped mounting bracket allows for quick and secure installation.

What networking and remote management options does the Bachmann PDU BM0024760 offer for professional use?

The BN PRO M+ Metered BM0024760 provides a complete suite of remote management and networking options for professional data centers. The integrated web server with a full-featured web interface enables convenient access to all functions and measurement data via any standard browser without installing additional software or drivers. Two independent Ethernet ports — a Gigabit port with PoE support and a 10/100 Mbps port — as well as SNMP support allow seamless integration into existing IT networks and monitoring systems such as Nagios, Zabbix, PRTG or DCIM solutions. Up to 20 PDUs can be centrally managed and monitored via the PDU chaining interface. An RJ45 connector for up to ten external sensors as well as a USB-C port (USB 2.0), data logging and alerting functions complete the comprehensive management package.

How does the Bachmann BN PRO M+ rack PDU BM0024760 ensure uninterrupted operation in the data center?

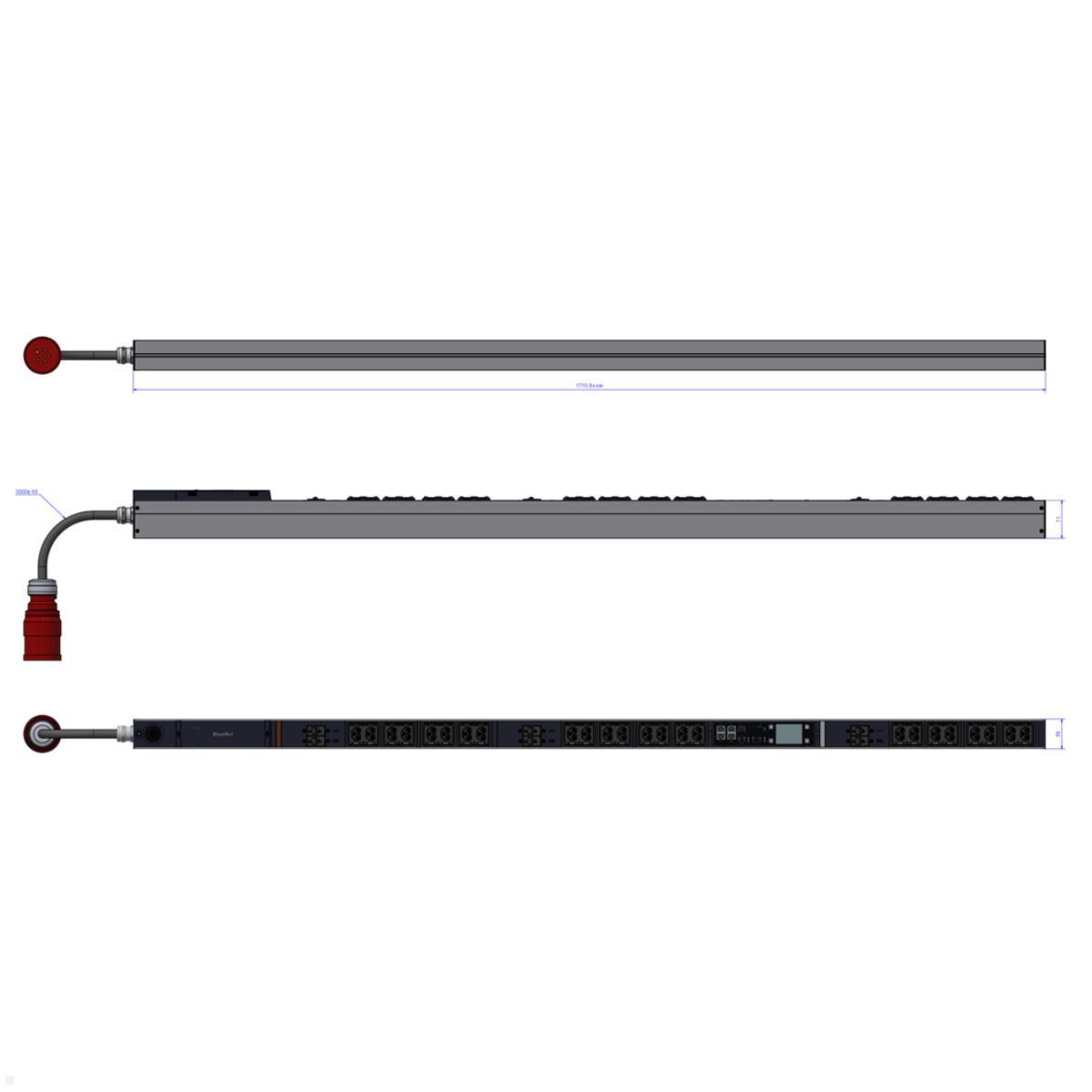

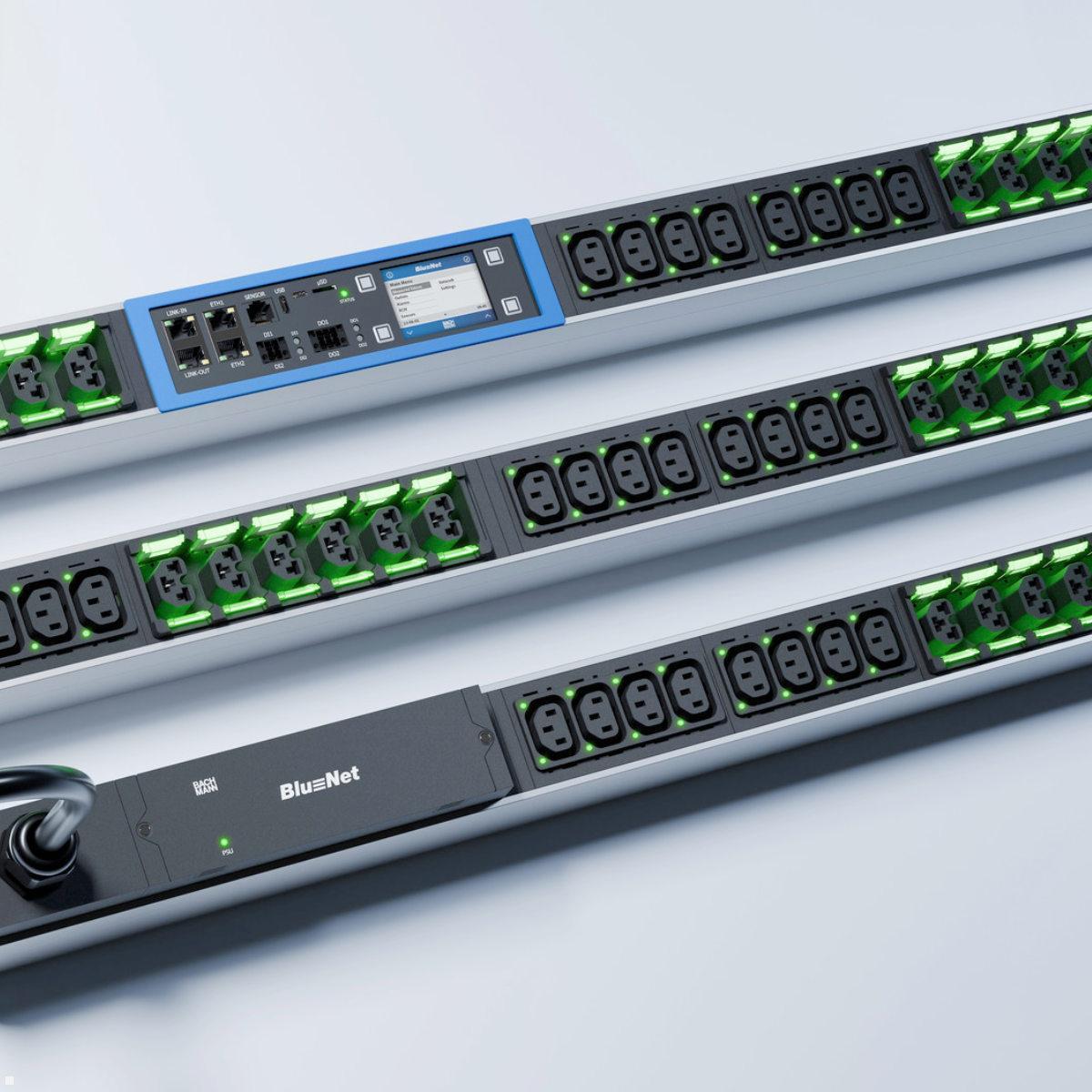

A central feature of the Bachmann BN PRO M+ Metered BM0024760 is high operational reliability through fully hot-swappable main components. Both the controller and the power supply can be replaced while in operation — without shutting down connected devices and without any interruption to the power supply. This minimizes unplanned downtime to an absolute minimum and greatly simplifies maintenance, even in critical 24/7 environments with the highest availability requirements and strict SLAs. With a compact length of 1711 mm, a 3.0 m long input cable (4 mm²) with a red CEE-32A plug and the supplied L-shaped mounting bracket, the 3-phase rack PDU BM0024760 from Bachmann is ready for immediate operation. For operators of 3-phase data centers who demand the highest levels of energy transparency, availability and manageability for their IT infrastructure, the Bachmann BN PRO M+ Metered BM0024760 is the optimal choice. The combination of 24 combo outlets, precise per-outlet measurement, hot-swap capability and extensive remote management makes it a complete management solution for professional 3-phase data center environments of any scale. The Bachmann BN PRO M+ Metered BM0024760 is the ideal choice for administrators who require complete control and maximum transparency over every single load in 3-phase data centers. Its combination of high power capability, flexible outlet configuration and hot-swap functionality makes it a reliable foundation for any professional IT infrastructure. The Bachmann BN PRO M+ Metered BM0024760 convinces through its well-considered combination of 3-phase high-power supply, flexible combo outlet configuration and comprehensive energy management at the outlet level.
