Bachmann BN PRO M+ Metered RCM – 32A Rack PDU with 36xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024763)

Why is the Bachmann BN PRO M+ RCM BM0024763 with 36xCombo the most powerful 3-phase rack PDU with residual current measurement?

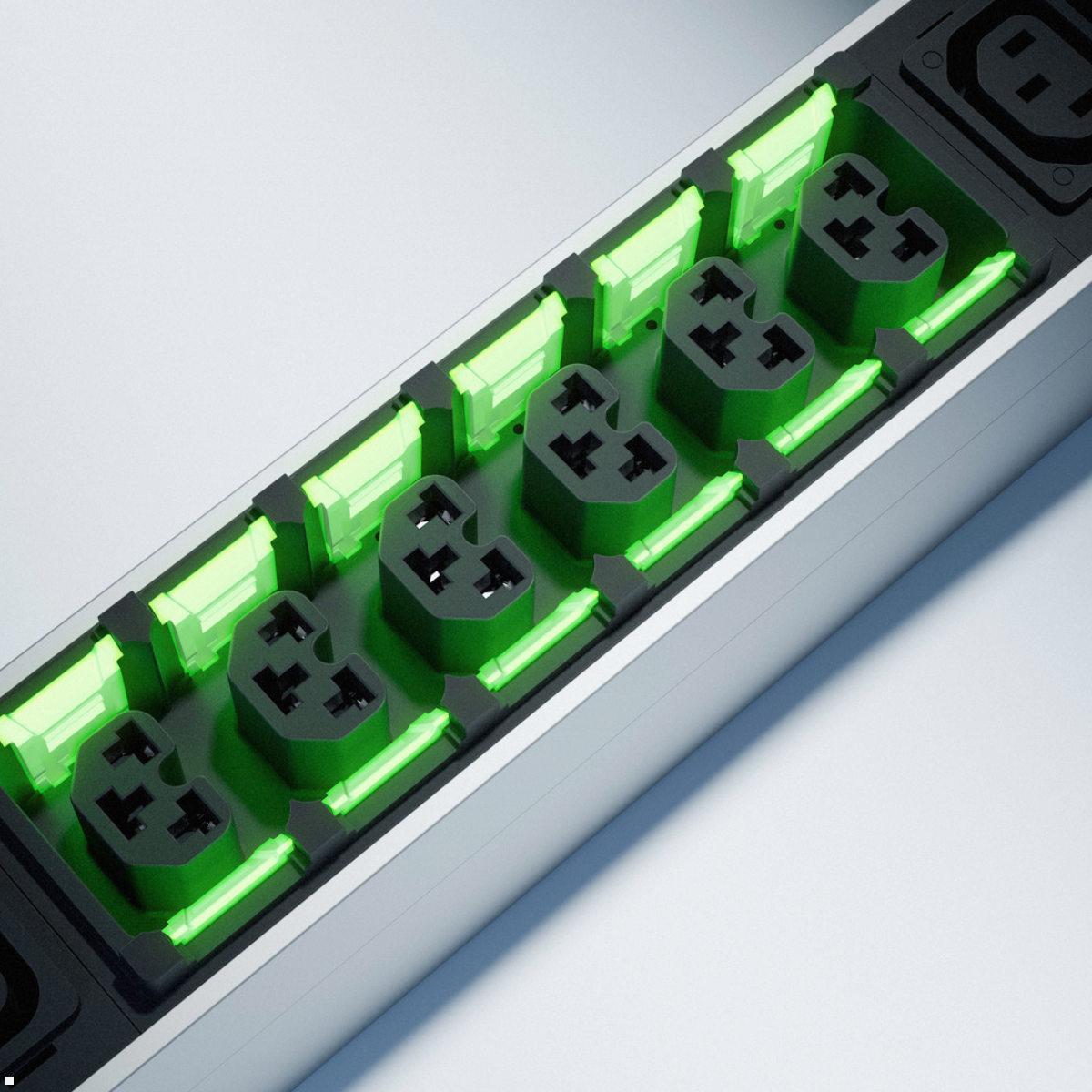

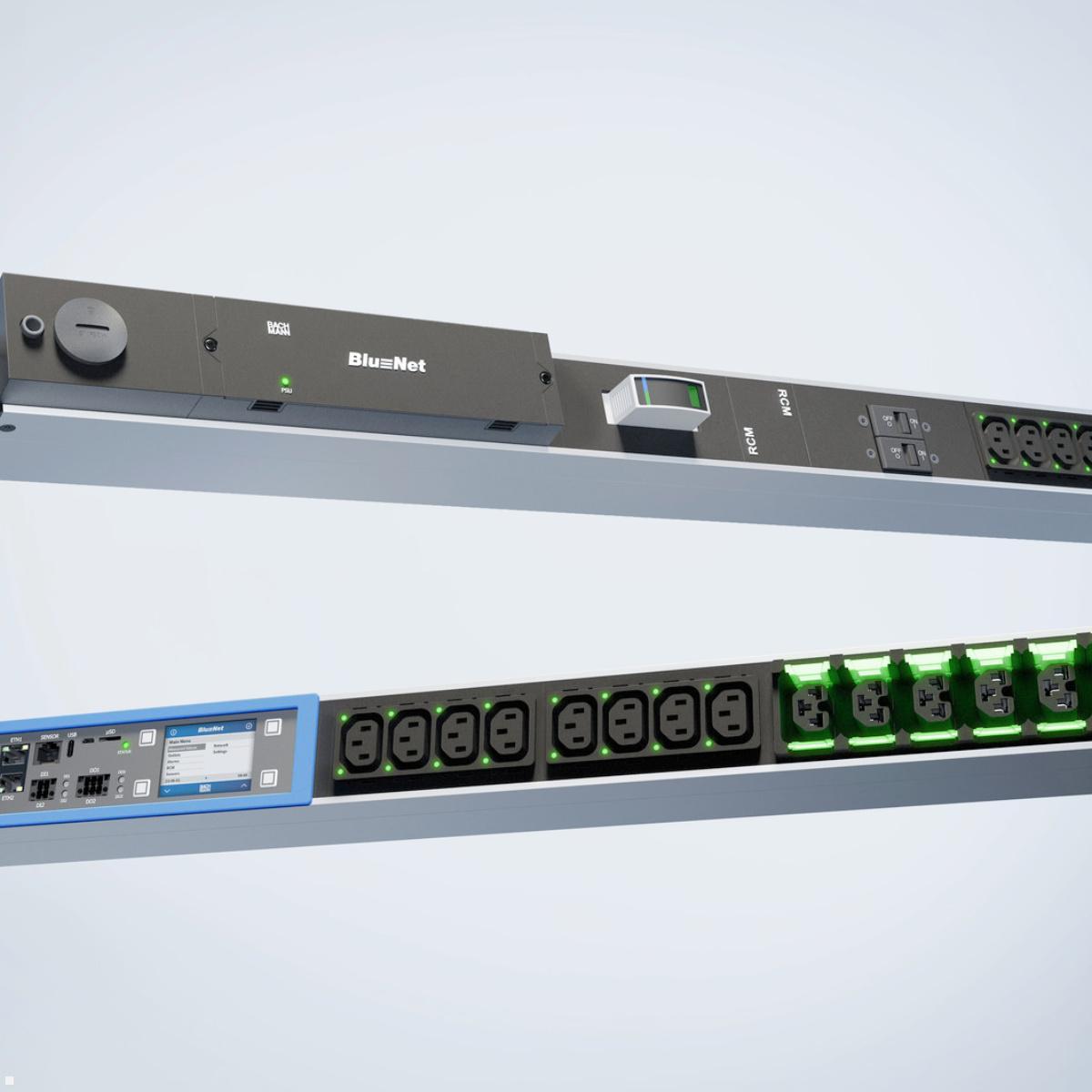

Die Bachmann BN PRO M+ Metered RCM BM0024763 offers maximum connection capacity and highest flexibility for 3-phase high-performance data centers with 36 combo outlets of types C13/C15/C19/C21 — while at the same time relying on the highest safety standards through integrated residual current measurement (RCM) type B per phase. With a power capacity of 22 kW (32 A / 400 V), it reliably supplies a large number of servers, storage systems, switches and other network components simultaneously and efficiently across all three phases. The RCM function continuously and precisely monitors the residual currents per phase and detects fault currents early, before dangerous situations can arise. This protects both the connected IT infrastructure and operating personnel sustainably and reliably around the clock. Six hydraulic-magnetic circuit breakers rated at 16 amperes each protect all three phases evenly against overload. The individual per-outlet measurement provides precise and complete values for current, voltage, reactive power, apparent power, active power, reactive energy, apparent energy, active energy, frequency and power factor — for seamless energy management at outlet level. The 2.4-inch TFT color display as well as color-coded frames in blue and red significantly simplify rack management.

What network and monitoring options does the Bachmann Rack PDU BM0024763 offer for complex data center infrastructures?

The BN PRO M+ RCM BM0024763 enables comprehensive remote management via the integrated web server with a full web interface. Convenient access to all functions and measurement data is possible through any standard browser without installing additional software or special drivers. Two independent Ethernet ports — a Gigabit port with PoE and a 10/100 Mbps port — as well as SNMP support ensure seamless integration into complex IT networks, DCIM systems and monitoring solutions such as Nagios, Zabbix or PRTG. Up to 20 PDUs can be centrally managed and monitored via the PDU cluster interface. An RJ45 port for up to ten external sensors as well as a USB-C port (USB 2.0), automated provisioning, data logging and alarm functions complete the comprehensive management package of the Bachmann BN PRO M+ Metered RCM BM0024763.

How does the Bachmann BN PRO M+ RCM PDU 36xCombo ensure maximum availability and operational safety in the data center?

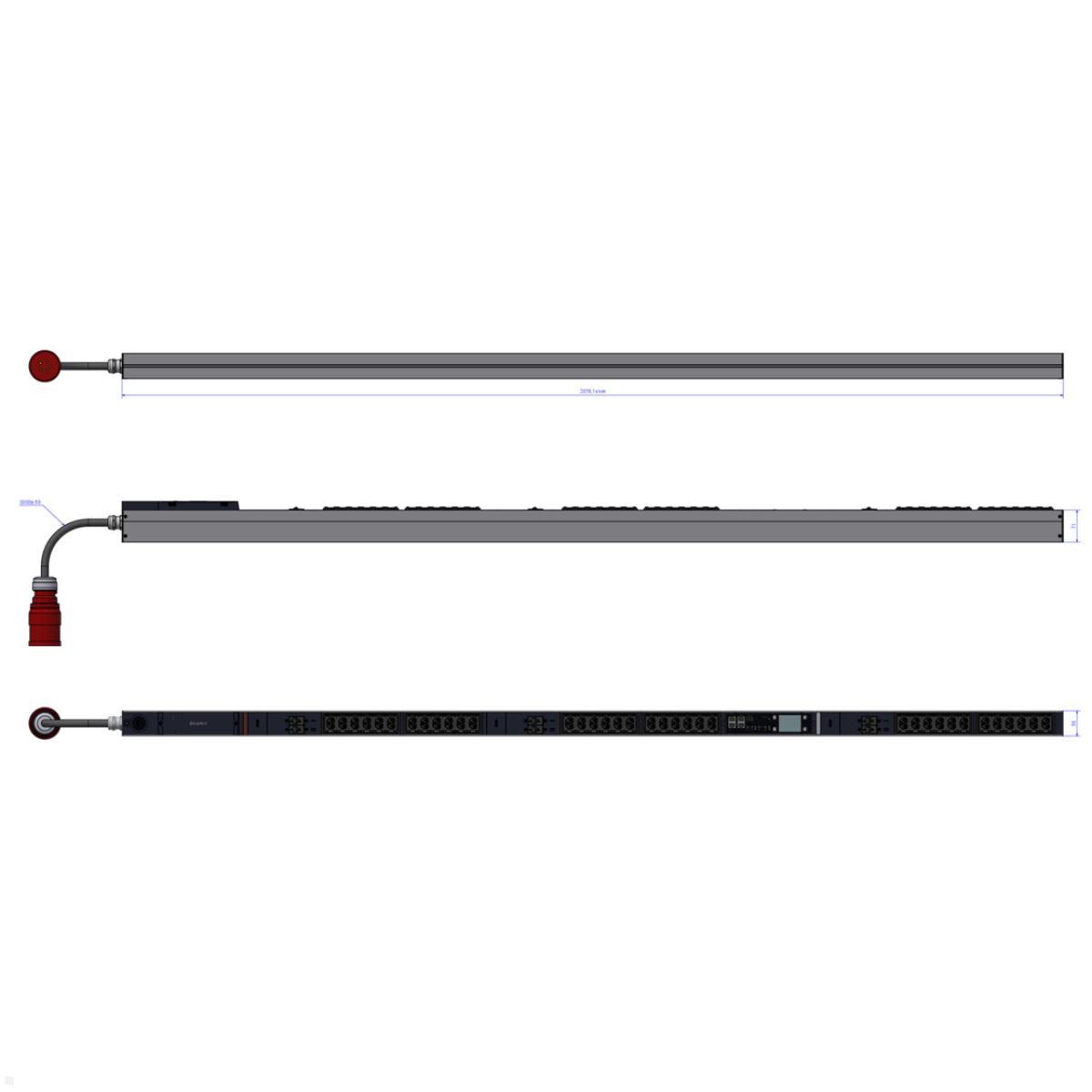

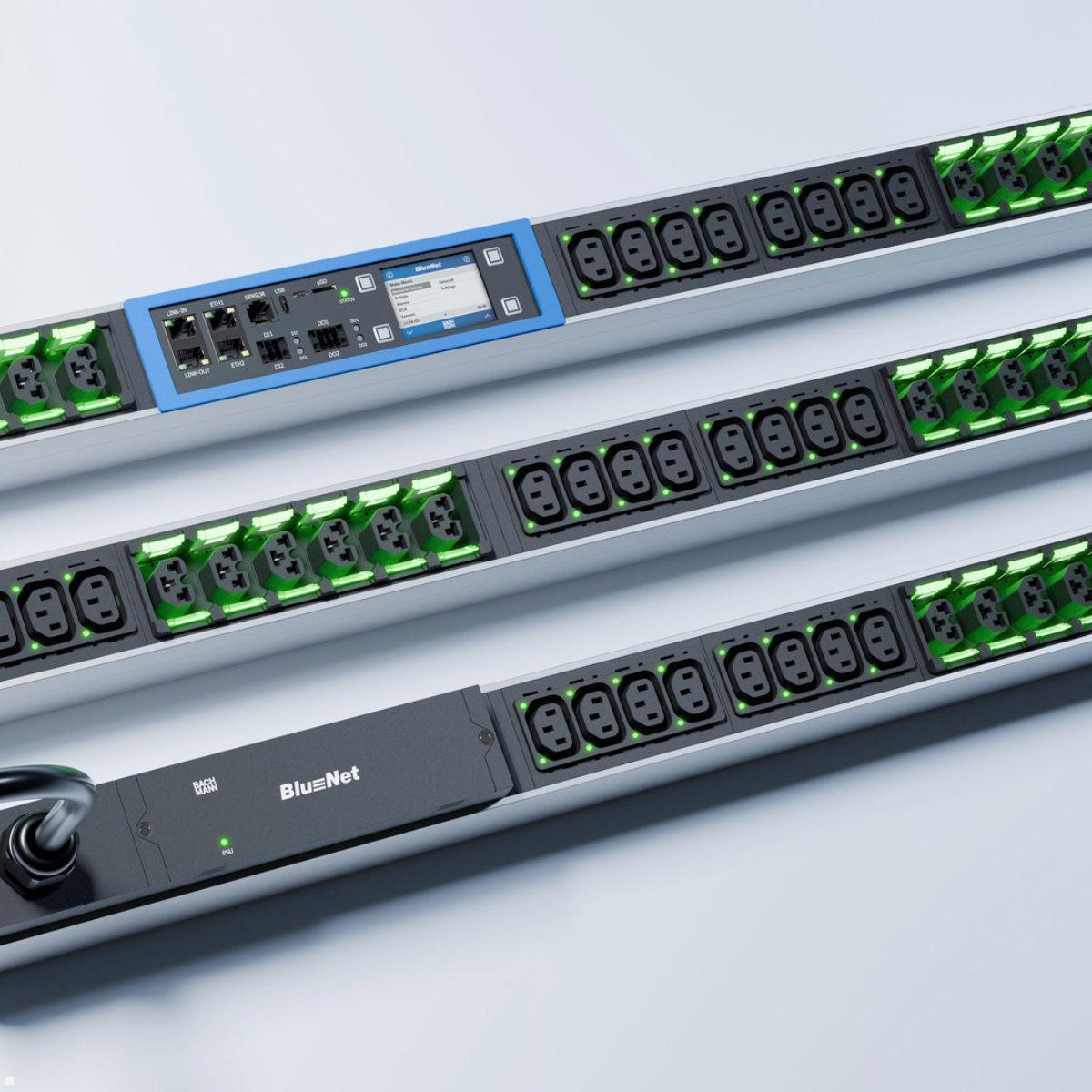

The Bachmann BN PRO M+ Metered RCM BM0024763 consistently relies on fully hot-swap-capable components for maximum operational reliability and highest availability: controller and power supply can both be replaced while running — without shutting down connected devices and without any interruption of the power supply. The integrated RCM residual current measurement type B continuously monitors fault currents per phase and thus protects people and IT infrastructure reliably around the clock. Unplanned downtimes are reduced to an absolute minimum, maintenance is significantly simplified, even in critical 24/7 environments with the highest demands. With a length of 2078 mm, a 3.0 m long supply cable (4 mm²) with a red CEE-32A plug and the supplied mounting bracket (L-shape), the 3-phase Rack PDU BM0024763 from Bachmann is immediately ready for full operation. For operators of 3-phase high-performance data centers with increased safety requirements who demand the highest levels of connection capacity, RCM protection, energy transparency and availability of their IT infrastructure, the Bachmann BN PRO M+ Metered RCM BM0024763 is the optimal choice. The combination of 36 combo outputs, RCM type B per phase, precise per-outlet measurement and hot-swap capability makes it the most powerful safety and management solution in its class. The Bachmann BN PRO M+ Metered RCM BM0024763 is the first choice for administrators who want to combine maximum connection capacity with RCM protection type B, full energy transparency and highest availability in 3-phase high-performance data centers. It is the most powerful and safest management solution in its class for demanding professional IT infrastructures.
