Bachmann BN PRO M+ Metered – 32A Rack PDU with 24xCombo 2xMCB, 3.0m CEE 32A/3p (BM0024755)

Why is the Bachmann BN PRO M+ Metered BM0024755 the right rack PDU for professional data centers?

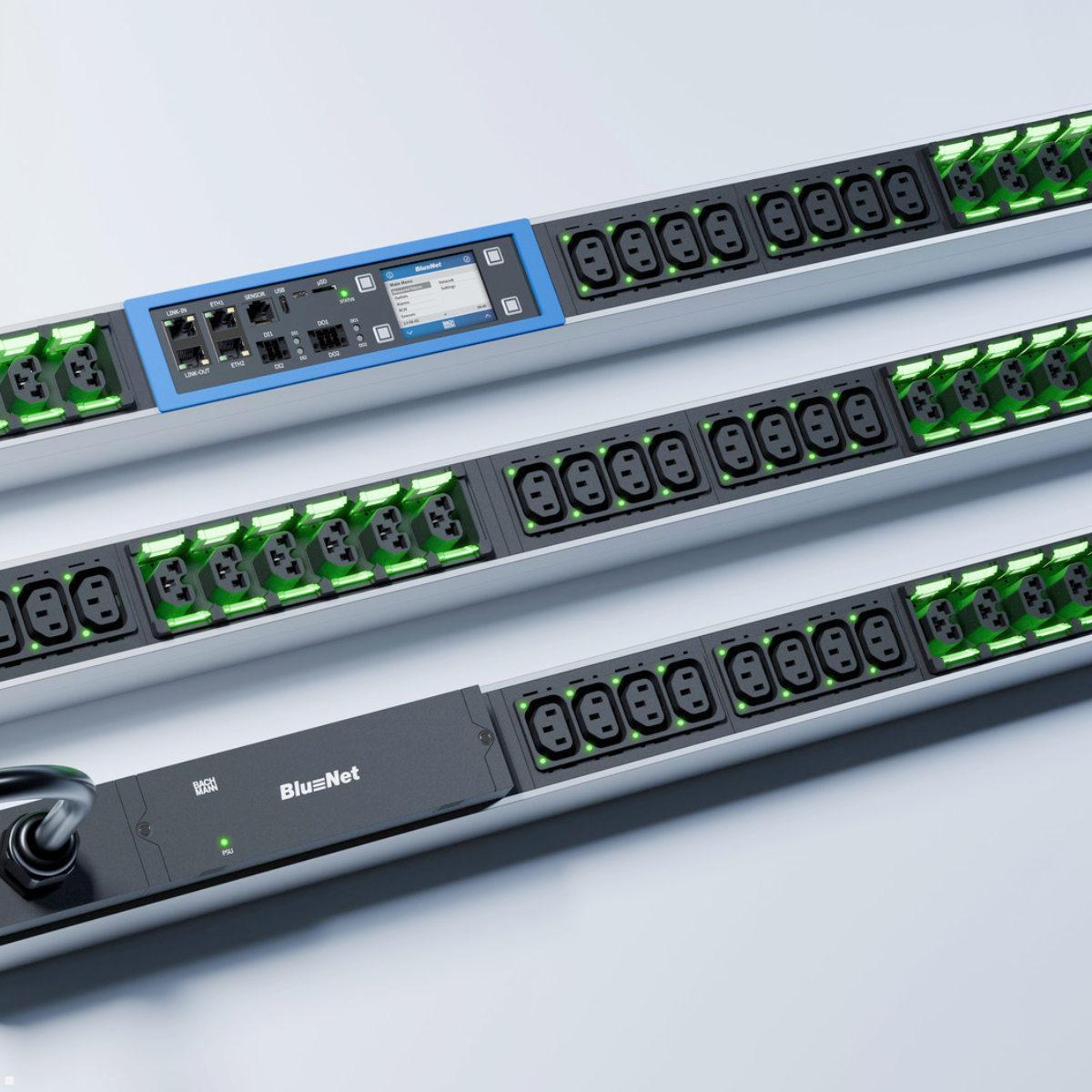

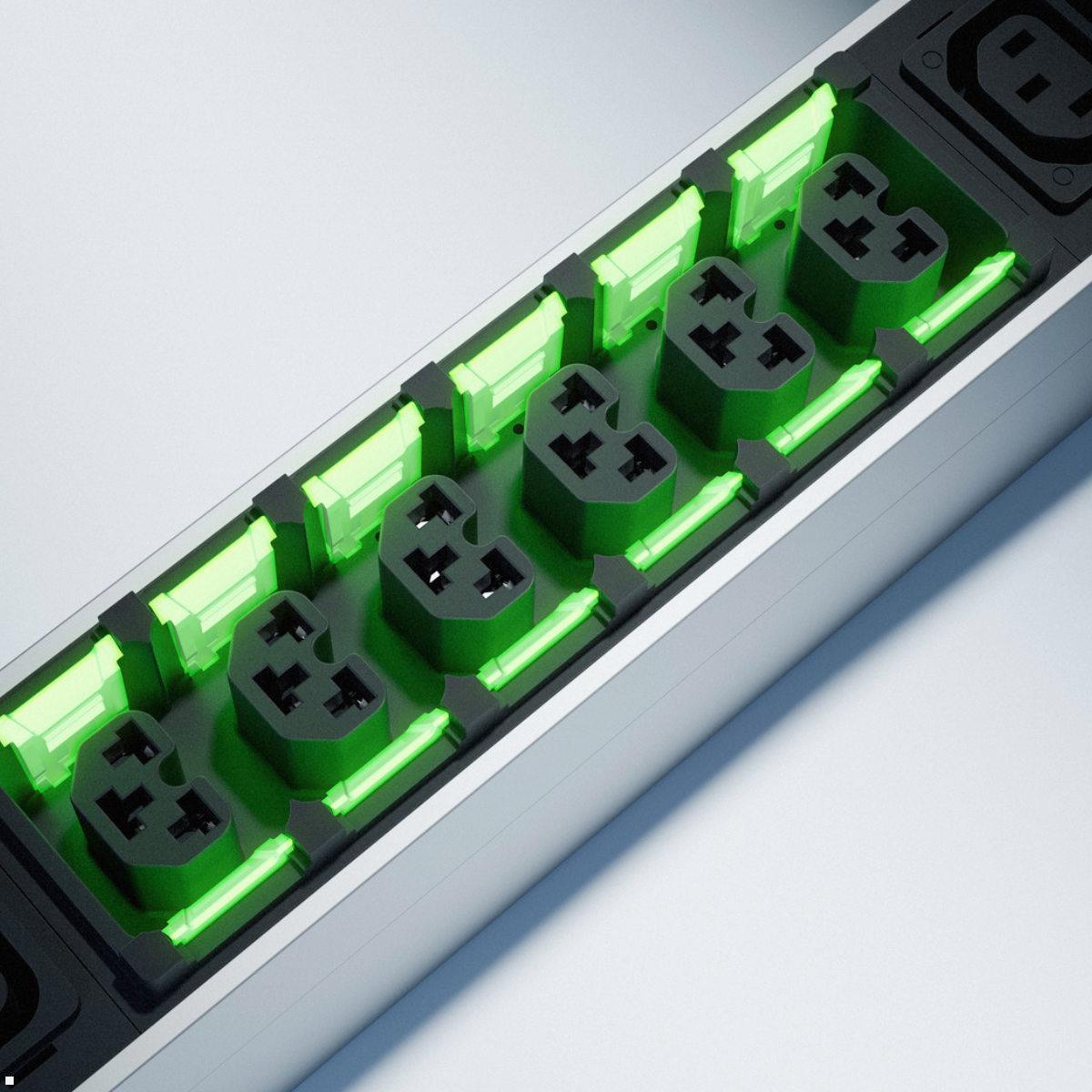

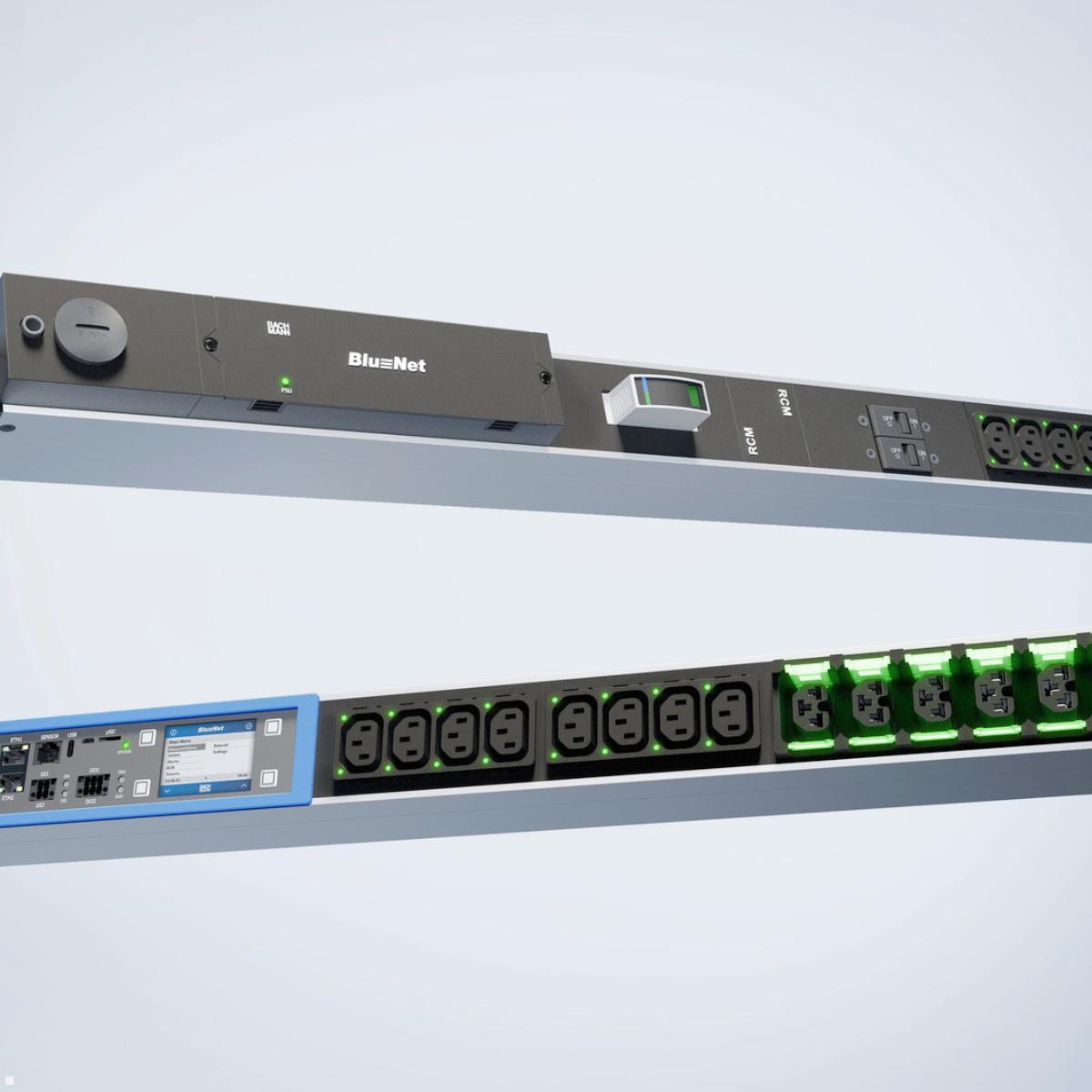

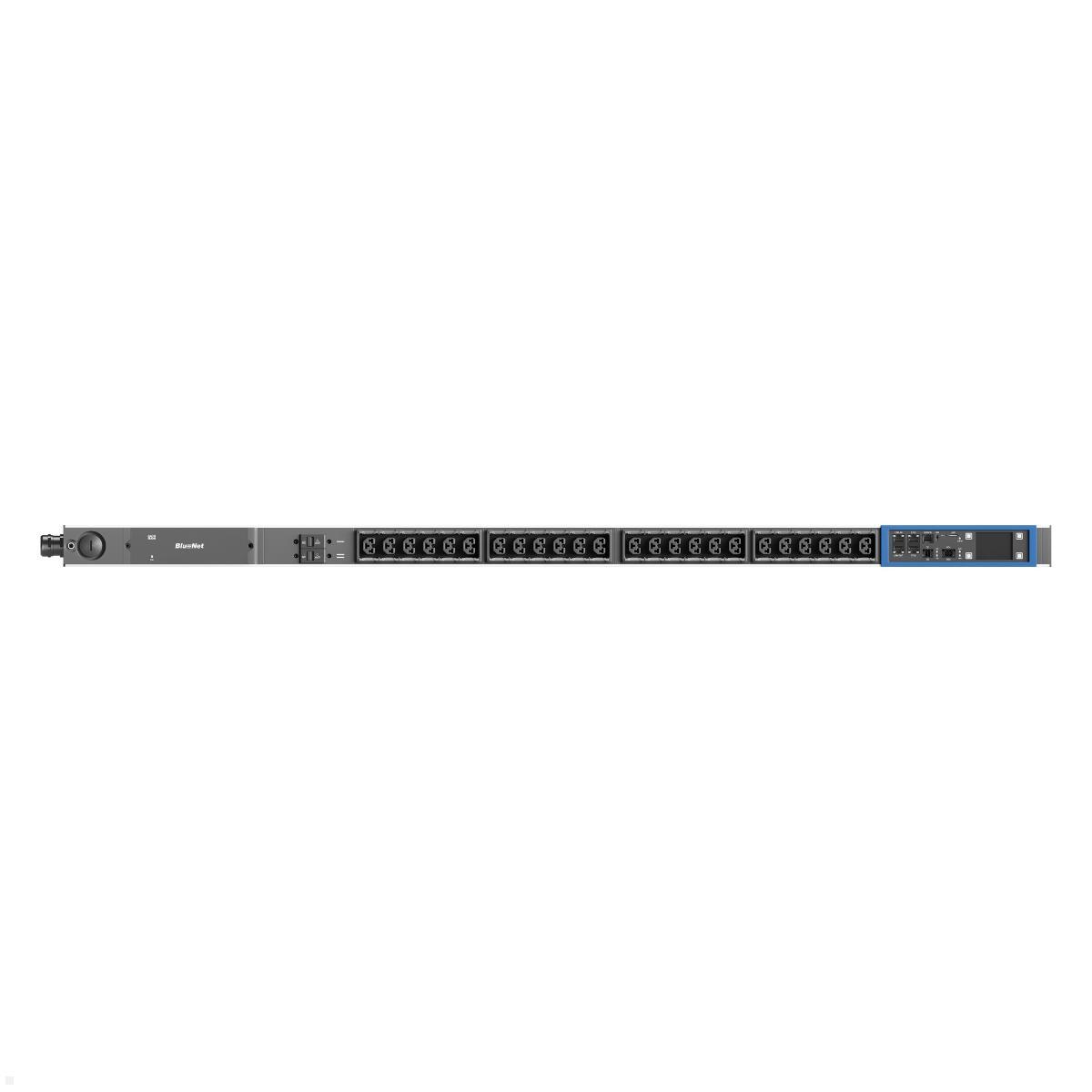

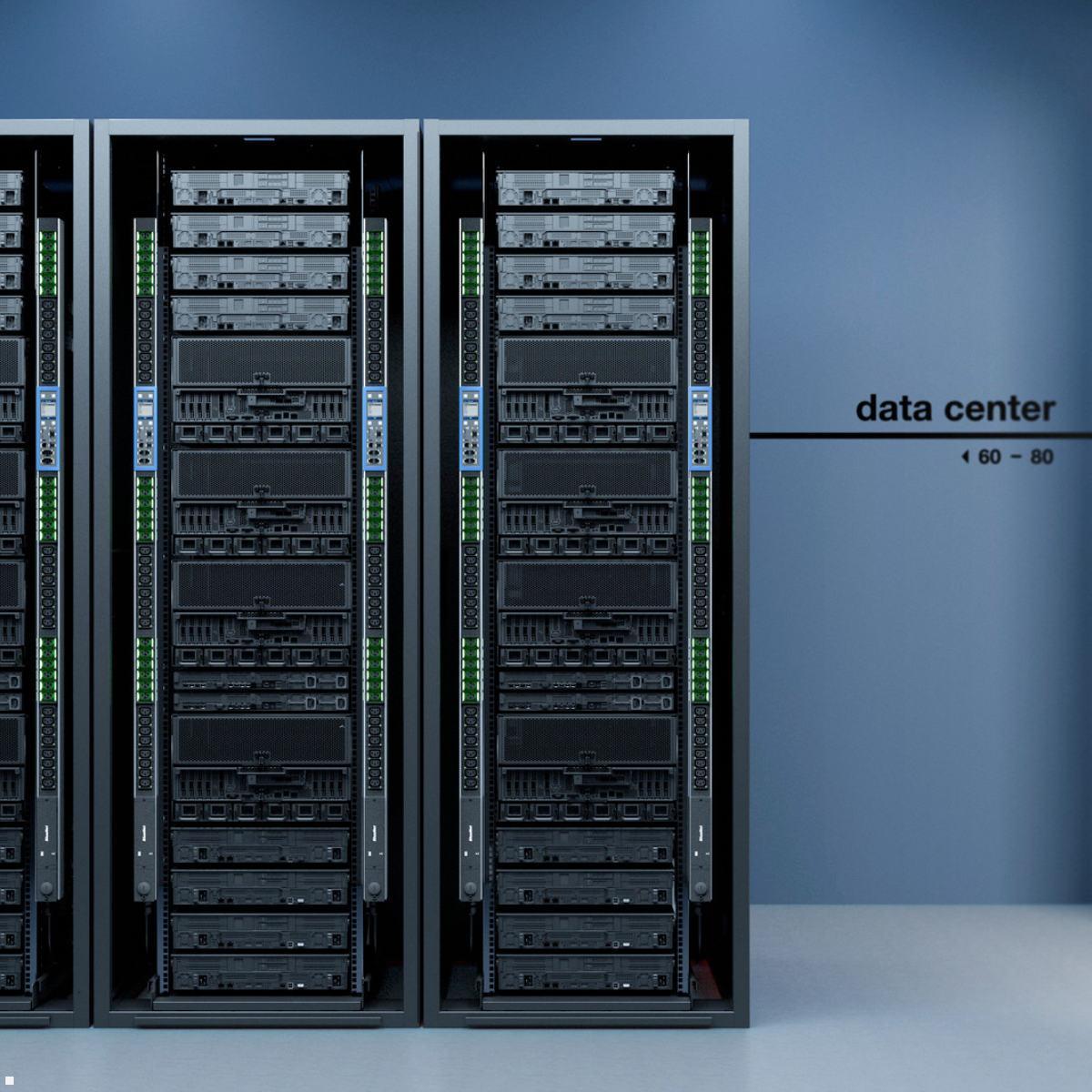

Die Bachmann BN PRO M+ Metered BM0024755 is a vertical rack PDU of the latest generation, specifically designed for use in professional data centers, server rooms and critical IT infrastructures. With 24 combo outlets of types C13/C15/C19/C21 and a single-phase 32A/230V CEE input, it delivers a power capacity of 7.2 kW and thus reliably supplies a variety of servers, switches, storage systems and other network components simultaneously. The heart of the BM0024755 is per-outlet metering: for each individual consumer, current, voltage, reactive power, apparent power, active power, reactive energy, apparent energy, active energy, frequency and power factor are precisely measured and recorded. This granular energy transparency enables data center managers to monitor the energy consumption of individual devices exactly, to identify savings potential in a targeted manner and to optimally plan load distributions. Two hydraulic-magnetic circuit breakers rated at 16 amps each provide reliable overload protection for all connected devices. Color-coded frames in blue and red as well as the high-resolution 2.4-inch TFT color display with automatic orientation function make quick identification and direct management of the PDU on the rack easier, even in densely populated data center environments with many rack units. The supplied L-shaped mounting bracket allows quick, secure and tool-friendly installation without additional accessories.

What management and networking options does the Bachmann BN PRO M+ BM0024755 offer in detail?

The BN PRO M+ Metered BM0024755 offers a comprehensive package of remote management and networking options that fully meet the requirements of modern data centers. The integrated web server with a full-featured web interface enables comfortable access to all functions and measurement data via any common standard browser – without installing additional software or special drivers. Two independent Ethernet ports are available: a gigabit port with PoE support for primary network connection and a 10/100 Mbps port for redundant connectivity and maximum management connectivity fault tolerance. SNMP support ensures seamless integration into existing IT monitoring and management systems such as Nagios, Zabbix, PRTG or professional DCIM solutions. Up to 20 PDUs can be networked together and centrally managed via a single management interface using the dedicated PDU daisy-chain interface – a significant advantage for large data center environments with many rack units and complex infrastructures. An RJ45 port for up to ten external sensors enables comprehensive environmental monitoring directly in the server room, for example for temperature, humidity, water leak or access control. A USB-C port (USB 2.0) complements the connectivity options for local configuration tasks and quick on-site data backup.

How does the Bachmann BN PRO M+ Rack PDU guarantee maximum availability and operational reliability?

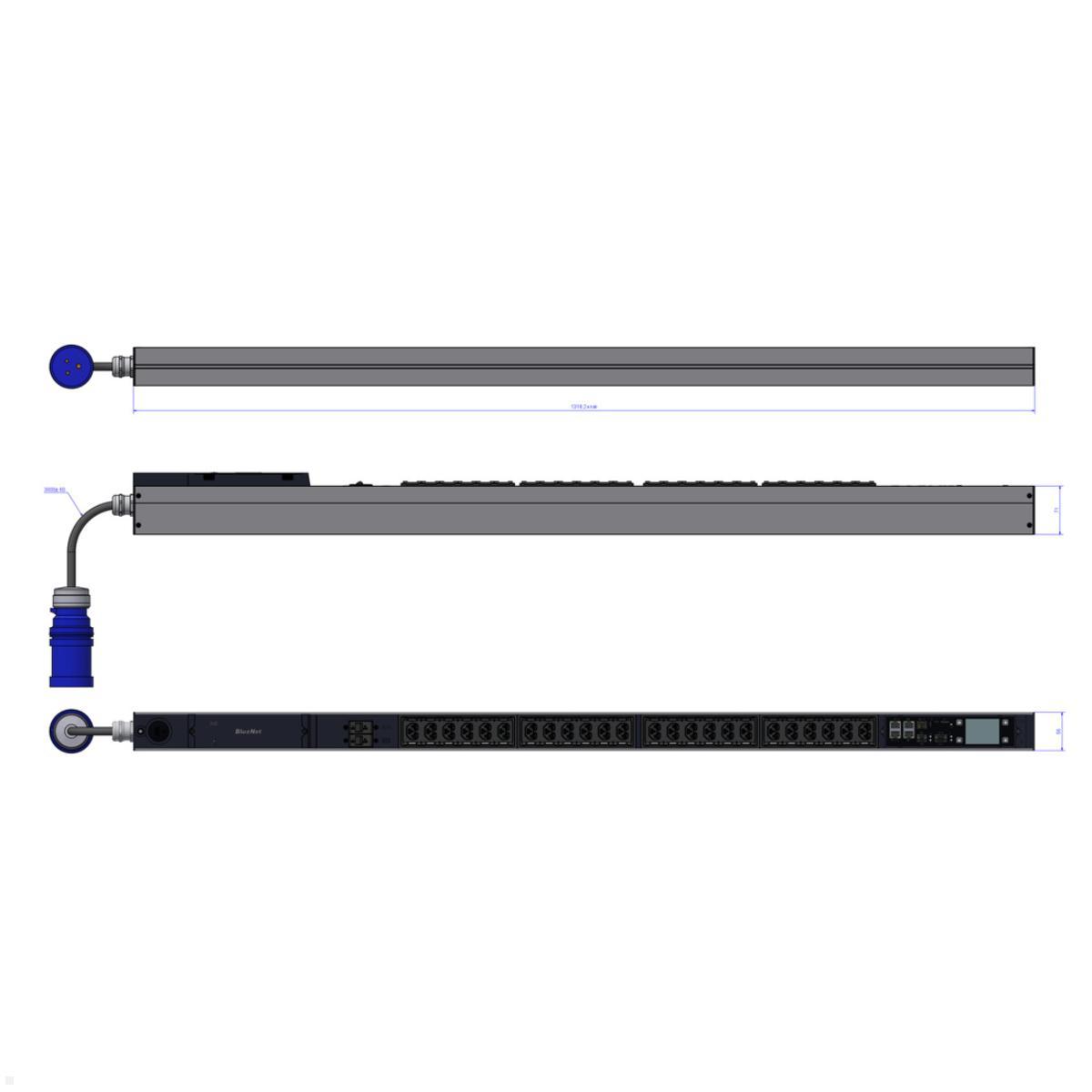

A central and decisive feature of the Bachmann BN PRO M+ Metered BM0024755 is the exceptionally high operational reliability provided by fully hot-swappable main components. Both the controller and the power supply can be completely replaced during operation – without shutdown, without reconfiguration and without interruption of the power supply to connected devices. This virtually eliminates unplanned downtime and greatly simplifies maintenance, replacement and configuration tasks, even in critical 24/7 environments with strict SLAs and the highest availability requirements. Automated provisioning options via DHCP or manual configuration, extensive data logging functions and precise alerting mechanisms round off the BM0024755's performance offering. With a compact length of 1318 mm, a 3.0 m long supply cable with 4 mm² cross-section and a blue CEE-32A plug, and the supplied L-shaped mounting bracket, the Bachmann BN PRO M+ Metered BM0024755 is ready for immediate use in professional server rooms and enterprise data centers without elaborate preparations.
