Bachmann BN PRO M+ Metered RCM – 32A Rack PDU with 24xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024765)

Why is the Bachmann BN PRO M+ RCM BM0024765 ideal for 3-phase server rooms with high security requirements?

The Bachmann BN PRO M+ Metered RCM BM0024765 combines powerful 3-phase power distribution with integrated residual current monitoring (RCM) Type B per phase — a decisive safety advantage for data centers, server rooms and critical IT infrastructures with high availability, protection and compliance requirements. With 24 combo outlets of types C13/C15/C19/C21 and a power capacity of 22 kW at 32A/400V, it reliably and efficiently supplies demanding server environments across all three phases simultaneously. The RCM function continuously and precisely monitors the residual currents per phase and detects fault currents early, before dangerous situations can arise. This protects both the connected IT infrastructure and operating personnel effectively and sustainably around the clock. Six hydraulic-magnetic circuit breakers rated at 16 amperes each protect all three phases evenly and reliably against overload. Individual outlet-level metering captures precise and comprehensive data on current, voltage, reactive power, apparent power, active power, reactive energy, apparent energy, active energy, frequency and power factor — for complete energy transparency at the outlet level. The 2.4-inch TFT color display and colored identification frames in blue and red simplify management directly at the rack.

What networking and remote management options does the Bachmann Rack PDU BM0024765 offer for professional deployments?

The BN PRO M+ RCM BM0024765 offers extensive remote management via the integrated web server with a full-featured web interface. Comfortable access to all functions and measurement data is possible from any standard browser without installing additional software or drivers. Two independent Ethernet ports — a Gigabit port with PoE support and a 10/100 Mbit/s port — as well as SNMP support enable seamless integration into existing IT networks and monitoring systems such as Nagios, Zabbix, PRTG or DCIM solutions. Up to 20 PDUs can be centrally managed via the PDU link interface. An RJ45 connection for up to ten external sensors, a USB-C port (USB 2.0), data logging, automated provisioning and alerting functions complete the comprehensive management package of the Bachmann BN PRO M+ Metered RCM BM0024765.

How does the Bachmann BN PRO M+ RCM 3-phase PDU ensure uninterrupted and safe continuous operation?

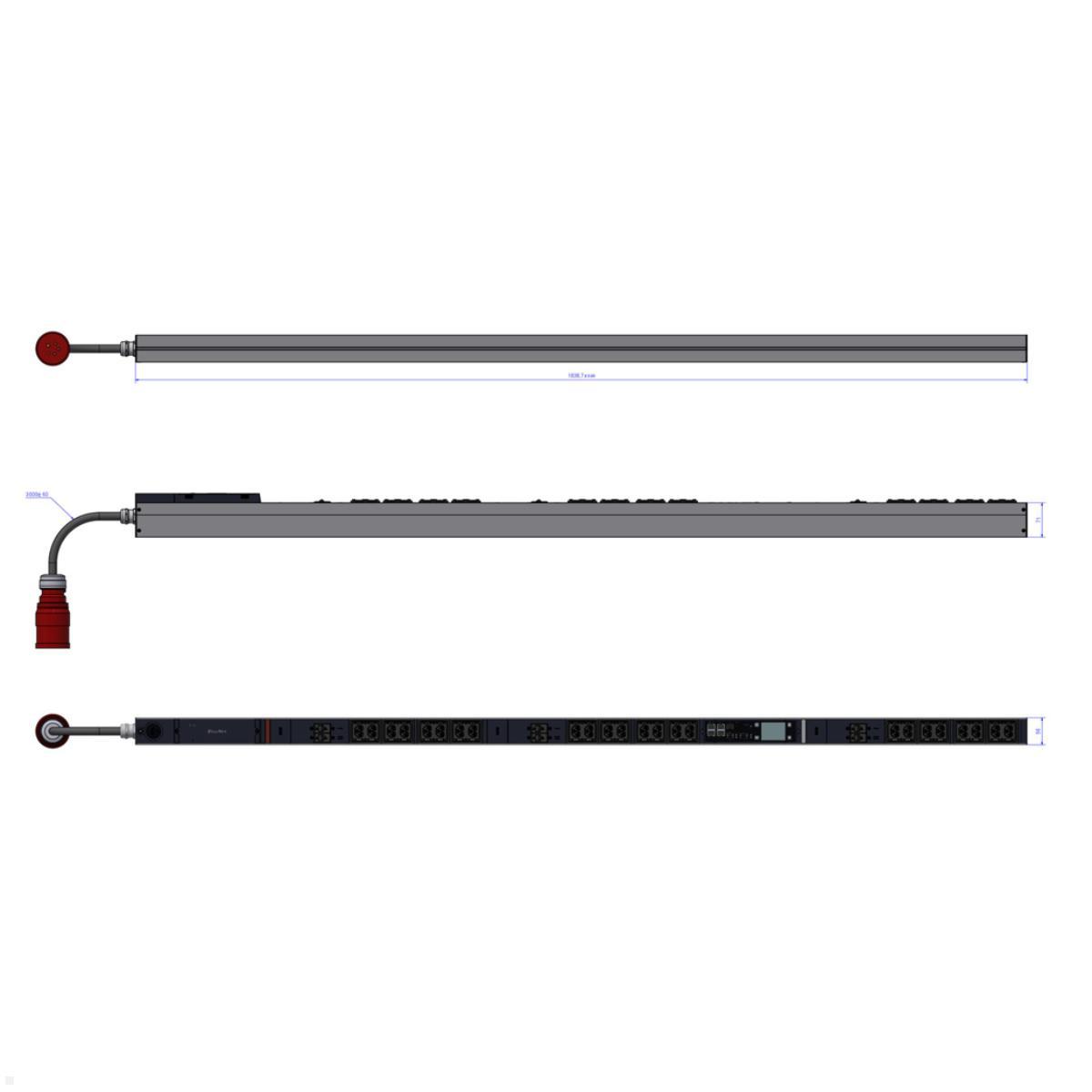

The Bachmann BN PRO M+ Metered RCM BM0024765 relies on a fully hot-swappable controller and power supply — both can be replaced during operation without interrupting power to connected devices and without any shutdown. This minimizes unplanned downtime to an absolute minimum and greatly simplifies maintenance, even in critical 24/7 environments with the highest availability requirements. The integrated RCM residual current monitoring Type B continuously monitors fault currents per phase and thus reliably protects people and infrastructure around the clock. With a length of 1839 mm, a 3.0 m long supply cable (4 mm²) with a red CEE-32A plug and the supplied mounting bracket (L-shaped), the Rack PDU BM0024765 from Bachmann is ready for immediate use. For operators of 3-phase data centers with increased security and availability requirements, the Bachmann BN PRO M+ Metered RCM BM0024765 is the optimal choice. The combination of 24 combo outputs, Type B RCM per phase, precise outlet-level metering, hot-swap capability and extensive remote management makes it a complete safety and management solution for professional 3-phase server rooms and data centers of any size. The Bachmann BN PRO M+ Metered RCM BM0024765 is the first choice for administrators who want to combine maximum safety through Type B RCM protection with full energy transparency and highest availability in 3-phase server rooms. With its well-thought-out equipment and hot-swap capability, it is the reliable safety solution for professional IT infrastructures.
