Bachmann BN PRO M+ Metered RCM – 32A Rack PDU with 24xC13 12xCombo 6xMCB, 3,0m CEE 32A/5p (BM0024764)

Why is the Bachmann BN PRO M+ RCM BM0024764 the optimal choice for three-phase high-performance data centers with security requirements?

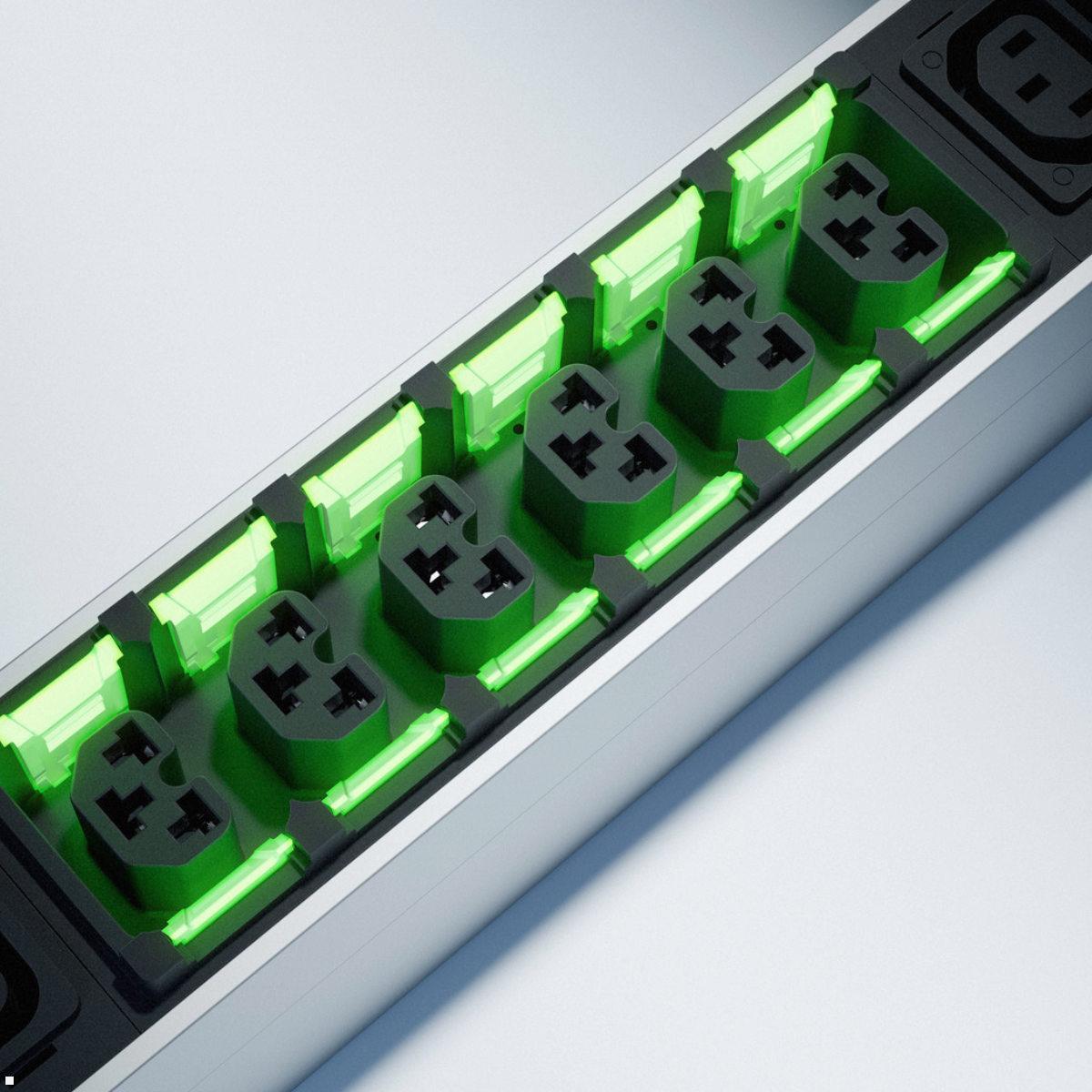

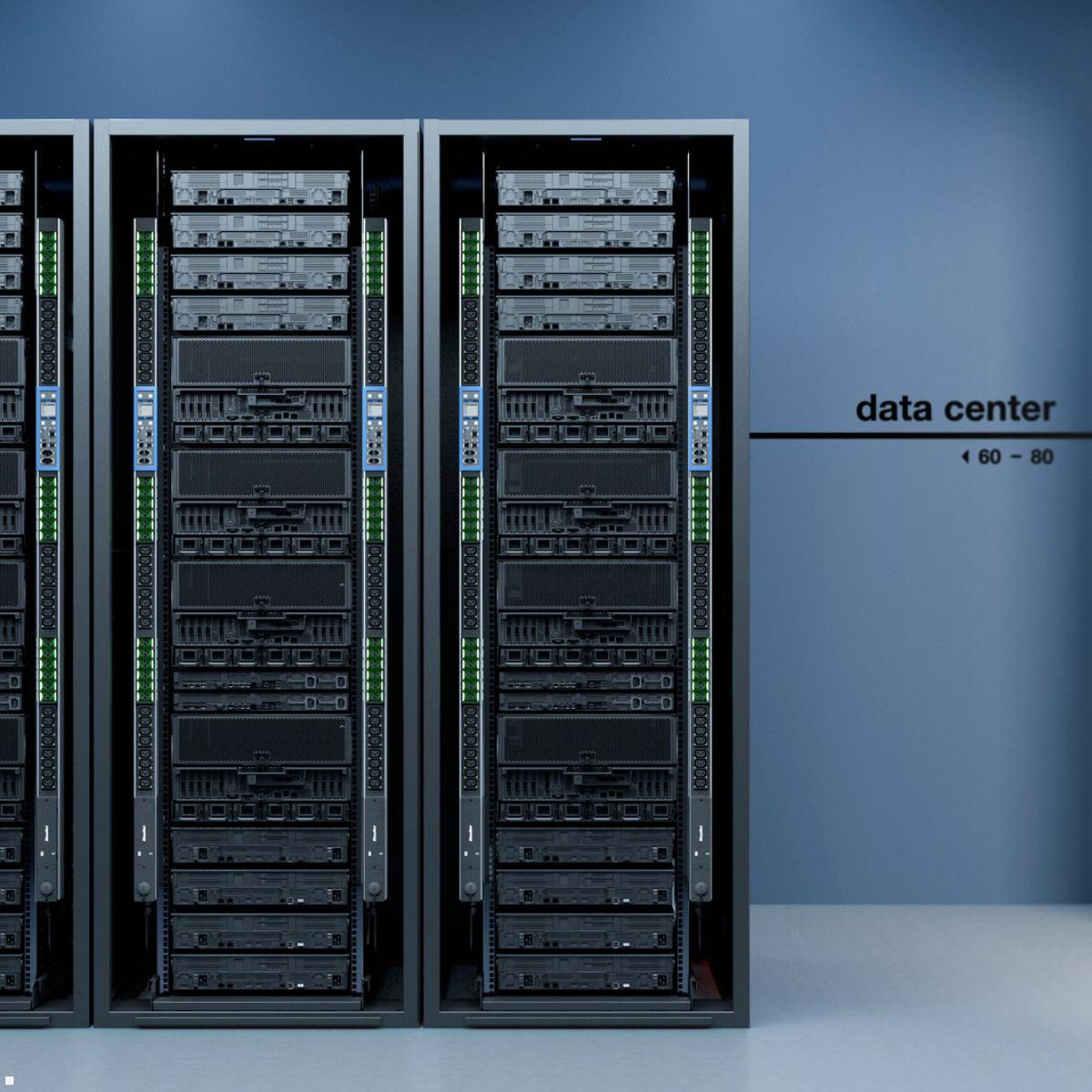

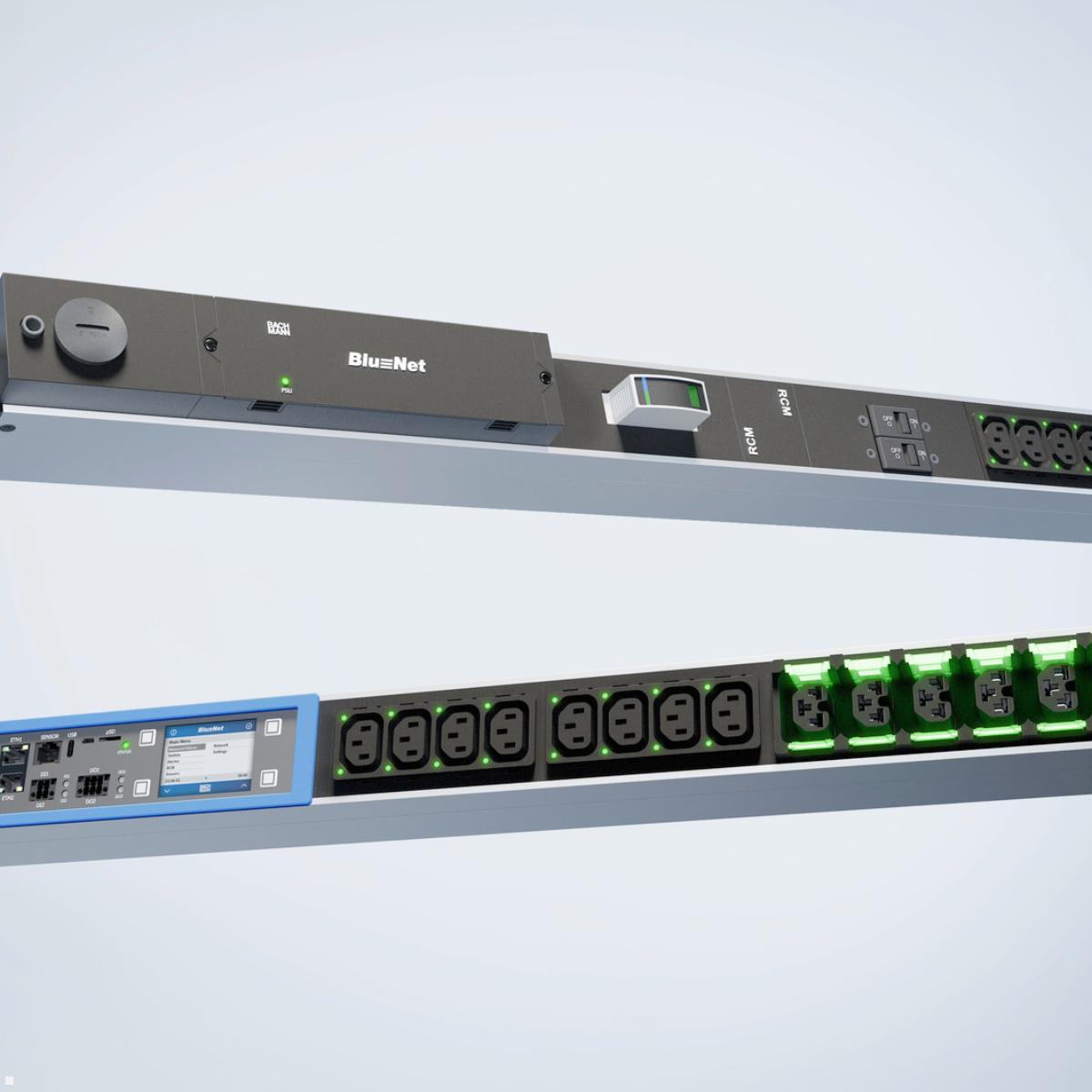

The Bachmann BN PRO M+ Metered RCM BM0024764 combines three-phase high-power delivery with integrated residual current monitoring (RCM) Type B per phase — ideal for data centers, server rooms and critical IT infrastructures with the highest safety, protection and availability requirements. With 24 C13 IEC outlets and 12 combo sockets of types C13/C15/C19/C21 it supplies up to 36 devices reliably and efficiently at 22 kW (32A/400V). The RCM function continuously and precisely monitors the residual currents per phase and detects fault currents early before dangerous situations can arise. This protects both the connected IT infrastructure and operating personnel sustainably and reliably around the clock. Six hydraulic-magnetic circuit breakers rated at 16 amps each provide reliable overload protection evenly across all three phases. Individual per-socket metering delivers precise and comprehensive data on current, voltage, reactive power, apparent power, active power, reactive energy, apparent energy, active energy, frequency and power factor — for seamless energy management at the socket level. The 2.4-inch TFT color display and colored identification frames in blue and red significantly simplify management and quick identification in the rack.

What remote management and networking options does the Bachmann Rack PDU BM0024764 offer for complex infrastructures?

The BN PRO M+ RCM BM0024764 offers a comprehensive package of remote management and networking options. The integrated web server with a full web interface enables convenient access via any standard browser without installing additional software or drivers. Two independent Ethernet ports — a Gigabit port with PoE and a 10/100 Mbps port — as well as SNMP support enable seamless integration into existing IT networks, DCIM and monitoring systems such as Nagios, Zabbix or PRTG. Up to 20 PDUs can be centrally managed and monitored via the PDU daisy-chain interface. An RJ45 connector for up to ten external sensors, a USB-C port (USB 2.0), data logging, automated provisioning and alerting functions complete the comprehensive management package of the Bachmann BN PRO M+ Metered RCM BM0024764.

How does the Bachmann BN PRO M+ RCM PDU ensure maximum operational continuity in three-phase high-performance operation?

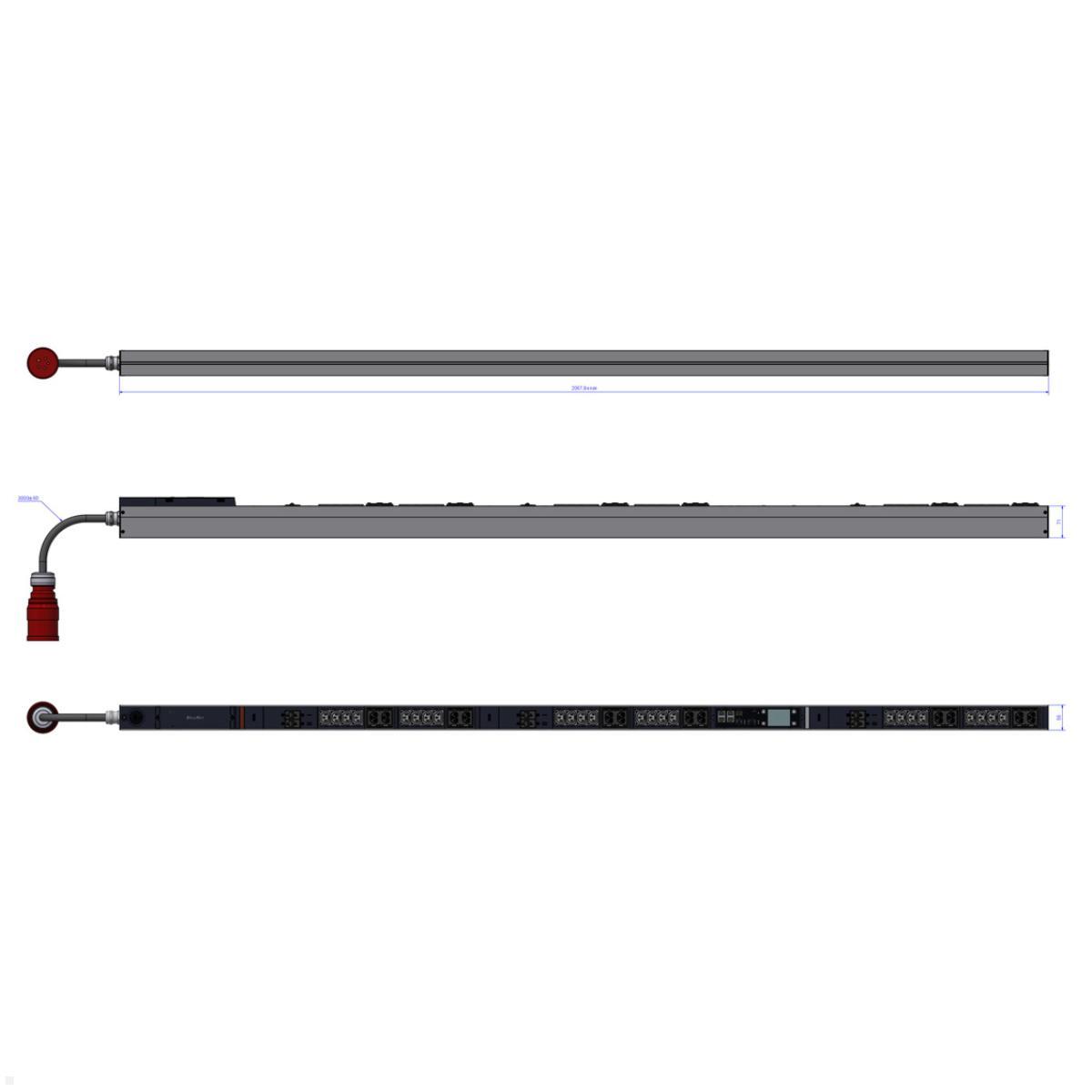

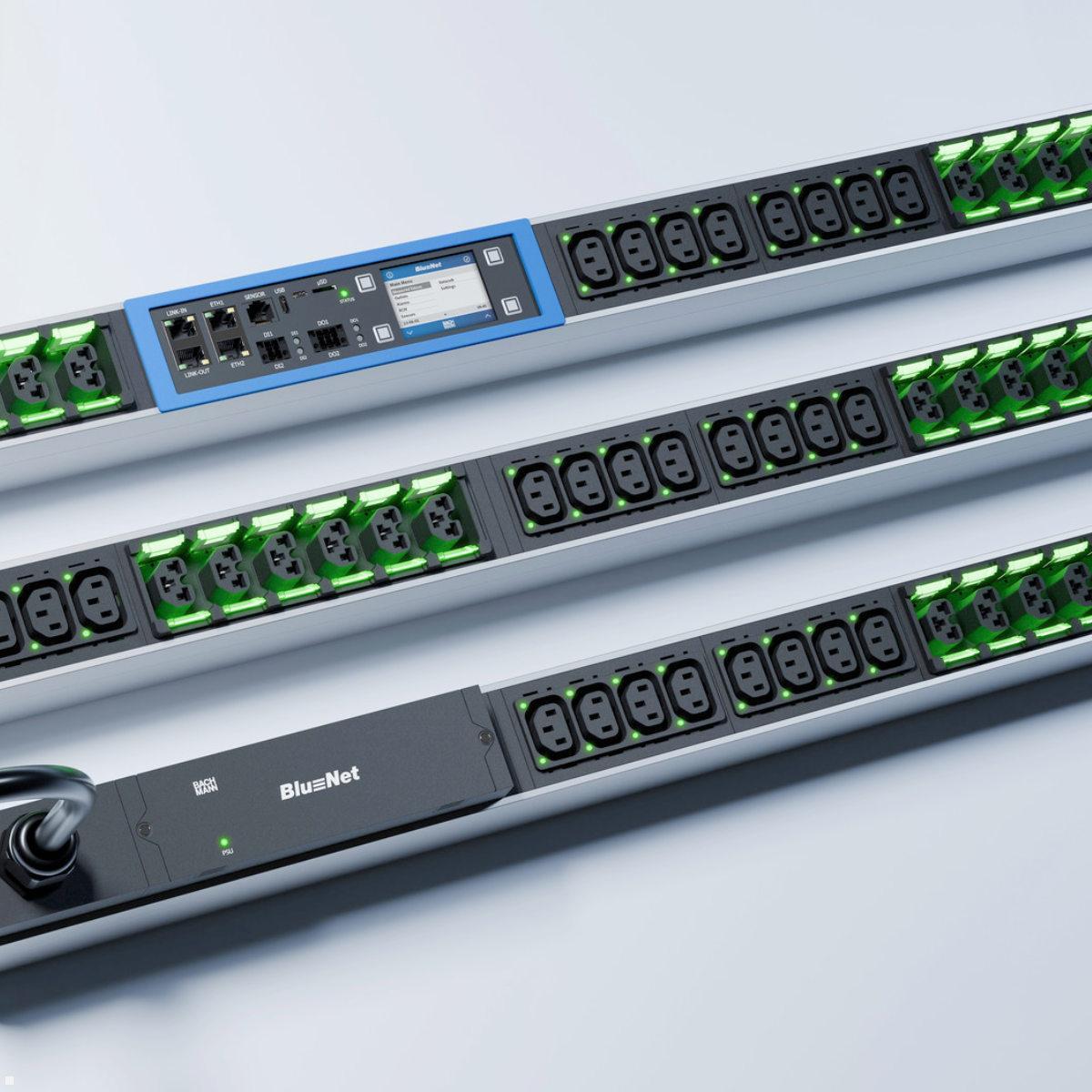

The Bachmann BN PRO M+ Metered RCM BM0024764 provides maximum operational continuity with a fully hot-swappable controller and power supply — both components can be replaced during operation without interrupting the power supply and without shutting down connected devices. The integrated RCM residual current monitoring Type B continuously monitors fault currents per phase and thereby reliably protects people and infrastructure. Unplanned downtime is reduced to an absolute minimum and maintenance is considerably simplified. With a length of 2068 mm, a 3.0 m supply cable (4 mm²) with a red CEE-32A plug and the included L-shaped mounting bracket, the three-phase rack PDU BM0024764 from Bachmann is ready for immediate use. For operators of three-phase high-performance data centers with increased security requirements who demand the highest standards of energy transparency, RCM protection and availability of their IT infrastructure, the Bachmann BN PRO M+ Metered RCM BM0024764 is the optimal choice. The combination of 36 outlets, RCM Type B, precise per-socket metering and hot-swap capability makes it a complete safety and management solution. The Bachmann BN PRO M+ Metered RCM BM0024764 is the first choice for administrators who want to combine maximum safety through RCM protection with full energy transparency and the highest availability in three-phase high-performance environments. It is the reliable security and management solution for demanding professional IT infrastructures. The Bachmann BN PRO M+ Metered RCM BM0024764 convinces with its unique combination of three-phase high-power supply, integrated RCM residual current monitoring Type B and comprehensive energy management at the socket level.
