Bachmann BN PRO M+ Metered – 32A Rack PDU with 36xCombo 6xMCB, 3,0m CEE 32A/5p (BM0024761)

Why does the Bachmann BN PRO M+ BM0024761 with 36 combo outlets excel in 3-phase high-power operation?

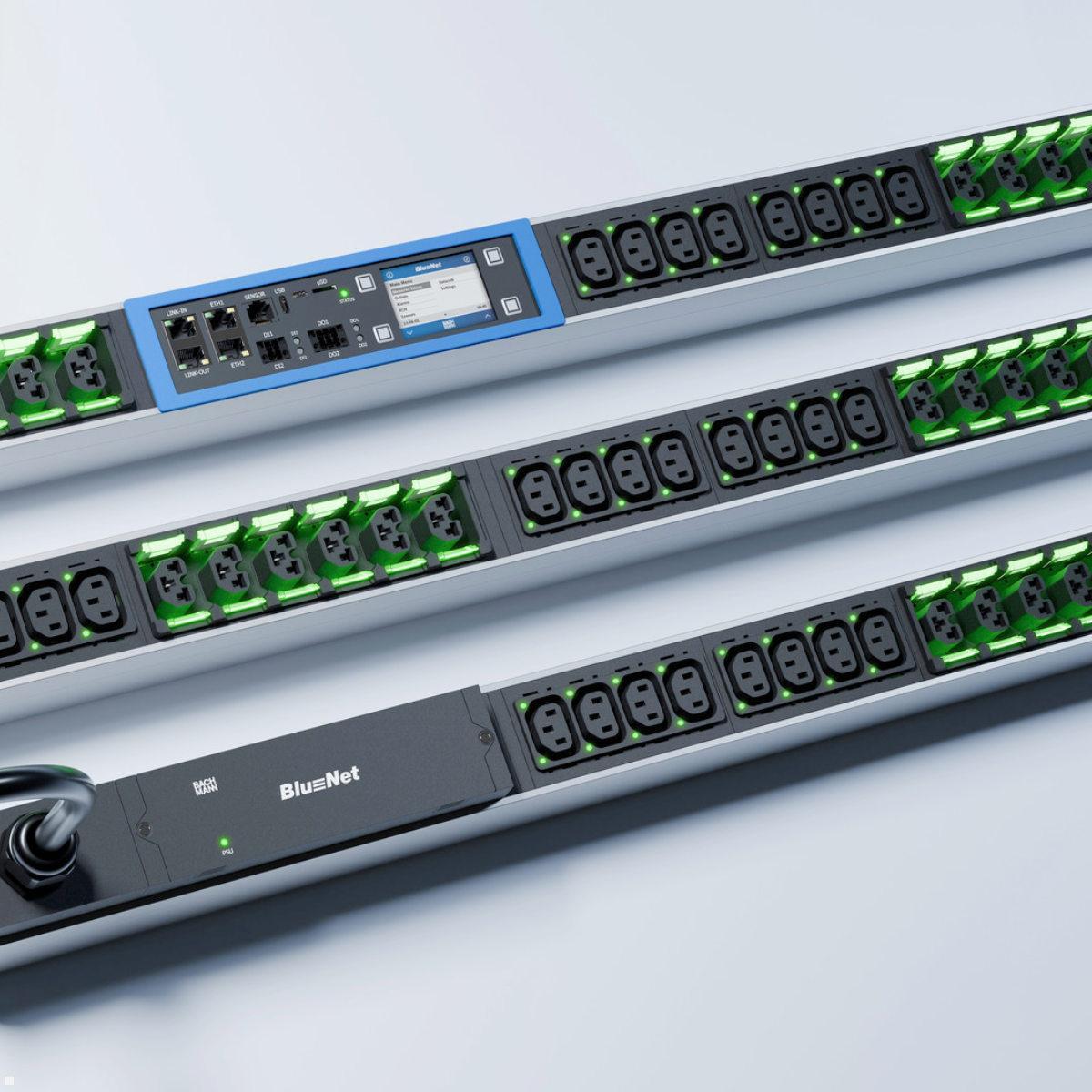

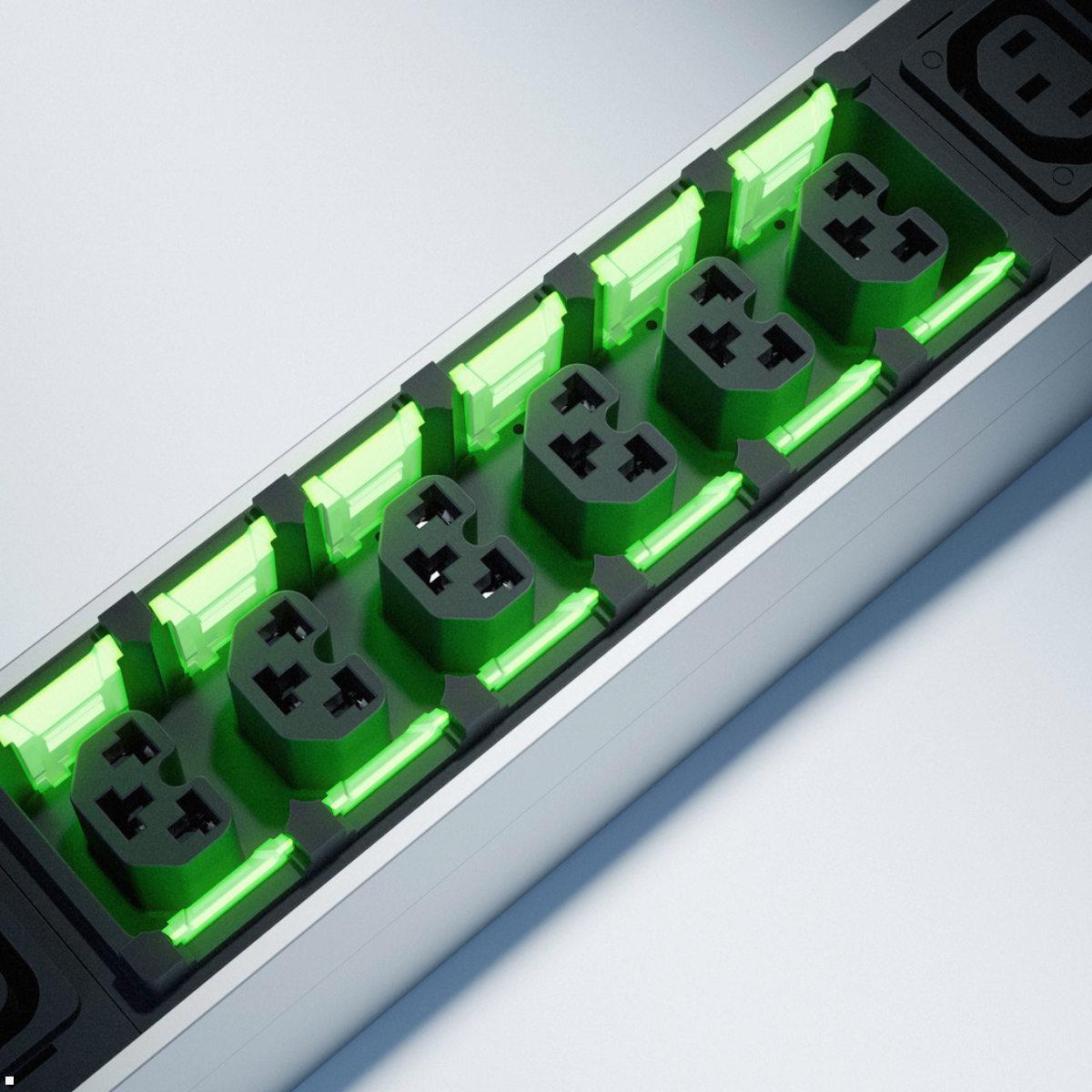

The Bachmann BN PRO M+ Metered BM0024761, with 36 combo outlets of types C13/C15/C19/C21, offers maximum connection flexibility and the highest connection capacity for 3-phase high-performance data centers — making it one of the most versatile and powerful PDUs in its class. With a power capacity of 22 kW (32A/400V), it reliably supplies a large number of servers, storage systems, switches and other network components simultaneously and efficiently across all three phases. Six hydraulic-magnetic circuit breakers of 16 amps each protect all three phases evenly against overload and ensure safe and stable operation, even under high and variable loads. Per-outlet individual metering delivers precise and complete data on current, voltage, reactive power, apparent power, active power, reactive energy, apparent energy, active energy, frequency and power factor — for seamless energy management at the outlet level and optimal load distribution in the data center. Color-coded frames in blue and red as well as the high-resolution 2.4-inch TFT color display significantly simplify quick management and identification in the rack, even in densely populated data centers. The supplied L-shaped mounting bracket enables quick and secure installation.

What network and monitoring options does the Bachmann PDU BM0024761 offer for professional environments?

The BN PRO M+ Metered BM0024761 enables extensive remote management via the integrated web server with a full-featured web interface. Comfortable access to all functions and measurement data is available through any standard browser without software installation. Two independent Ethernet ports — a Gigabit port with PoE support and a 10/100 Mbit/s port — as well as SNMP support ensure seamless integration into existing IT networks and monitoring systems such as Nagios, Zabbix or DCIM solutions. Up to 20 PDUs can be centrally managed and monitored via the PDU clustering interface. An RJ45 port for up to ten external sensors as well as a USB-C port (USB 2.0), automated deployment options and alerting functions complete the comprehensive management package of the BM0024761.

How does the Bachmann BN PRO M+ Rack PDU 36xCombo guarantee maximum operational safety in high-density data centers?

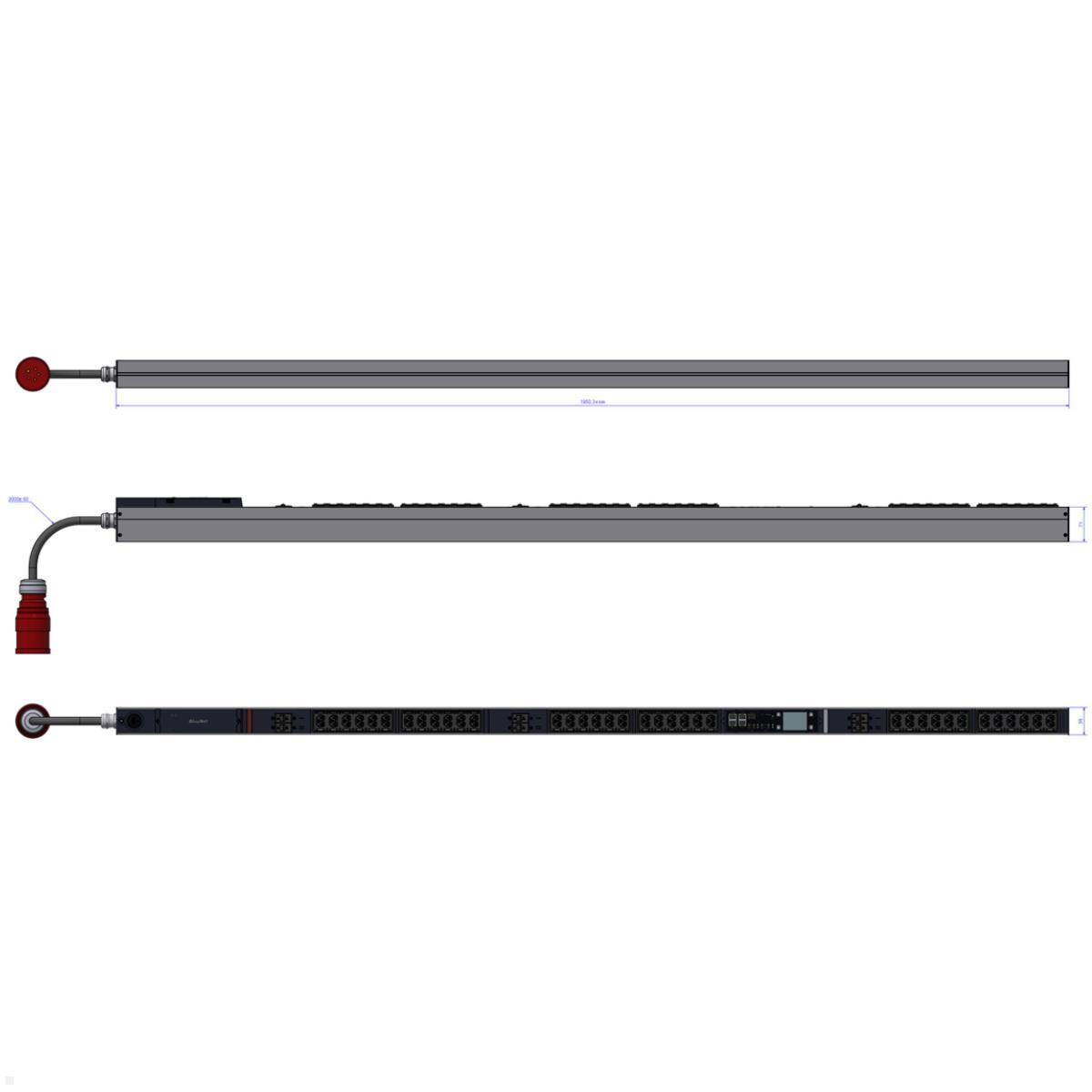

The Bachmann BN PRO M+ Metered BM0024761 relies on fully hot-swap-capable components for highest operational safety and maximum availability: both the controller and the power supply can be replaced while running — without interruption of the power supply to connected devices and without any shutdown. This minimizes unplanned downtime to an absolute minimum and greatly simplifies maintenance work, even in critical 24/7 environments with strict SLAs. With a length of 1950 mm, a 3.0 m input cable (4 mm²) with a red CEE-32A plug and the supplied L-shaped mounting bracket, the 3-phase Rack PDU BM0024761 from Bachmann is ready for immediate use. For operators of 3-phase high-density data centers who demand the highest levels of connection capacity, energy transparency and availability of their IT infrastructure, the Bachmann BN PRO M+ Metered BM0024761 is the optimal choice. The combination of 36 combo outlets, precise per-outlet metering, hot-swap capability and extensive remote management makes it a complete management solution for professional high-performance environments of any size. The Bachmann BN PRO M+ Metered BM0024761 is the first choice for administrators who want to combine maximum connection capacity with complete energy transparency and highest availability in 3-phase high-density environments. It is the reliable foundation for any demanding professional IT infrastructure. The Bachmann BN PRO M+ Metered BM0024761 convinces through its well-thought-out combination of 36 combo outlets, 3-phase high-power supply and comprehensive energy management. It is the ideal choice for operators who want to combine maximum connection capacity with complete energy transparency.
