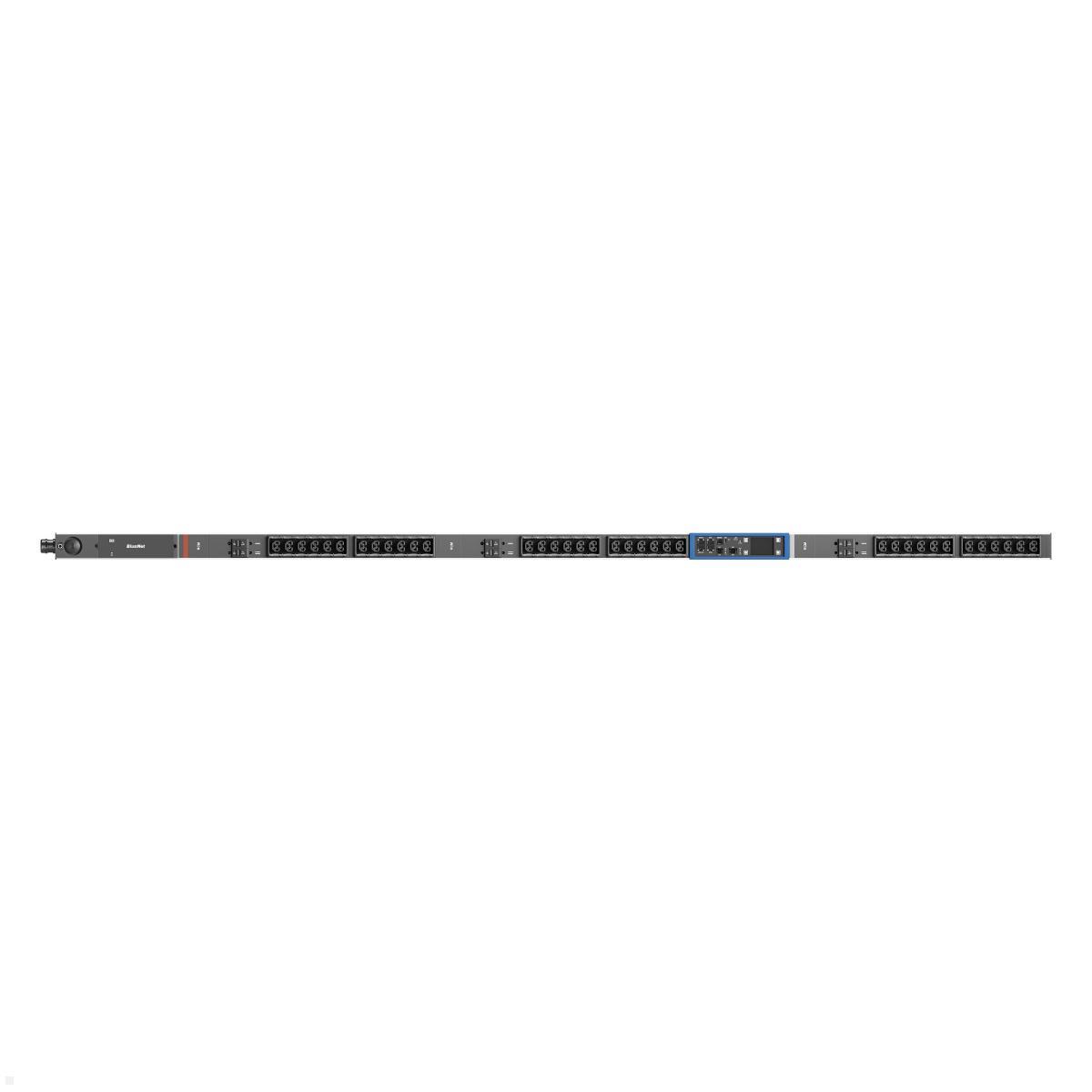

Bachmann BN PRO S Switched RCM - 32A Rack PDU with 36xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024784)
Highlights
- 36x Combo (C13/C15/C19/C21) + 6x MCB 16A
- RCM residual current monitoring, Type B
- 32A / 400V / 22 kW, 3-phase
- Sockets individually switchable
- Controller & power supply hot-swappable
3-phase Switched RCM Rack PDU 32A with 22 kW, 36x Combo and Residual Current Measurement

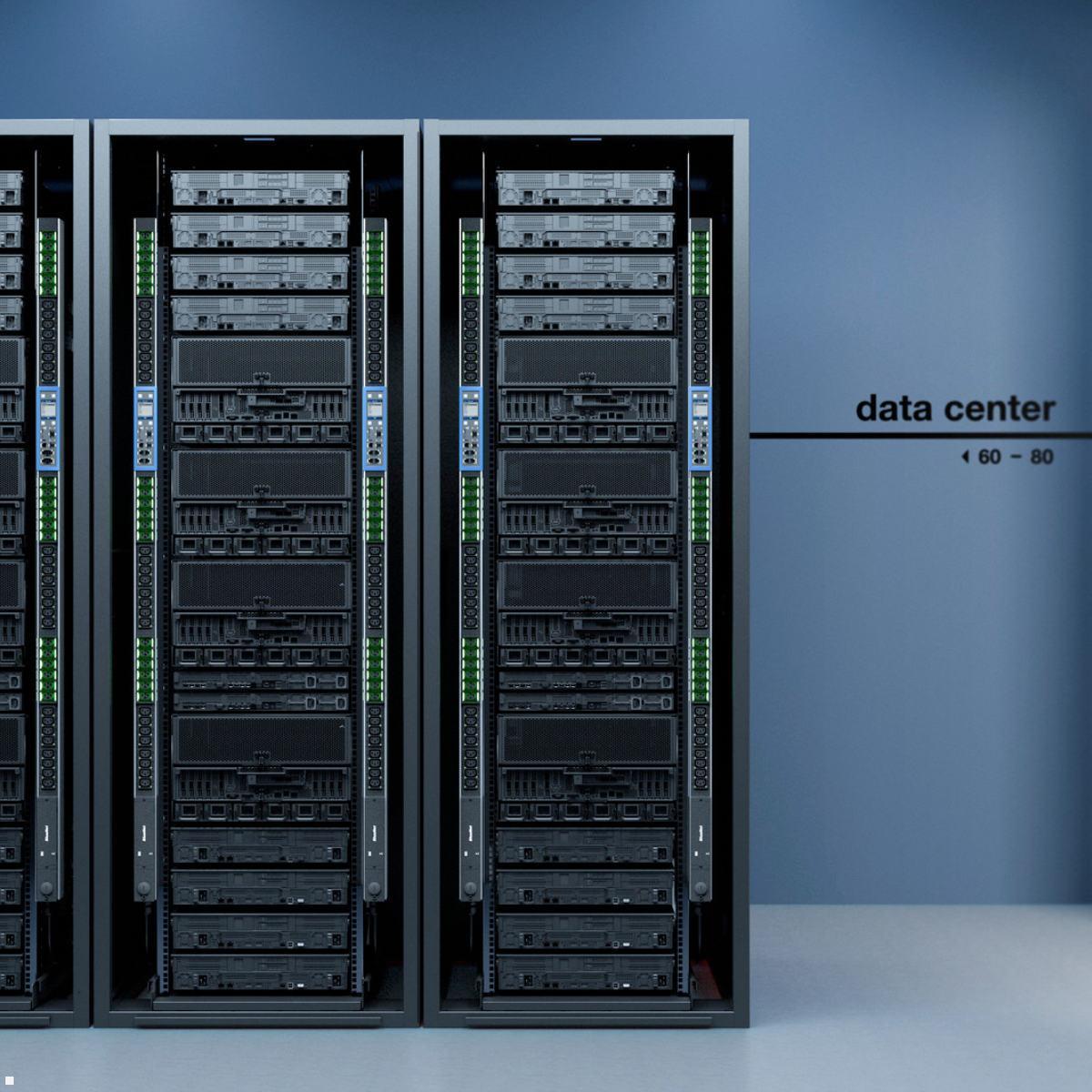

The Bachmann BN PRO S Switched RCM (BM0024784) is a high-performance, 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/400V and 22 kW and a 3.0 m supply cable (4 mm²) with CEE plug 32A red, it provides maximum power reserves for densely populated IT racks. The 36x Combo outlets (C13/C15/C19/C21) offer maximum flexibility for a wide range of device configurations. Six integrated hydraulic-magnetic MCBs 16A provide reliable overload protection for the connected device groups. A special safety feature is the all-current sensitive residual current measurement per phase, Type B (RCM), which provides continuous monitoring for fault currents. Each outlet is individually switchable, allowing devices to be conveniently started, restarted or turned off remotely. The integrated measurement function records per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, as well as frequency and power factor. Can be upgraded at any time to per-outlet measurement via license.

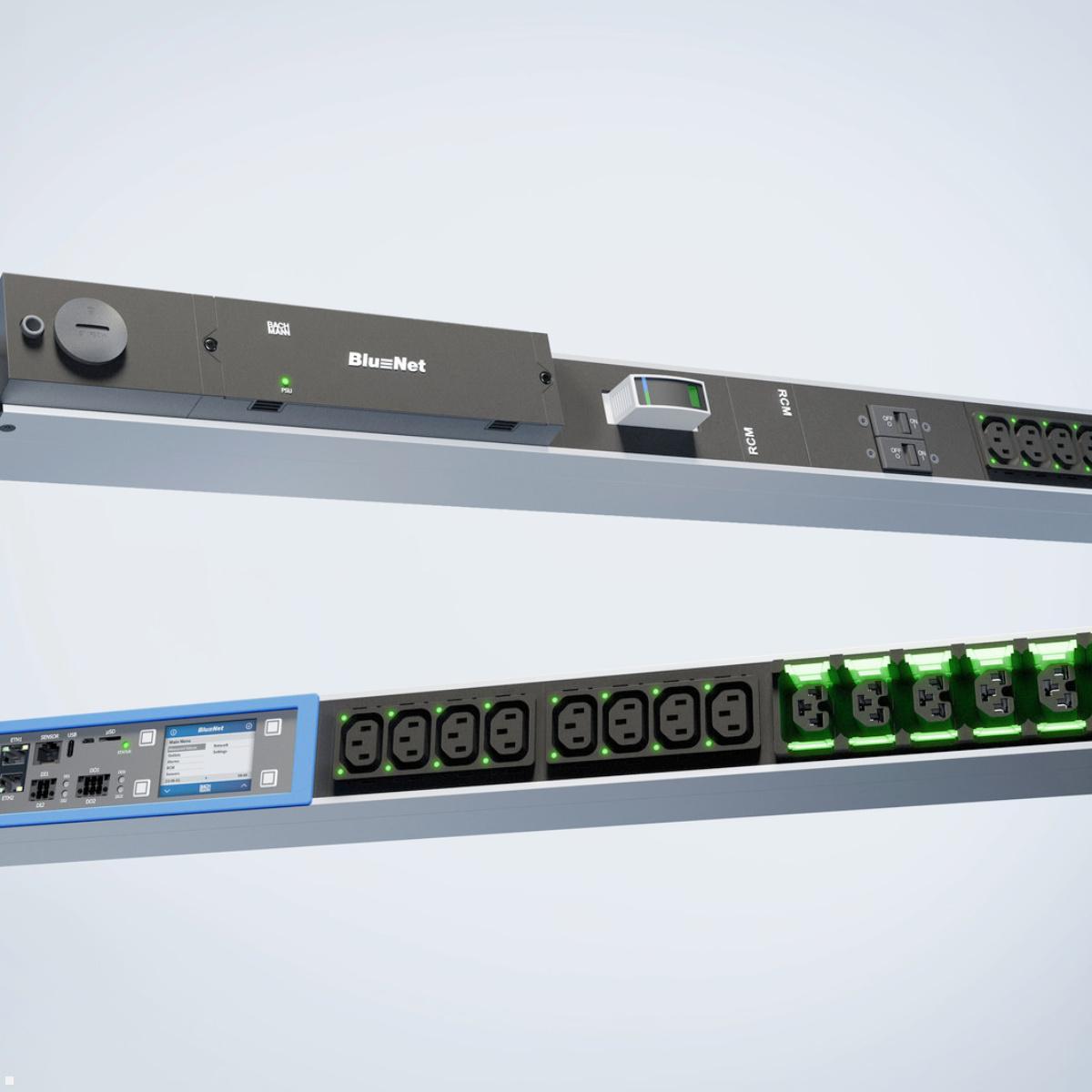

The Bachmann BN PRO S Switched RCM - 32A Rack PDU with 36x Combo 6xMCB, 3.0m CEE 32A/5p (BM0024784) convinces with maximum redundancy: controller and power supply are hot-swappable, allowing maintenance work to be carried out without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and managed centrally via the PDU cascade interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows the connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked – color-coding frames (blue/red) and mounting brackets (L-shape) are included.
Technical Details – Bachmann BN PRO S Switched RCM Rack PDU BM0024784
- Input: 32A / 400V / 22 kW
- Supply cable: 3.0 m | 4 mm² | CEE plug 32A red
- Phases: 3-phase

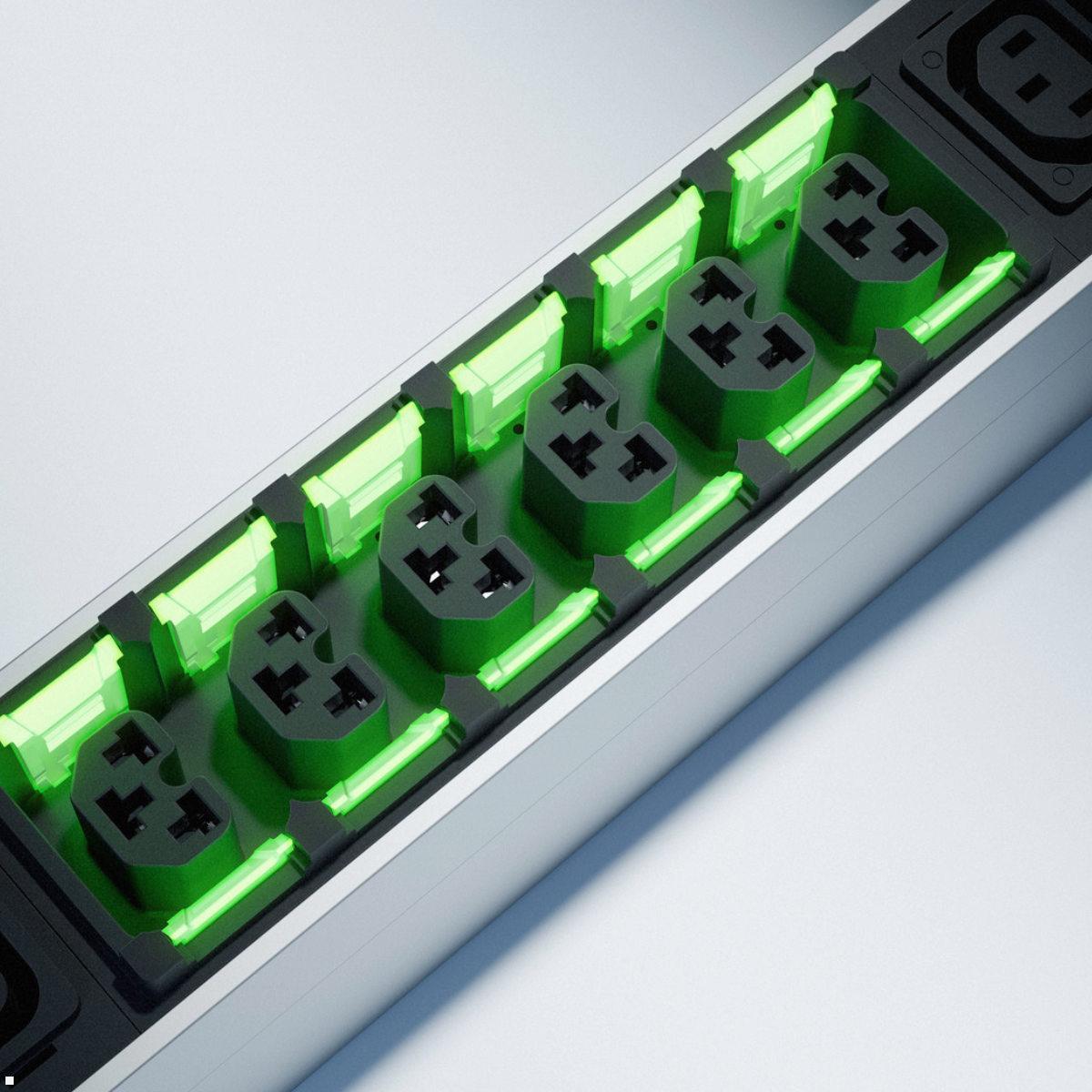

- Output: 36x Combo (C13/C15/C19/C21)
- 6x hydraulic-magnetic MCBs 16A
- Outlets individually switchable
- Residual current measurement per phase, Type B (RCM)
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Can be upgraded at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)

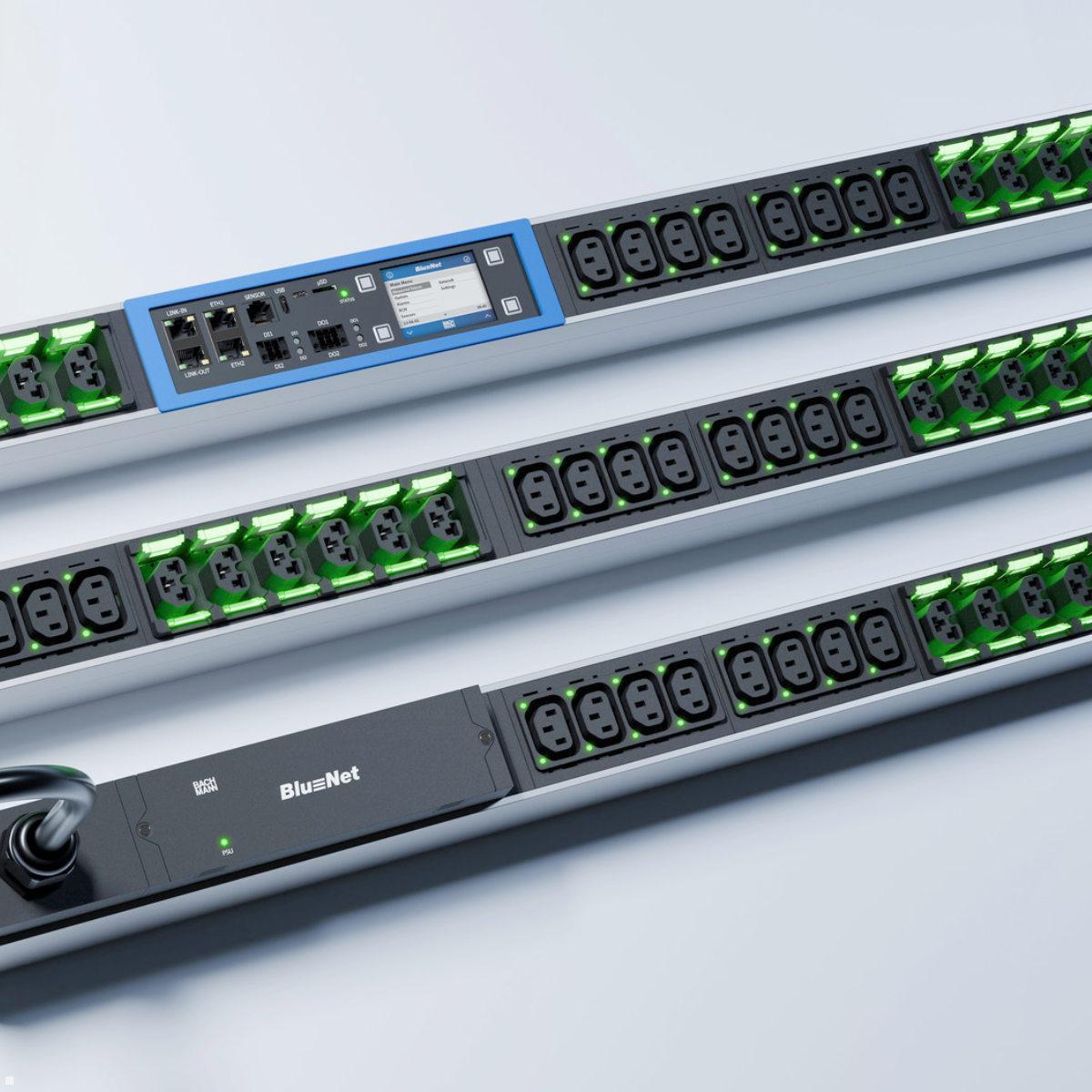

- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI filter: No
- Protection: Yes (6x MCB 16A)
- Temperature measurement: Yes
- Mounting direction: vertical
- Housing: aluminum
- Color-coding frames (blue/red)
- Included mounting brackets (L-shape, single)
- Dimensions (L×W×D): 2078.1 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

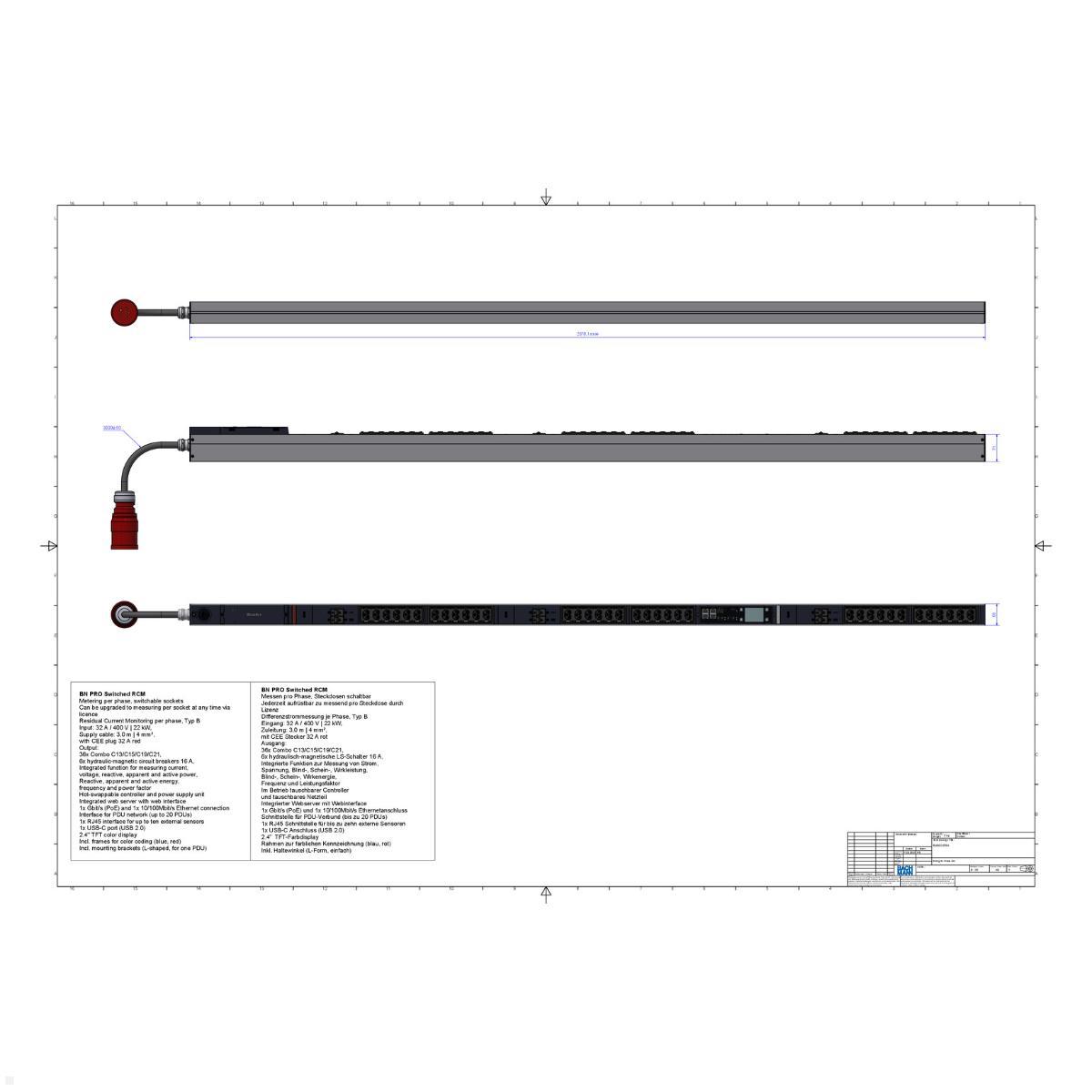

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 47 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched RCM Rack PDU BM0024784?
A high-performance 3-phase switched RCM rack PDU for professional IT racks with 32A/400V input (22 kW) and a 3.0 m lead, CEE 32A red plug, and 36x Combo outlets (C13/C15/C19/C21); includes 6× hydraulic-magnetic 16A circuit breakers.
-
What inputs/outputs does it provide?
Input: 32A / 400V / 22 kW; lead: 3.0 m; 36x Combo outlets (C13/C15/C19/C21); each socket is individually switchable.
-
What protective features does it have?
Six hydraulic-magnetic 16A circuit breakers for overload protection; all-phase differential current measurement Type B (RCM) monitors fault currents; there is no overvoltage protection or mains interference filter.
-
What measurement capabilities does it offer?
Per-phase measurement of current, voltage, active/reactive/ apparent power and energy, frequency and power factor; per-socket measurement can be upgraded via license.
-
How can I monitor and manage it?
Integrated web server with Web UI and SNMP support; PDU cascade up to 20 PDUs; 2.4" TFT colour display; Ethernet: 1 Gbit/s (PoE) + 1x 10/100; USB-C; RJ45 sensor port for up to 10 external sensors.
-
Is it hot-swappable?
Controller and power supply are hot-swappable in operation.
-
What are the physical features and mounting options?
Aluminium housing; mounting orientation: vertical; colour-coded frame (blue/red); includes L-shaped brackets; dimensions: 2078.1 x 56 x 71 mm.
-
Any additional technical details?
Input: 32A / 400V / 22 kW; lead: 3.0 m with CEE 32A red plug; 6x MCB 16A; temperature monitoring; LED indicator present.
