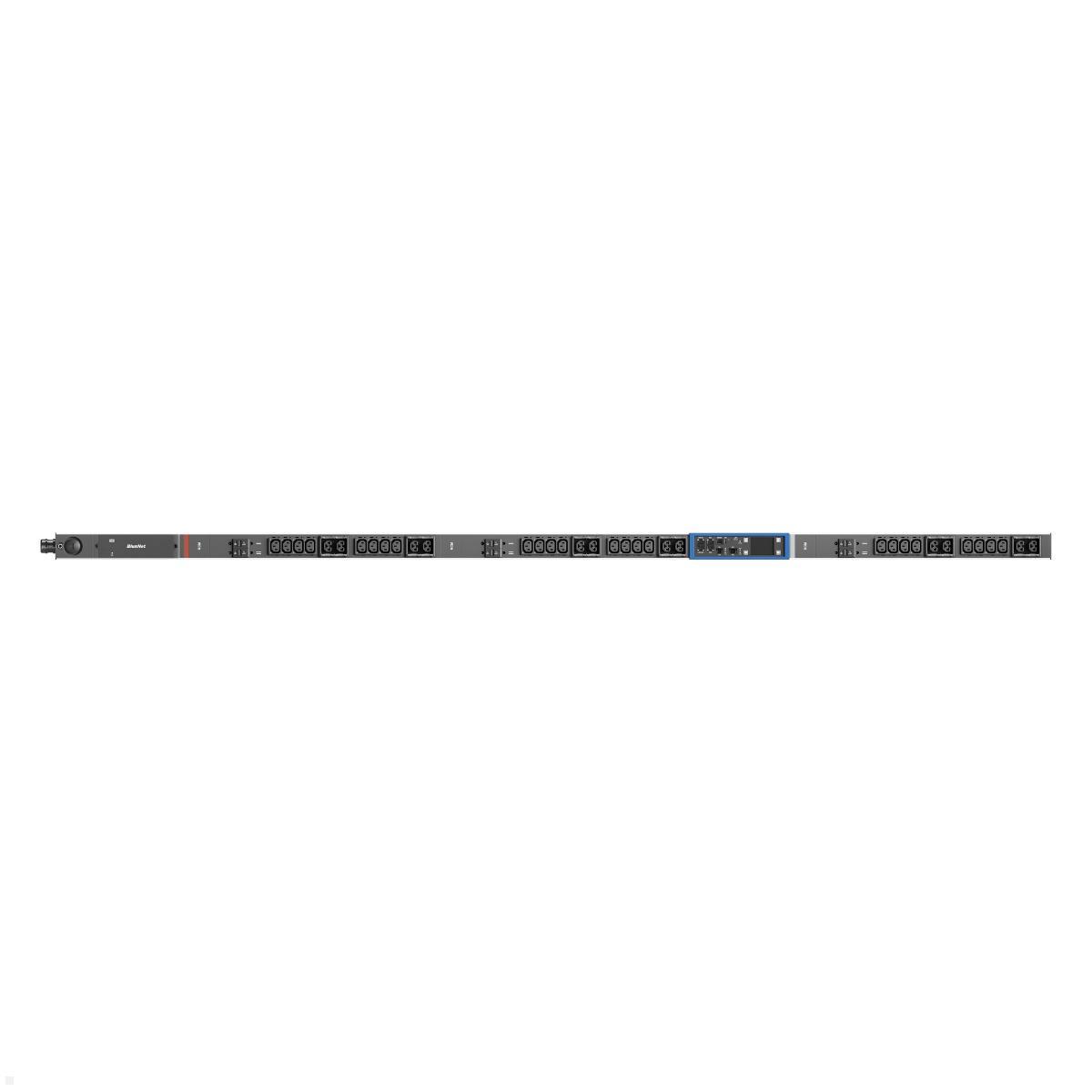

Bachmann BN PRO S Switched RCM - 32A Rack PDU with 24xC13 12xCombo 6xMCB, 3,0m CEE 32A/5p (BM0024785)
Highlights
- 24xC13 + 12xCombo + 6x MCB 16A
- RCM residual current measurement, Type B
- 32A / 400V / 22 kW, 3-phase
- Sockets individually switchable
- Controller & power supply hot-swappable during operation
3-phase Switched RCM Rack PDU 32A with 22 kW, 24xC13 12xCombo and LS switches

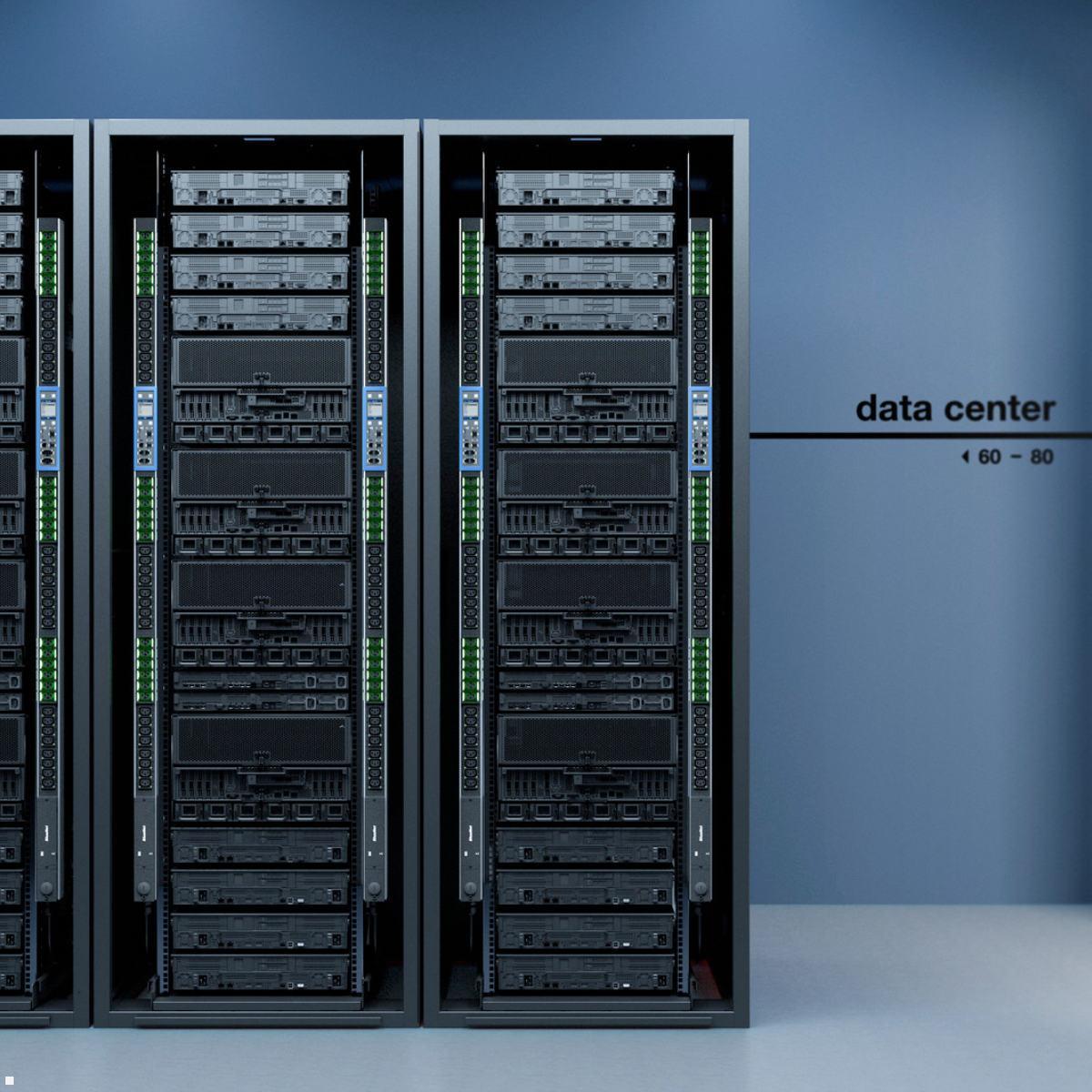

The Bachmann BN PRO S Switched RCM (BM0024785) is a high-performance, 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/400V and 22 kW and a 3.0 m feed cable (4 mm²) with CEE plug 32A red it offers maximum power reserves for densely populated IT racks. The 24x C13 IEC outlets and 12x combo outlets (C13/C15/C19/C21) provide maximum flexibility for different device configurations. Six integrated hydraulic-magnetic LS switches 16A provide reliable overload protection. A special safety feature is the residual current monitoring per phase, Type B (RCM), which provides continuous monitoring for fault currents. Each outlet is individually switchable, allowing devices to be remotely powered on, restarted or powered off. The integrated measurement function records per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency and power factor. Upgradeable at any time to per-outlet metering via license.
The Bachmann BN PRO S Switched RCM - 32A Rack PDU with 24xC13 12xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024785) convinces with maximum fault tolerance: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface as well as SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU cascade interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked – frames for color coding (blue/red) and mounting brackets (L-shape) are included.
Technical Details – Bachmann BN PRO S Switched RCM Rack PDU BM0024785
- Input: 32A / 400V / 22 kW
- Feed cable: 3.0 m | 4 mm² | CEE plug 32A red
- Phases: 3-phase

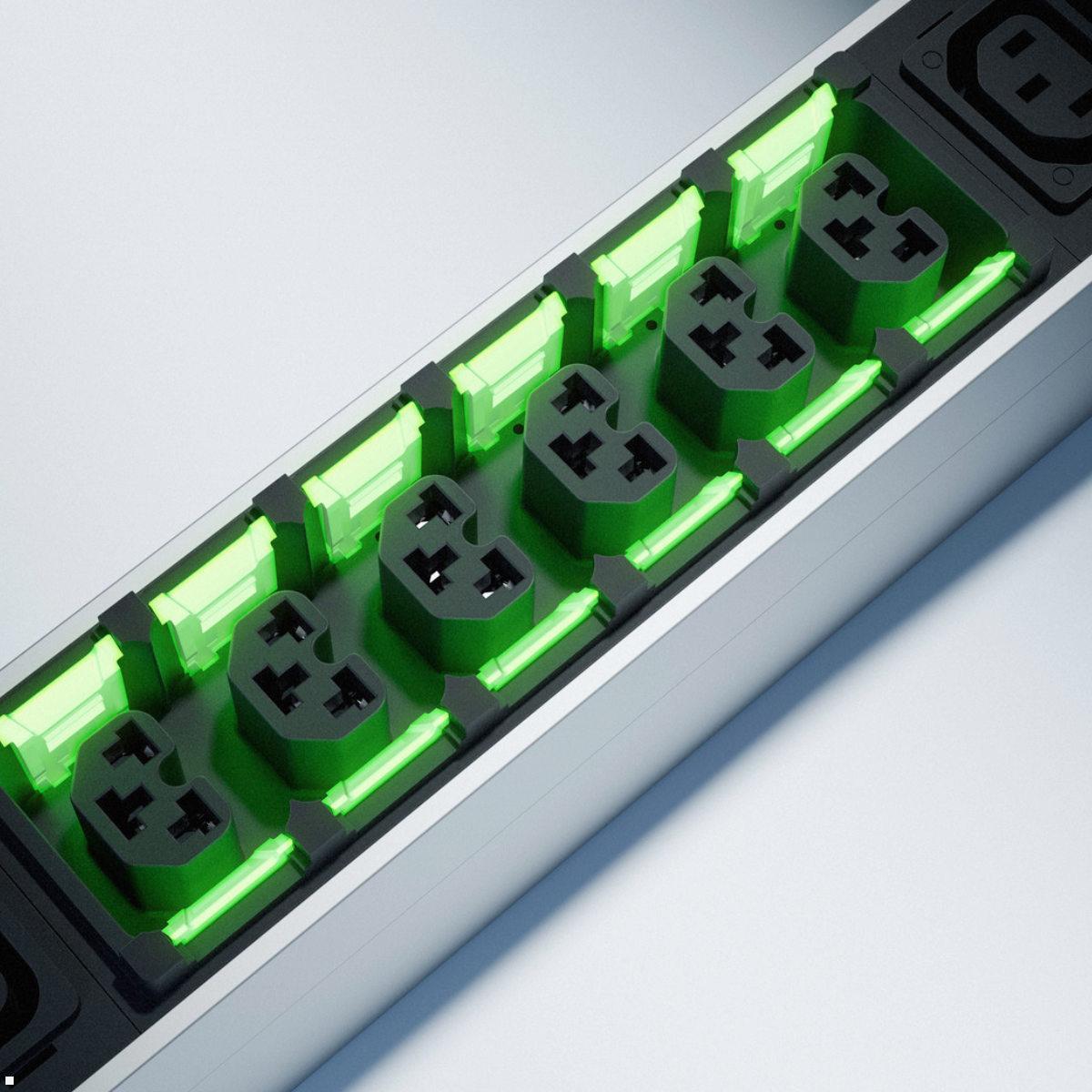

- Output: 24x C13 IEC outlets, 12x Combo (C13/C15/C19/C21)
- 6x hydraulic-magnetic MCBs 16A
- Outlets individually switchable

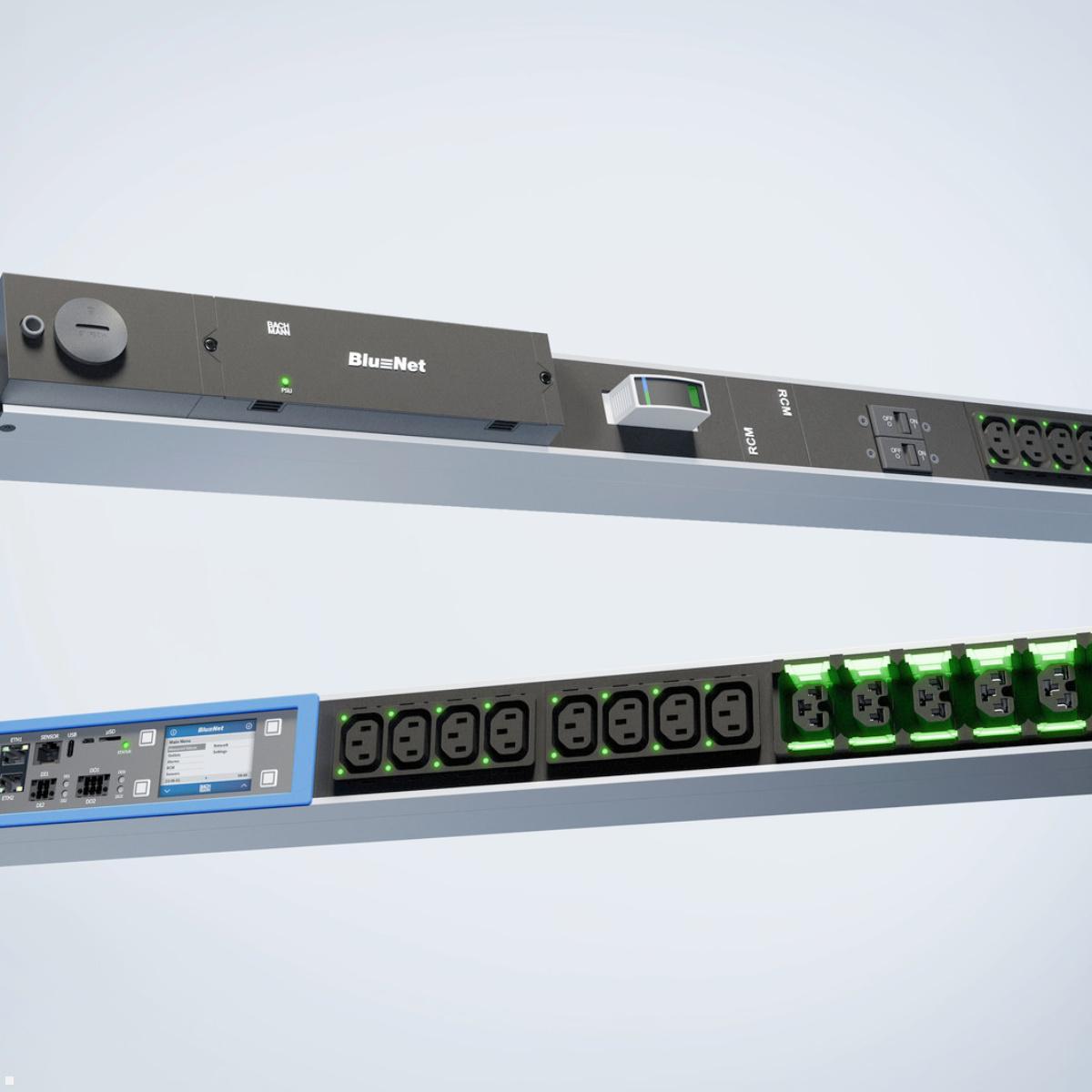

- Residual current monitoring per phase, Type B (RCM)
- Measurement per phase: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet metering via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)

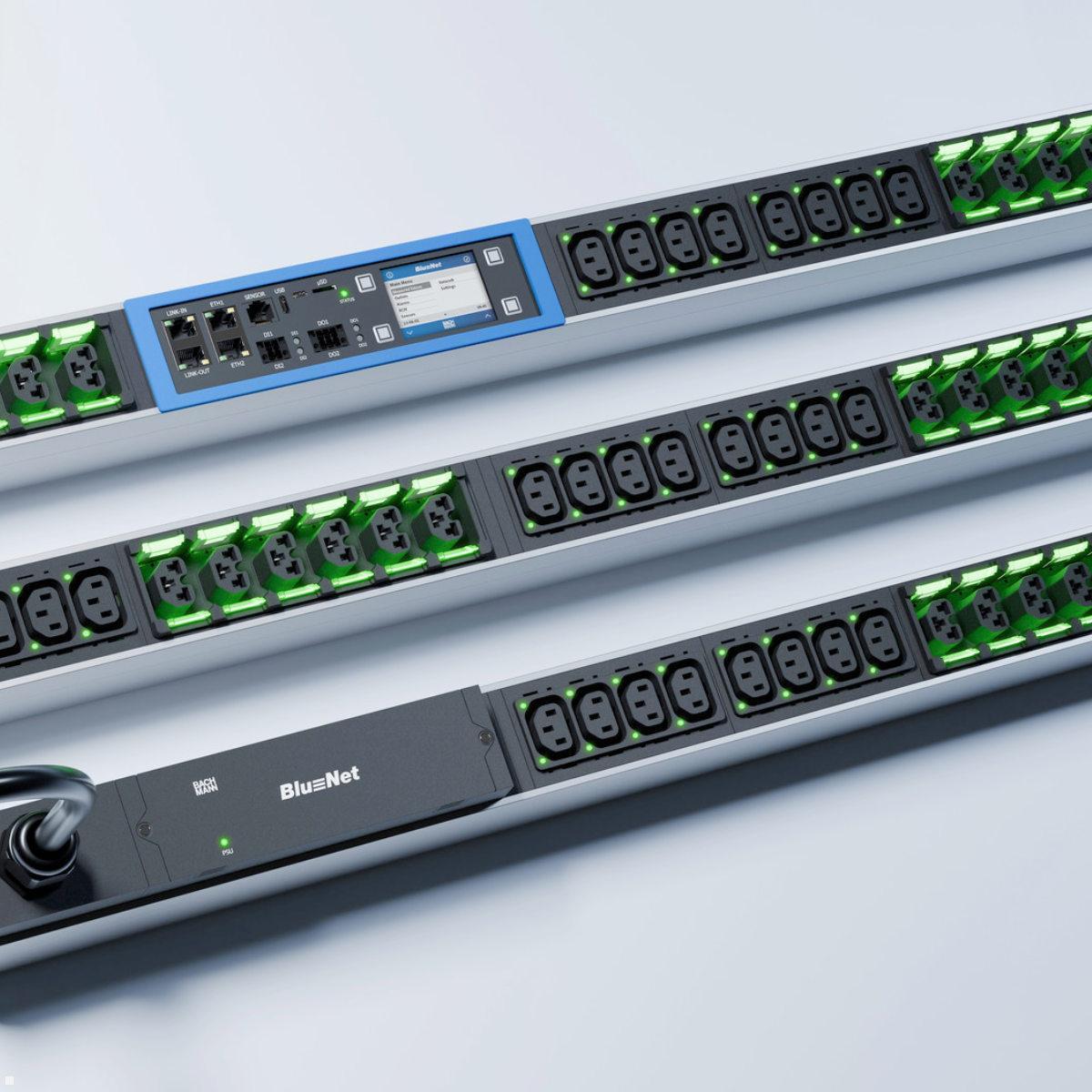

- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI/mains interference filter: No
- Protection: Yes (6x MCB 16A)
- Temperature measurement: Yes
- Mounting direction: vertical
- Housing: aluminum
- Frames for color coding (blue/red)
- Includes mounting brackets (L-shape, single)
- Dimensions (L×W×D): 2067.9 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

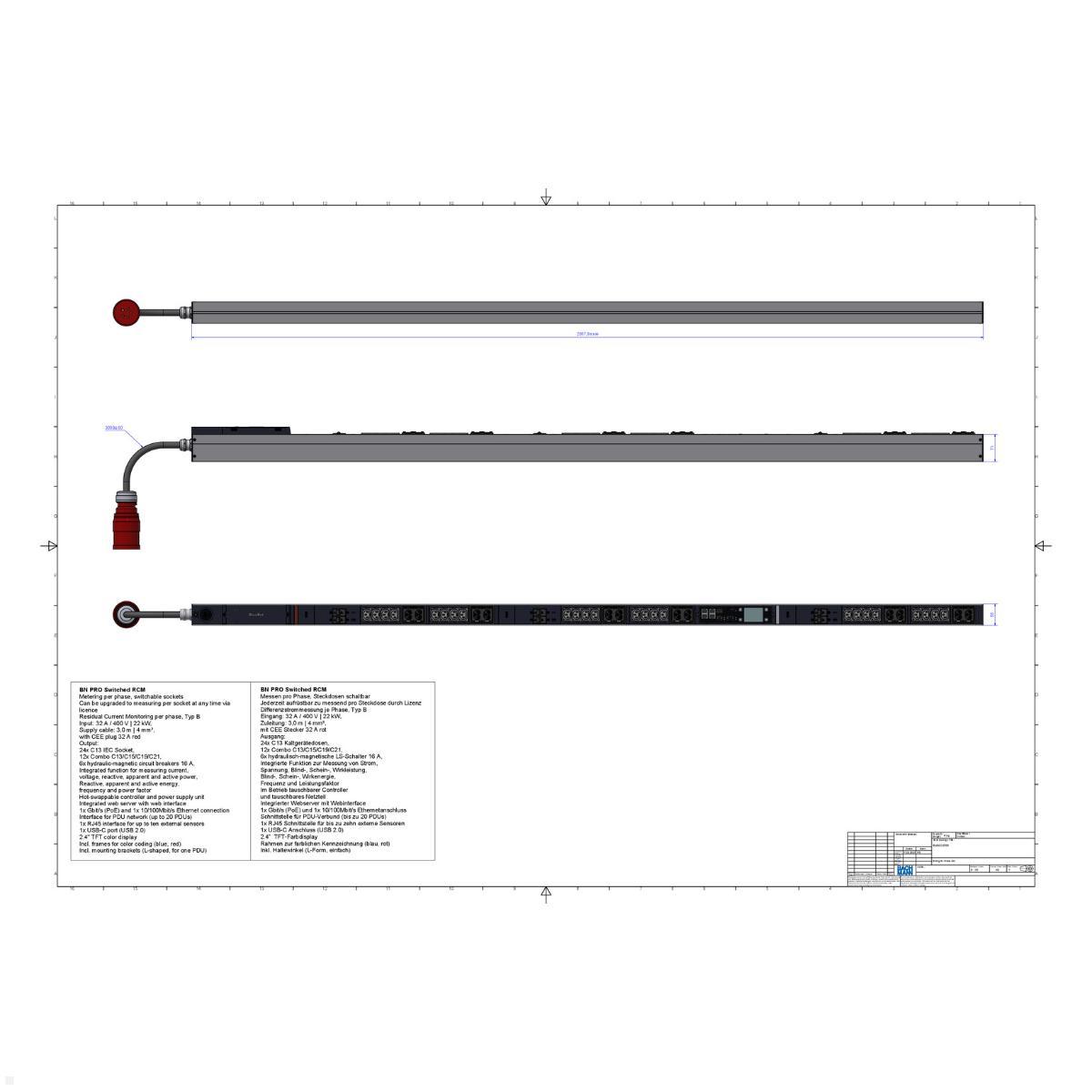

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 47 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched RCM Rack PDU BM0024785?
A high-performance 3-phase switched RCM rack PDU for professional IT racks. Input 32A/400V, 22 kW, 3.0 m lead, 24x C13 outlets and 12x Combo outlets.
-
What outlets does it have?
24x C13 sockets and 12x Combo sockets (C13/C15/C19/C21).
-
What protection features does it offer?
Six hydraulically-magnetic 16A circuit breakers provide overload protection; per-phase residual current monitoring Type B (RCM) monitors fault currents.
-
Can individual outlets be controlled remotely?
Yes, each socket is individually switchable for remote start, restart or shutdown of devices.
-
What measurement features are available and can it be upgraded?
It measures per-phase current, voltage, reactive, apparent and real power, reactive, apparent and real energy, frequency and power factor; upgrade to per-outlet measurement is possible via licence.
-
How can it be managed and networked?
Integrated web server with web interface, SNMP support; PDU daisy-chaining up to 20 PDUs; 2.4" colour TFT display; RJ45 sensor port for up to 10 external sensors; Ethernet: 1x 1 Gbps (PoE) plus 1x 10/100; USB-C.
-
What are the physical specs and included accessories?
Input 32A/400V/22 kW; lead 3.0 m; dimensions 2067.9 × 56 × 71 mm; aluminium enclosure; vertical mounting; frame for colour coding (blue/red) and L-shaped brackets included.
