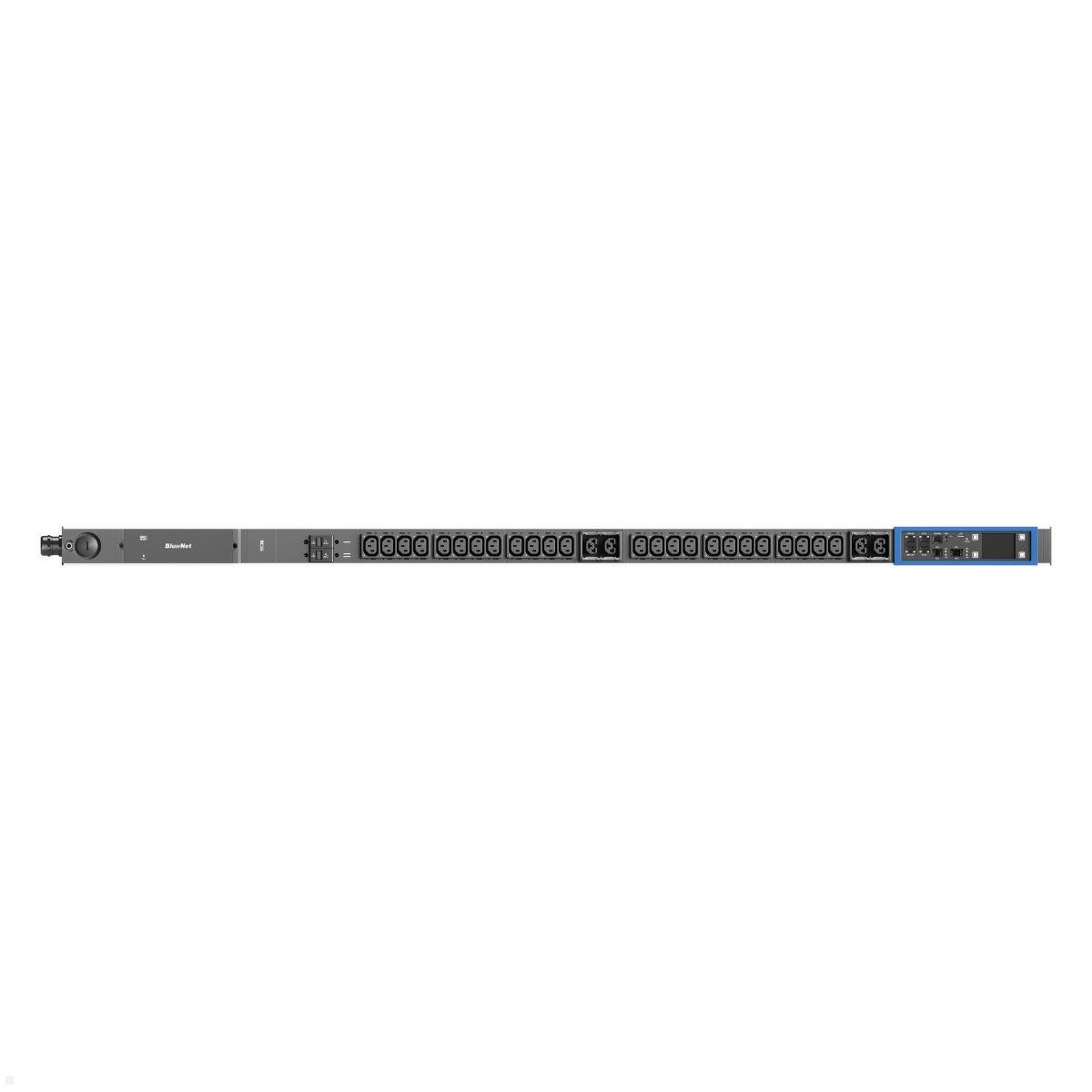

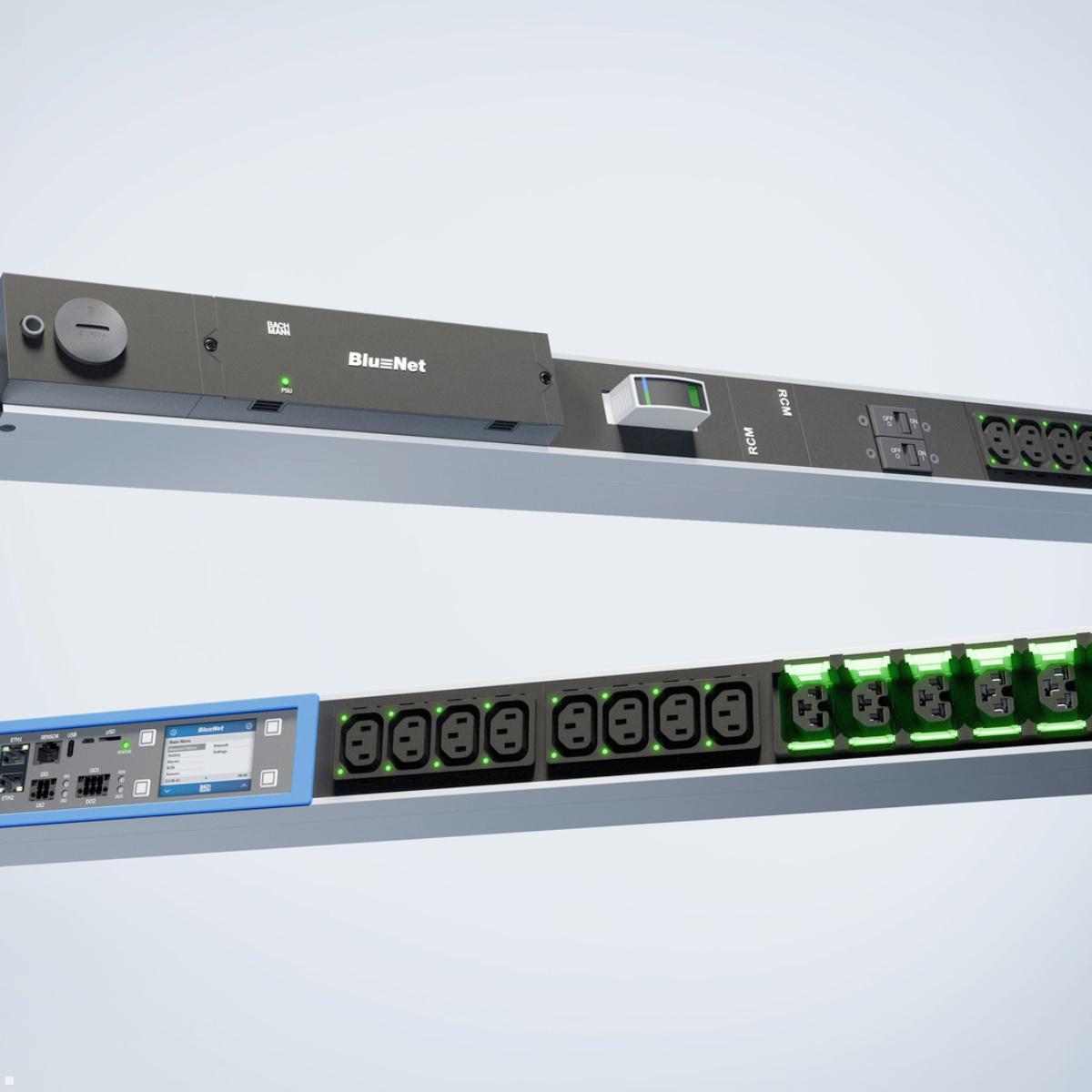

Bachmann BN PRO S Switched RCM - 32A Rack PDU with 24xC13 4xCombo 2xMCB, 3.0m CEE 32A/3p (BM0024779)
Highlights
- 24xC13 + 4xCombo + 2x MCB 16A
- RCM residual current measurement, Type B
- 32A / 230V / 7.2 kW, single-phase
- Sockets individually switchable
- Controller & power supply hot-swappable
Single-phase Switched RCM Rack PDU 32A with 24xC13 4xCombo and MCBs

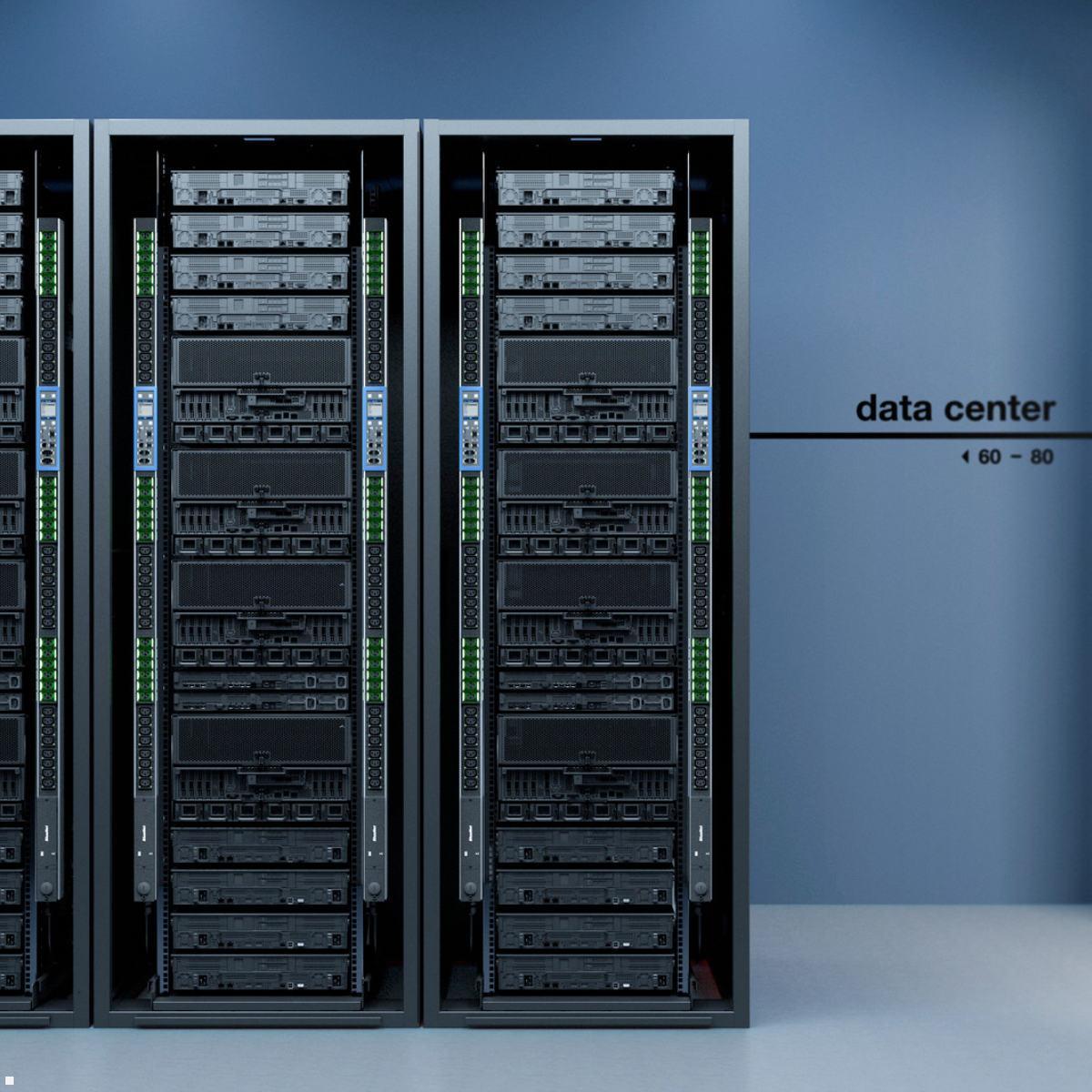

The Bachmann BN PRO S Switched RCM (BM0024779) is a powerful, single-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/230V and 7.2 kW and a 3.0 m supply cable (4 mm²) with blue CEE 32A plug, it reliably powers connected devices in the rack. The 24x C13 IEC outlets as well as 4x combo sockets (C13/C15/C19/C21) provide maximum flexibility for different device configurations. Two integrated hydraulic-magnetic 16A MCBs provide additional overload protection. A special safety feature is the all-current-sensitive residual current monitoring per phase, Type B (RCM), which provides continuous monitoring for fault currents. Each outlet is individually switchable, allowing devices to be conveniently powered on, rebooted, or powered off remotely. The integrated measurement function records per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, as well as frequency and power factor. Upgradeable at any time to per-outlet measurement via license.
The Bachmann BN PRO S Switched RCM - 32A Rack PDU with 24xC13 4xCombo 2xMCB, 3.0m CEE 32A/3p (BM0024779) convinces with maximum operational reliability: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enables seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU cascade interface. The 2.4" color TFT display shows important operating data directly on the unit. An RJ45 sensor port allows the connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked – colored marking frames (blue/red) and mounting brackets (L-shaped) are included.
Technical Details – Bachmann BN PRO S Switched RCM Rack PDU BM0024779
- Input: 32A / 230V / 7.2 kW
- Supply cable: 3.0 m | 4 mm² | blue CEE 32A plug
- Phases: single-phase

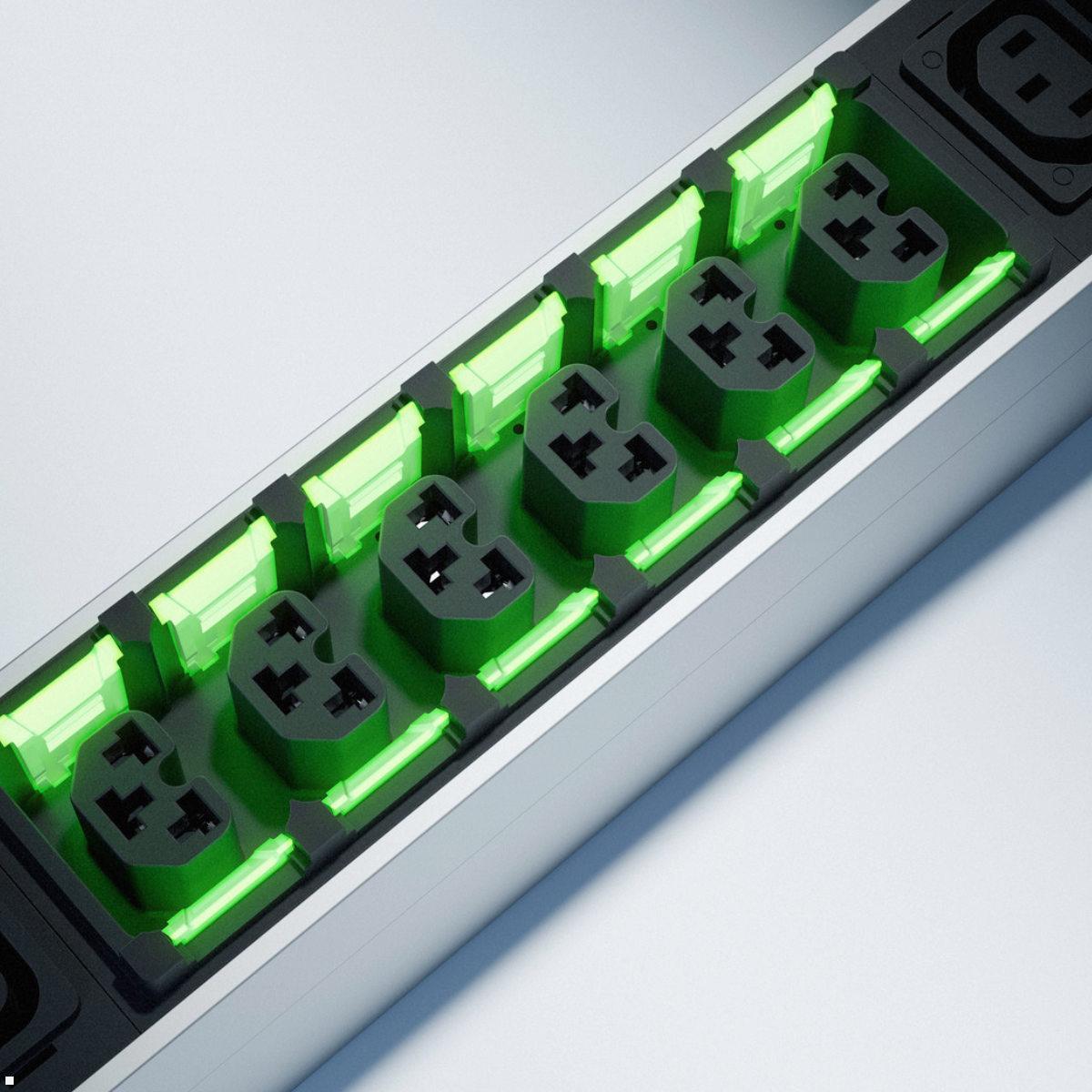

- Output: 24x C13 IEC outlets, 4x Combo (C13/C15/C19/C21)
- 2x hydraulic-magnetic MCBs 16A
- Outlets individually switchable
- Residual current monitoring per phase, Type B (RCM)
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)

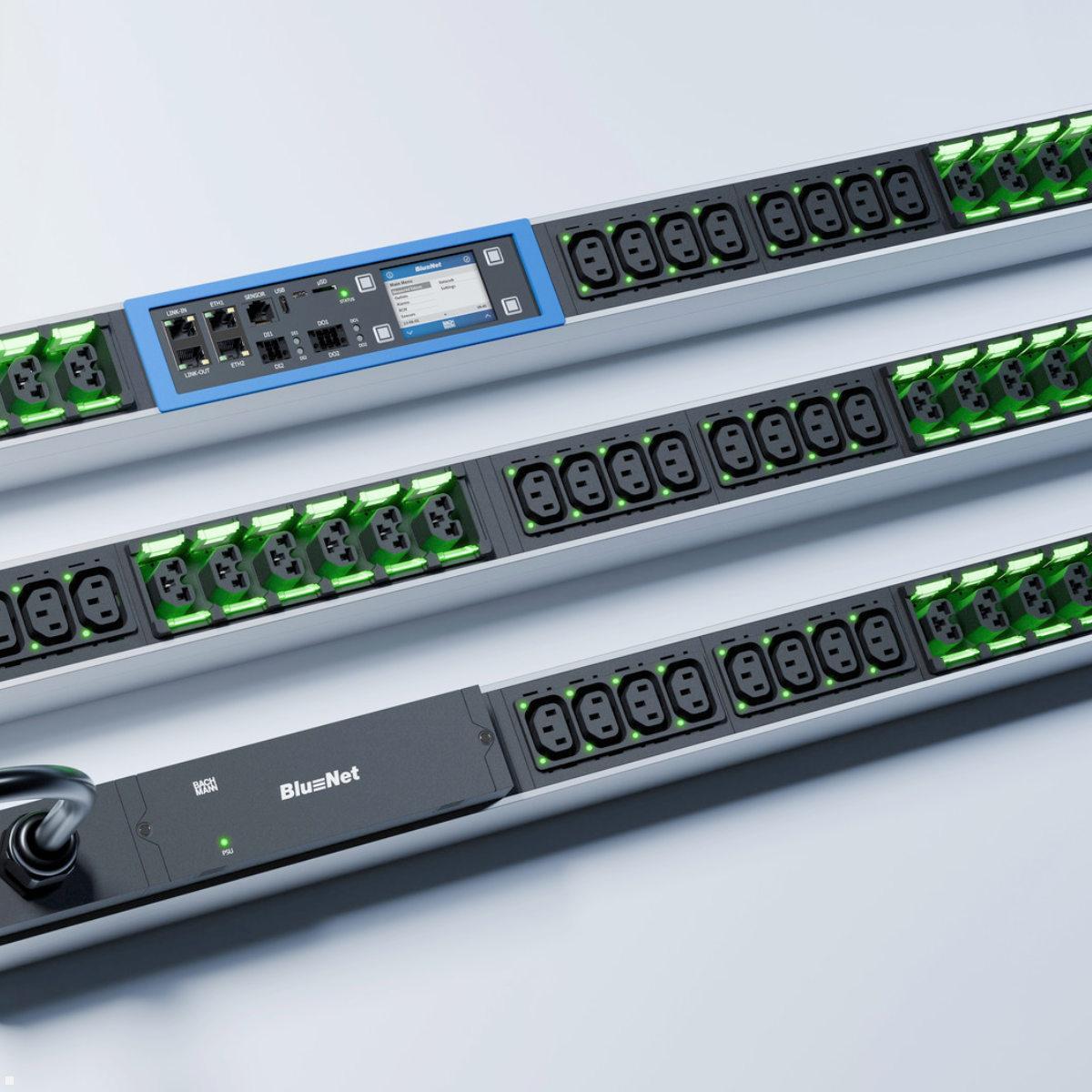

- 2.4" color TFT display
- LED indicator: Yes
- Surge protection: No
- Network interference filter: No
- Protection: Yes (2x MCB 16A)
- Temperature measurement: Yes
- Mounting orientation: vertical
- Enclosure: Aluminum
- Frames for color coding (blue/red)
- Includes mounting brackets (L-shaped, single)
- Dimensions (L×W×D): 1430.4 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

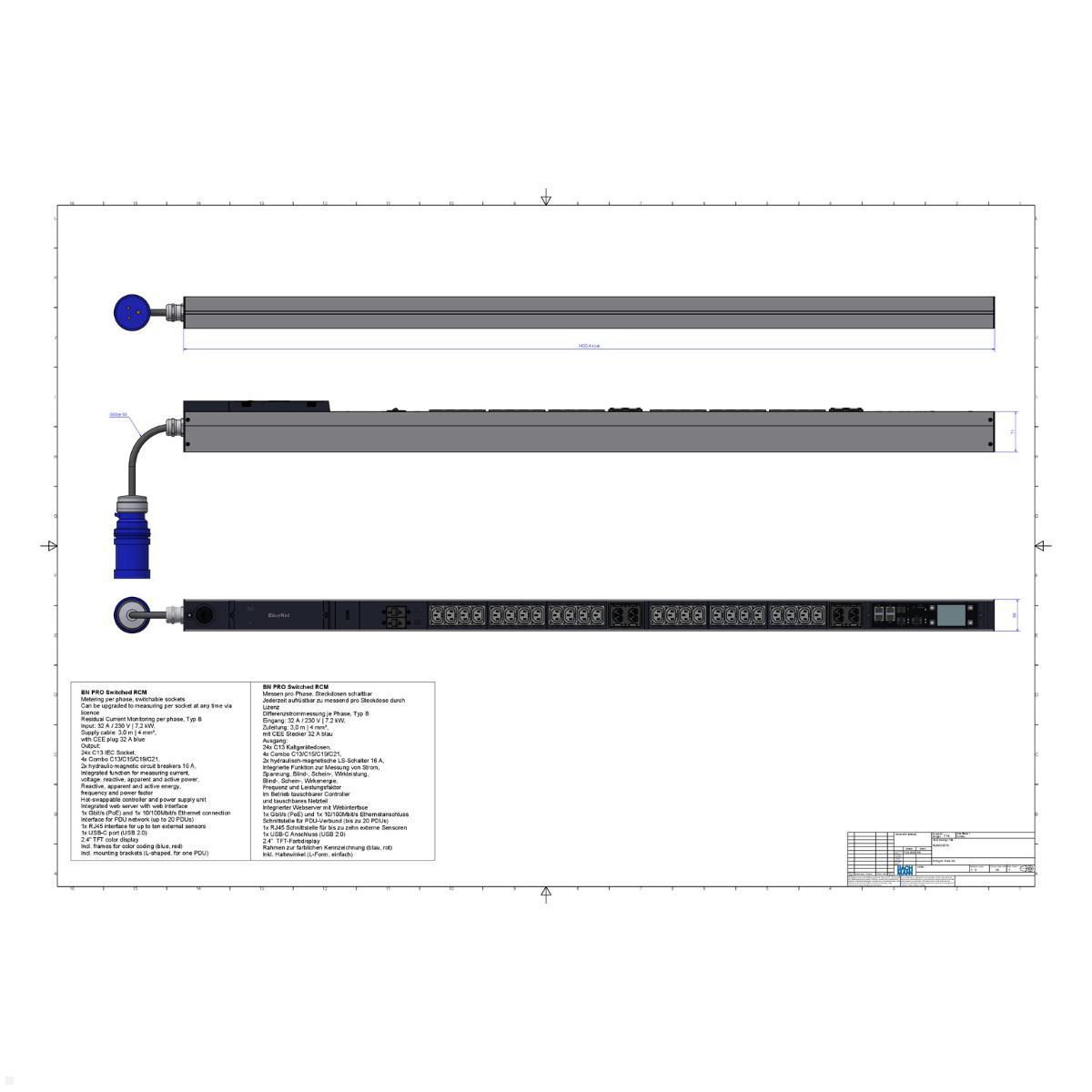

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 28 Steckdosen |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched RCM Rack PDU BM0024779?
It is a high-performance, single-phase switched RCM rack PDU. It has a 32 A input, 7.2 kW, a 3.0 m lead with a blue 32A CEE plug, 24x C13 outlets and 4x Combo outlets (C13/C15/C19/C21).
-
What outlets and connections does it provide?
It offers 24x C13 outlets and 4x Combo outlets (C13/C15/C19/C21). There are also 2 hydraulic-magnetic 16A breakers and individually switchable outlets.
-
What safety and monitoring features does it have?
It includes all-phase differential current measurement Type B (RCM) for continuous fault-current monitoring, and it has 2x 16A MCBs.
-
Can it be monitored and controlled remotely?
Yes. It features an integrated web server with a web interface, SNMP support, and a PDU crest interface to cascade up to 20 PDUs. Each outlet is individually switchable.
-
What measurement and display capabilities does it offer?
The PDU measures per phase current, voltage, apparent and real power, energy and frequency. It has a 2.4" colour TFT display and an LED indicator.
-
What network and sensor interfaces are available?
Network: 1x 1 Gbit/s Ethernet (PoE) plus 1x 10/100 Mbit/s. Other interfaces: 1x USB-C (USB 2.0) and 1x RJ45 sensor port for up to 10 external sensors.
-
What are the dimensions and mounting options?
Aluminium chassis, vertical mounting orientation. Color-coded frame (blue/red) and included L-shaped mounting brackets. Dimensions: 1430.4 x 56 x 71 mm.
