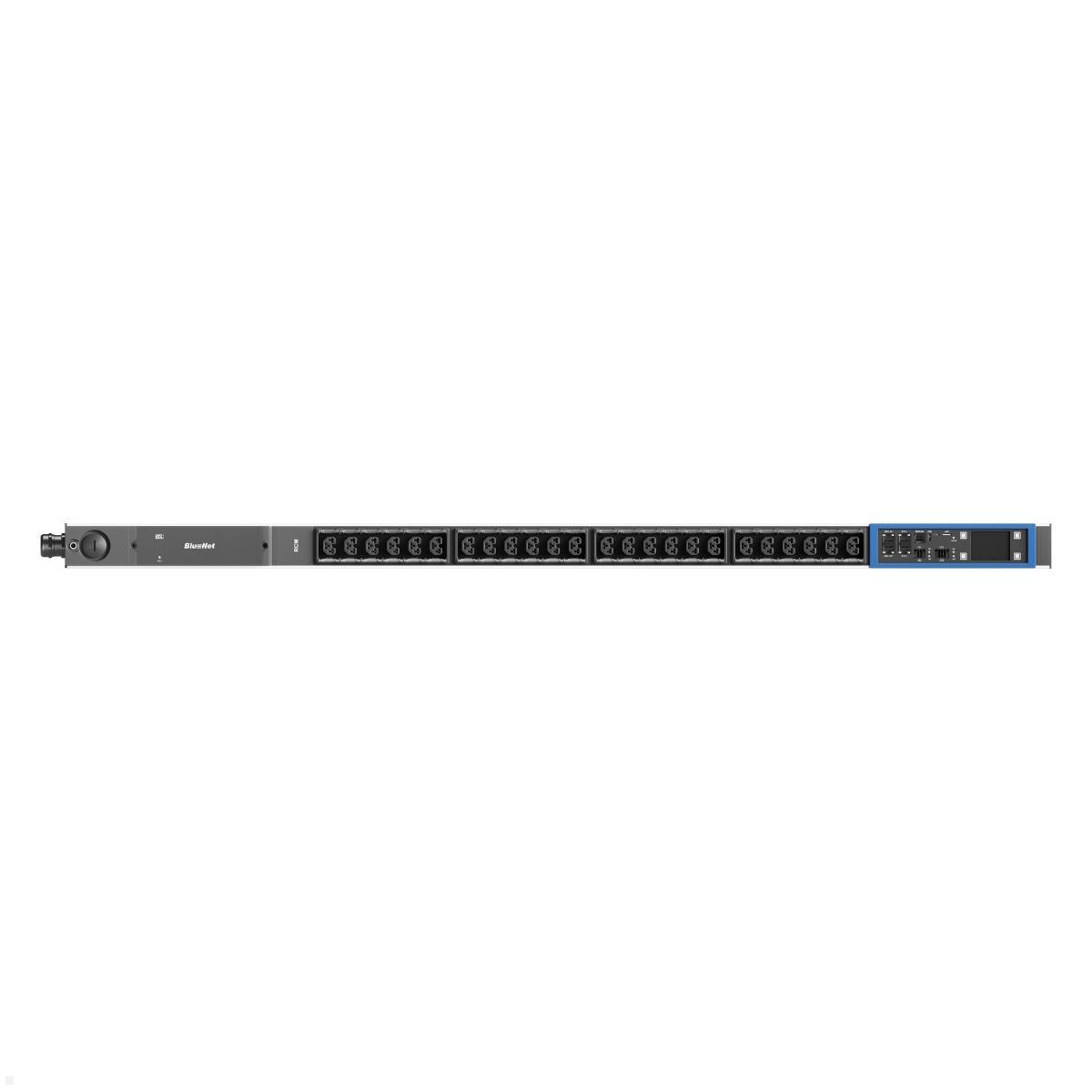

Bachmann BN PRO S Switched RCM - 16A Rack PDU with 24xCombo, 3,0m CEE 16A/3p (BM0024769)
Highlights
- 24x Combo (C13/C15/C19/C21)
- RCM residual current measurement, Type B
- Sockets individually switchable
- Measurement per phase, SNMP-capable
- Controller & power supply hot-swappable
Switched RCM Rack PDU with residual-current measurement and switchable sockets

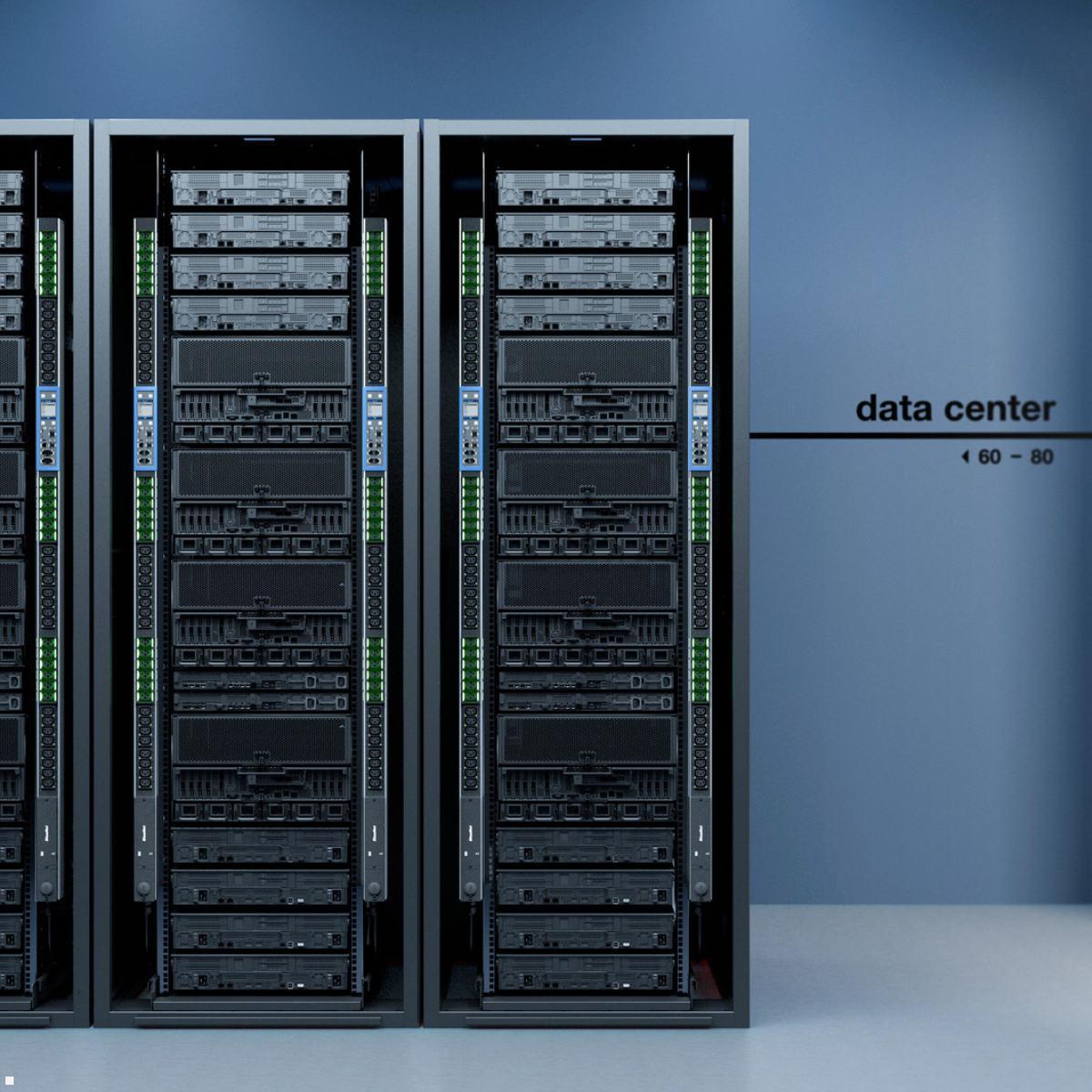

The Bachmann BN PRO S Switched RCM (BM0024769) is a professional Power Distribution Unit for use in IT racks, server rooms and data centers. With an input of 16A/230V and 3.6 kW and a 3.0 m supply cable (2.5 mm²) with a CEE 16A blue plug, it reliably powers connected devices in the rack. The 24x combo sockets (C13/C15/C19/C21) offer maximum flexibility for a wide range of device configurations. Each socket is individually switchable, allowing devices to be started, restarted or turned off remotely. A special safety feature is the all-current sensitive residual-current measurement per phase, Type B (RCM), which provides continuous monitoring for fault currents. The integrated measurement function records per phase current, voltage, reactive, apparent and active power, reactive, apparent and active energy, as well as frequency and power factor. Upgradeable at any time to per-socket measurement via license.
The Bachmann BN PRO S Switched RCM - 16A Rack PDU with 24xCombo, 3.0m CEE 16A/3p (BM0024769) convinces with maximum reliability: controller and power supply are hot-swappable, allowing maintenance to be performed without interruption. The integrated web server with web interface and SNMP support enables seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU chaining interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows the connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0) the PDU is well networked – the color-coded frame (blue/red) and the supplied mounting bracket (L-shaped) complete the package.
Technical details – Bachmann BN PRO S Switched RCM Rack PDU BM0024769
- Input: 16A / 230V / 3.6 kW
- Supply cable: 3.0 m | 2.5 mm² | CEE plug 16A blue
- Phases: 3-phase

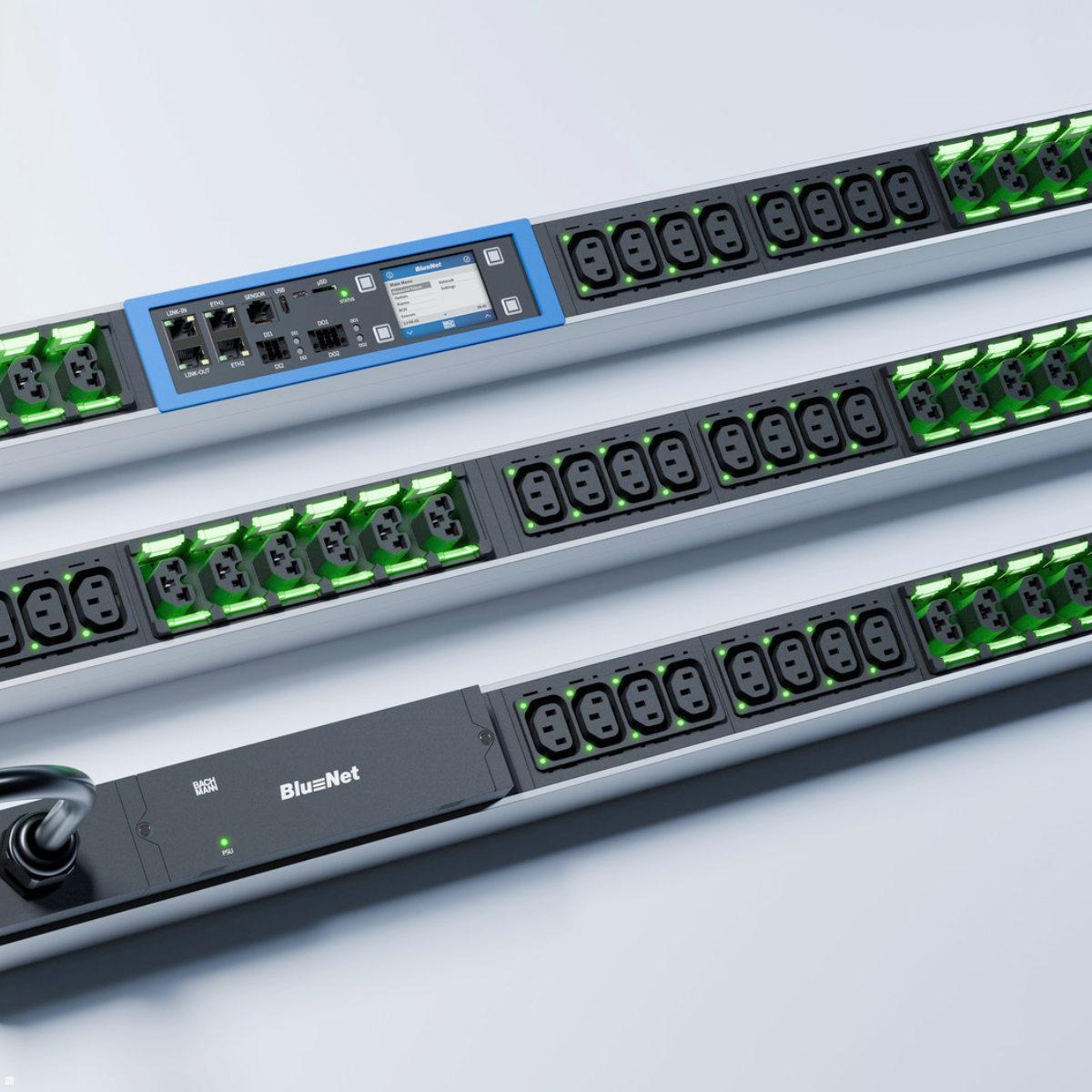

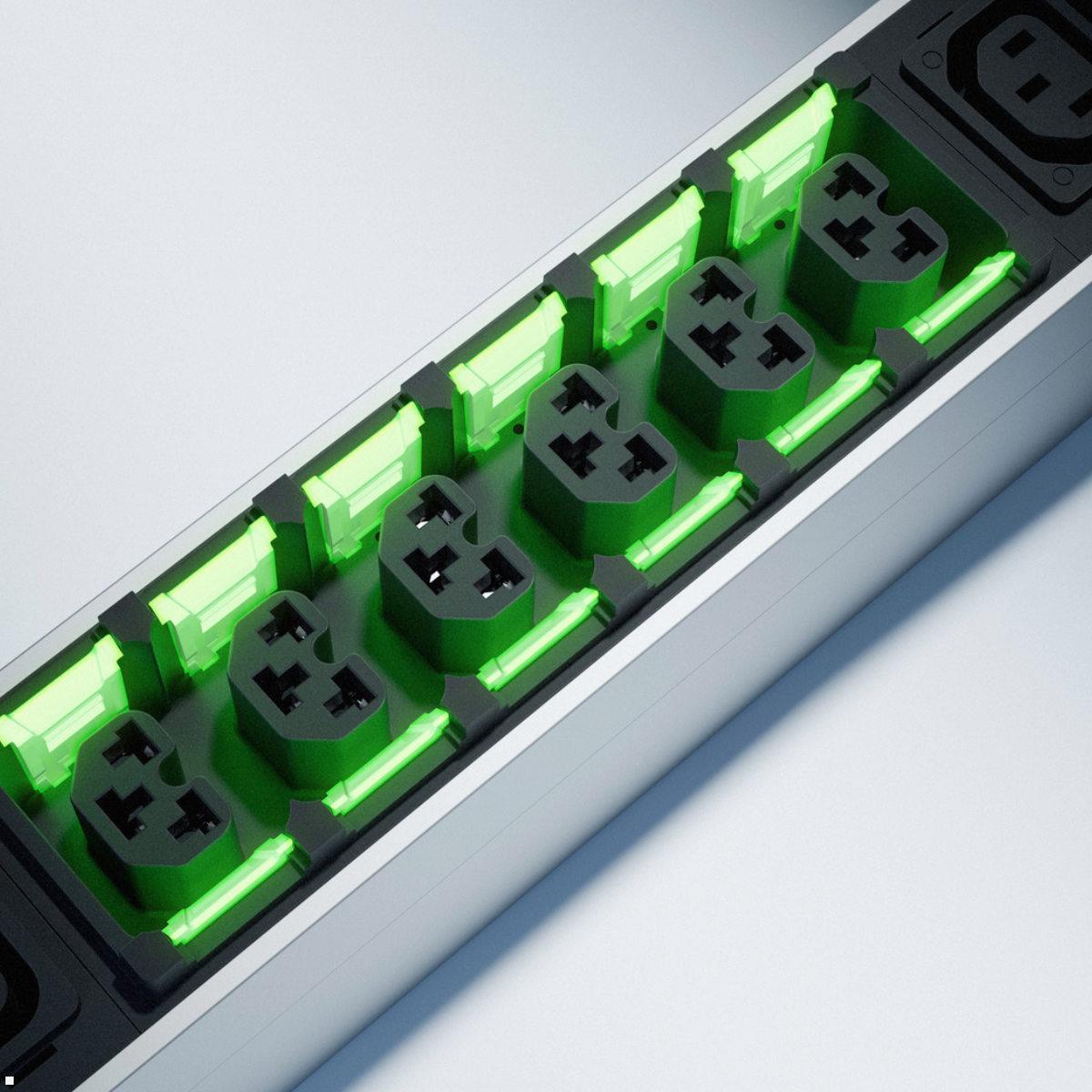

- Output: 24x Combo (C13/C15/C19/C21)
- Sockets individually switchable
- Residual-current measurement per phase, Type B (RCM)
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-socket measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU chaining: up to 20 PDUs cascadeable
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)

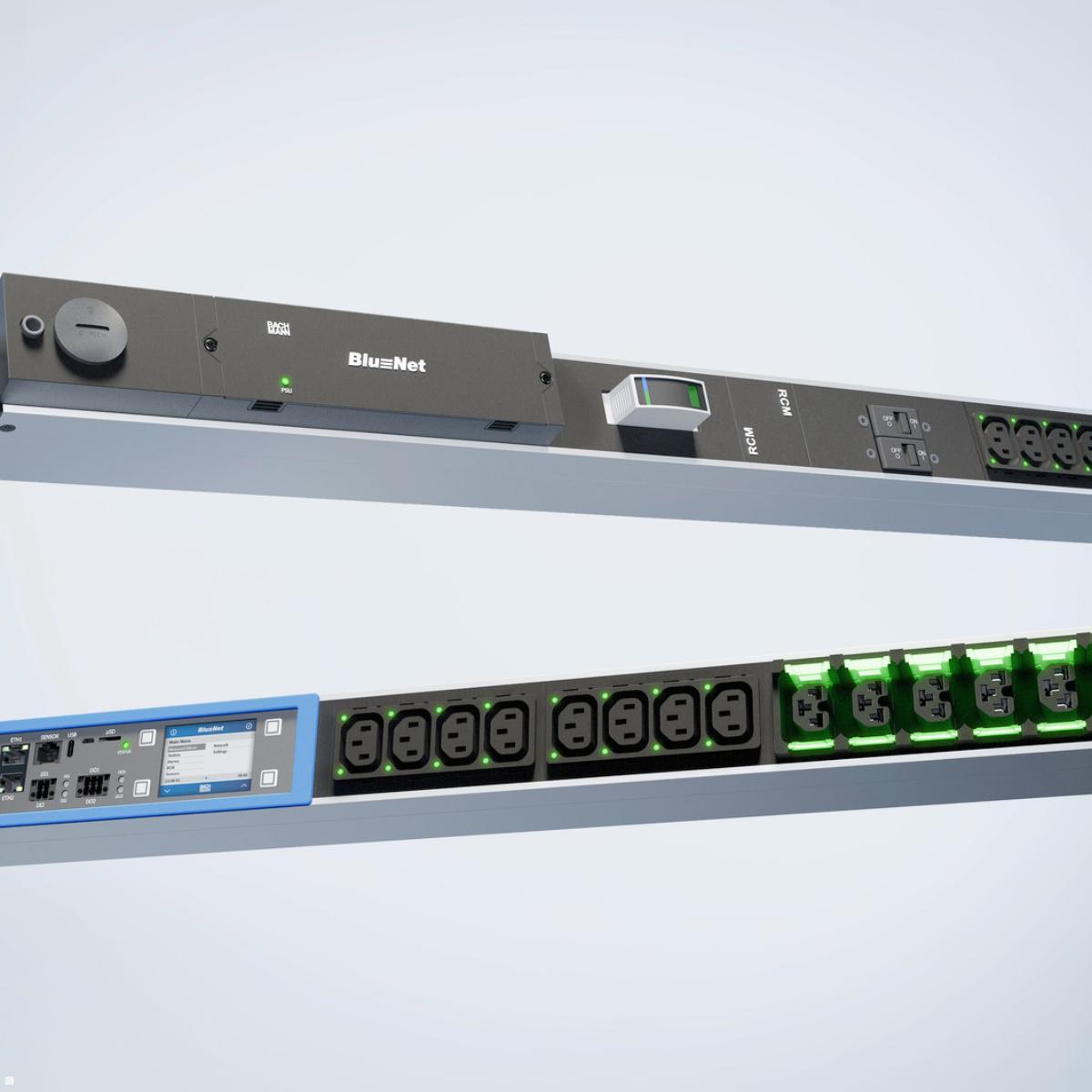

- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI filter: No
- Fuse: No
- Temperature measurement: Yes
- Mounting orientation: vertical
- Housing: aluminium
- Color-coded frame (blue/red)
- Includes mounting bracket (L-shaped, simple)
- Dimensions (L×W×D): 1233.6 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

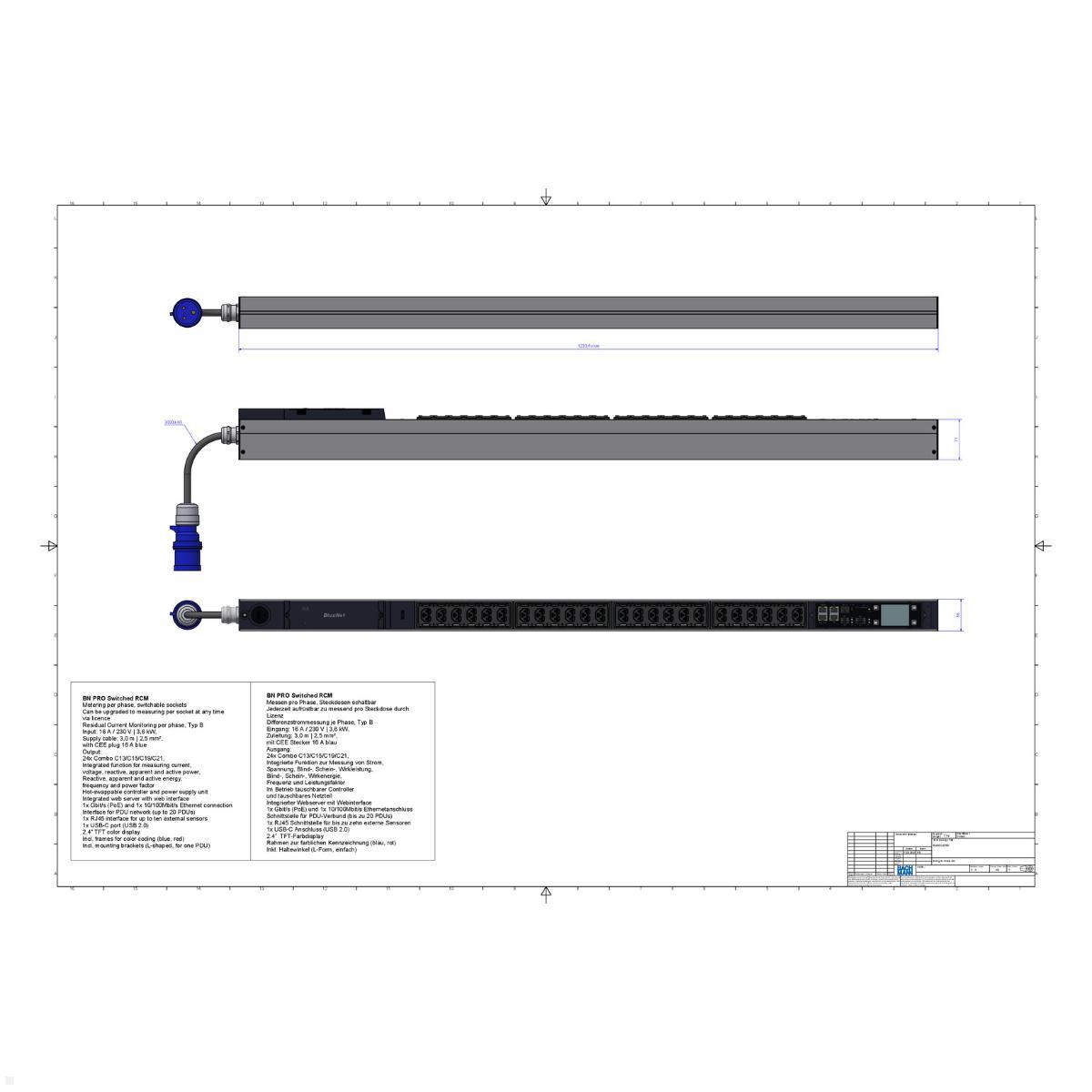

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched RCM Rack PDU BM0024769?
The BN PRO S Switched RCM is a professional rack PDU for IT racks, data centers and server rooms. It features a 16A/230V input, 3.6 kW, a 3.0 m lead with a blue 16A CEE plug, and 24x Combo outlets.
-
What are the input specifications?
Input: 16A/230V/3.6 kW; lead: 3.0 m, 2.5 mm², blue 16A CEE plug; phases: 3-phase.
-
How many outlets does it have and what types are they?
It has 24x Combo outlets (C13/C15/C19/C21) for maximum flexibility.
-
Are the outlets individually switchable?
Yes, each outlet is individually switchable for remote powering, rebooting or shutting down devices.
-
What safety and measurement features does it include?
All-current-sensitive differential current measurement per phase, Type B (RCM) provides continuous fault current monitoring. The per-phase measurement covers current, voltage, and active, reactive, and apparent power plus energy, frequency and power factor; per-outlet measurement can be upgraded by license.
-
What network and monitoring capabilities are available?
Integrated web server with a web interface and SNMP support; PDU cascade support up to 20 PDUs; Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100; 1x USB-C.
-
What additional features and physical characteristics does it have?
2.4" TFT colour display; RJ45 sensor port for up to 10 external sensors; temperature measurement; LED indicator; color-coded frame (blue/red) and included L-shaped mounting bracket; vertical mounting; aluminium housing; dimensions: 1233.6 × 56 × 71 mm.
