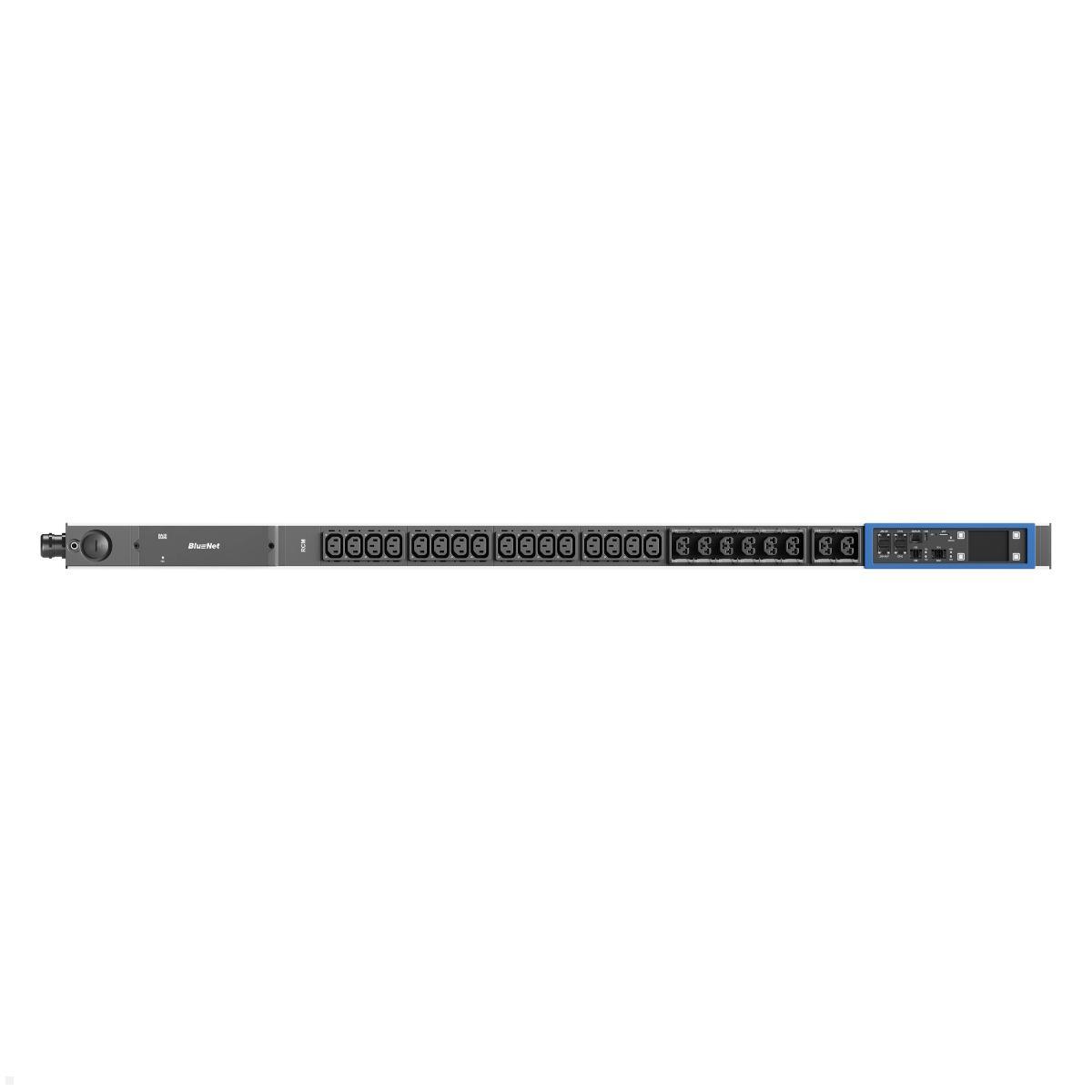

Bachmann BN PRO S Switched RCM - 16A Rack PDU with 16xC13 8xCombo, 3,0m CEE 16A/3p (BM0024770)

Switched RCM Rack PDU with Phase Measurement and Switched Outlets

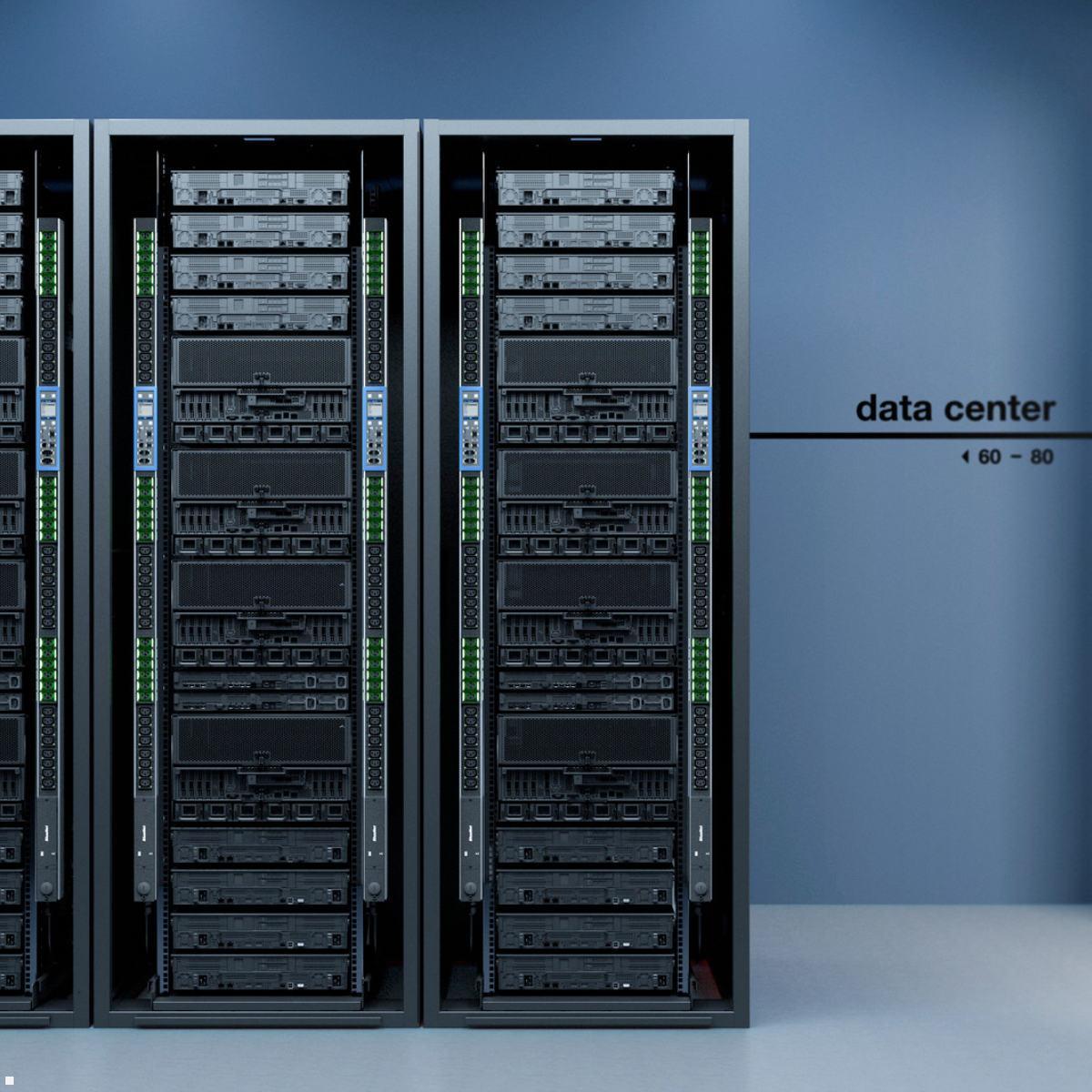

The Bachmann BN PRO S Switched RCM (BM0024770) is a professional Power Distribution Unit for use in IT racks, server rooms and data centers. With an input of 16A/230V and 3.6 kW and a 3.0 m supply cable (2.5 mm²) with CEE 16A blue plug, it reliably powers connected devices in the rack. The 16x C13 IEC outlets and 8x combo outlets (C13/C15/C19/C21) offer maximum flexibility for different device configurations. Each outlet is individually switchable, allowing devices to be started, restarted or shut down remotely. A special safety feature is the all-current-sensitive residual current monitoring per phase, Type B (RCM), which provides permanent monitoring for fault currents. The integrated measurement function records per phase current, voltage, reactive, apparent and active power, reactive, apparent and active energy, as well as frequency and power factor. Upgradeable at any time to per-outlet measurement via license.

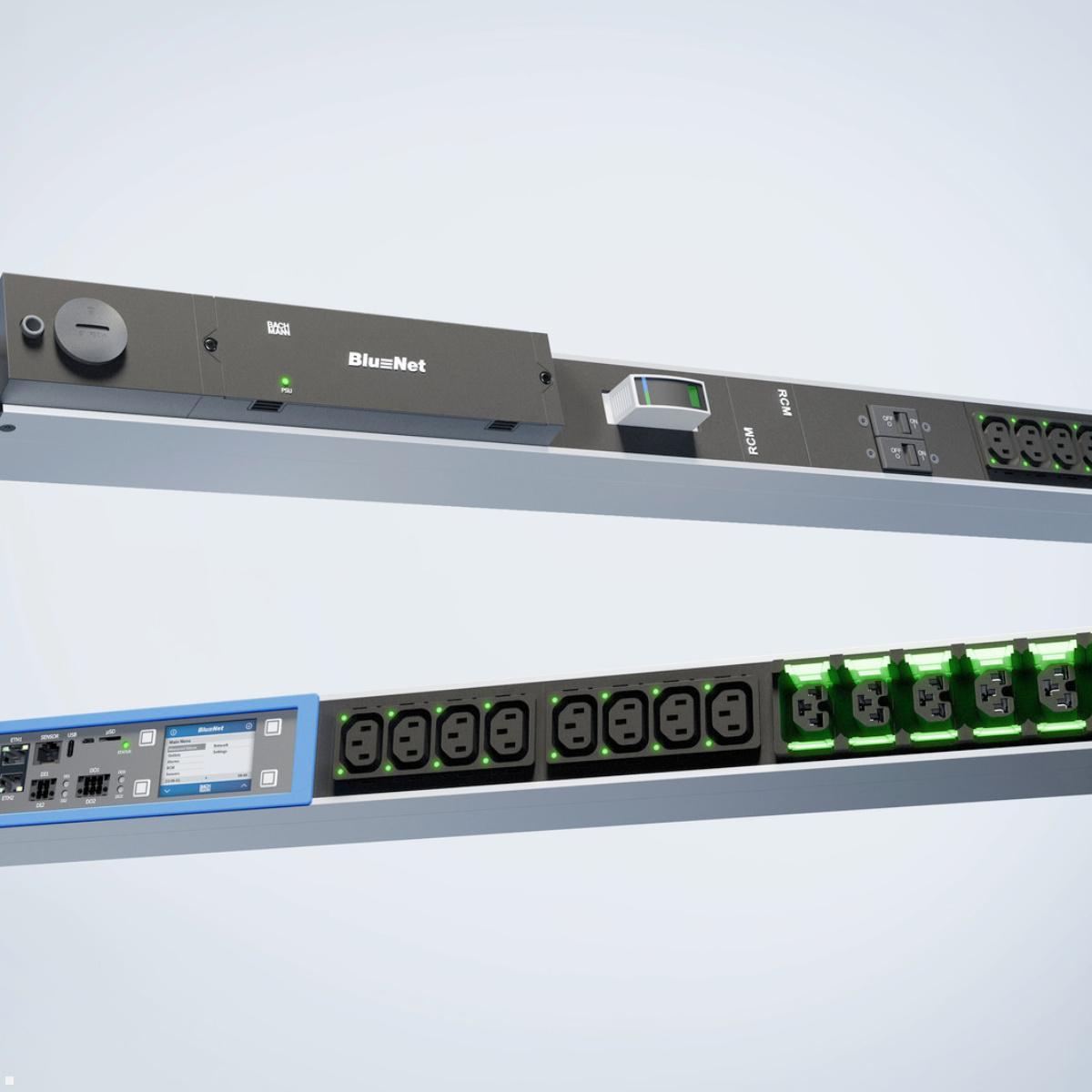

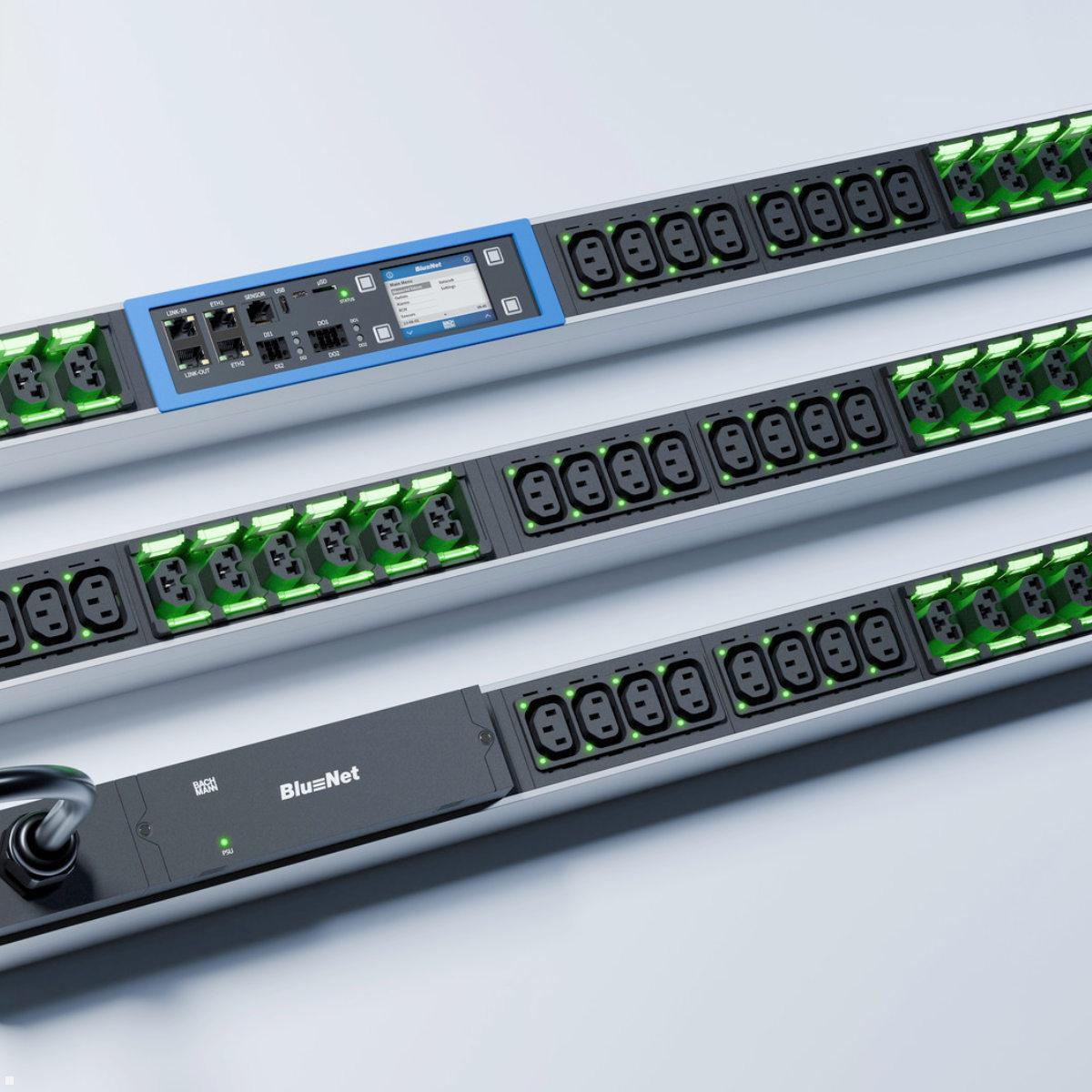

The Bachmann BN PRO S Switched RCM - 16A Rack PDU with 16x C13 8x Combo, 3.0m CEE 16A/3p (BM0024770) convinces with maximum reliability: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU cascade interface. The 2.4" color TFT display shows important operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet ports as well as 1x USB-C (USB 2.0) the PDU is well connected – the frame for color coding (blue/red) and the supplied mounting bracket (L-shaped) complete the package.

Technical Details – Bachmann BN PRO S Switched RCM Rack PDU BM0024770

• Input: 16A / 230V / 3.6 kW
• Supply cable: 3.0 m | 2.5 mm² | CEE 16A blue plug
• Phases: single-phase

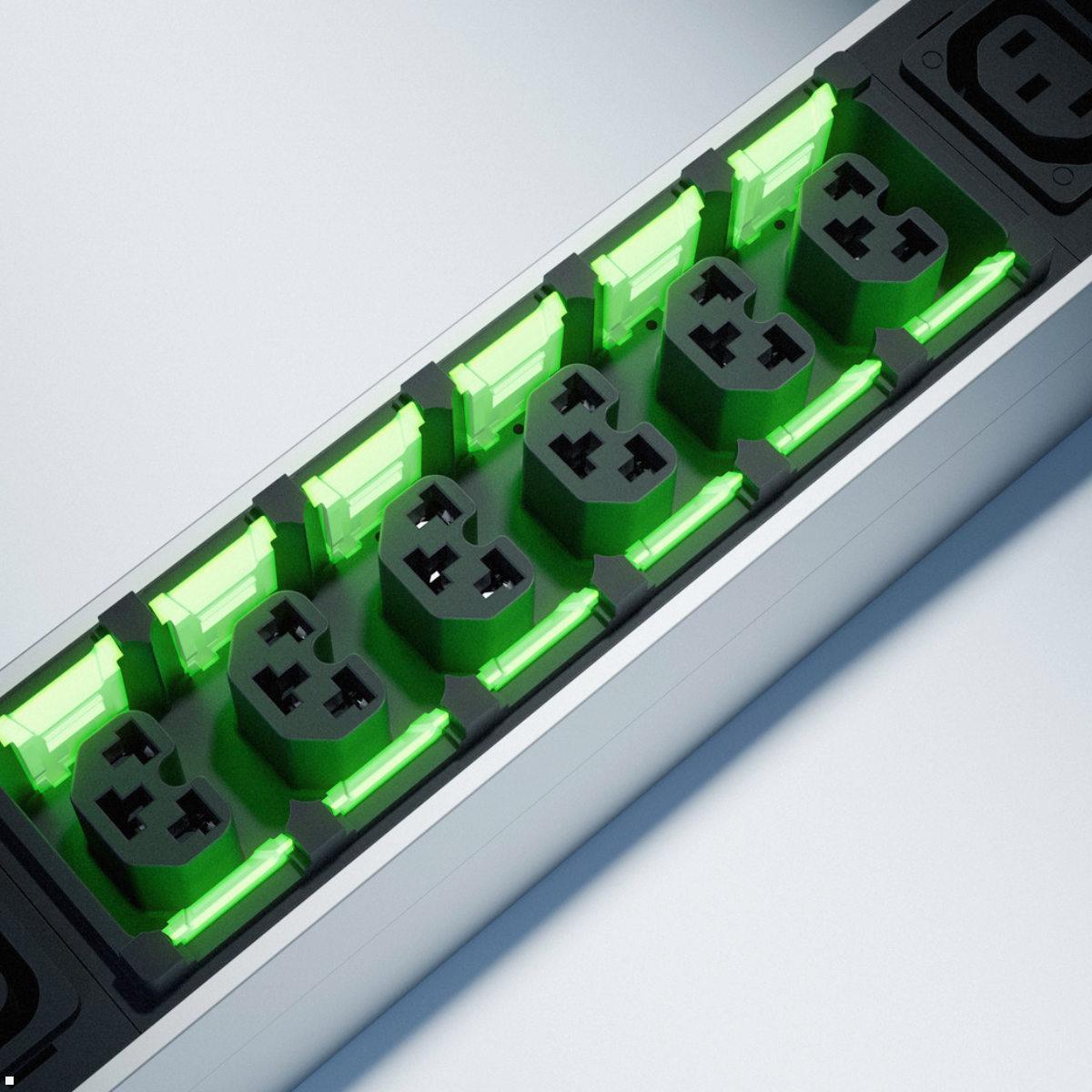

• Output: 16x C13 IEC outlets, 8x combo (C13/C15/C19/C21)
• Outlets individually switchable
• Residual current monitoring per phase, Type B (RCM)
• Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
• Upgradeable at any time to per-outlet measurement via license
• Controller and power supply hot-swappable
• Integrated web server with web interface
• SNMP support
• Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
• PDU cascade: up to 20 PDUs can be cascaded
• 1x RJ45 sensor port for up to 10 external sensors
• 1x USB-C port (USB 2.0)
• 2.4" color TFT display
• LED indicator: Yes
• Surge protection: No
• Mains interference filter: No
• Fuse: No
• Temperature measurement: Yes
• Mounting orientation: vertical
• Housing: aluminum
• Frame for color coding (blue/red)
• Includes mounting bracket (L-shaped, single)

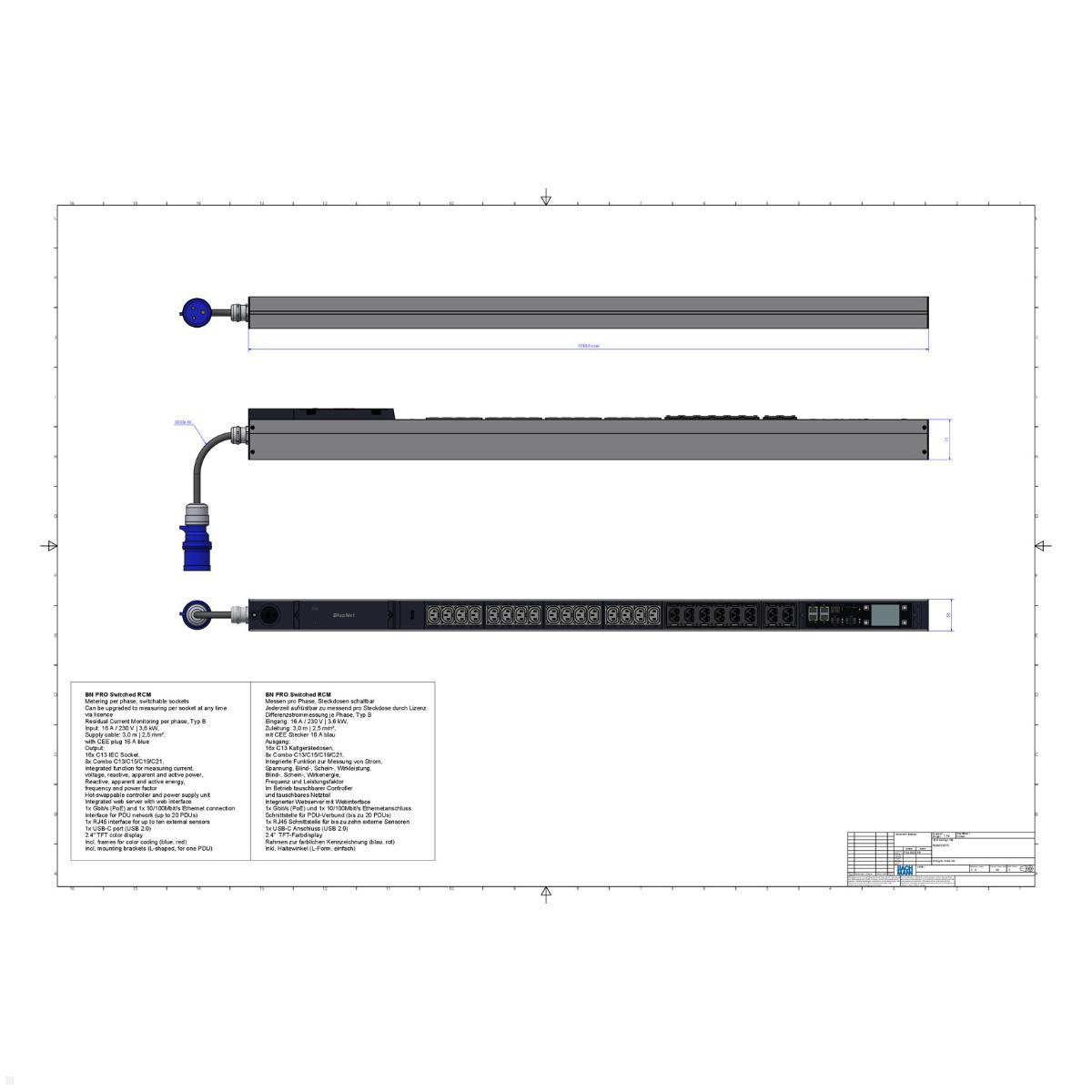

• Dimensions (L×W×D): 1199.6 x 56 x 71 mm
