Bachmann BN PRO S Switched RCM - 16A Rack PDU with 36xCombo, 3,0m CEE 16A/5p (BM0024775)
Highlights
- 36x Combo (C13/C15/C19/C21)
- RCM residual current measurement, Type B
- 16A / 400V / 11 kW, 3-phase
- Sockets individually switchable
- Controller & power supply hot-swappable

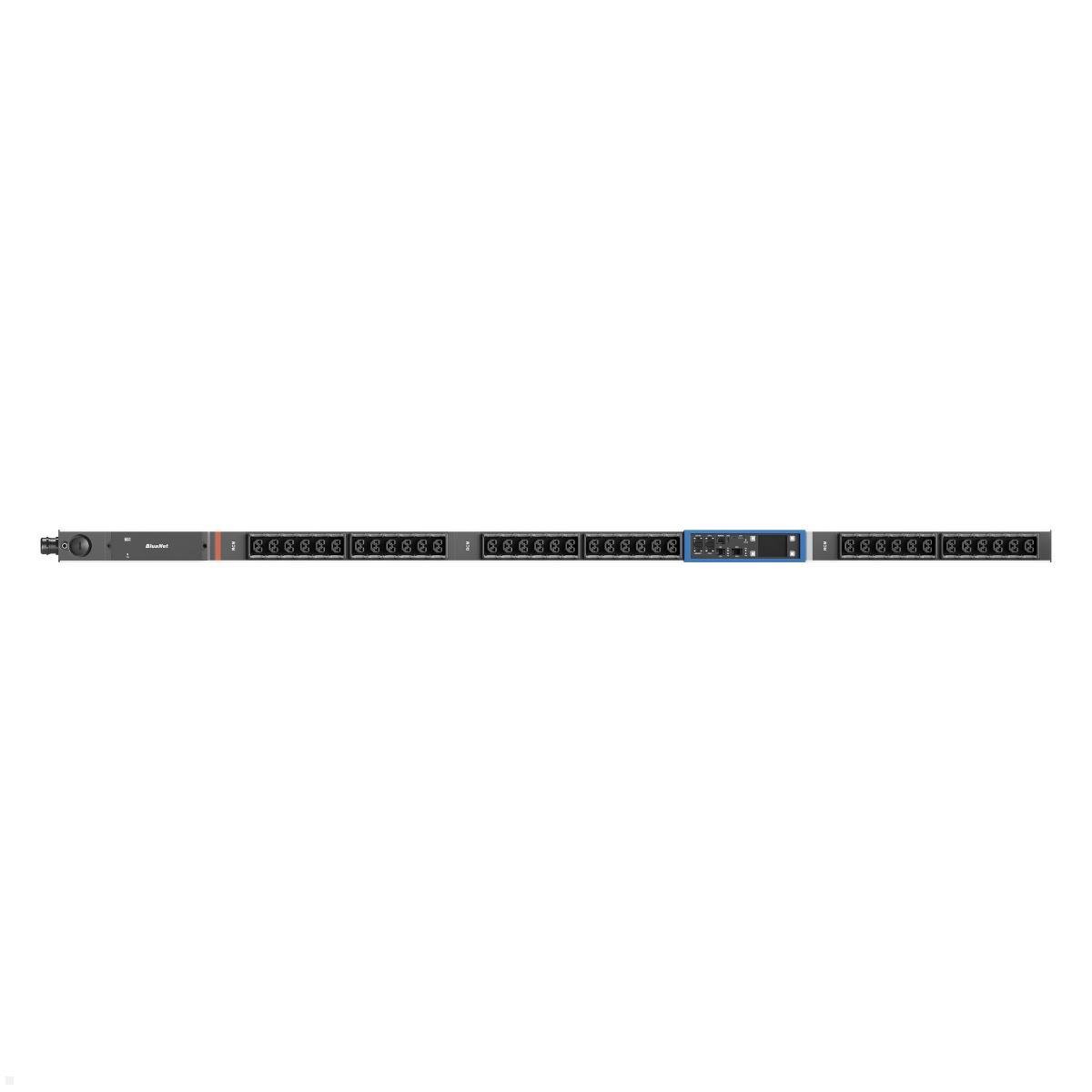

3-phase Switched RCM Rack PDU with 36xCombo and Residual Current Measurement

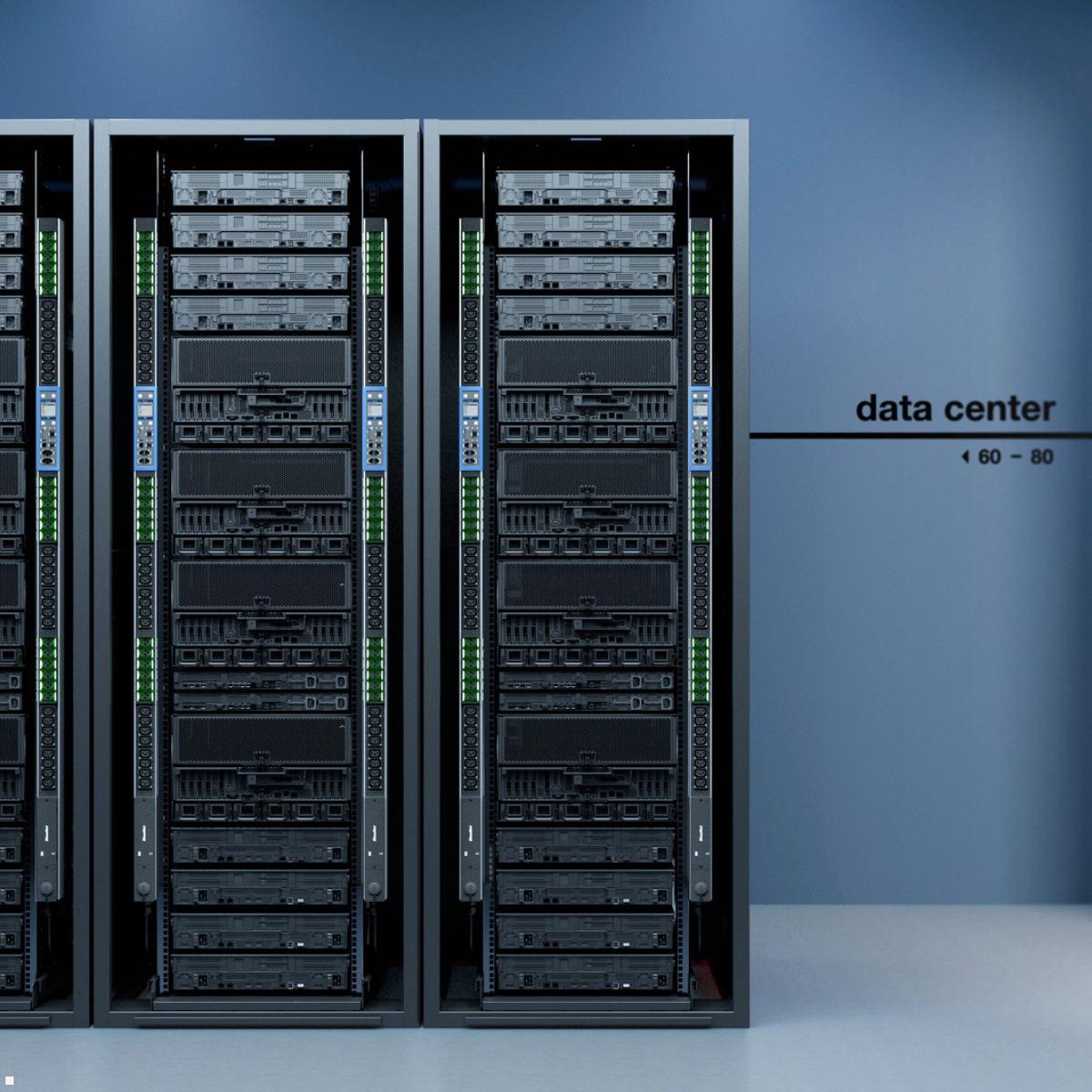

The Bachmann BN PRO S Switched RCM (BM0024775) is a powerful 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 16A/400V and 11 kW and a 3.0 m supply cable (2.5 mm²) with a red 16A CEE plug, it reliably powers connected devices in the rack. The 36xCombo outlets (C13/C15/C19/C21) offer maximum flexibility for a wide range of device configurations. Each outlet is individually switchable, allowing devices to be remotely powered on, rebooted or shut down. A special safety feature is the all-current-sensitive residual current measurement per phase, Type B (RCM), which provides continuous monitoring for fault currents. The integrated measurement function records per-phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency and power factor. Upgradeable at any time to per-outlet measurement via license.
The Bachmann BN PRO S Switched RCM - 16A Rack PDU with 36xCombo, 3.0m CEE 16A/5p (BM0024775) impresses with maximum fail-safety: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU cascade interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked – color-coding frames (blue/red) and mounting brackets (L-shaped) are included.
Technical Details – Bachmann BN PRO S Switched RCM Rack PDU BM0024775
- Input: 16A / 400V / 11 kW
- Supply cable: 3.0 m | 2.5 mm² | 16A red CEE plug
- Phases: 3-phase

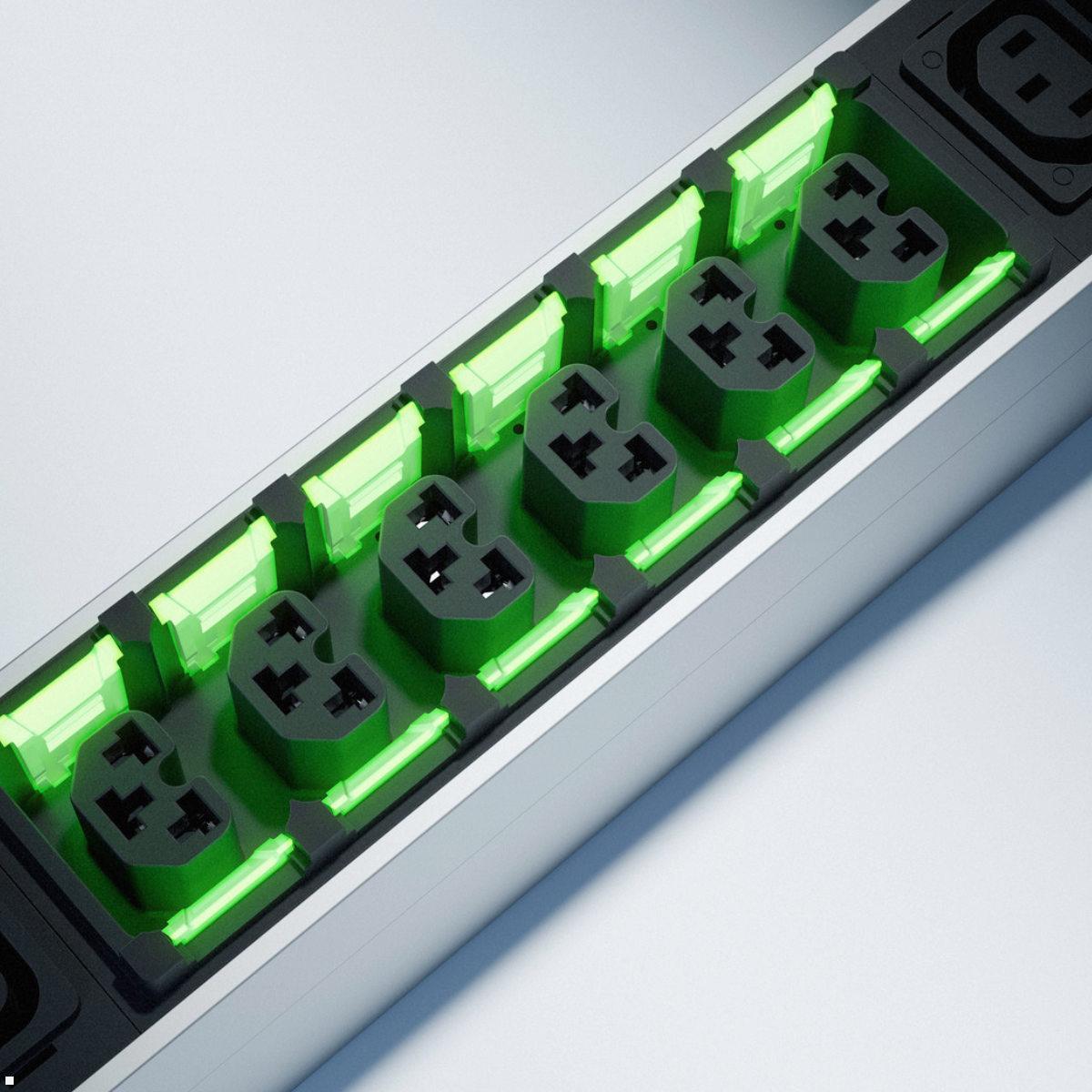

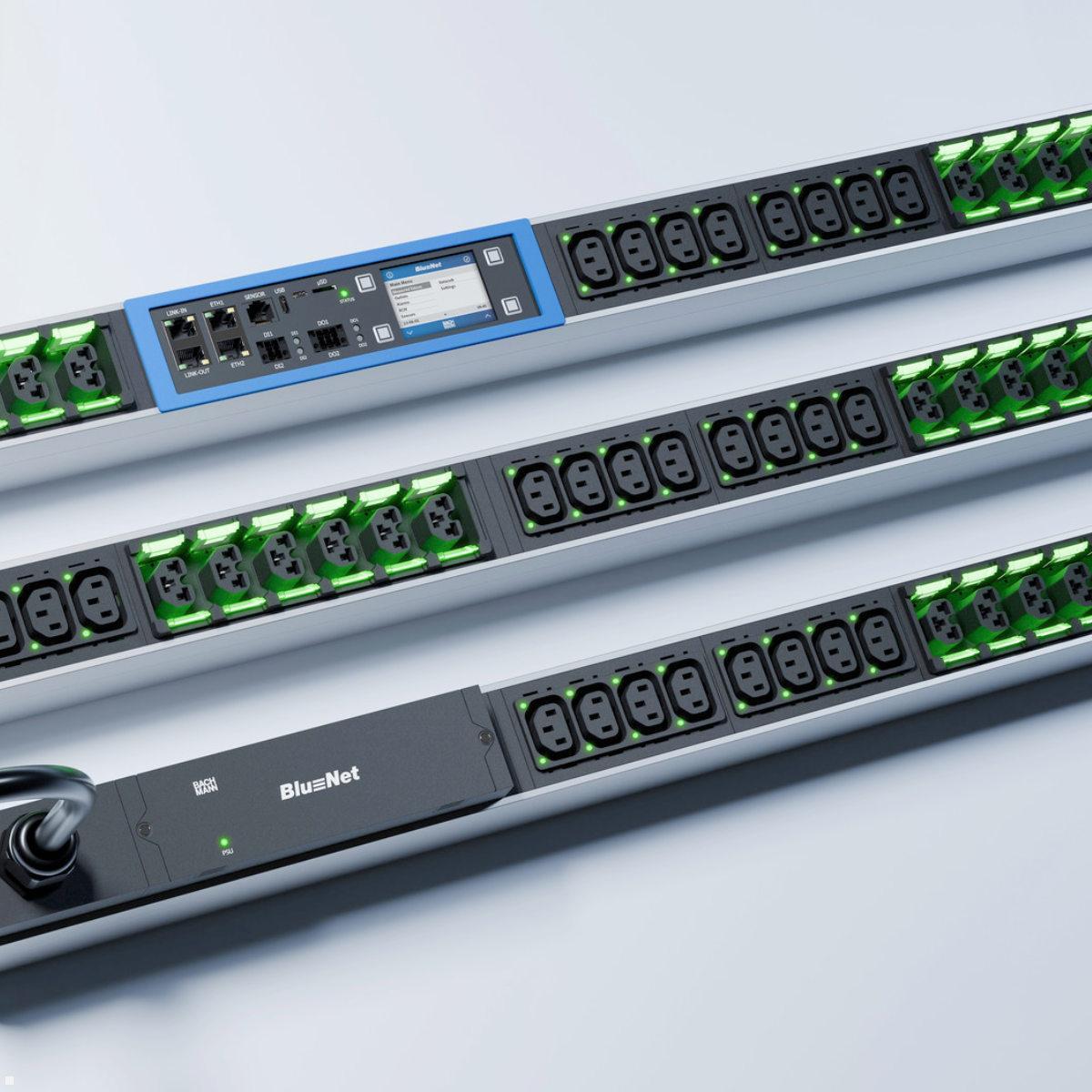

- Output: 36x Combo (C13/C15/C19/C21)
- Outlets individually switchable
- Residual current measurement per phase, Type B (RCM)
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)

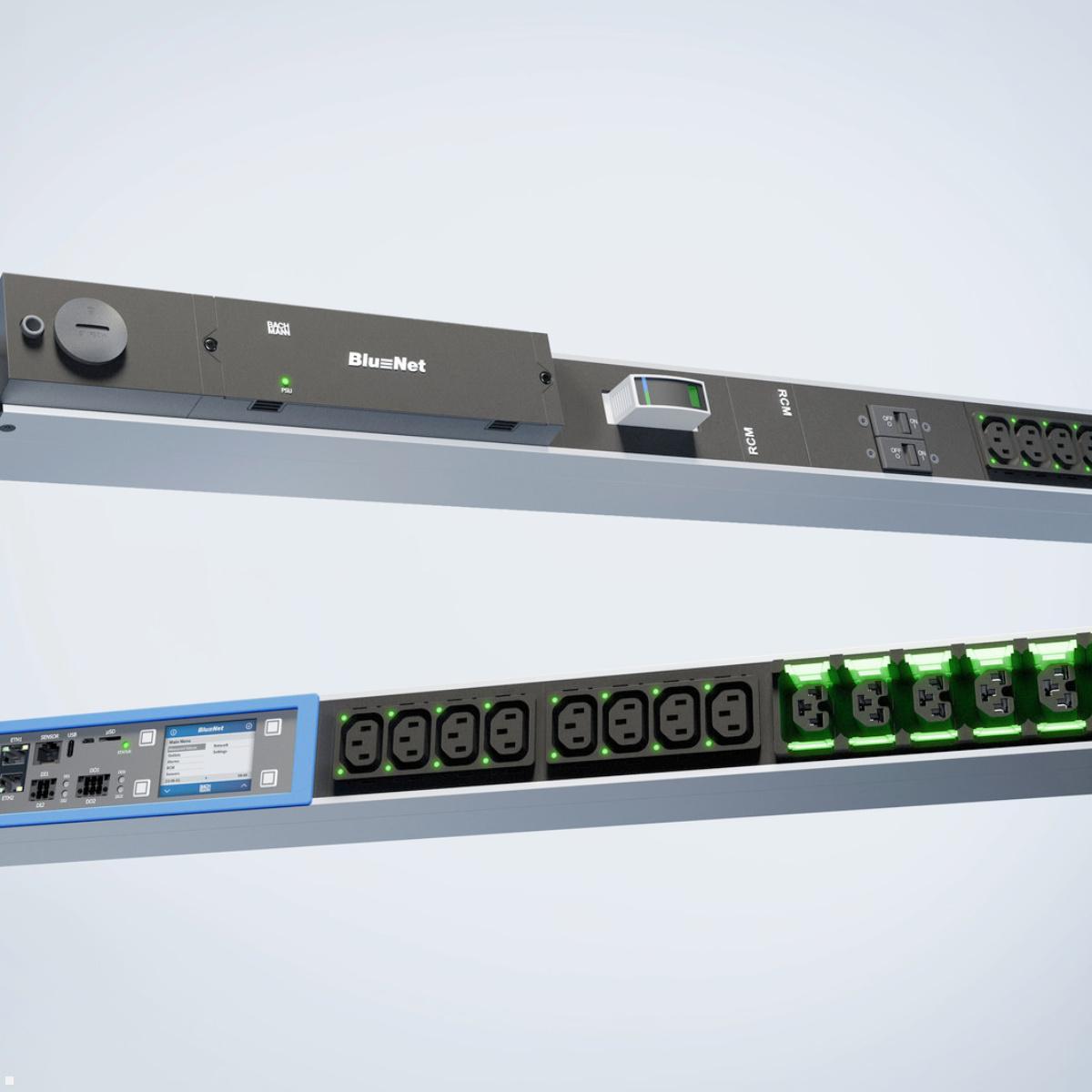

- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- Line filter: No
- Fuse: No
- Temperature measurement: Yes
- Mounting orientation: vertical
- Housing: Aluminum
- Color-coding frames (blue/red)
- Included mounting brackets (L-shaped, single)
- Dimensions (L×W×H): 1696.5 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

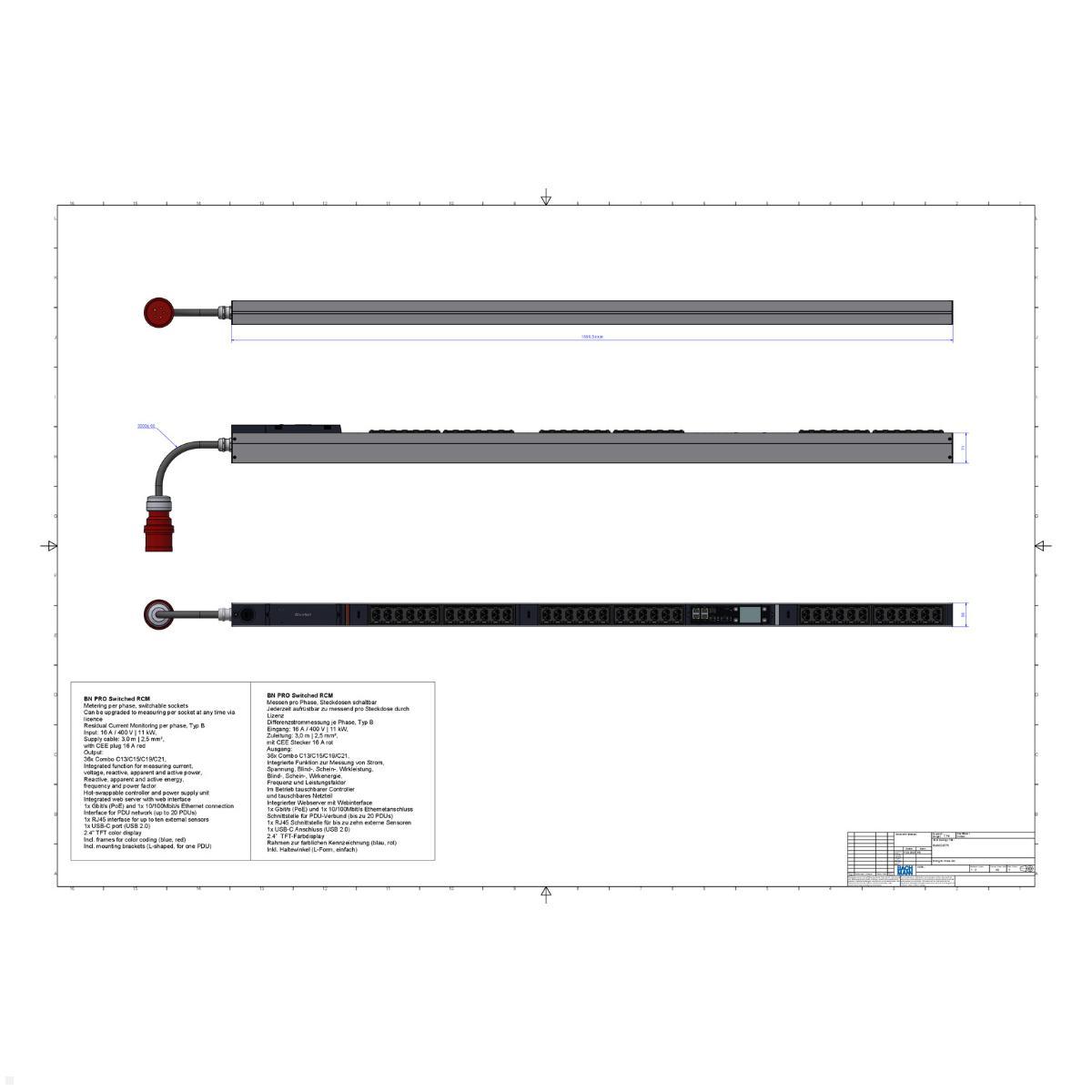

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
1 August 2026 23:33
Rundum Lieferung – kann ich weiterempfehlen
Kontakt war super nett und hilfsbereit. Kundenorientierung wird hier großgeschrieben.
Questions & Answers
-
What is the Bachmann BN PRO S Switched RCM Rack PDU BM0024775?
It is a high-performance 3-phase switched RCM rack PDU designed for professional IT environments such as server rooms and data centers. It powers connected devices from a 16A/400V input up to 11 kW with a 3.0 m lead.
-
How many outlets and what types does it have?
It provides 36x Combo sockets (C13/C15/C19/C21), each individually switchable.
-
What are the input specifications?
Input: 16A / 400V / 11 kW; lead: 3.0 m; CEE plug 16A red.
-
What safety and measurement features are included?
All-current differential current measurement per phase Type B (RCM) with permanent fault current monitoring. Measurements per phase include current, voltage, apparent and reactive power, real power, energy, frequency and power factor.
-
What networking and monitoring features are available?
Integrated web server with web interface and SNMP support for seamless monitoring. Up to 20 PDUs can be cascaded and centrally managed. It also features a 2.4-inch color TFT display, a RJ45 sensor port for up to ten external sensors, plus Ethernet 1 Gbit/s (PoE) and 10/100 Mbit/s, and a USB-C port.
-
Can measurement per socket be upgraded by license?
Yes, upgrading to per-socket measurement is available via license.
-
What are the physical characteristics and mounting options?
Aluminium enclosure with vertical mounting; color-coded frame (blue/red) and included L-shaped mounting brackets. Dimensions: 1696.5 x 56 x 71 mm.
