Bachmann BN PRO S Switched RCM - 32A Rack PDU with 24xCombo 2xMCB, 3.0m CEE 32A/3p (BM0024780)
Highlights
- 24x Combo (C13/C15/C19/C21) + 2x MCB 16A
- RCM differential current measurement, Type B
- 32A / 230V / 7.2 kW, single-phase
- Sockets individually switchable
- Controller & power supply hot-swappable
1-phase Switched RCM Rack PDU 32A with 24x Combo and Residual Current Measurement

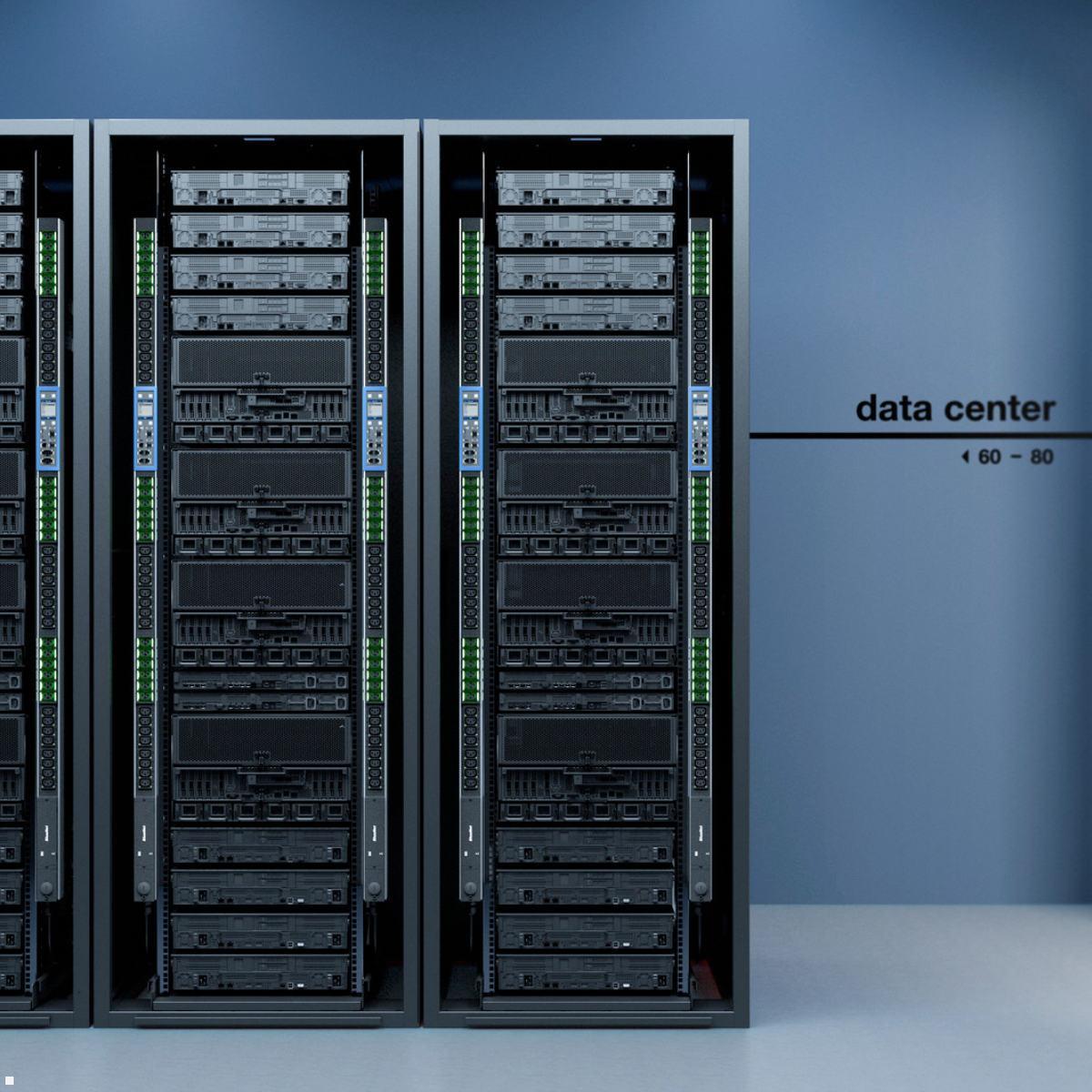

The Bachmann BN PRO S Switched RCM (BM0024780) is a powerful, 1-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/230V and 7.2 kW and a 3.0 m supply cable (4 mm²) with 32A blue CEE plug, it reliably powers devices connected in the rack. The 24x Combo outlets (C13/C15/C19/C21) provide maximum flexibility for a wide range of device configurations. Two integrated hydraulic-magnetic circuit breakers 16A provide additional overload protection. A special safety feature is the all-current sensitive residual current monitoring per phase, Type B (RCM), which ensures continuous monitoring for fault currents. Each outlet is individually switchable, allowing devices to be remotely powered on, rebooted or switched off — ideal for remote racks and edge installations. The integrated measurement function records per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, as well as frequency and power factor. Upgradeable at any time to per-outlet metering via license.
The Bachmann BN PRO S Switched RCM - 32A Rack PDU with 24x Combo 2xMCB, 3.0m CEE 32A/3p (BM0024780) convinces with maximum fail-safety: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU cascade interface. The 2.4" TFT color display shows key operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked — color identification frames (blue/red) and mounting brackets (L-shaped) are included.
Technical Details – Bachmann BN PRO S Switched RCM Rack PDU BM0024780
- Input: 32A / 230V / 7.2 kW
- Supply cable: 3.0 m | 4 mm² | 32A blue CEE plug
- Phases: single-phase

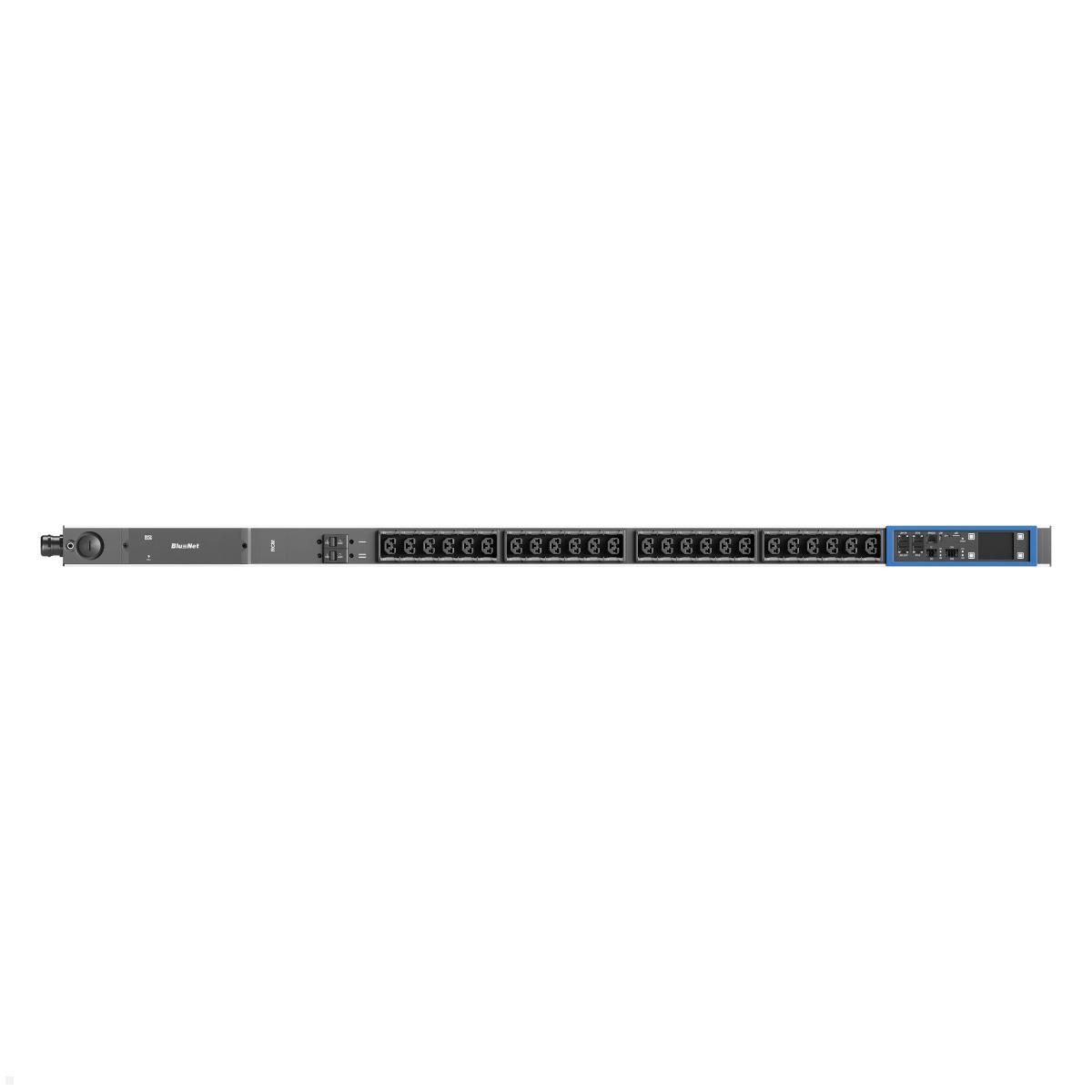

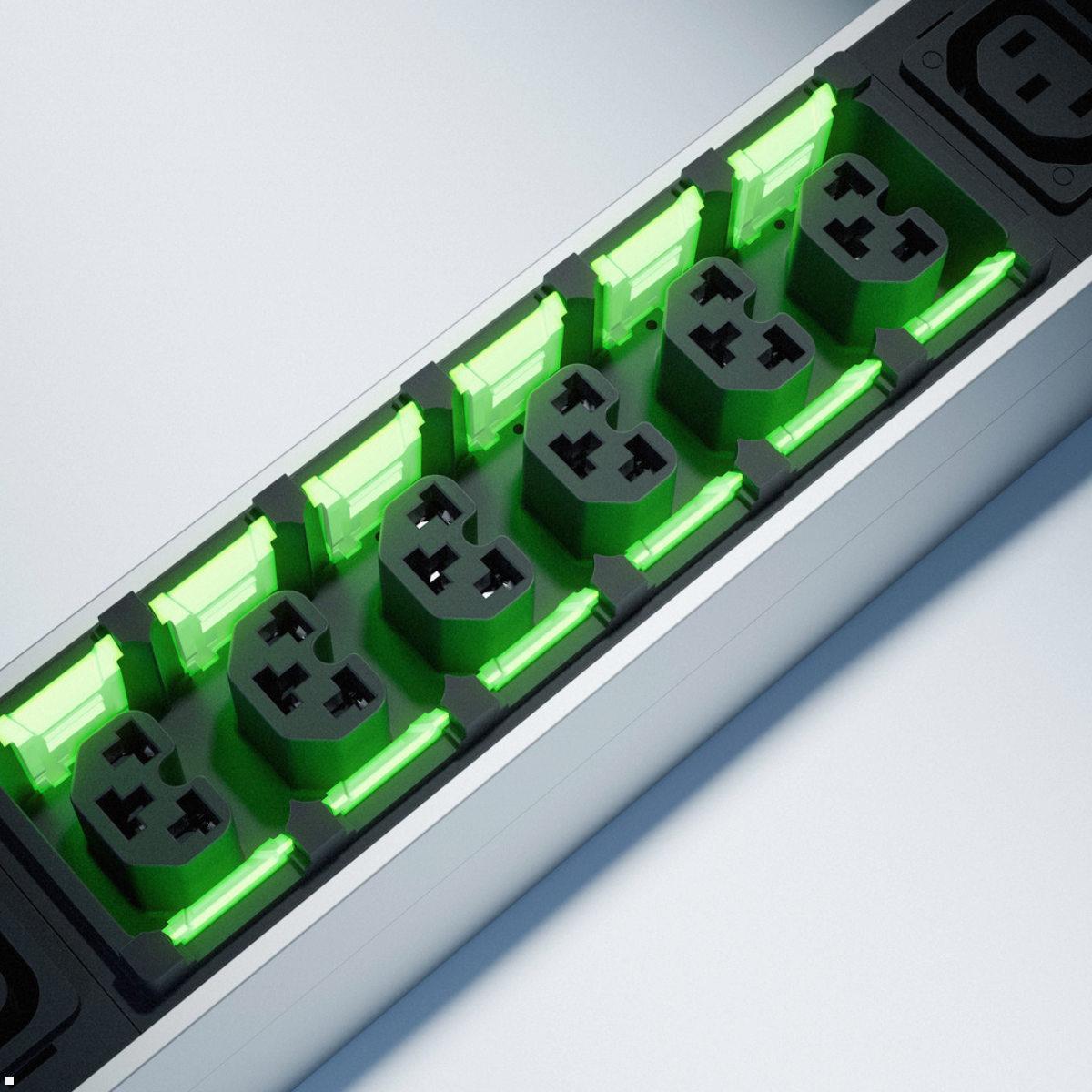

- Output: 24x Combo (C13/C15/C19/C21)

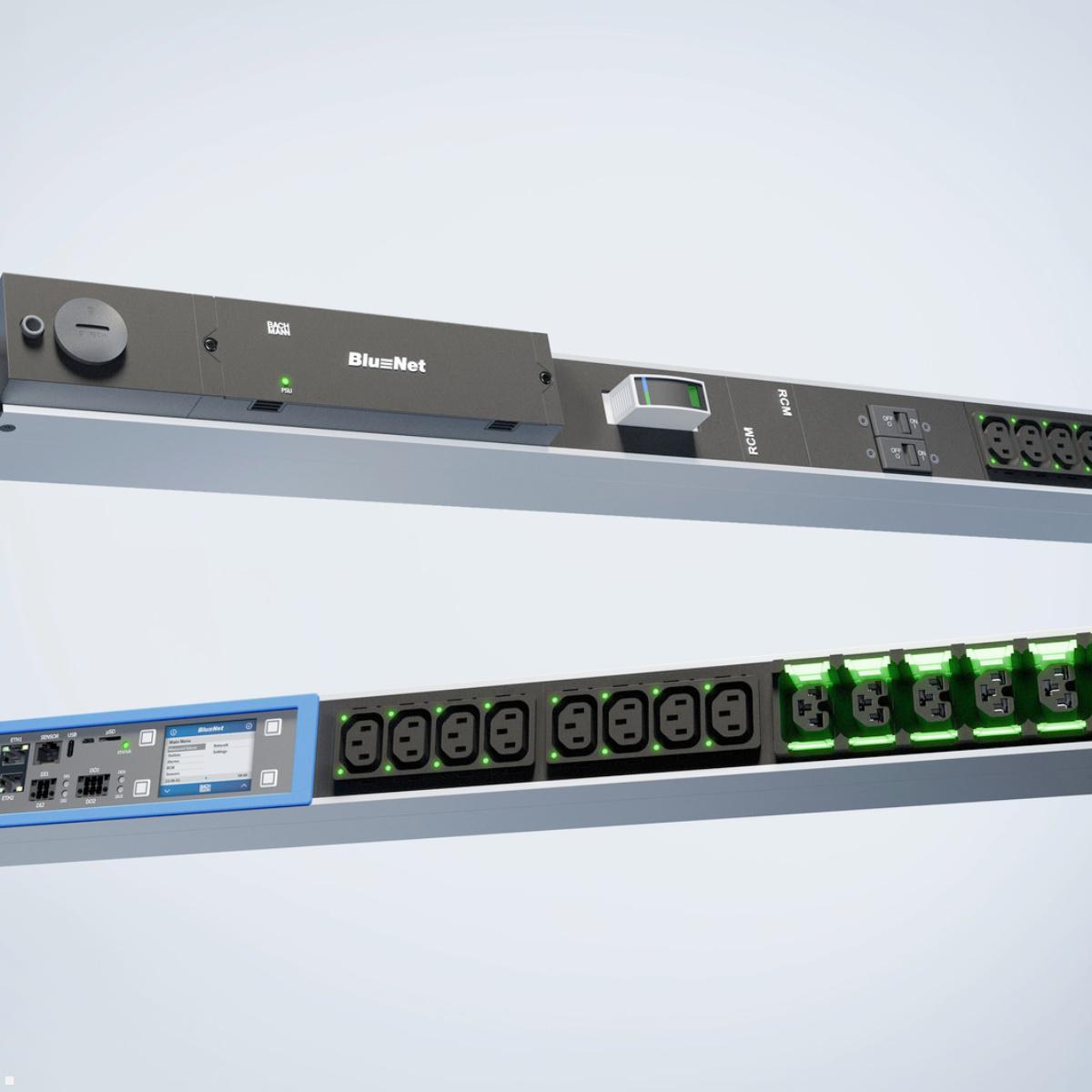

- 2x hydraulic-magnetic circuit breakers 16A
- Outlets individually switchable
- Residual current monitoring per phase, Type B (RCM)
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet metering via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)

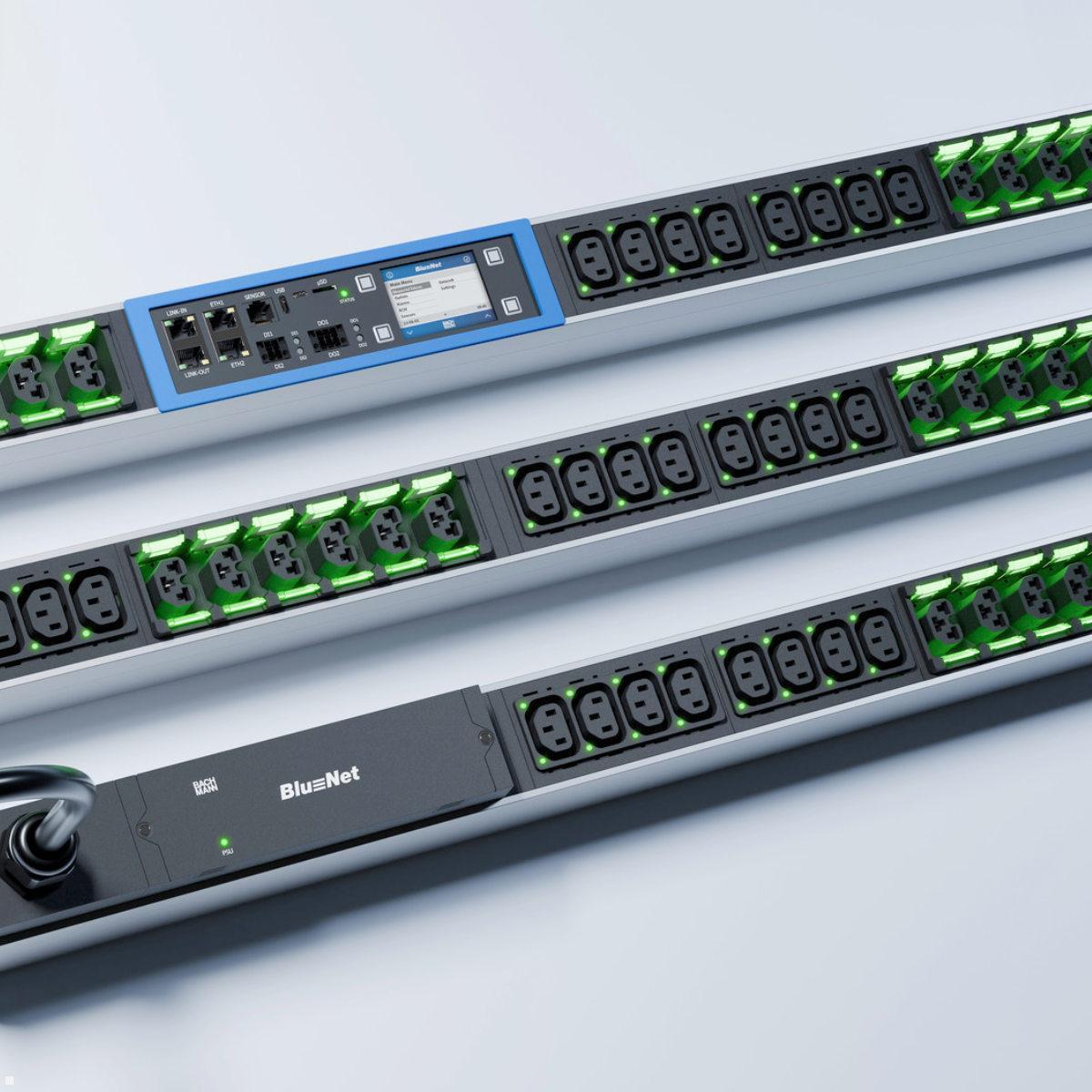

- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- Mains interference filter: No
- Fusing: Yes (2x MCB 16A)
- Temperature measurement: Yes
- Mounting orientation: vertical
- Housing: Aluminum
- Frames for color identification (blue/red)
- Includes mounting brackets (L-shaped, single)
- Dimensions (L×W×D): 1360.8 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

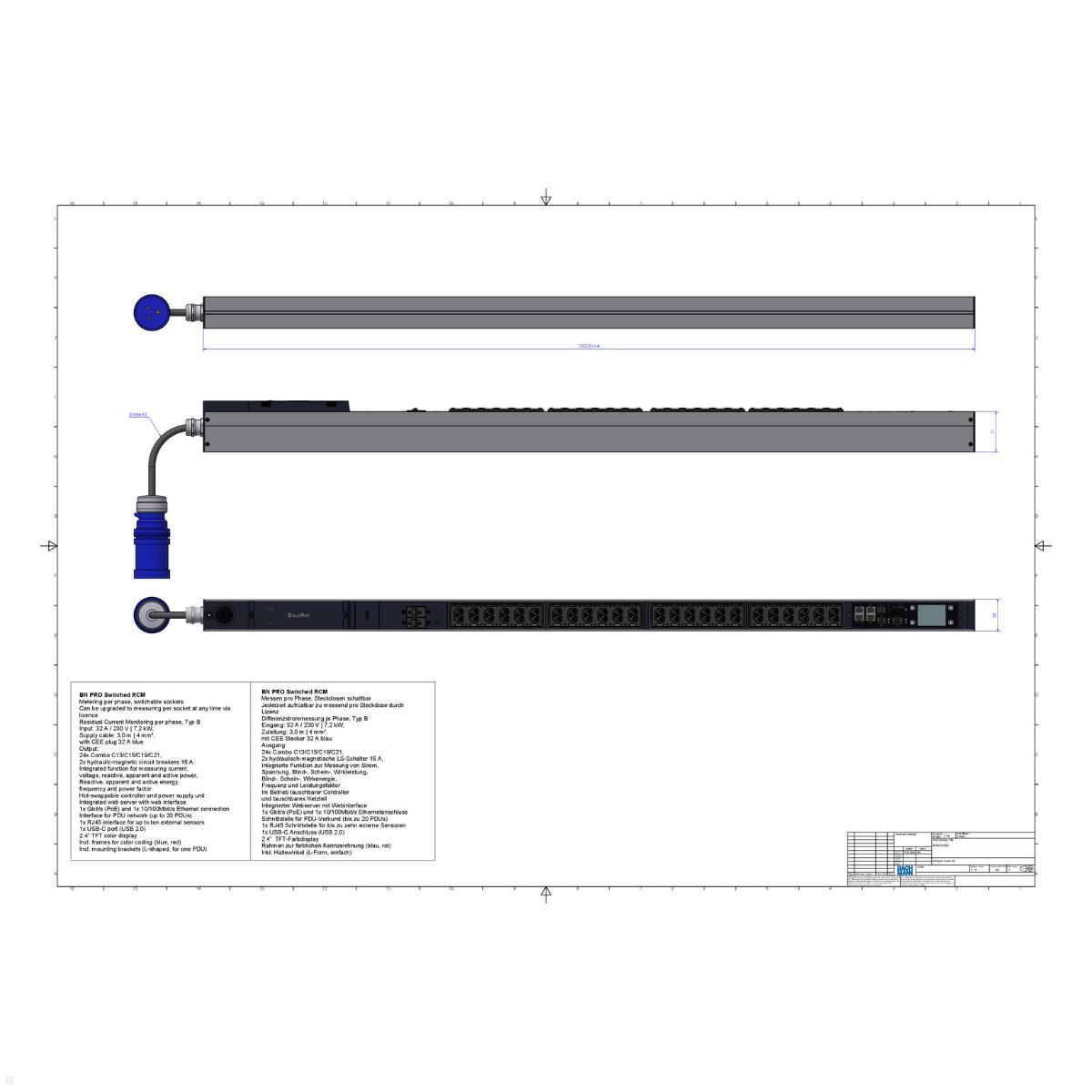

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched RCM Rack PDU BM0024780?
It is a 1-phase switched rack PDU for professional IT racks, rated at 32A/230V and 7.2 kW, with a 3.0 m lead and a blue 32A CEE plug. It features 24x Combo outlets (C13/C15/C19/C21) and per-phase differential current monitoring (RCM Type B). Each outlet is individually switchable for remote on/off.
-
What are the main electrical specifications?
Input is 32A/230V (7.2 kW) with a 3.0 m lead (4 mm²) and a blue CEE 32A plug; output is 24x Combo outlets and two hydraulic-magnetic 16A breakers.
-
What monitoring and management features are included?
Integrated web server with a web interface and SNMP support for monitoring. It can cascade up to 20 PDUs and provides a 2.4-inch color TFT display, plus a RJ45 sensor port and USB-C port, with Ethernet including 1 Gbit/s PoE and 10/100 Mbps.
-
Can each outlet be controlled individually?
Yes, each outlet is individually switchable for remote control.
-
What measurement features does it offer, and licensing?
It measures per‑phase current, voltage, apparent, reactive and real power, and per‑phase energy, frequency and power factor. It can be upgraded to per-outlet measurement via license.
-
What are the physical dimensions and mounting options?
Dimensions are 1360.8 x 56 x 71 mm; vertical mounting orientation; aluminum housing; frame for color coding (blue/red) and L-shaped brackets are included.
-
What additional features or interfaces does it provide?
Networking and indicators include 1x RJ45 sensor port, 1x USB-C (USB 2.0) and a 2.4-inch color TFT display with an LED indicator. It also provides 1 Gbit/s (PoE) and 1x 10/100 Ethernet.
