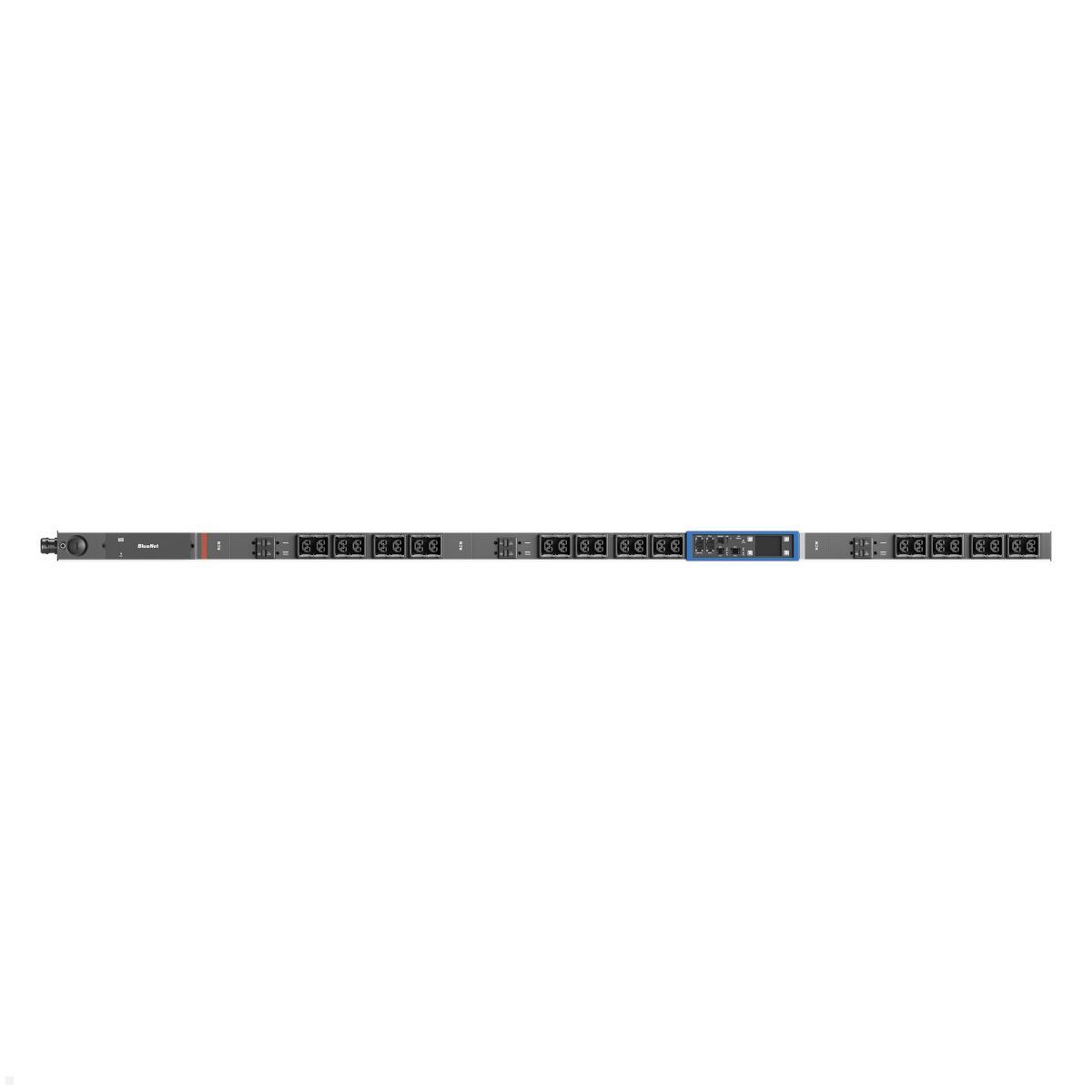

Bachmann BN PRO S Switched RCM - 32A Rack PDU with 24xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024786)
Highlights
- 24x Combo (C13/C15/C19/C21) + 6x MCB 16A
- RCM residual current measurement, Type B
- 32A / 400V / 22 kW, 3-phase
- Sockets individually switchable
- Controller & power supply hot-swappable
3-phase Switched RCM Rack PDU 32A with 22 kW, 24x Combo and Residual Current Measurement

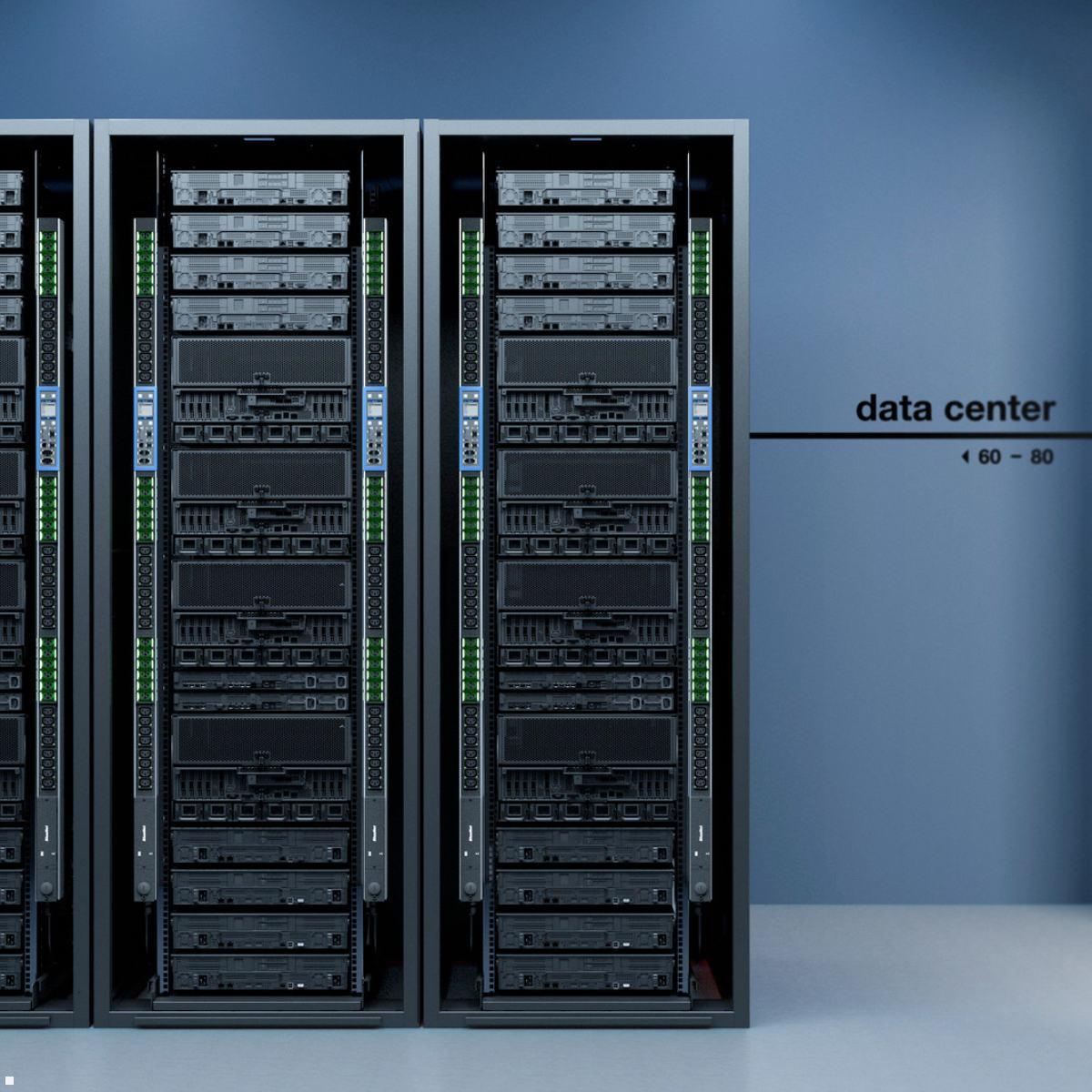

The Bachmann BN PRO S Switched RCM (BM0024786) is a high-performance, 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/400V and 22 kW and a 3.0 m supply cable (4 mm²) with a red CEE 32A plug, it provides maximum power reserves for densely populated IT racks. The 24x Combo outlets (C13/C15/C19/C21) offer maximum flexibility for a wide range of device configurations. Six integrated hydraulic-magnetic MCBs 16A provide reliable overload protection. A special safety feature is the all-current-sensitive residual current measurement per phase, Type B (RCM), which ensures continuous monitoring for fault currents. Each outlet is individually switchable, allowing devices to be conveniently started, restarted, or switched off remotely. The integrated measurement function records per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, and power factor. Upgradable at any time to per-outlet measurement via license.
The Bachmann BN PRO S Switched RCM - 32A Rack PDU with 24x Combo 6xMCB, 3.0m CEE 32A/5p (BM0024786) impresses with maximum redundancy: Controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enables seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU linking interface. The 2.4" TFT color display shows important operational data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked — frames for color marking (blue/red) and mounting brackets (L-shape) are included.
Technical Details – Bachmann BN PRO S Switched RCM Rack PDU BM0024786
- Input: 32A / 400V / 22 kW
- Supply cable: 3.0 m | 4 mm² | CEE plug 32A red
- Phases: 3-phase

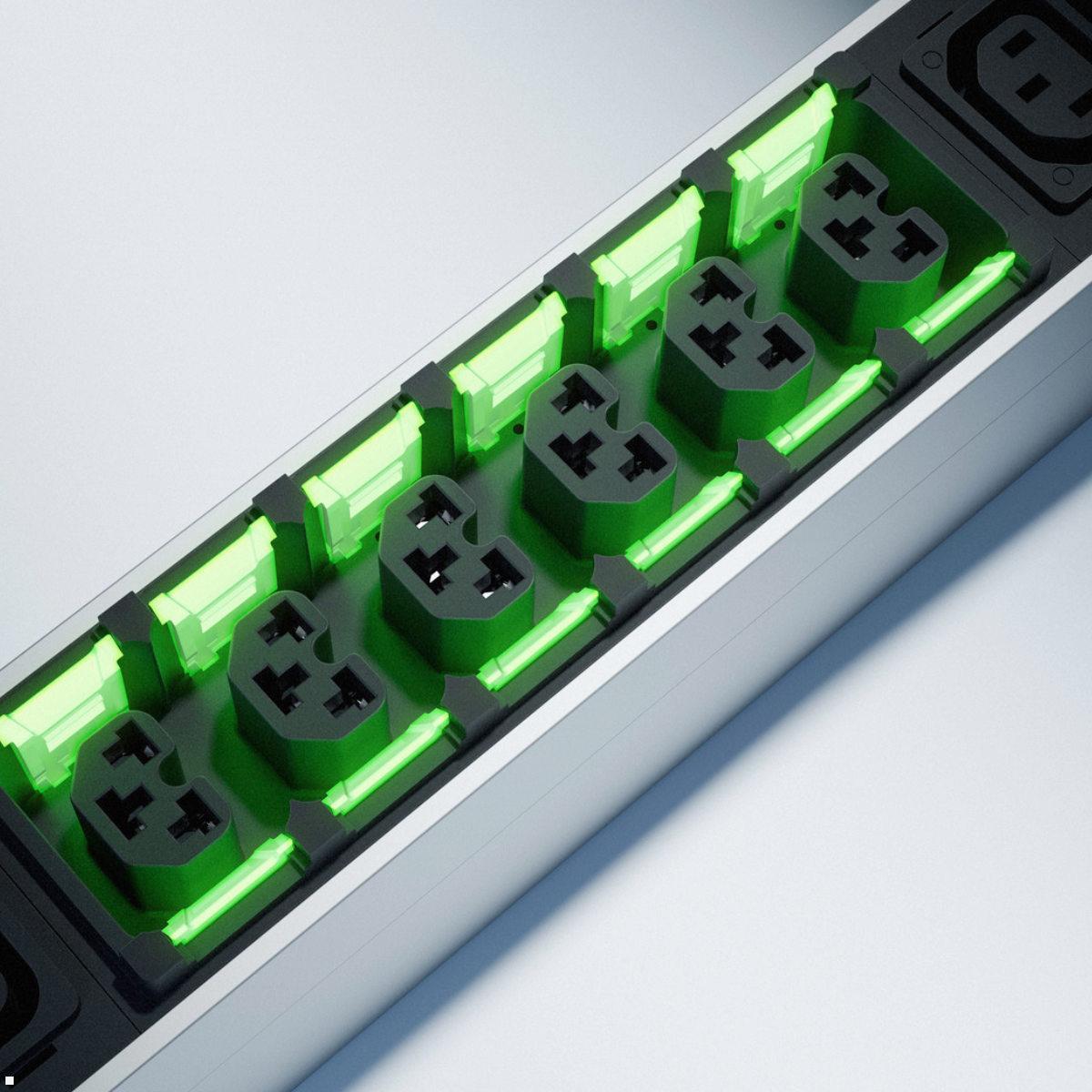

- Output: 24x Combo (C13/C15/C19/C21)
- 6x hydraulic-magnetic MCBs 16A
- Outlets individually switchable
- Residual current measurement per phase, Type B (RCM)
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU linking: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- Line interference filter: No
- Protection: Yes (6x MCB 16A)
- Temperature measurement: Yes
- Mounting orientation: vertical
- Housing: Aluminum
- Frames for color marking (blue/red)
- Included mounting brackets (L-shape, single)
- Dimensions (L×W×D): 1838.7 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

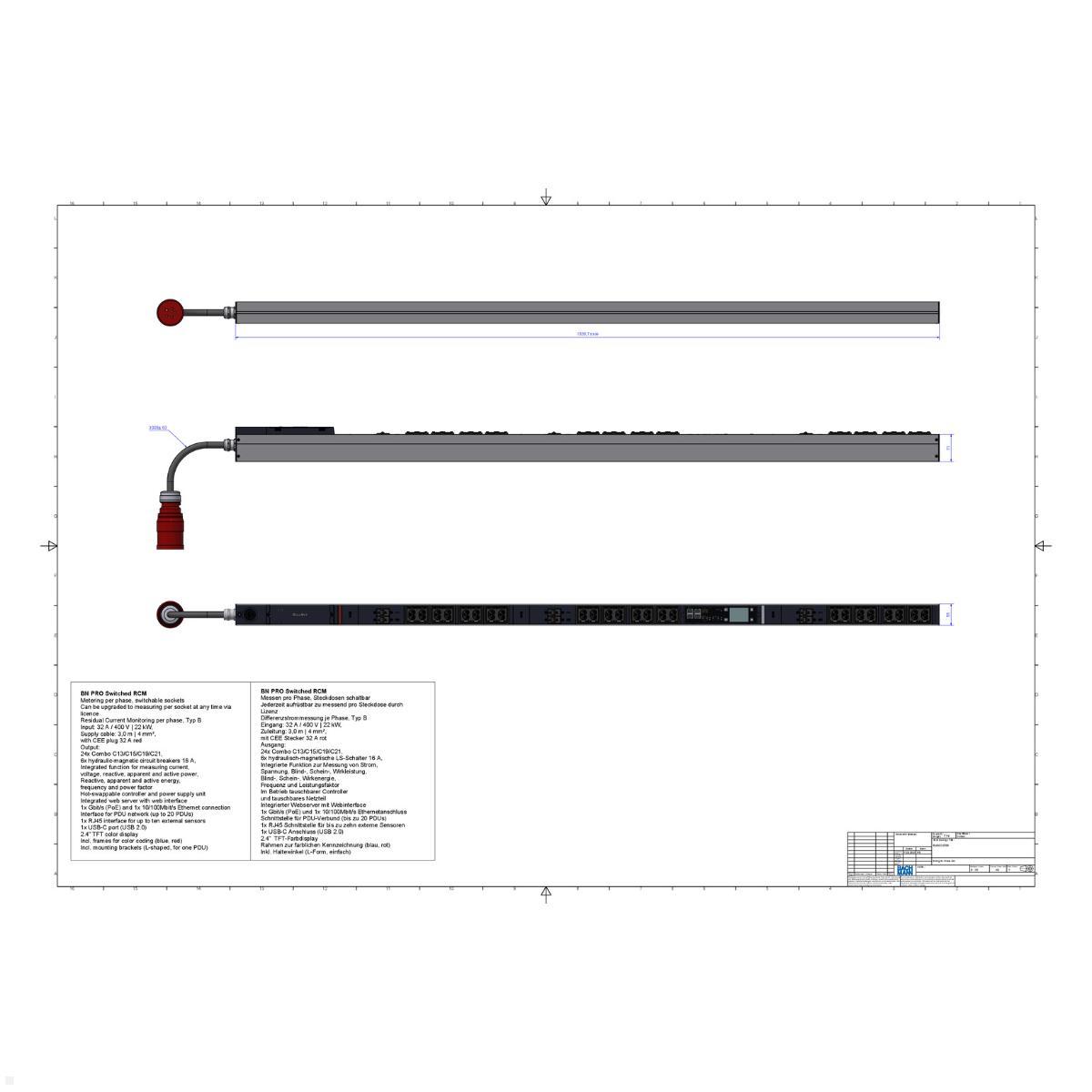

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 42 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched RCM Rack PDU BM0024786?
It is a high-performance 3-phase switched RCM rack PDU with 32A/400V input, 22 kW, a 3.0 m lead, and a 32A red CEE plug, featuring differential current monitoring.
-
What outlets does it offer?
It provides 24x Combo outlets (C13/C15/C19/C21) and 6x hydraulic-magnetic 16A circuit breakers; outlets are individually switchable.
-
What protection and measurement features does it include?
All-current differential current monitoring per phase, Type B (RCM), ensures fault current monitoring. Per-phase measurements include current, voltage, reactive, apparent and real power, energy, frequency and power factor.
-
How can I monitor and manage the PDU?
An integrated web server with a web interface and SNMP support enables remote management; the PDU can cascade up to 20 PDUs; a 2.4" TFT colour display shows key operating data.
-
Can the measurement be upgraded to per-outlet?
Yes, it can be upgraded to per-outlet measurement via a license.
-
What network interfaces and sensors are available?
Ethernet: 1 Gbit/s (PoE) plus 1x 10/100; USB-C (USB 2.0); RJ45 sensor port for up to 10 external sensors.
-
What are the dimensions and mounting options?
Aluminium housing; dimensions 1838.7 x 56 x 71 mm; vertical mounting; color-labeled frame blue/red; includes L-shaped mounting brackets.
