Bachmann BN PRO S Switched RCM - 16A Rack PDU with 12xC13 18xCombo, 3,0m CEE 16A/5p (BM0024776)
Highlights
- 12xC13 + 18xCombo (C13/C15/C19/C21)
- RCM differential current measurement, Type B
- 16A / 400V / 11 kW, 3-phase
- Sockets individually switchable

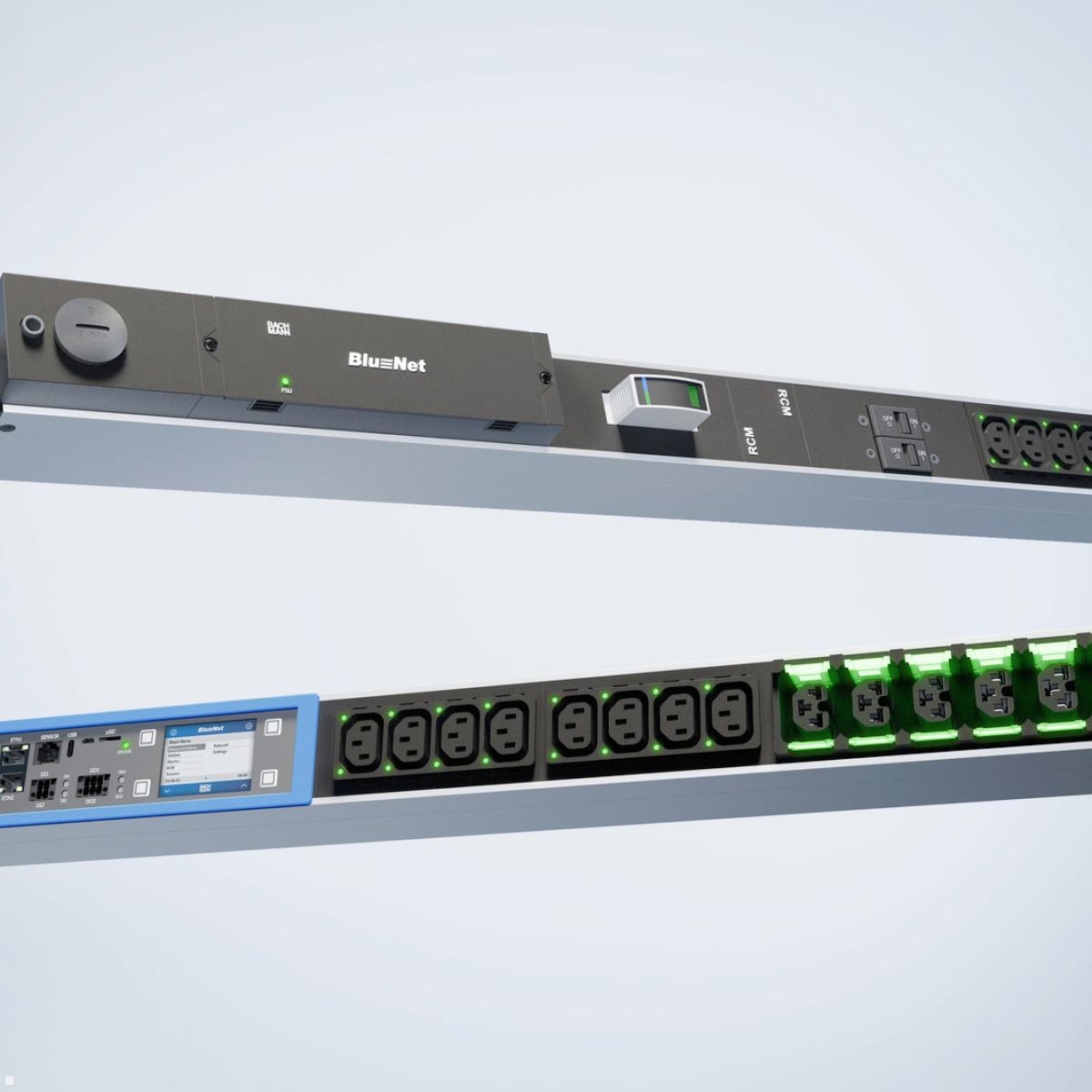

- Controller & power supply hot-swappable

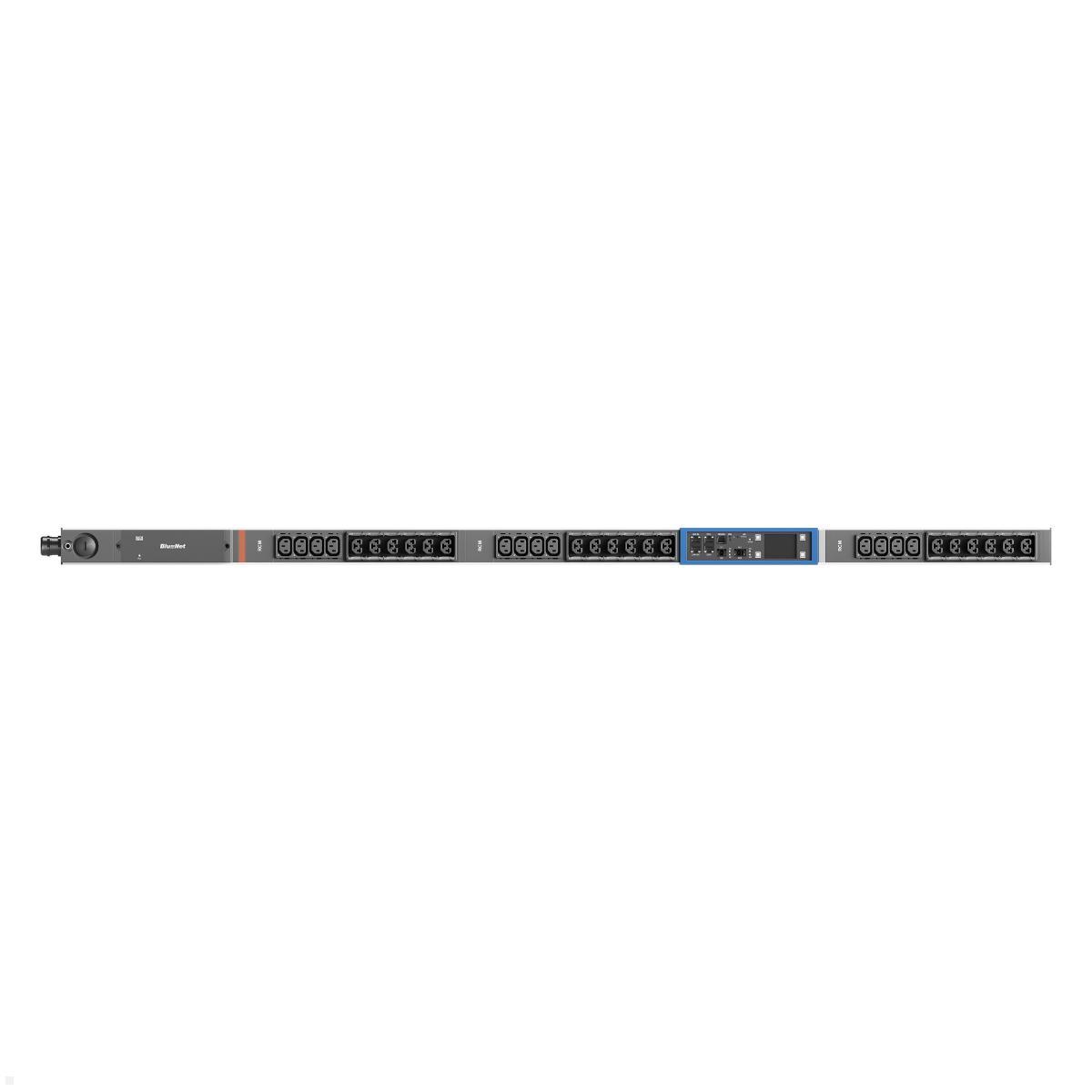

3-phase Switched RCM Rack PDU with 12x C13 18x Combo and Residual Current Measurement

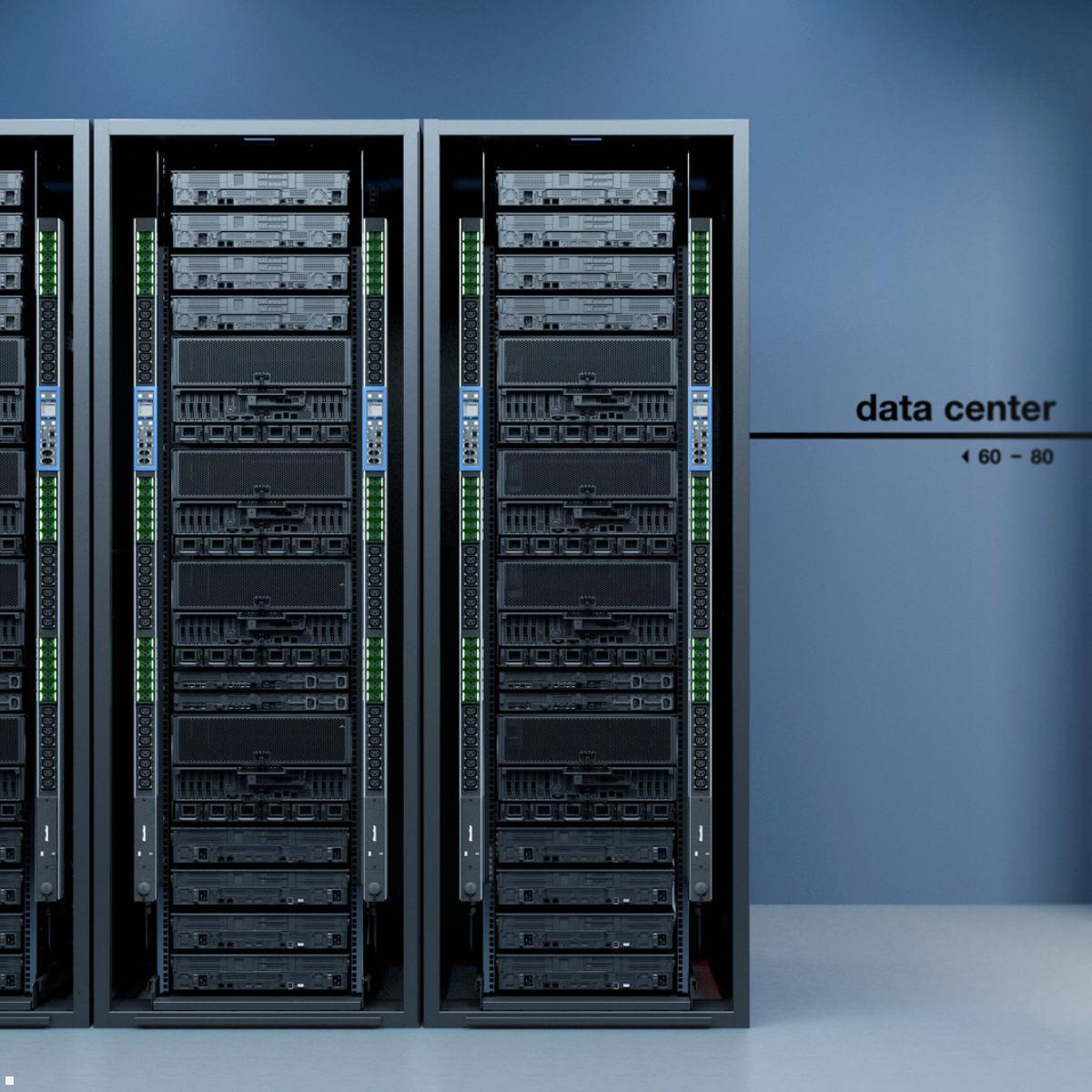

The Bachmann BN PRO S Switched RCM (BM0024776) is a powerful, 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 16A/400V and 11 kW and a 3.0 m supply cable (2.5 mm²) with a red CEE 16A plug, it reliably powers connected devices in the rack. The 12x C13 IEC outlets and 18x combo outlets (C13/C15/C19/C21) offer maximum flexibility for different device configurations. Each outlet is individually switchable, allowing devices to be started, restarted or shut down remotely. A special safety feature is the all-current sensitive residual current measurement per phase, Type B (RCM), which provides permanent monitoring for fault currents. The integrated measurement function records per phase current, voltage, reactive, apparent and active power, reactive, apparent and active energy, as well as frequency and power factor. Upgradeable at any time to per-outlet measurement via license.

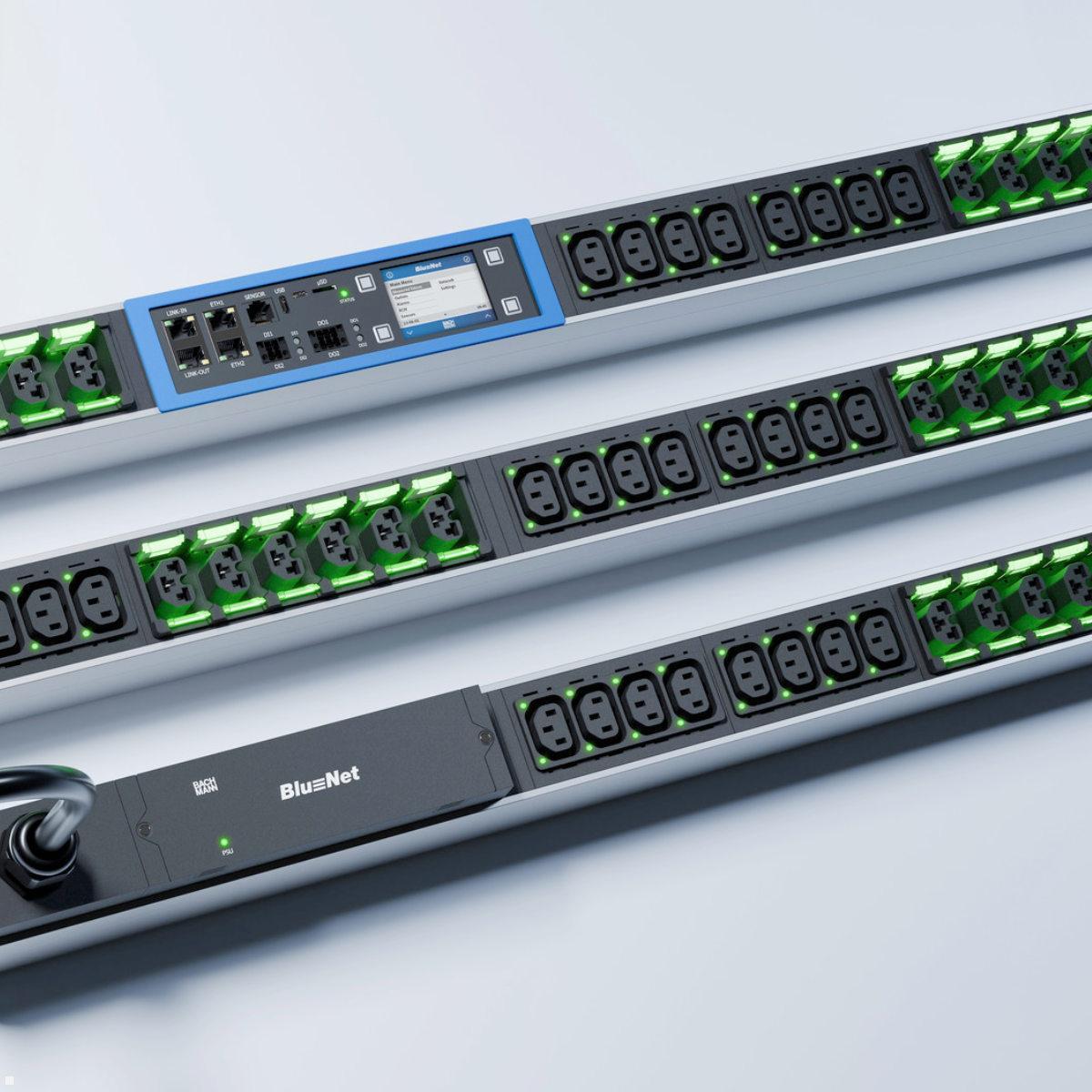

The Bachmann BN PRO S Switched RCM - 16A Rack PDU with 12x C13 18x Combo, 3.0m CEE 16A/5p (BM0024776) impresses with maximum reliability: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU chaining interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0) the PDU is well networked — color-coding frames (blue/red) and mounting brackets (L-shaped) are included.
Technical Details – Bachmann BN PRO S Switched RCM Rack PDU BM0024776
- Input: 16A / 400V / 11 kW
- Supply cable: 3.0 m | 2.5 mm² | CEE plug 16A red
- Phases: 3-phase

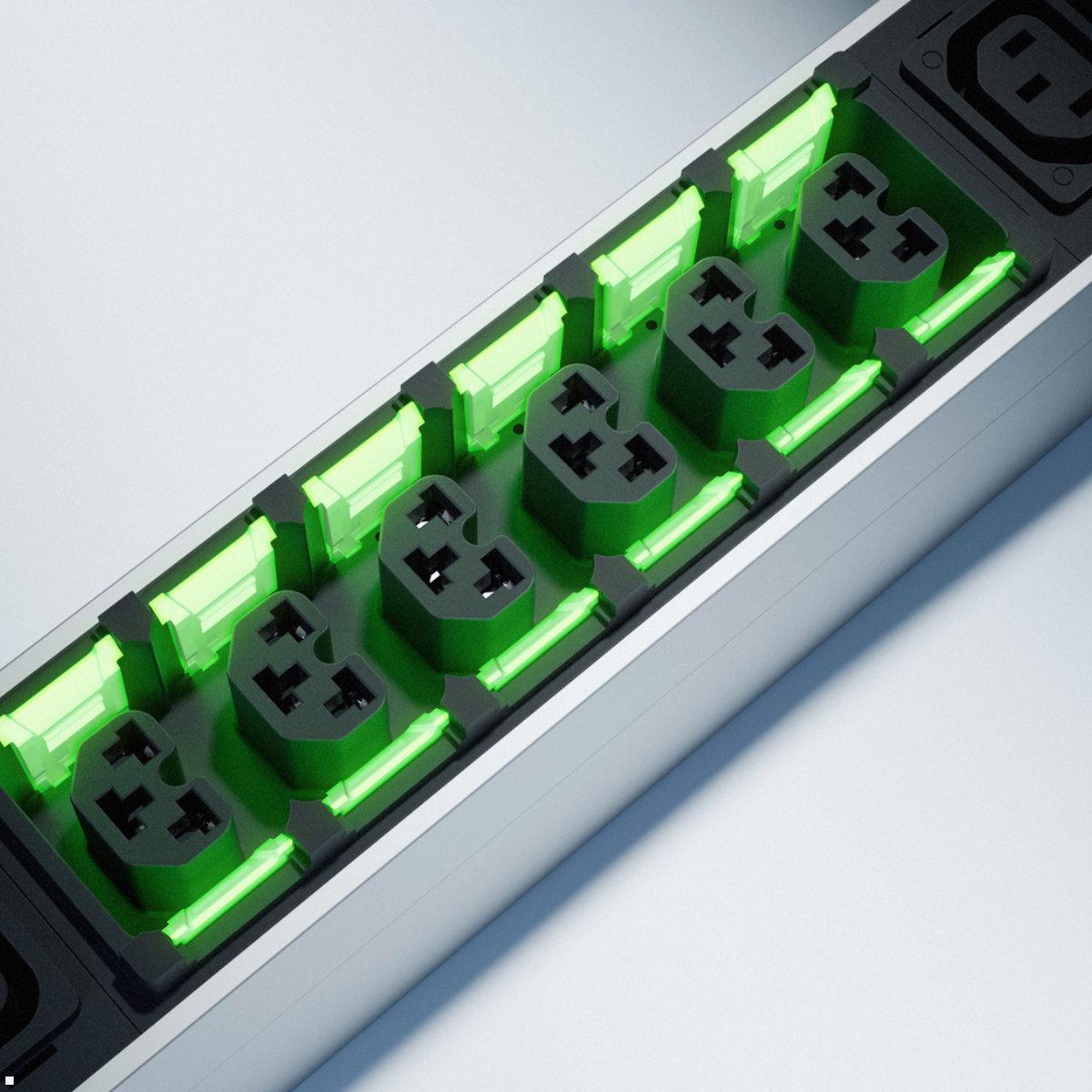

- Output: 12x C13 IEC outlets, 18x combo (C13/C15/C19/C21)
- Outlets individually switchable
- Residual current measurement per phase, Type B (RCM)
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU chaining: up to 20 PDUs cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI filter: No
- Fuse: No
- Temperature measurement: Yes
- Mounting orientation: vertical
- Enclosure: aluminum
- Color-coding frames (blue/red)
- Includes mounting brackets (L-shaped, single)
- Dimensions (L×W×D): 1490.5 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

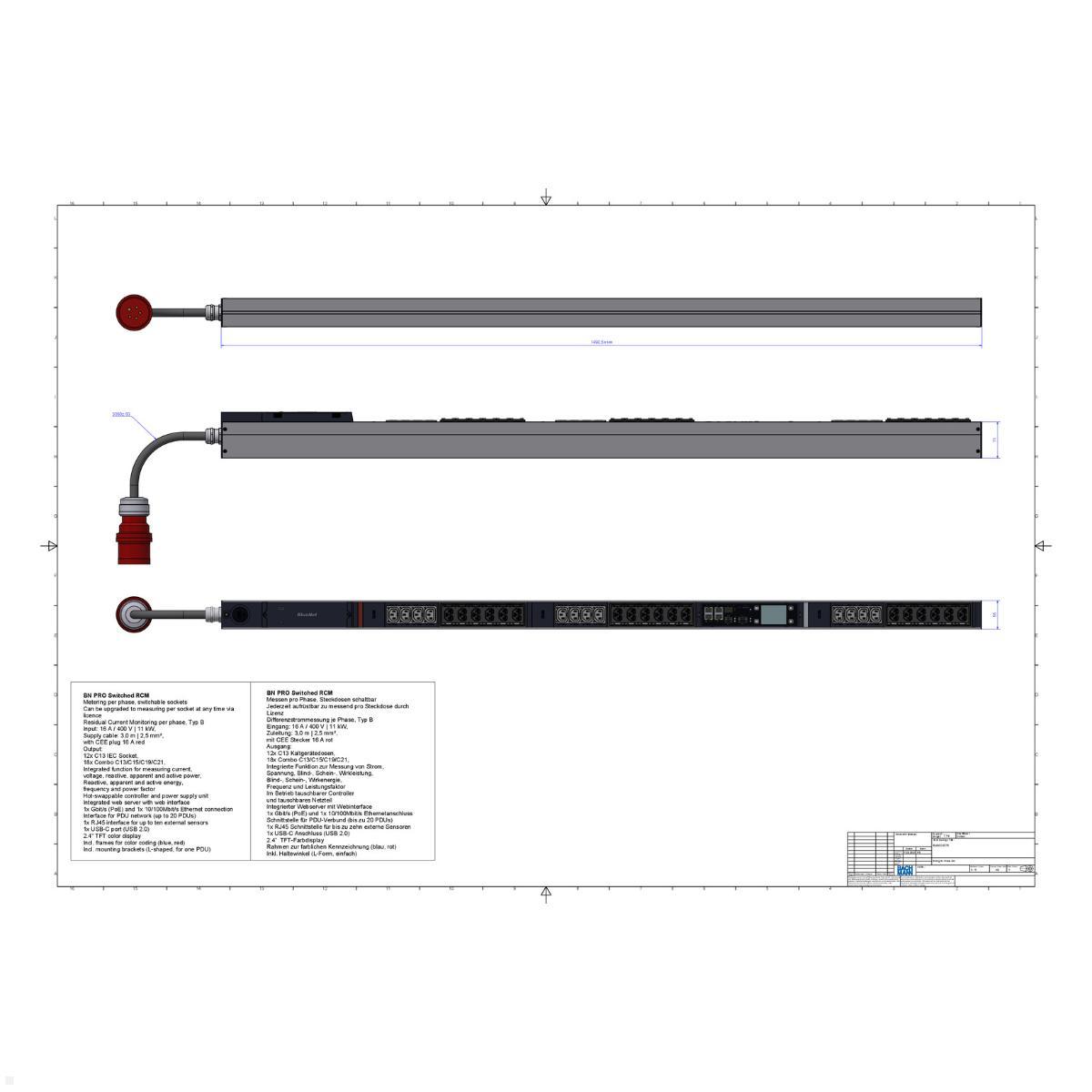

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched RCM Rack PDU BM0024776?
A 3-phase Switched RCM rack PDU with 12x C13 outlets and 18x Combo outlets (C13/C15/C19/C21). It has a 3.0 m lead with a red 16A CEE plug and an input rating of 16A/400V (11 kW).
-
What outlets does the PDU have?
Outputs: 12x C13 outlets and 18x Combo outlets; outlets are individually switchable.
-
What measurement features does it provide?
Per-phase all-current differential current measurement, Type B (RCM). Per-phase measurements include current, voltage, active, reactive and apparent power, energy, frequency and power factor. A licence allows later per-outlet measurement.
-
How can I monitor and manage it?
Integrated web server with web interface and SNMP support; up to 20 PDUs can be cascaded; features include a 2.4-inch colour display and a RJ45 sensor port for up to 10 external sensors; Ethernet (1 Gbps PoE) and USB-C.
-
What are the physical dimensions and mounting options?
Aluminium enclosure; dimensions 1490.5 x 56 x 71 mm; vertical mounting orientation; colour-coded frame (blue/red) and included L-shaped brackets. Safety features: Surge protection: No; Line filters: No; Fuses: No.
-
What networking and peripheral features does it have?
Networking and peripheral features: 1x Gbit/s (PoE) plus 1x 10/100 Ethernet; 1x USB-C (USB 2.0); LED indicator: Yes; Temperature measurement: Yes.
-
Can the measurement be upgraded to per-outlet?
Yes, the measurement can be upgraded to per-outlet via licence.
