Bachmann BN PRO Metered – 32A Rack PDU mit 24xC13 / 6xC19 / 6xMCB, 3,0m CEE 32A/5p (BM0015597) -> Bachmann BN PRO Metered – 32A Rack PDU with 24xC13 / 6xC19 / 6xMCB, 3,0m CEE 32A/5p (BM0015597)
Highlights
- Residual current measurement per phase (Type B) – maximum electrical safety in the data center
- 32A / 400V / 22 kW feed with 6x 16 A circuit breakers – highest power and protection
- 3-phase per-phase measurement – accurately measure current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without operational interruption
- 24x C13 & 6x C19 outlets – flexible power distribution for servers and IT equipment
BN PRO Metered RCM – 32A Rack PDU with residual current measurement and 6 MCBs
The BN PRO Metered RCM BM0015597 is a powerful, three-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures. In addition to full energy measurement per phase, it also features integrated residual current measurement per phase (Type B) for maximum electrical safety. With a 32 A / 400 V input (22 kW) and a 3.0 m supply cable with red CEE-32A-5p plug, it provides maximum power capacity. Six integrated hydraulic-magnetic MCBs (16 A) reliably protect against overload. All measurements – current, voltage, reactive, apparent and active power, energy, frequency and power factor – can be read directly on the 2.4"-TFT color display or remotely via the integrated web server.
Thanks to a hot-swappable controller and power supply, maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) as well as SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port; a USB-C port (USB 2.0) is available for local configuration. With 24 IEC C13 and 6 IEC C19 outlets, colored marker frames (blue, red) and the included mounting bracket (L-shape), the BM0015597 is ideal for professional continuous rack operation.
Technical details – Features of the BN PRO Metered RCM BM0015597
- Per-phase measurement: current, voltage, reactive, apparent, active power; reactive, apparent, active energy; frequency and power factor
- Residual current measurement per phase, Type B
- Input: 32 A / 400 V / 22 kW, 3-phase
- Supply cable: 3.0 m | 4 mm² with CEE-32A plug (red, 5-pin)

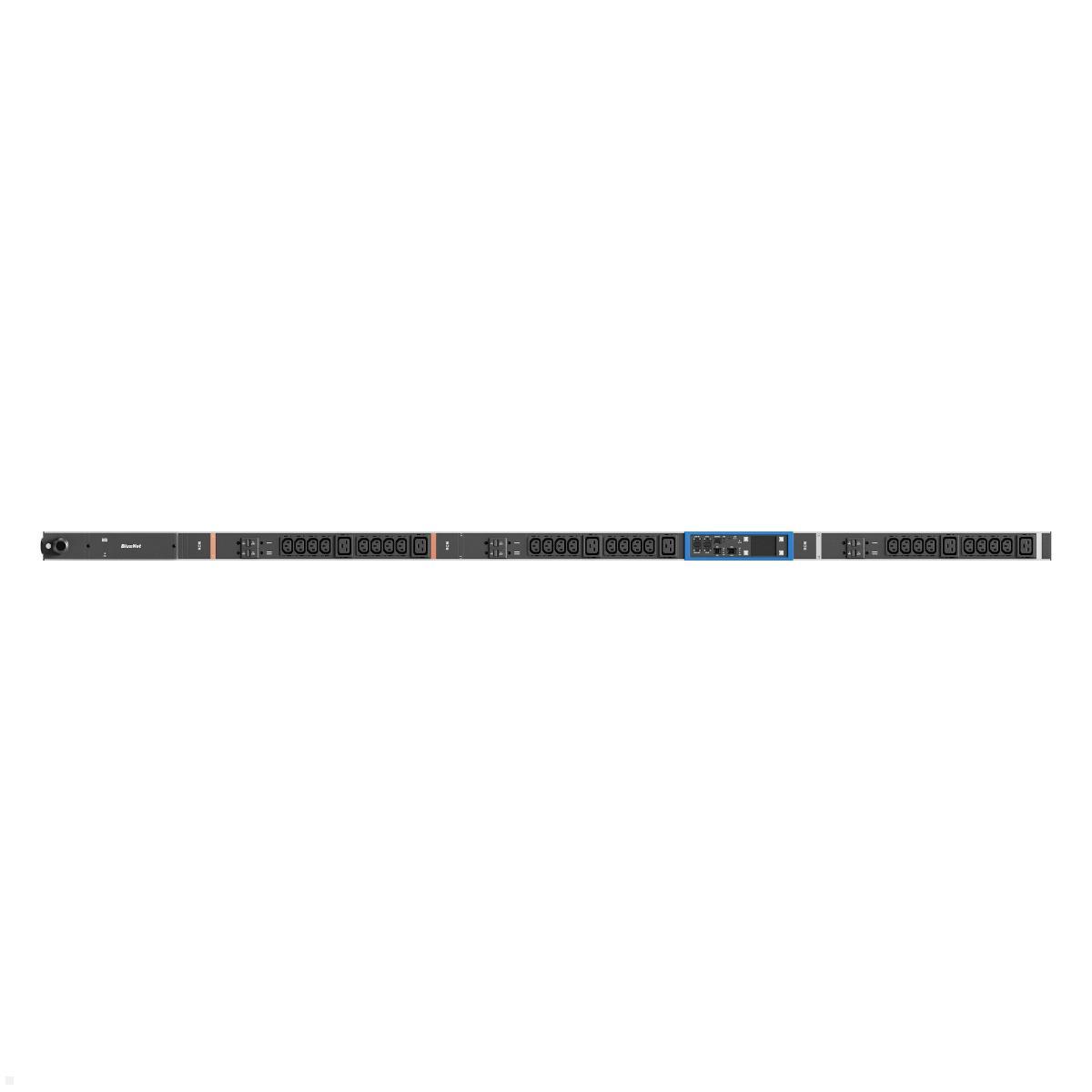

- 24x IEC C13 & 6x IEC C19 outlets
- 6x hydraulic-magnetic MCBs 16 A
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply (serviceable during operation)
- Integrated web server with web interface
- SNMP support
- PDU chaining: up to 20 PDUs networkable
- 2.4" TFT color display
- Frames for color marking (blue, red)
- Includes mounting bracket (L-shape, single)
- Vertical mounting, aluminum enclosure

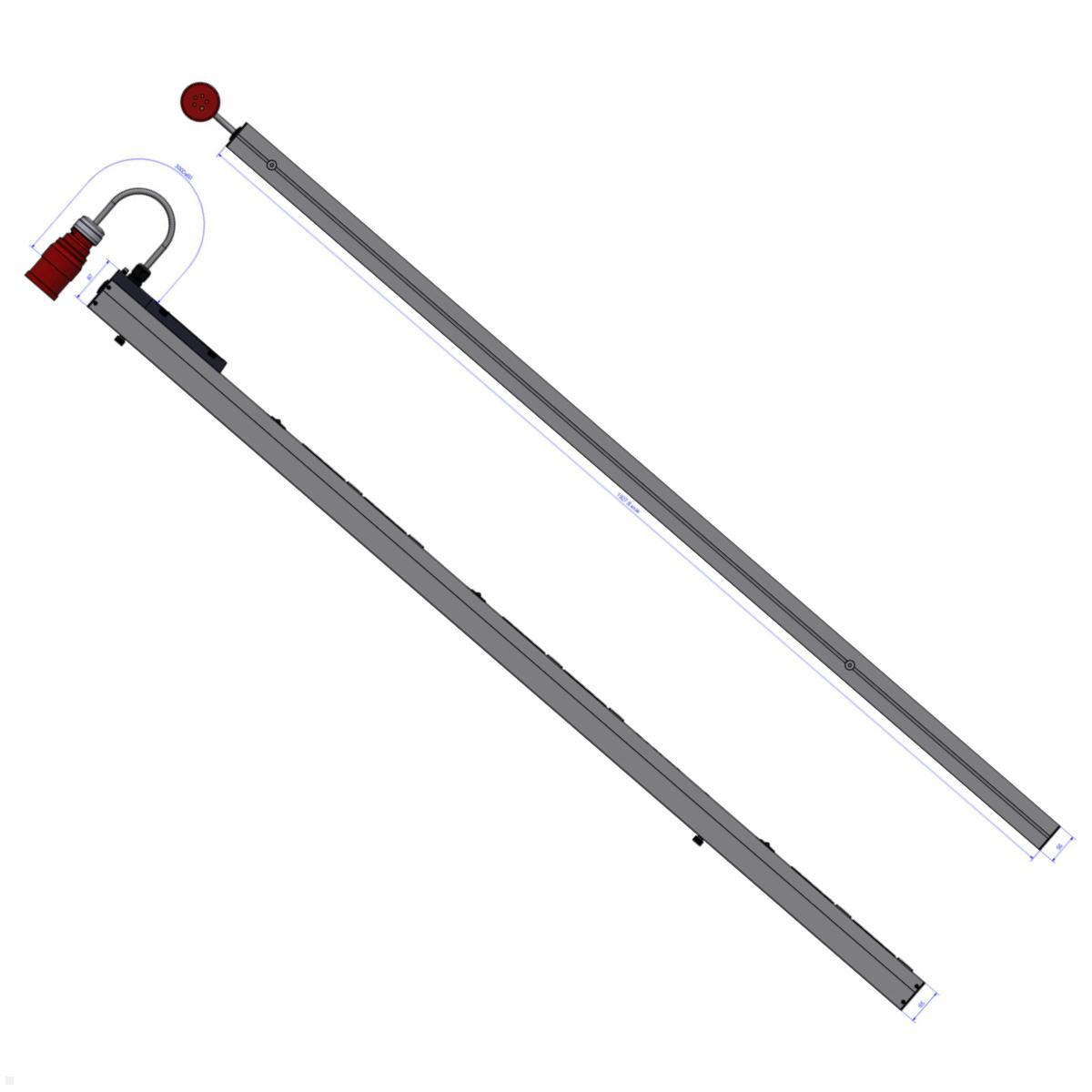

- Dimensions (L × W × D): 1,927.8 × 56 × 65 mm
- RoHS compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered RCM BM0015597 – 32A Rack PDU with residual current measurement and 6 hydraulic-magnetic circuit breakers
The BN PRO Metered RCM BM0015597 is a three-phase rack PDU from Bachmann for professional data centers and safety-critical IT infrastructures. It combines precise per-phase energy monitoring with integrated residual current measurement per phase (Type B) and six hydraulic-magnetic circuit breakers (16 A) – for maximum electrical safety and grouped overload protection. With a 32 A / 400 V input (22 kW) and a 3.0 m supply cable with a red CEE-32A-5p plug, it offers the highest power capacity for demanding rack environments.
Intelligent control and seamless network integration
The BN PRO Metered RCM features a 2.4-inch TFT color display and an integrated web server with a web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) and SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port. Thanks to the PDU clustering function (up to 20 PDUs), the BM0015597 is ideal for centralized deployment in large data center environments.
Serviceability and professional equipment
The controller and power supply of the BN PRO Metered RCM are hot-swappable – replacement during operation without shutdown. With 24 IEC C13 and 6 IEC C19 outlets, a USB-C port (USB 2.0), colored marking frames (blue, red) and the included L-shaped mounting bracket, the PDU is optimally equipped for professional continuous operation. The BN PRO Metered RCM BM0015597 from Bachmann combines residual current protection, grouped overload protection and precise energy monitoring in the most powerful three-phase rack PDU of the series.
