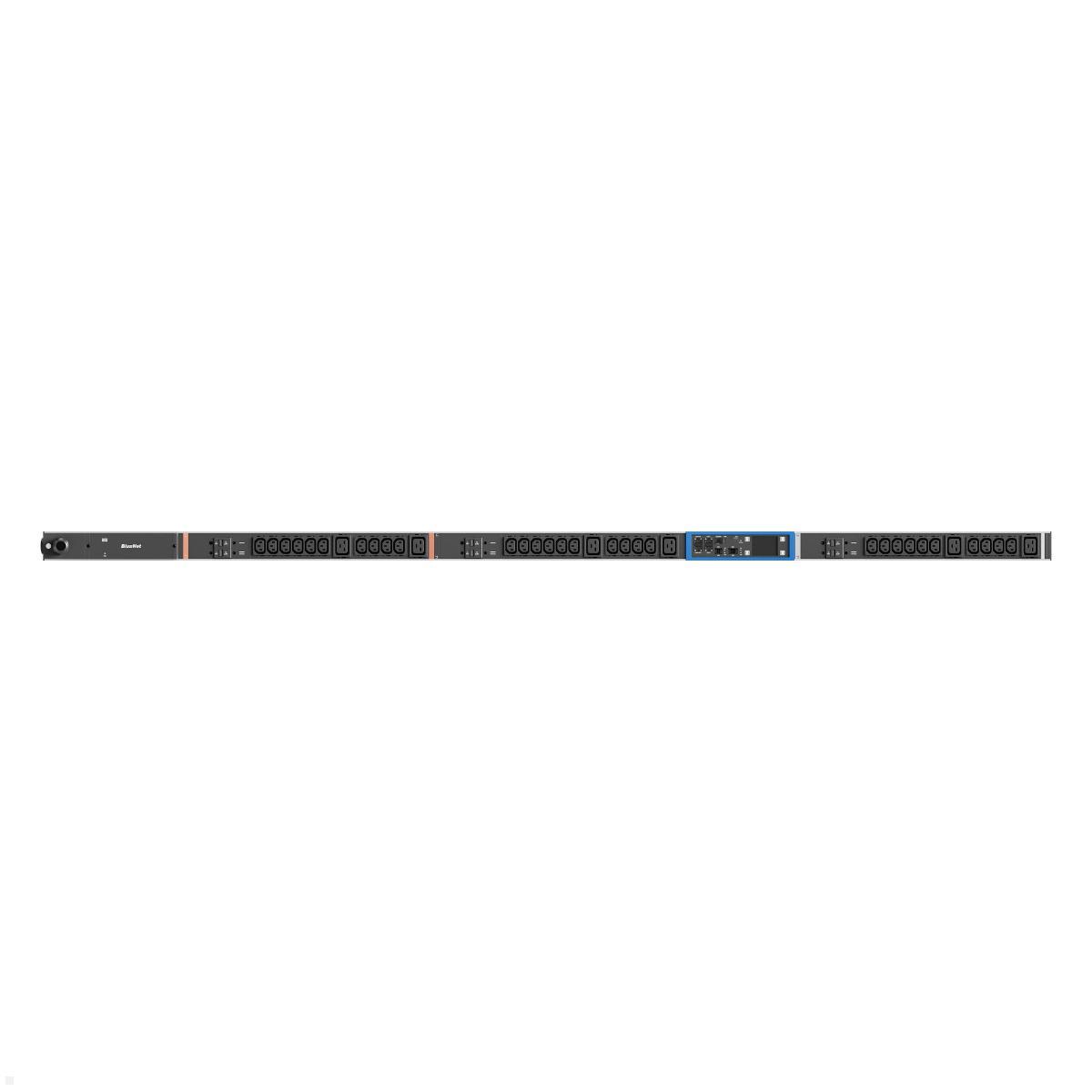

Bachmann BN PRO Metered – 32A Rack PDU with 30x C13 / 6x C19 / 6x MCB, 3.0m CEE 32A/5p (BM0015596)
Highlights
- 32A / 400V / 22 kW power feed – maximum power capacity for large rack environments
- 6x 16 A MCBs – reliable overload protection per output group
- 3-phase per-phase measurement – accurately measure current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without downtime
- 30x C13 & 6x C19 connectors – flexible power distribution for servers and IT equipment
BN PRO Metered – 32A Rack PDU with 6 MCBs for professional data centers
The BN PRO Metered BM0015596 is a powerful, three-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures. With a 32 A / 400 V input (22 kW) and a 3.0 m supply cable with red CEE-32A-5p plug it offers maximum power capacity. Six integrated hydraulically-magnetic MCBs (16 A) reliably protect against overload. The integrated metering function records per phase all relevant energy and power parameters – current, voltage, reactive, apparent and active power, energy, frequency and power factor. Measurements are available directly on the 2.4”-TFT color display or remotely via the integrated web server and the web interface.
Thanks to hot-swappable controller and power supply, maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) as well as SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port; a USB-C port (USB 2.0) is available for local configuration. With 30 IEC C13 and 6 IEC C19 outlets, colored marking frames (blue, red) and the supplied mounting bracket (L-shape), the BM0015596 is ideal for professional continuous rack operation.
Technical details – Features of BN PRO Metered BM0015596
- Measurement per phase: current, voltage, reactive, apparent, active power, reactive, apparent, active energy, frequency and power factor
- Input: 32 A / 400 V / 22 kW, 3-phase
- Supply cable: 3.0 m | 4 mm² with CEE-32A plug (red, 5-pin)
- 30x IEC C13 & 6x IEC C19 sockets
- 6x hydraulically-magnetic MCBs 16 A
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply
- Integrated web server with web interface
- SNMP support
- PDU chaining: up to 20 PDUs networkable
- 2.4” TFT color display
- Frames for color coding (blue, red)
- Incl. mounting bracket (L-shape, single)
- Vertical mounting, aluminum housing
- Dimensions (L × W × D): 1,925.9 × 56 × 65 mm
- RoHS compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Phasen: | 3-phasig |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered BM0015596 – 32A three-phase Rack PDU with 36 outlets and 6 MCBs
The BN PRO Metered BM0015596 is a three-phase Rack PDU from Bachmann for professional data centers and server rooms. With a 32 A / 400 V input (22 kW) and a 3.0 m supply cable with red CEE-32A-5p plug, it delivers maximum power capacity. Six hydraulic-magnetic MCBs (16 A) provide grouped overload protection. The integrated per-phase measurement captures all relevant energy parameters: current, voltage, reactive, apparent and active power, frequency and power factor.
Intelligent control and seamless network integration
The BN PRO Metered PDU features a 2.4-inch TFT color display and an integrated web server with a web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) and SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port. Thanks to the PDU linking function (up to 20 PDUs), the BM0015596 is ideal for centralized use in large data center environments.
Service-friendliness and professional equipment
The controller and power supply of the Bachmann BN PRO Metered – 32A Rack PDU with 30xC13 / 6xC19 / 6xMCB, 3.0m CEE 32A/5p (BM0015596) are hot-swappable – replacement during operation without shutdown. With 30 IEC-C13 and 6 IEC-C19 outlets, a USB-C port (USB 2.0), colored marker frames (blue, red) and the supplied mounting bracket (L-shaped), the PDU is optimally equipped for professional continuous operation. The BN PRO Metered BM0015596 from Bachmann combines high input power, grouped overload protection and precise energy monitoring in a robust three-phase rack PDU.
