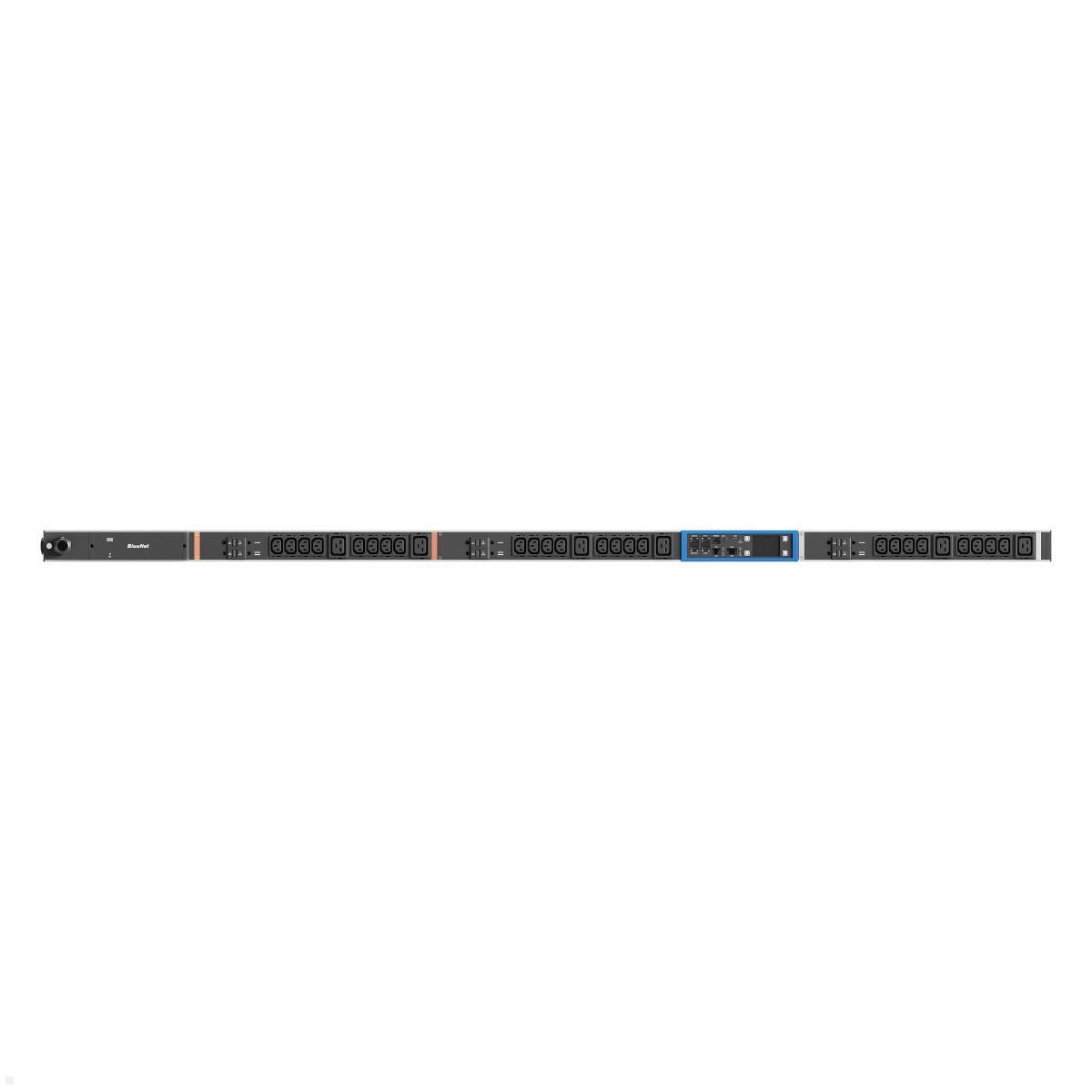

Bachmann BN PRO Metered – 32A Rack PDU with 24xC13 / 6xC19 / 6xMCB, 3.0m CEE 32A (BM0015594)
Highlights
- 32A / 400V / 22 kW supply – maximum power capacity for large rack environments
- 6x 16 A circuit breakers – reliable overload protection per output group
- 3-phase, per-phase measurement – precisely capture current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without operational interruption
- 24x C13 & 6x C19 outlets – flexible power distribution for servers and IT equipment
BN PRO Metered – 32A Rack PDU with 6 circuit breakers for professional data centers
The BN PRO Metered BM0015594 is a powerful, three-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures. With a 32 A / 400 V input (22 kW) and a 3.0 m supply cable with red CEE-32A-5p plug it offers maximum power capacity. Six integrated hydraulic-magnetic circuit breakers (16 A) reliably protect against overload. The integrated metering function records per phase all relevant energy and power parameters – current, voltage, reactive, apparent and active power, energy, frequency and power factor. Measurements can be viewed directly on the 2,4”-TFT color display or remotely via the built-in web server and web interface.
Thanks to a hot-swappable controller and power supply, maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) as well as SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port; a USB-C port (USB 2.0) is available for local configuration. With 24 IEC C13 and 6 IEC C19 sockets, colored marking frames (blue, red) and the supplied mounting bracket (L-shape), the BM0015594 is ideal for professional continuous use in the rack.
Technical Details – Features of BN PRO Metered BM0015594
- Per-phase measurement: current, voltage, reactive, apparent and active power; reactive, apparent and active energy, frequency and power factor
- Input: 32 A / 400 V / 22 kW, 3-phase
- Supply cable: 3.0 m | 4 mm² with CEE-32A plug (red, 5-pin)
- 24x IEC C13 & 6x IEC C19 sockets
- 6x hydraulic-magnetic circuit breakers 16 A
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply
- Integrated web server with web interface
- SNMP support
- PDU linking: up to 20 PDUs networkable
- 2,4” TFT color display
- Frames for color coding (blue, red)
- Included mounting bracket (L-shape, simple)
- Vertical mounting, aluminum housing

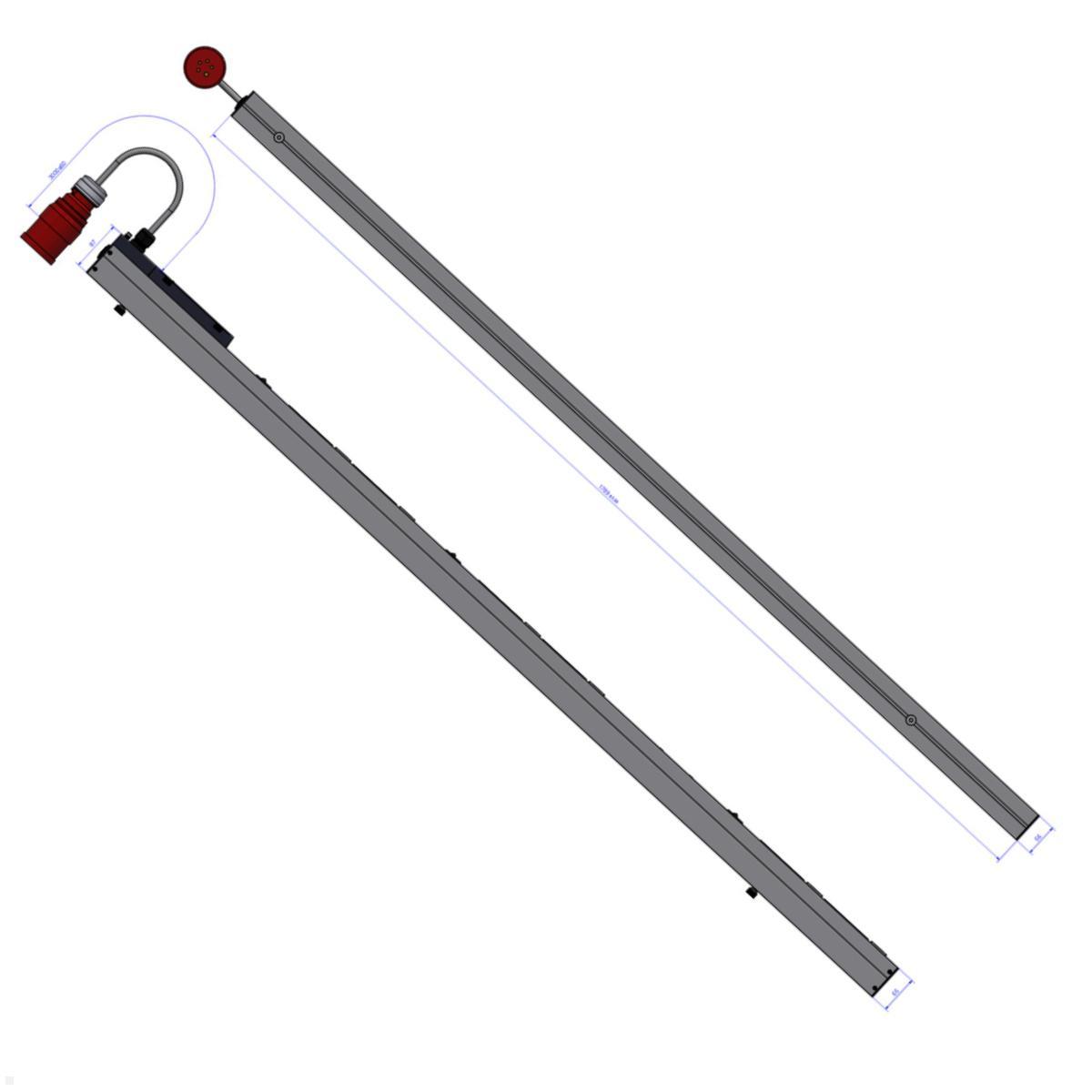

- Dimensions (L × W × D): 1.789 × 56 × 65 mm
- RoHS-compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Phasen: | 3-phasig |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered BM0015594 – 32A three-phase Rack PDU with 6 circuit breakers
The BN PRO Metered BM0015594 is a three-phase rack PDU from Bachmann for professional data centers and server rooms with the highest power requirements. With a 32 A / 400 V input (22 kW) and a 3.0 m supply cable with red CEE-32A-5p plug it delivers maximum power capacity. Six hydraulic-magnetic circuit breakers (16 A) provide group-wise overload protection. The integrated per-phase measurement captures all relevant energy parameters: current, voltage, reactive, apparent and active power, frequency and power factor.
Intelligent control and seamless network integration
The BN PRO Metered PDU features a 2.4-inch TFT color display and an integrated web server with a web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) and SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port. Thanks to the PDU linking function (up to 20 PDUs) the BM0015594 is ideal for centralized deployment in large data center environments.
Service-friendliness and professional equipment
The controller and power supply of the BN PRO Metered are hot-swappable – replacement during operation without shutdown. With 24 IEC C13 and 6 IEC C19 outlets, a USB-C port (USB 2.0), colored marking frames (blue, red) and the supplied L-shaped mounting bracket, the PDU is optimally equipped for professional continuous operation. The BN PRO Metered BM0015594 from Bachmann combines high input power, group-wise overload protection and precise energy monitoring in a robust three-phase rack PDU.
