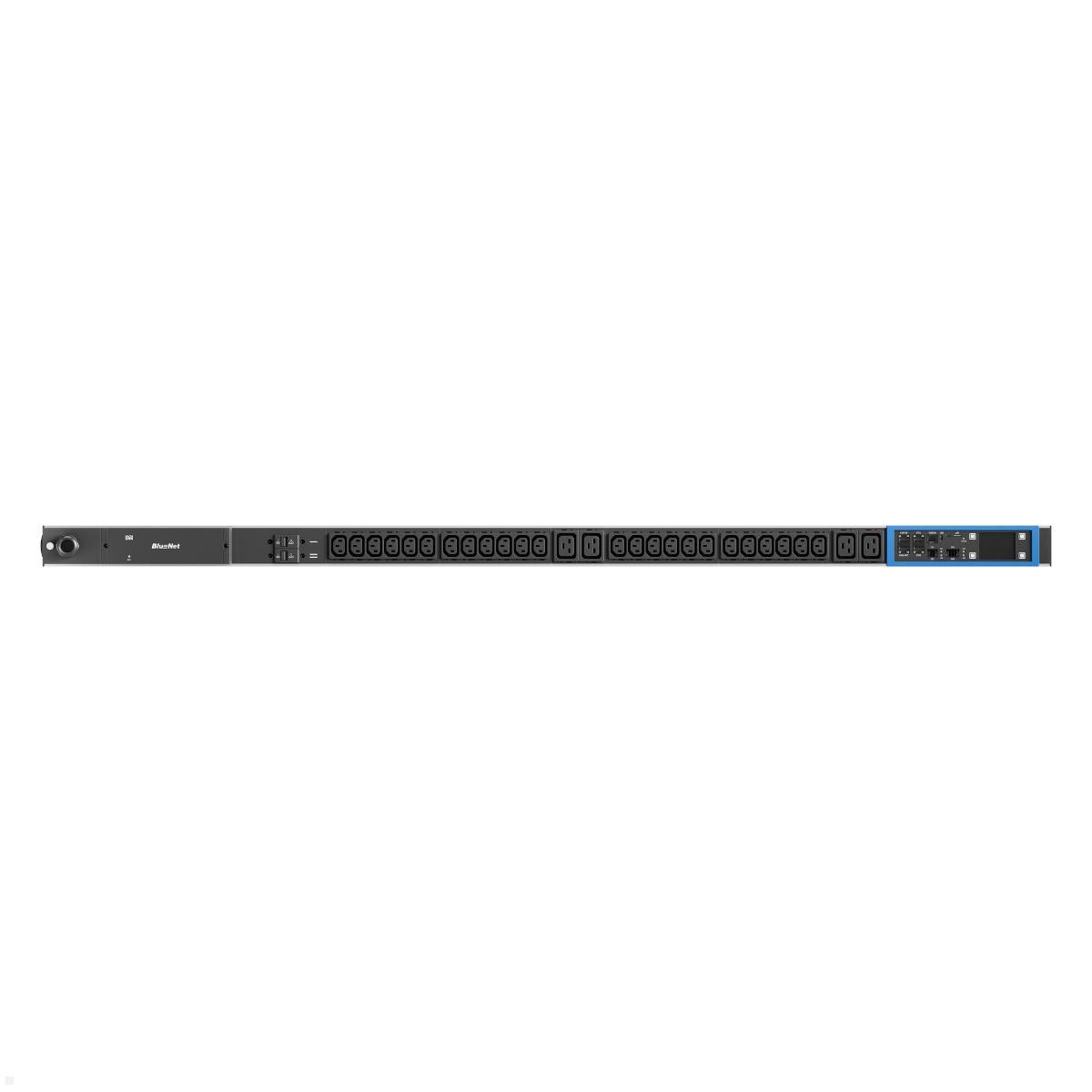

Bachmann BN PRO Metered – 32A Rack PDU with 24xC13 / 4xC19 / 2xMCB, 3.0m CEE 32A/3p (BM0015592)
Highlights
- 32A feed with 2x 16 A circuit breakers – reliable overload protection in the rack
- Per-phase measurement – accurately capture current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without operational interruption
- 24x C13 & 4x C19 outlets – flexible power distribution for servers and IT equipment
- PDU cascade of up to 20 units – scalable integration into large rack environments
BN PRO Metered – 32A Rack PDU with circuit breakers for professional IT environments

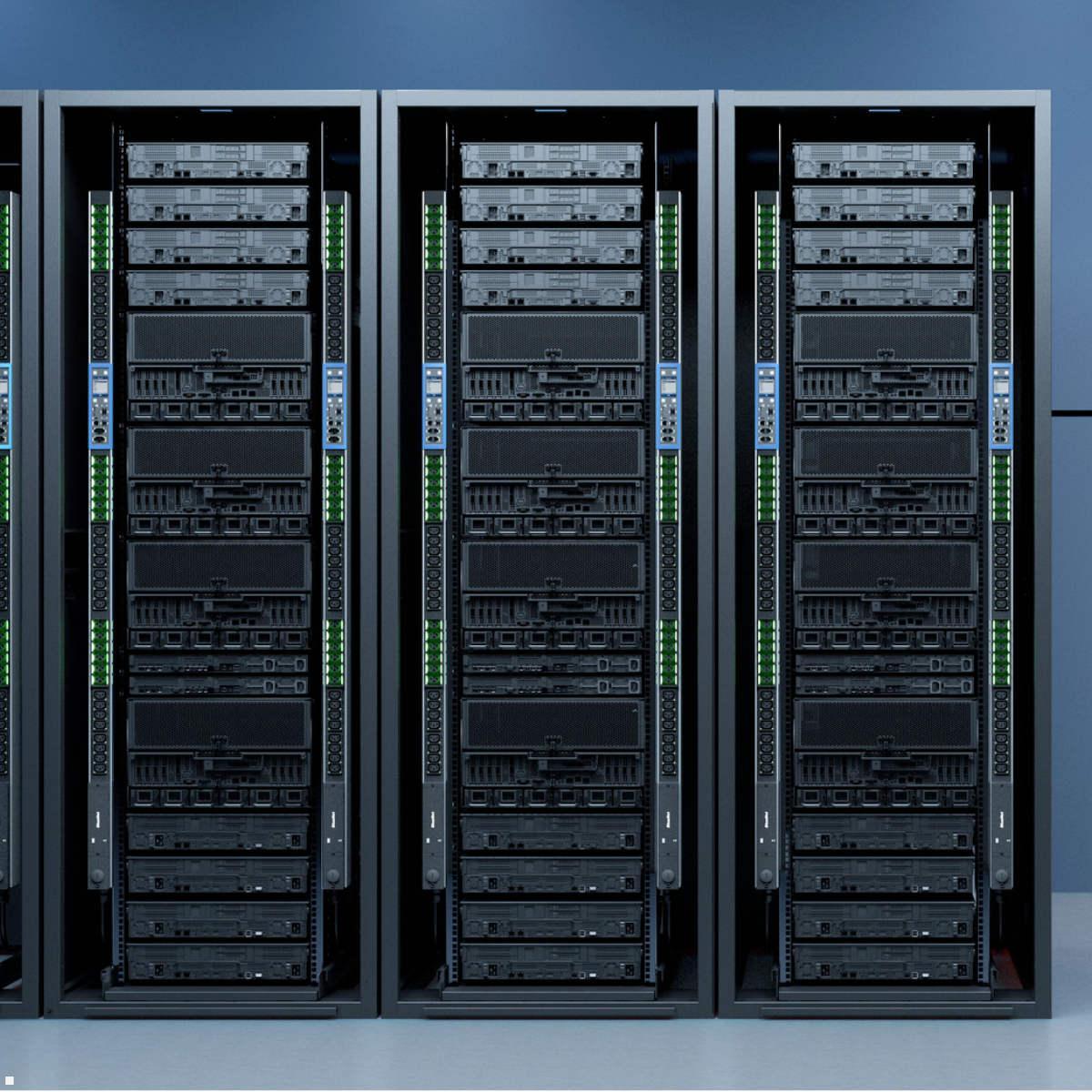

The BN PRO Metered BM0015592 is a powerful, single-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures. With a 32 A / 230 V input (7.2 kW) and a 3.0 m supply cable with a blue CEE-32A-3p plug it offers high power capacity and secure power delivery. Two integrated hydraulic-magnetic circuit breakers (16 A) additionally protect against overload. The integrated metering function records per phase all relevant energy and power parameters – current, voltage, reactive, apparent and active power, energy, frequency and power factor. Measurements can be viewed directly on the 2,4”-TFT color display or remotely via the built-in web server and web interface.
Thanks to the hot-swappable controller and power supply, maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) as well as SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port; a USB-C port (USB 2.0) is available for local configuration. With 24 IEC C13 and 4 IEC C19 sockets, colored marking frames (blue, red) and the supplied mounting bracket (L-shape), the BM0015592 is ideal for professional continuous rack use.
Technical Details – Features of the BN PRO Metered BM0015592
- Per-phase measurement: current, voltage, reactive, apparent and active power; reactive, apparent and active energy, frequency and power factor
- Input: 32 A / 230 V / 7.2 kW, single-phase
- Supply cable: 3.0 m | 4 mm² with CEE-32A plug (blue, 3-pin)
- 24x IEC C13 & 4x IEC C19 sockets
- 2x hydraulic-magnetic circuit breakers (16 A)
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply
- Built-in web server with web interface
- SNMP support
- PDU cascade: up to 20 PDUs connectable
- 2,4” TFT color display
- Frames for color coding (blue, red)
- Incl. mounting bracket (L-shape, simple)
- Vertical mounting, aluminum housing

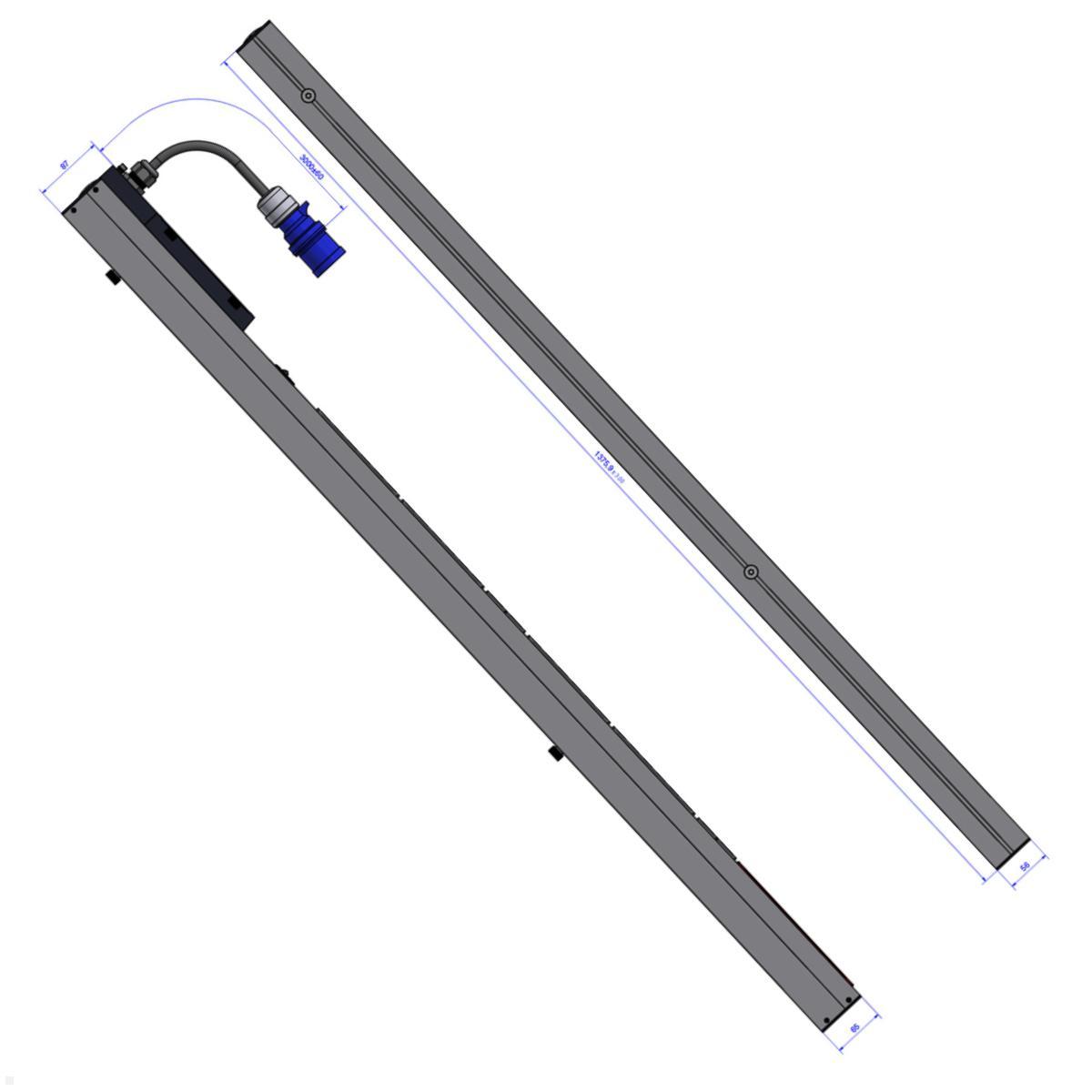

- Dimensions (L × W × D): 1.375,9 × 56 × 65 mm
- RoHS-compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 28 Steckdosen |
| Phasen: | 1-phasig |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered BM0015592 – 32A Rack PDU with circuit breakers and energy monitoring
The BN PRO Metered BM0015592 is a single-phase rack PDU from Bachmann for professional data centers, server rooms and IT infrastructures. With a 32 A / 230 V input (7.2 kW) and a 3.0 m supply cable with blue CEE-32A-3p plug, it delivers high power capacity. Two hydraulic-magnetic circuit breakers (16 A) provide reliable overload protection. The integrated per-phase measurement records all relevant energy parameters: current, voltage, reactive, apparent and active power, frequency and power factor.
Intelligent control and seamless network integration
The BN PRO Metered PDU features a 2.4-inch TFT color display as well as an integrated web server with web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) and SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port. Thanks to the PDU cascading function (up to 20 PDUs), the BM0015592 is ideal for central deployment in large data center environments.
Service-friendliness and professional equipment
The controller and power supply of the BN PRO Metered are hot-swappable – replacement during operation without shutdown. With 24 IEC C13 and 4 IEC C19 outlets, a USB-C port (USB 2.0), colored marking frames (blue, red) and included L-shaped mounting brackets, the PDU is optimally equipped for professional continuous operation. The BN PRO Metered BM0015592 from Bachmann combines precise energy monitoring, integrated overload protection and high service-friendliness in a robust 32A rack PDU.
