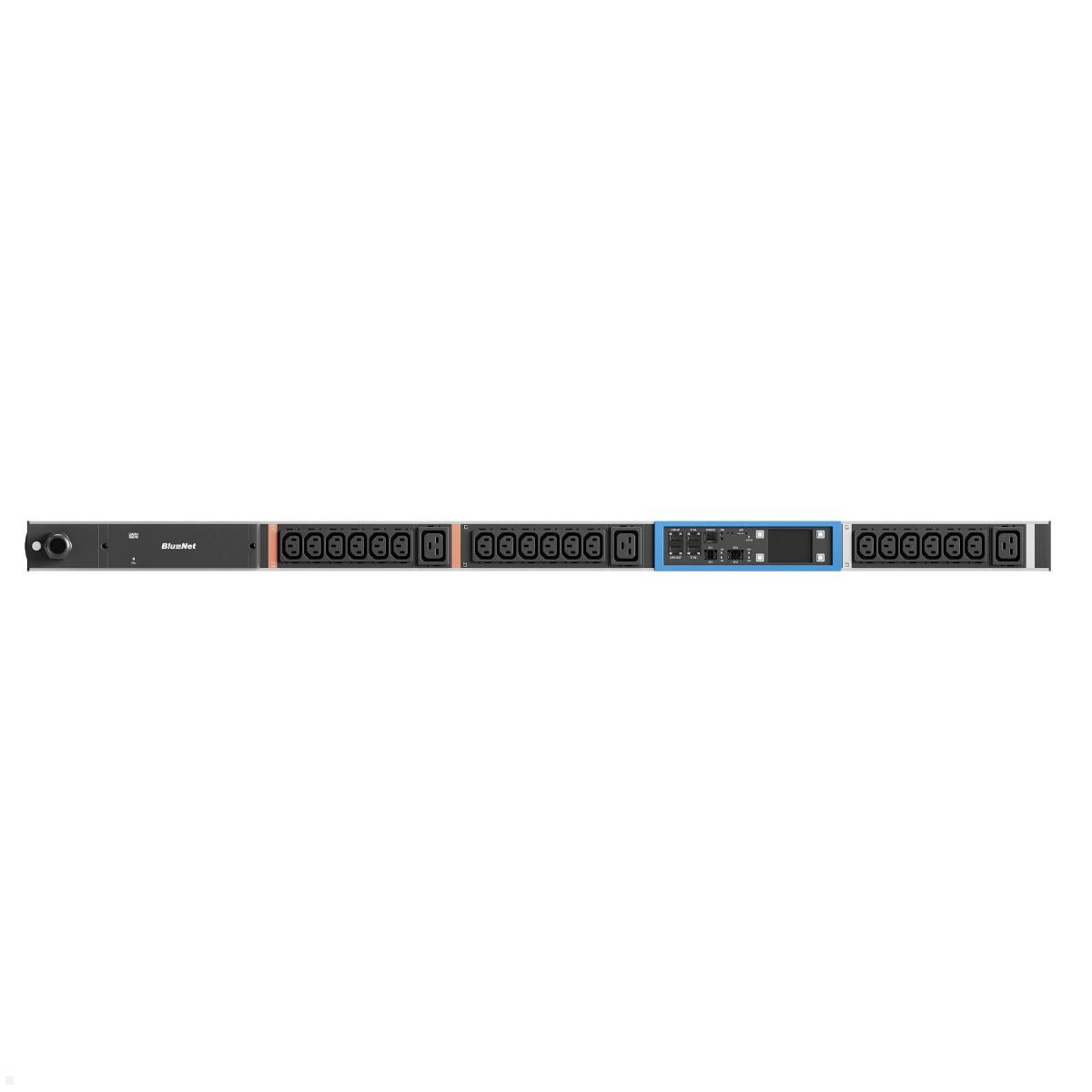

Bachmann BN PRO Metered – 16A Rack PDU with 18xC13 / 3xC19 & Display, 3,0m CEE 16A/5p (BM0015599)
Highlights
- Compact design – 18x C13 & 3x C19 in only 1,136.7 mm length
- 3-phase per-phase measurement – precisely measure current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without service interruption
- 2.4”-color display & dual Ethernet – local and remote monitoring
- PDU chaining up to 20 units – scalable integration into large rack environments
BN PRO Metered – Compact 3-phase Rack PDU for Professional IT Environments

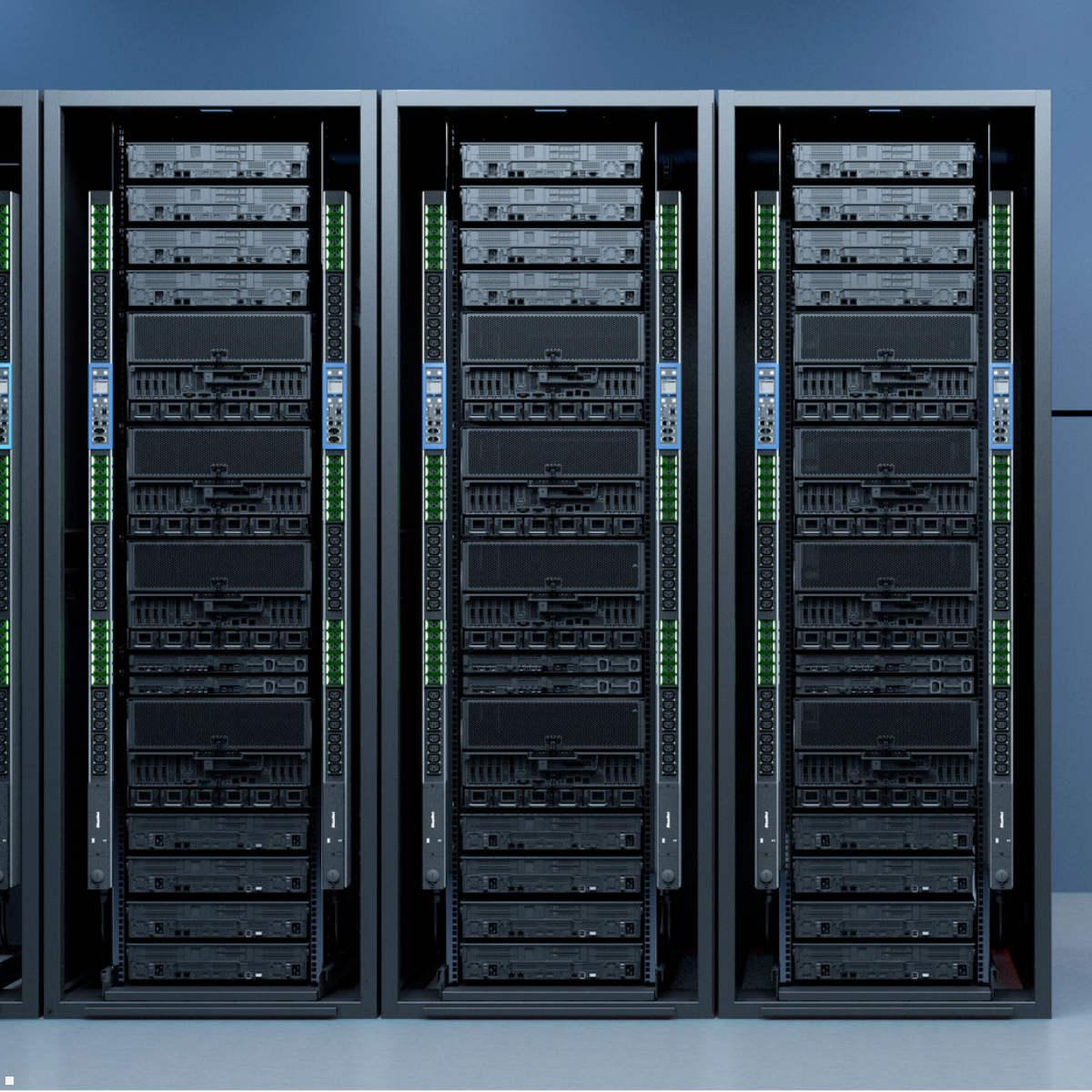

The BN PRO Metered BM0015599 is a compact, three-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures. With a 16 A / 400 V input (11 kW) and a 3.0 m supply cable with red CEE-16A-5p plug, it provides reliable power delivery. The integrated metering function records per phase all relevant energy and power parameters – current, voltage, reactive, apparent and active power, energy, frequency and power factor. Measurements can be read directly on the 2,4”-TFT color display or remotely via the integrated web server and web interface.
Thanks to the hot-swappable controller and power supply, maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) as well as SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port; a USB-C port (USB 2.0) is available for local configuration. The PDU can be operated in a chain with up to 20 other PDUs. With 18 IEC C13 and 3 IEC C19 sockets, color marking frames (blue, red) and the supplied mounting bracket (L-shape), the BM0015599 is ideal for space-saving rack deployment.
Technical Details – Features of the BN PRO Metered BM0015599
- Measurement per phase: current, voltage, reactive, apparent and active power, reactive, apparent and active energy, frequency and power factor
- Input: 16 A / 400 V / 11 kW, 3-phase
- Supply cable: 3.0 m | 2.5 mm² with CEE-16A plug (red, 5-pin)
- 18x IEC C13 & 3x IEC C19 sockets
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply
- Integrated web server with web interface
- SNMP support
- PDU chaining: up to 20 PDUs networkable
- 2,4” TFT color display
- Color marking frames (blue, red)
- Includes mounting bracket (L-shape, simple)
- Vertical mounting, aluminum housing

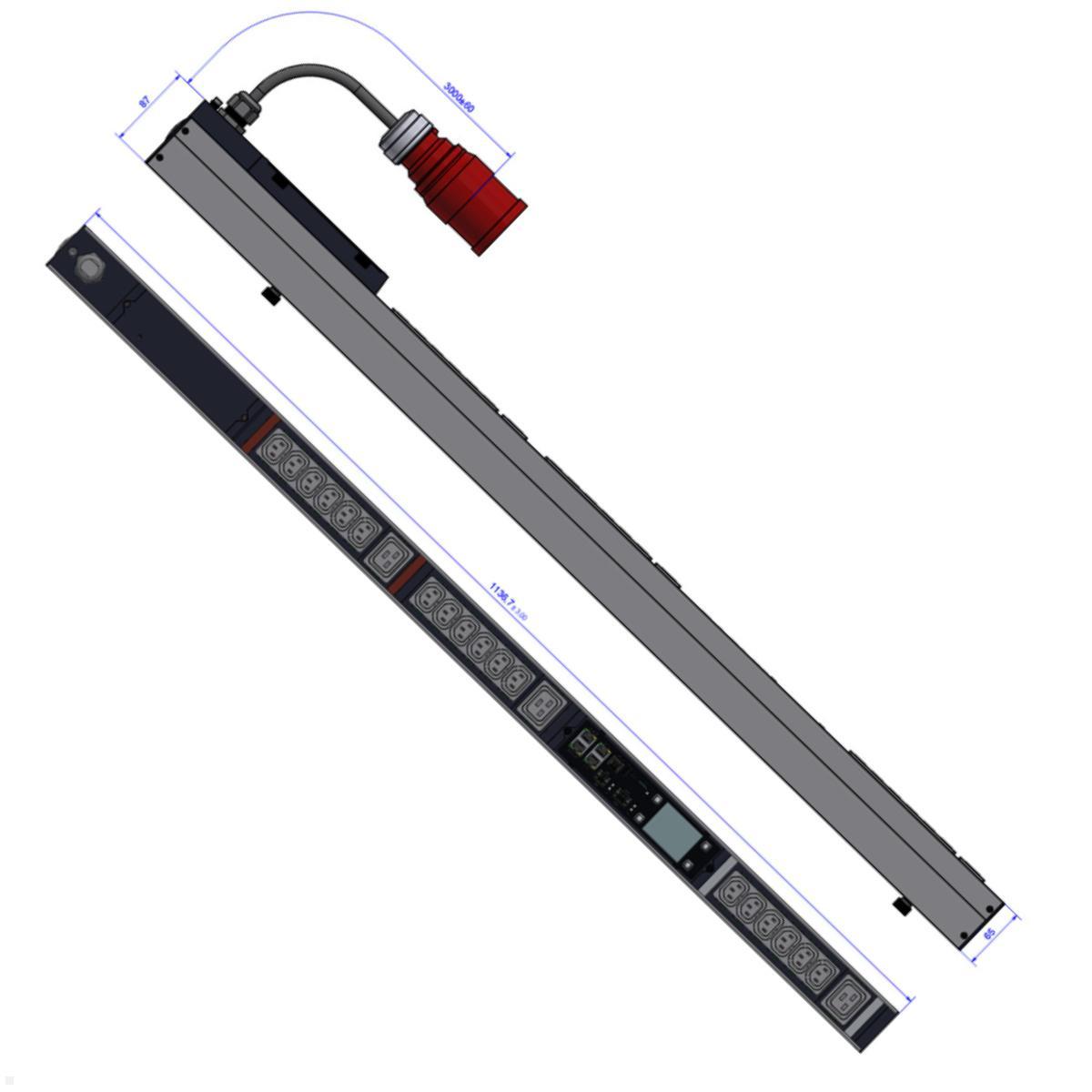

- Dimensions (L × W × D): 1.136,7 × 56 × 65 mm
- RoHS-compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 21 Steckdosen |
| Phasen: | 3-phasig |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered BM0015599 – Compact three-phase rack PDU with energy monitoring
The BN PRO Metered BM0015599 is a compact three-phase rack PDU from Bachmann, specially designed for professional data centers, server rooms and IT infrastructures with limited space requirements. With an input of 16 A / 400 V (11 kW) and a 3.0 m supply cable with a red CEE-16A-5p plug, it provides reliable three-phase power. The integrated measurement function records all relevant energy parameters per phase: current, voltage, reactive, apparent and active power, frequency and power factor.
Intelligent control and seamless network integration
The BN PRO Metered PDU features a 2.4-inch TFT color display as well as an integrated web server with a web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) and SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port. Thanks to the PDU chaining function (up to 20 PDUs), the BM0015599 is ideally suited for centralized use even in larger data center environments.
Serviceability and compact features
The controller and power supply of the Bachmann BN PRO Metered – 16A rack PDU with 18xC13 / 3xC19 & Display, 3.0 m CEE 16A/5p (BM0015599) are hot-swappable – replacement during operation without shutdown. With 18 IEC-C13 and 3 IEC-C19 outlets, a USB-C port (USB 2.0), colored labeling frames (blue, red) and the supplied mounting bracket (L-shaped), the BM0015599 offers all essential features of the BN PRO Metered series in an especially compact form factor. The BN PRO Metered BM0015599 from Bachmann is the ideal solution for operators who require precise energy monitoring and professional PDU functions in minimal space.
