Bachmann CONNECTUS 6x power strip, 1x switch (330.101)
The Bachmann CONNECTUS (330.101) power socket 6-way incl. switch with 2,0m supply is as power strip for commercial as well as for private use
Bachmann CONNECTUS 6x power strip, 1x switch (330.101)

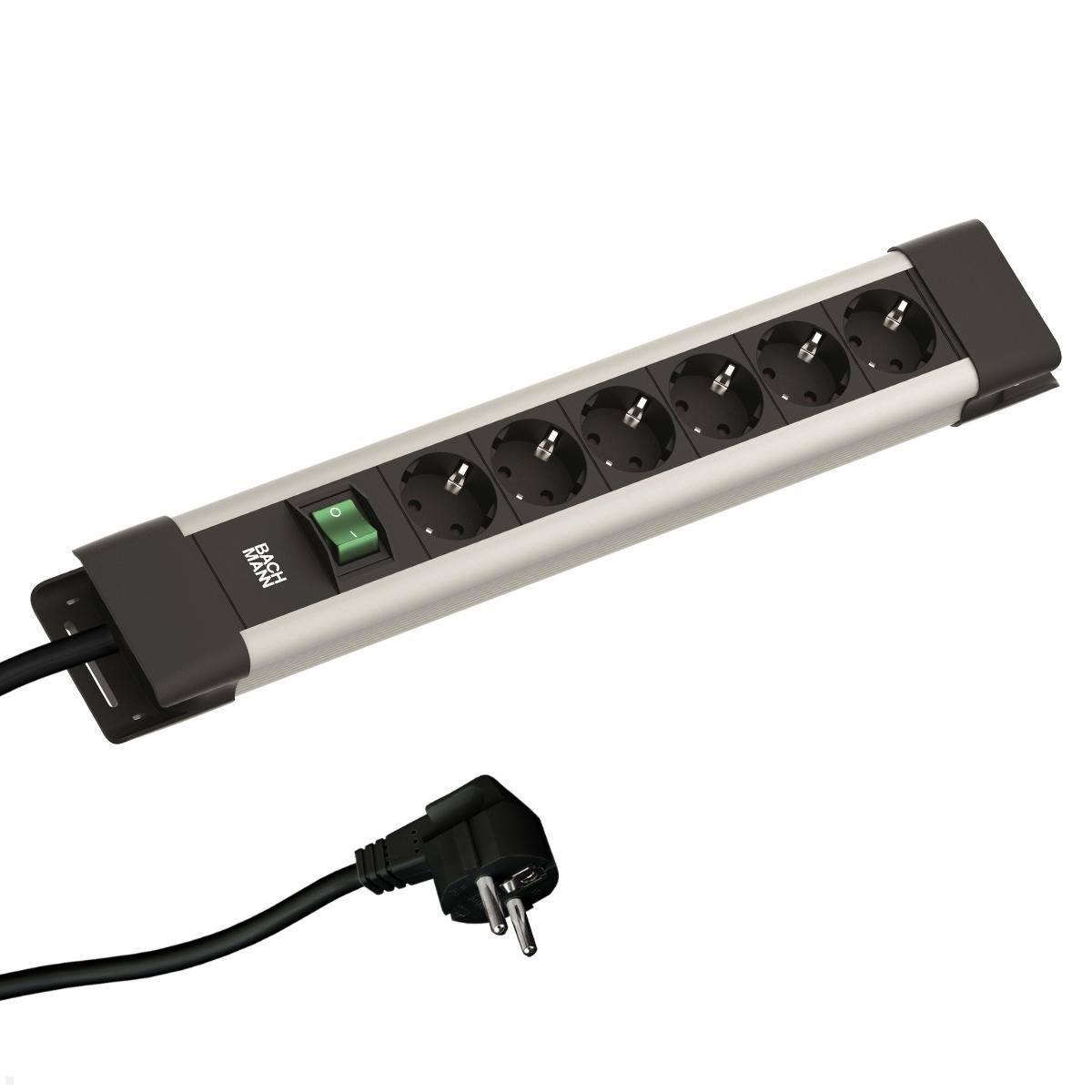

The Bachmann CONNECTUS (330.101) socket strip consists of 6 protective contact sockets in black which can be switched on and off with a rocker switch.
The Bachmann CONNECTUS (330.101) power socket has an integrated child protection in the socket, witch twisted 35° and equipped with a nickel-plated protective contact. Practical are the multiple socket outlets for commercial and private use thanks to the integrated cable rewind.
Key features Bachmann CONNECTUS 6x power strip, 1x switch (330.101)
- Socket colour: black
- Material: Plastic profile

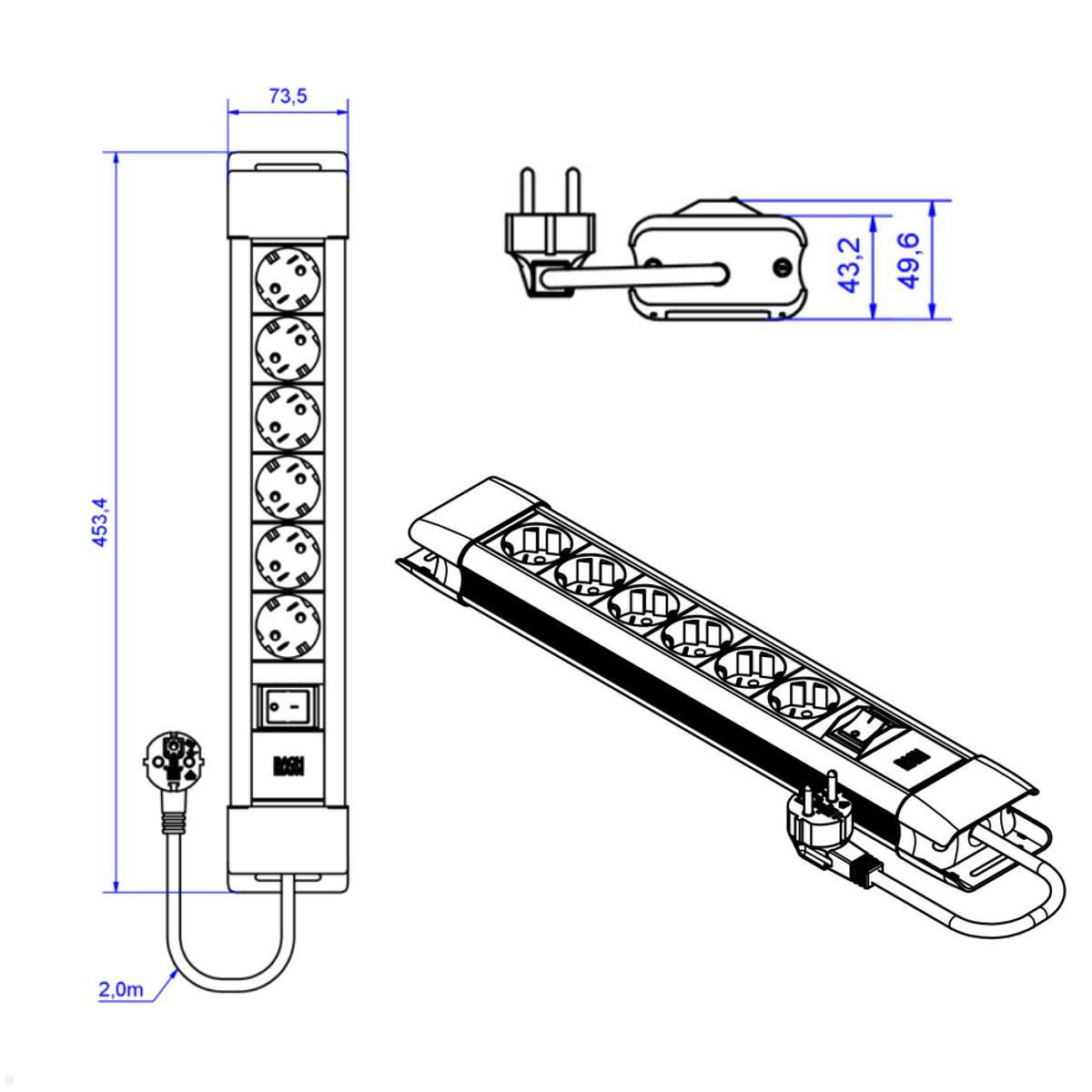

- Dimensions (WxHxD):440x72x49 mm
- 6-way power strip
- Socket, 35° twisted
- 1x 2-pole switch
- Supply cable: 2,0 m H05VV 3G 1,50 mm²
- Incl. Protective angle plug
- IP protection class: IP20
- Integrated child protection

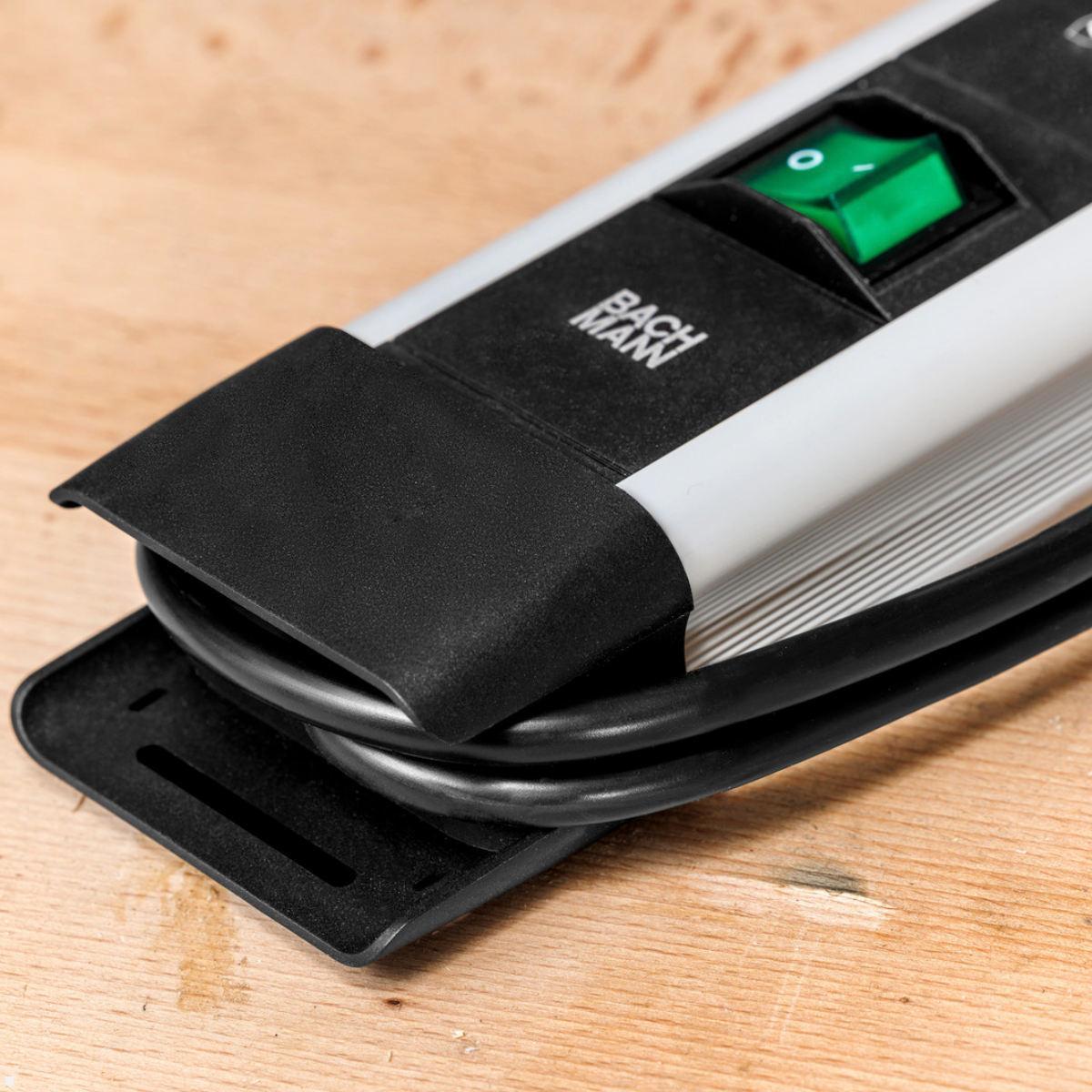

- Integrated cable rewind

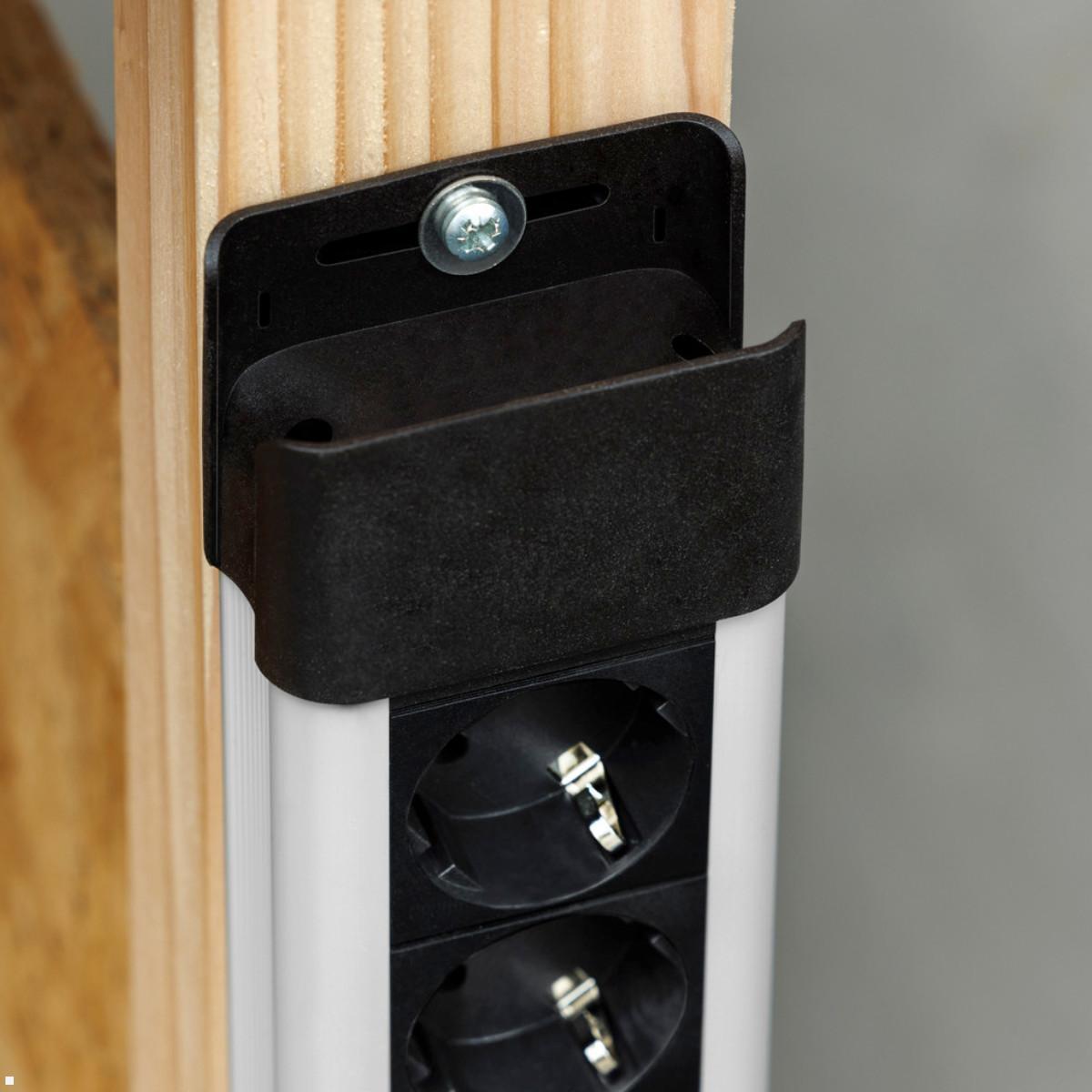

- Easy mounting through mounting holes
- Black end caps can not be opened
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 139 kb] |
|---|---|
| Technical drawing: | [pdf, 138 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
