Bachmann CONNECTUS 12x socket, 1x switch, 2m power cord, black (BM005908)
Highlights
- 12 grounded sockets for maximum connection versatility
- 2-pole illuminated on/off switch for central control
- Robust plastic profile in a modern black design
- 2.0 m supply cable with practical angled plug
- Wall mounting possible thanks to an integrated elongated slot
Bachmann power strip with switch – powerful 12-socket multiple outlet
The Bachmann power strip (BM005908) provides reliable and convenient power supply for multiple devices simultaneously. With its sturdy plastic profile and elegant black end caps, it is convincing both functionally and aesthetically. The 12 safety-contact sockets allow the simultaneous connection of a variety of devices – from computer and monitor to printer, tools or home-office equipment. This makes the strip ideal for use in the office, workshop, at events or in private settings.
Convenient operation and thoughtful mounting options
An integrated two-pole on/off switch allows all connected devices to be controlled centrally. Additional flexibility is provided by the 2-meter supply cable with a practical angled protective-contact plug. The power strip features an integrated elongated hole for easy wall mounting as well as additional fastening options for cable ties – perfect for clean and structured cable routing. The compact design and polybag packaging reliably protect the product from dust and dirt.
Technical details Bachmann CONNECTUS 12-socket power strip (BM005908)
- Color: Black
- Material: Plastic profile

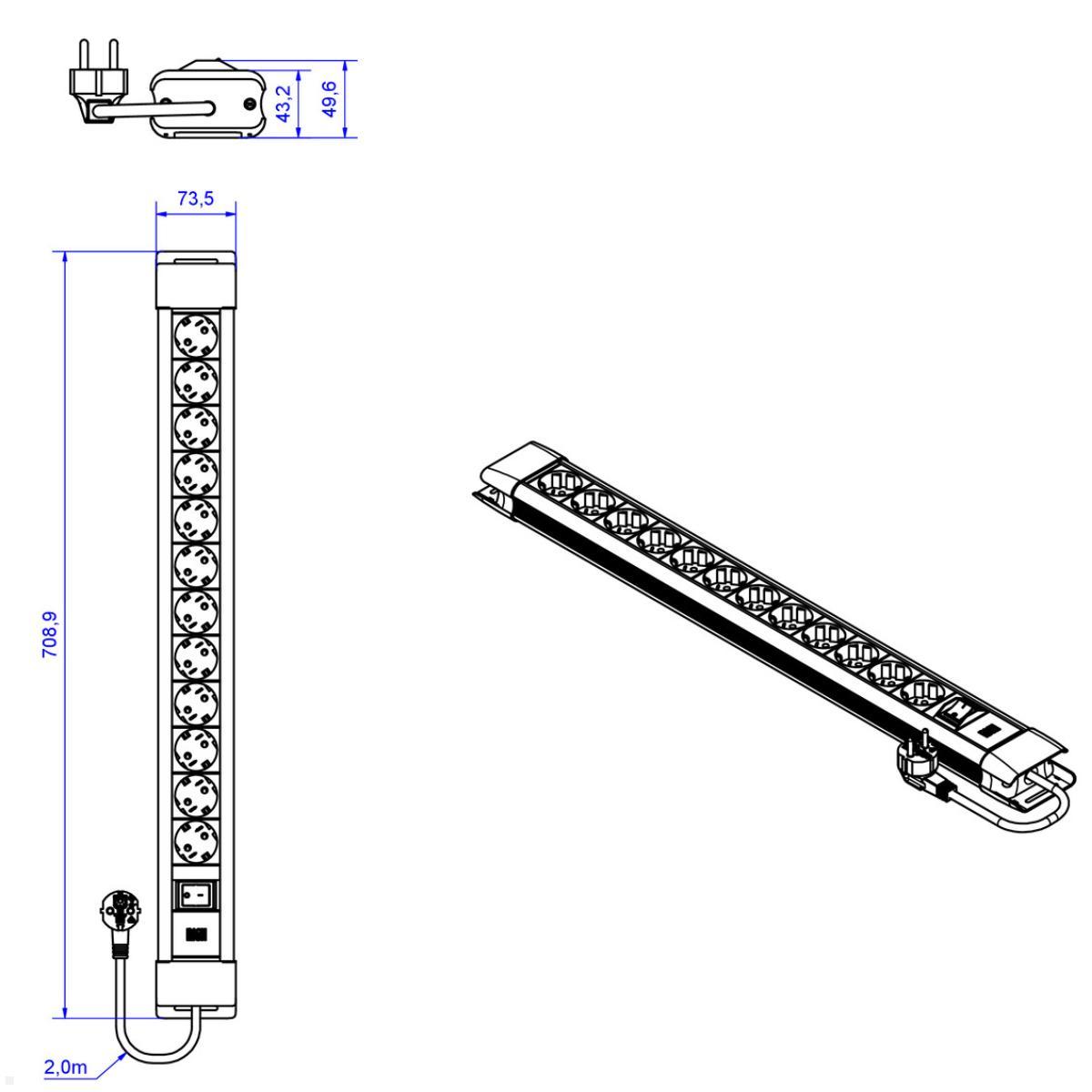

- Dimensions (W×H×D): 709x73.5x43 mm
- 12-socket power strip
- Safety-contact sockets rotated 35°
- 1x 2-pole illuminated rocker switch
- Supply cable: 2.0 m H05VV 3G 1.50 mm²
- Incl. protective-contact angled plug
- Protection rating: IP20
- Integrated child protection

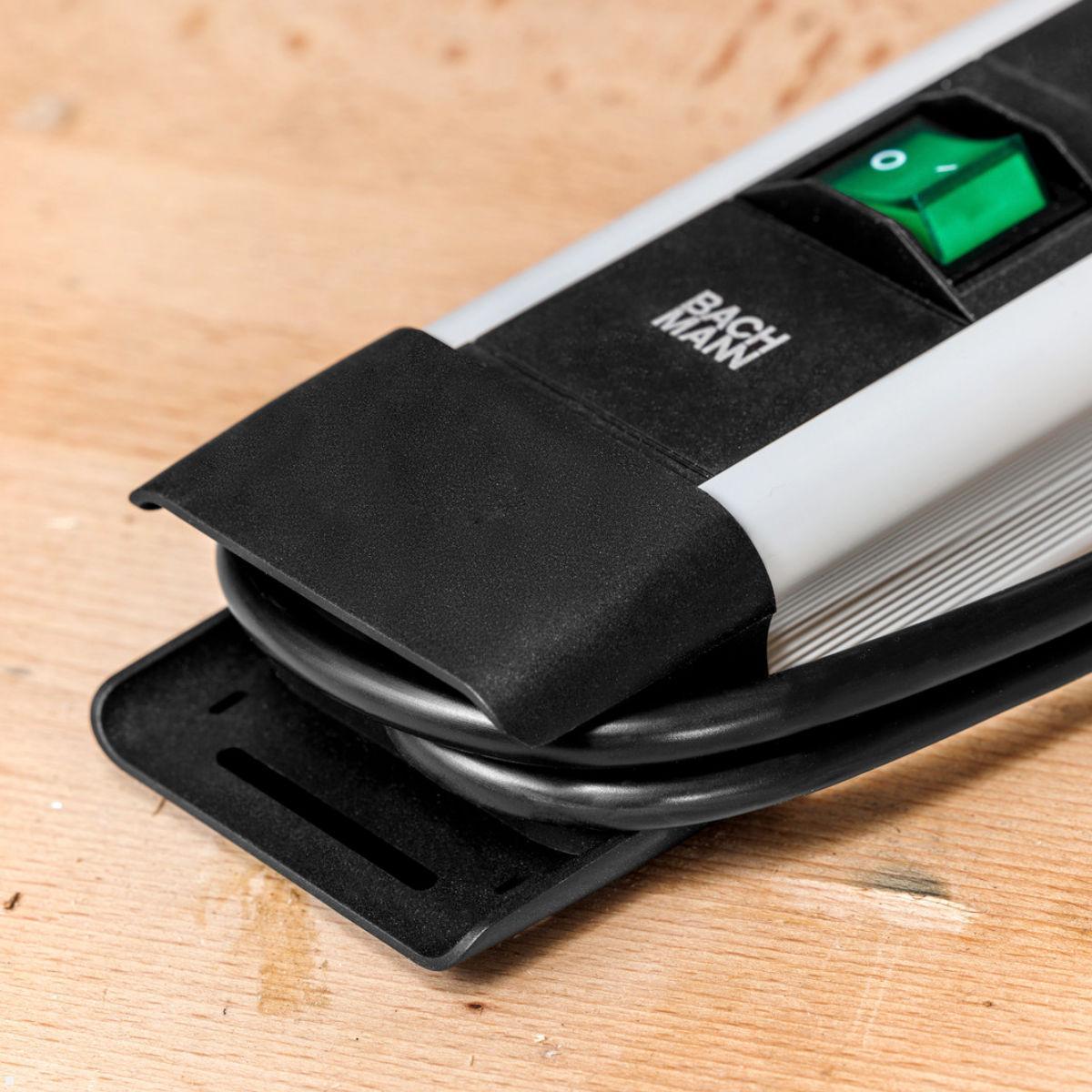

- Integrated cable wrap
- Easy mounting via mounting holes

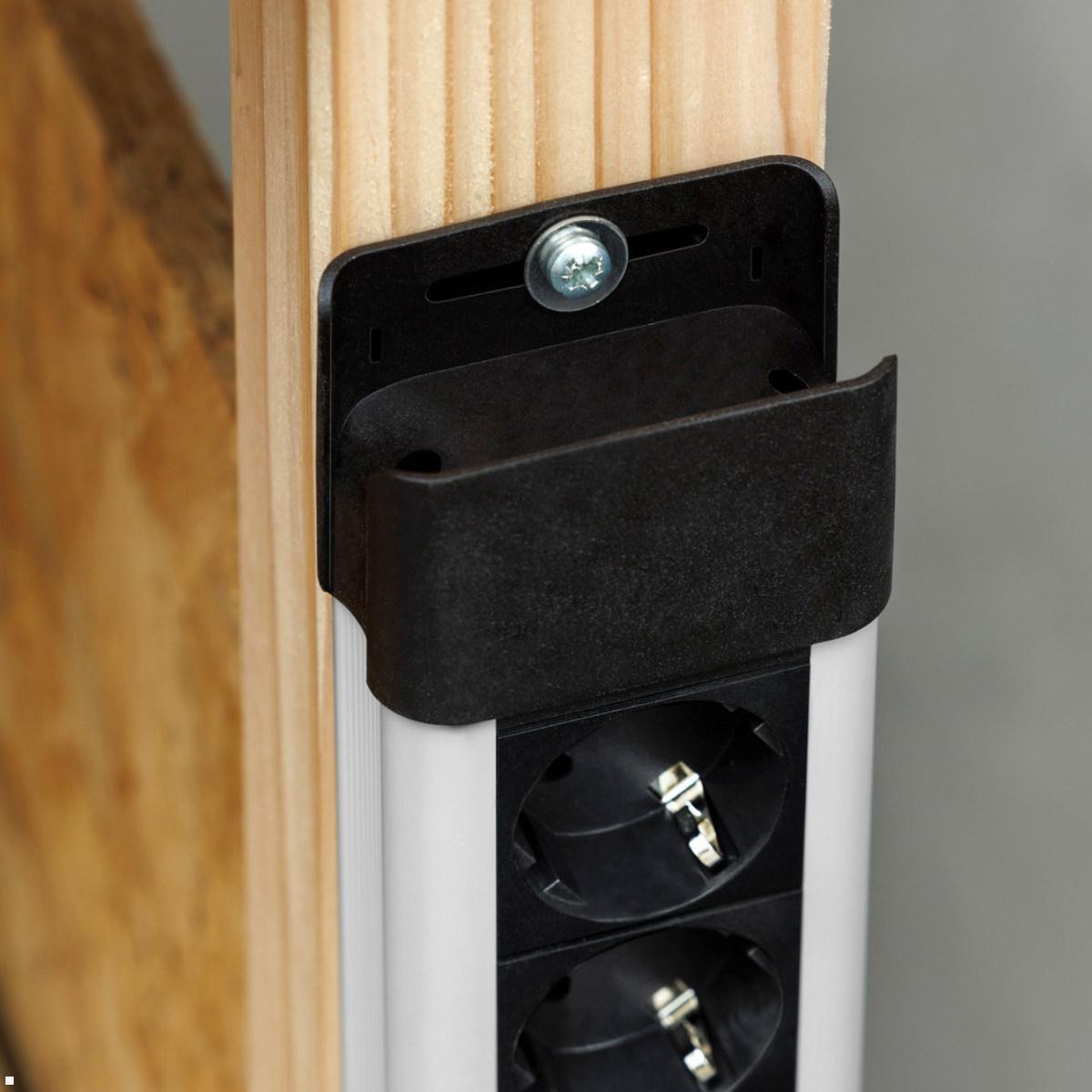

- Incl. elongated hole for wall mounting and fastening option for cable ties
- Black end caps cannot be opened
- Weight: approx. 1.1 kg
Note DGUV V3: Permanently fixed/stationary power strips must be inspected every 4 years by a qualified electrician in accordance with DGUV V3 and DIN VDE 0100-600. Portable power strips must be inspected annually. Further information in the download area under "Manufacturer declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x CONNECTUS power strip incl. slotted hole for wall mounting and attachment option for cable ties |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What does the Bachmann CONNECTUS 12-way power strip offer?
It features 12 protective contact sockets, an integrated 2-pole illuminated rocker switch and a 2.0 m lead with a protective contact angled plug. It also includes integrated cable management, a long-slot wall-mount, cable-tie mounting options, IP20 protection, and built-in child protection.
-
What are the key features and design?
Plastic profile, black end caps and a compact design; weight approx. 1.1 kg.
-
How is it installed or mounted?
Wall mounting via a long-slot; additional cable-tie mounting options and integrated cable management.
-
What are the technical specifications?
Color: Black; Dimensions: 709 x 73.5 x 43 mm; 12-way sockets; Lead: 2.0 m H05VV 3G 1.50 mm²; IP20; built-in child protection; includes protective contact angled plug; weight approx. 1.1 kg; black end caps are not to be opened.
-
Are there safety notes?
DGUV V3: fixed, stationary power strips must be inspected every 4 years by an electrical professional; portable strips annually. Further information can be found in the Download area under 'Manufacturer's Declarations'.
-
What environments is it suitable for?
Ideal for office, workshop, events or private use.
-
Is the packaging protected?
Packaged in a poly bag to protect the product from dust and dirt.
Zubehör
Kunden kauften auch
What sets the Bachmann 12-socket power strip with switch (BM005908) apart?
The Bachmann power strip BM005908 is the ideal solution for anyone who wants to reliably power many electrical devices at the same time. With its 12 grounded sockets, it offers ample connection options for computers, monitors, printers, chargers, or tools. Whether in the office, home office, workshop, or private household – this multi-socket strip provides order and efficiency in power distribution.
Why is a 12-socket power strip so practical in everyday life?
Thanks to the large number of outlets, multiple devices can be connected simultaneously without constantly having to swap plugs. Especially in modern work environments with many electronic devices, the 12-socket power strip ensures clear and reliable power supply.
What advantages does the integrated switch offer?
A particular highlight is the 2-pole illuminated rocker switch. It allows all connected devices to be conveniently switched on or off at once. This saves energy and increases safety, especially in everyday office use or during longer periods of non-use.
How flexible is the installation of the power strip?
Thanks to the 2-meter supply cable with angled grounded plug, the power strip can be positioned flexibly. Additionally, mounting holes and an integrated elongated hole allow for easy wall mounting. Attachment points for cable ties also provide neat and organized cable management.
Which safety features are integrated?
The Bachmann CONNECTUS 12x socket, 1x switch, 2m supply cable, black (BM005908) is equipped with integrated child protection and meets protection class IP20, making it ideal for indoor use. The robust construction also ensures long service life and safe operation in daily use.
Why does the black design also appeal visually?
The sturdy black plastic profile with matching end caps provides a modern and unobtrusive appearance. As a result, the power strip blends harmoniously into any environment – whether workplace, workshop, or living area.
