Bachmann CONNECTUS 6x power strip (330.142)
The Bachmann CONNECTUS (330.142) protective contact socket 6-way with a 1,5 m supply line to the plug and the switch can be used variably as a socket strip for the commercial as well as for the private sector.
Bachmann CONNECTUS 6x power strip (330.142) with external button

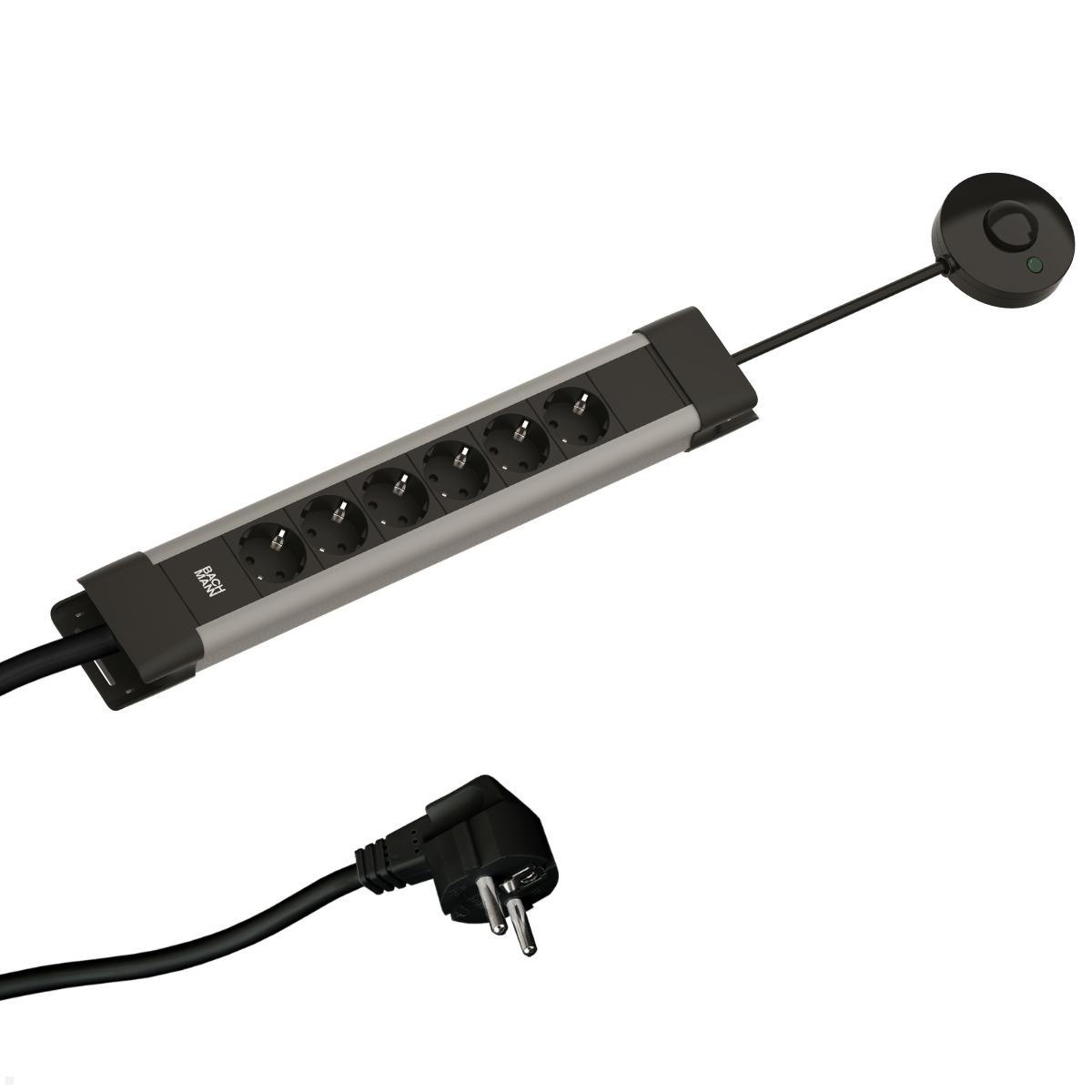

The Bachmann CONNECTUS (330.142) socket strip consists of 6 protective contact sockets and an external switch for switching off the socket strip with a 1.5 m line to the plug and to the switch.
The Bachmann CONNECTUS (330.142) socket strip has an integrated child protection in the socket outlets, which are turned through 35 ° and are equipped with a nickel-plated protective contact. Practical are the multiple socket outlets for commercial and private use thanks to the integrated cable reel.
Key features Bachmann CONNECTUS 6x power strip (330.142)
- Socket colour: black
- Material: Plastic profile

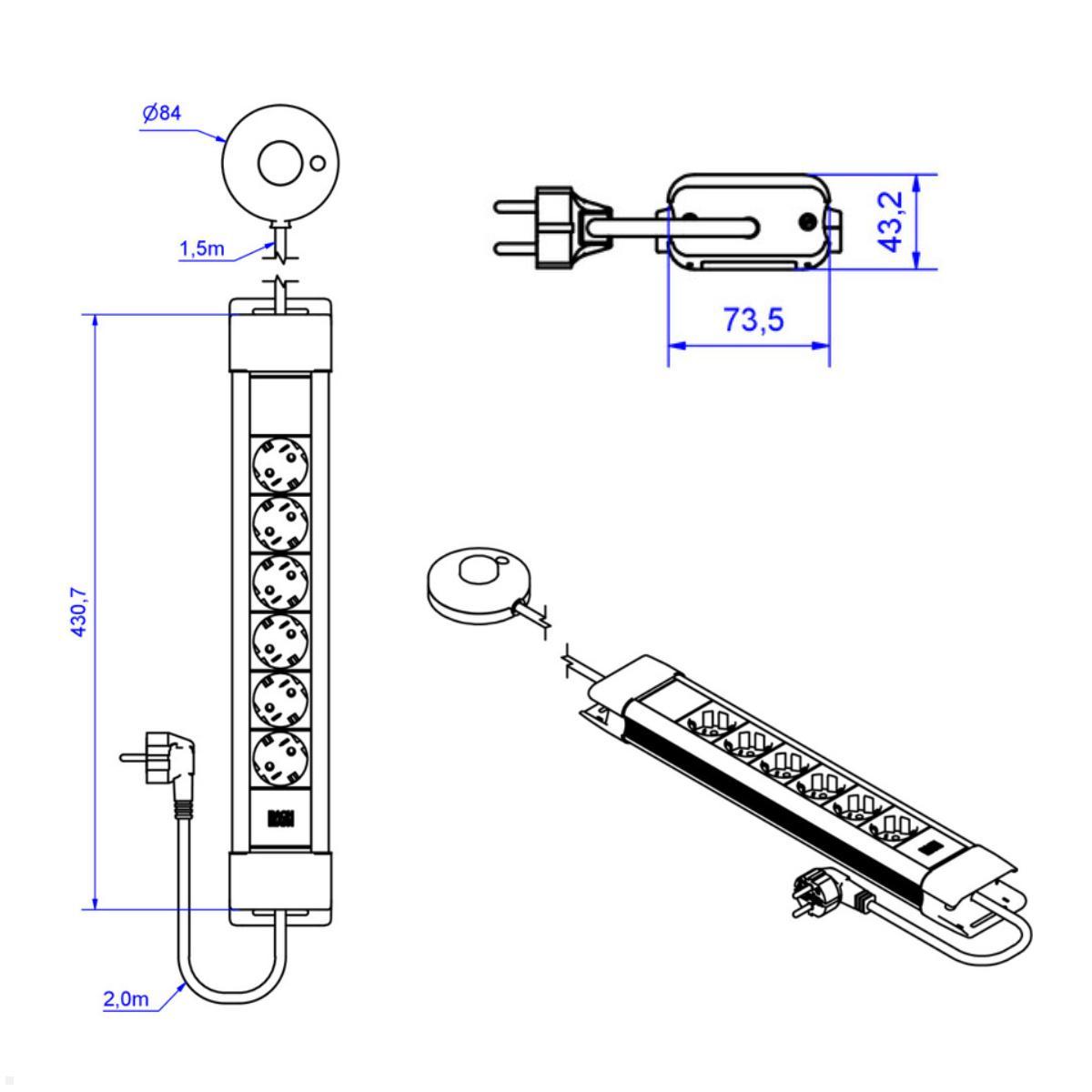

- Dimensions (WxHxD): 442x72x49 mm
- 6-way power strip
- Incl. external button with 1,5 m cable to the switch
- Socket, 35° twisted
- 1x 2-pole illinated switch
- Supply cable: 1,5 m
- Incl. Protective contact angle plug
- IP protection class: IP20
- Integrated child protection

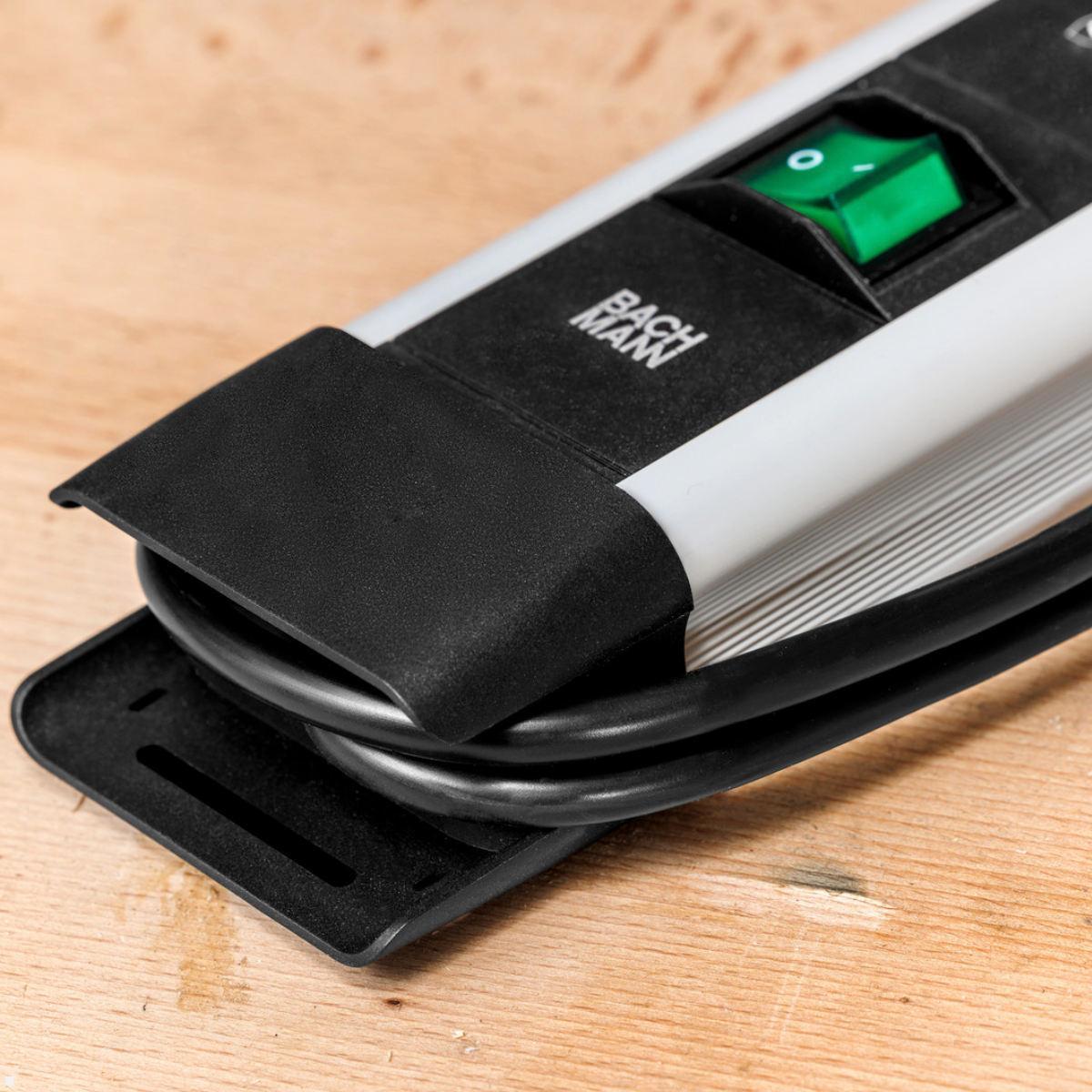

- Integrated cable rewind

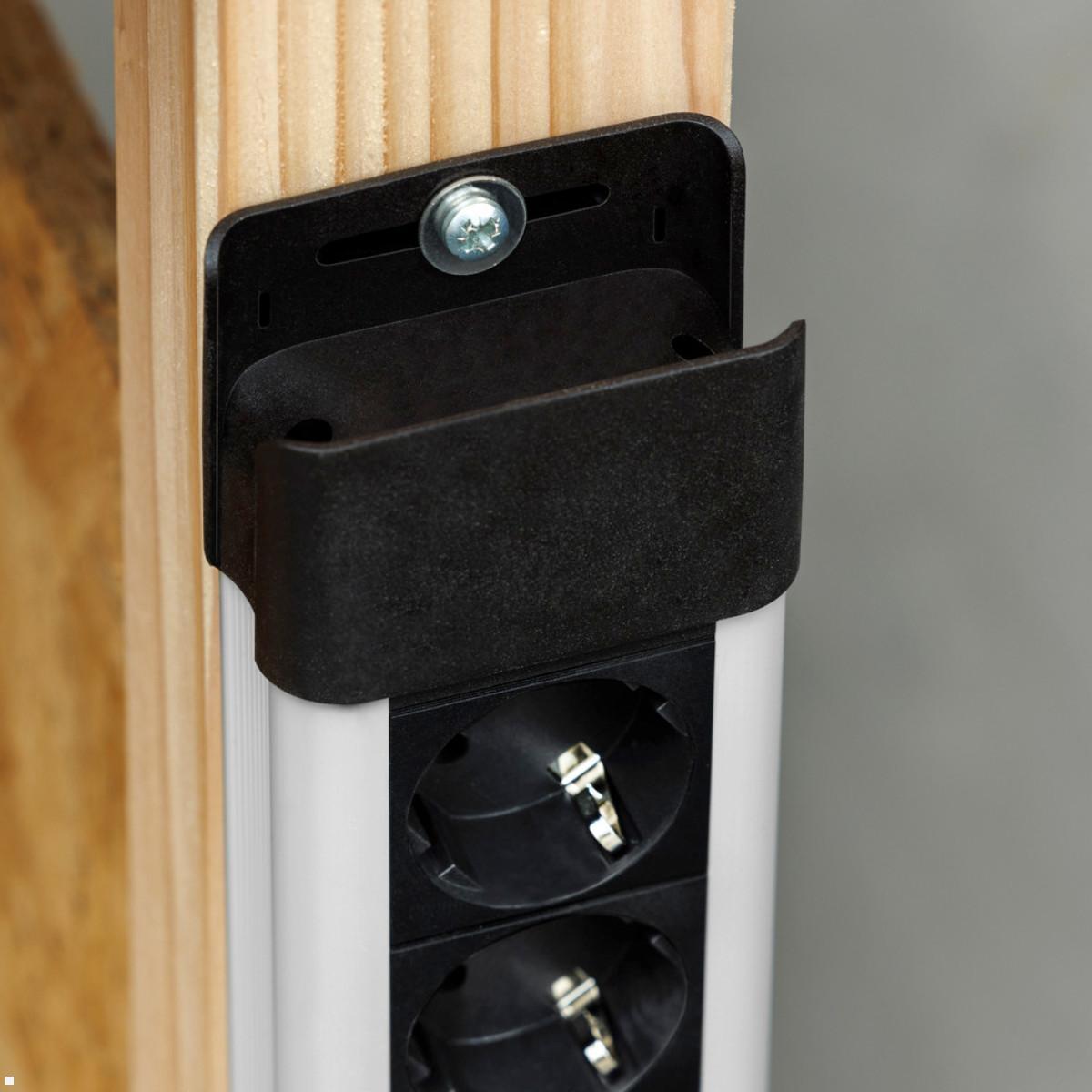

- Easy mounting through mounting holes
- Black end caps can not be opened
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 113 kb] |
|---|---|
| Technical drawing: | [pdf, 111 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
