Bachmann STEP ALU master & slave with GST18 (906.18811)
The power strip Bachmann STEP ALU master and slave with GST18 (906.18811) is a STEP ALU safety module with master & slave circuit with threshold value setting 10W and higher. Individual modules can be interconnected or combined with a connecting line.
Socket strip with circuit

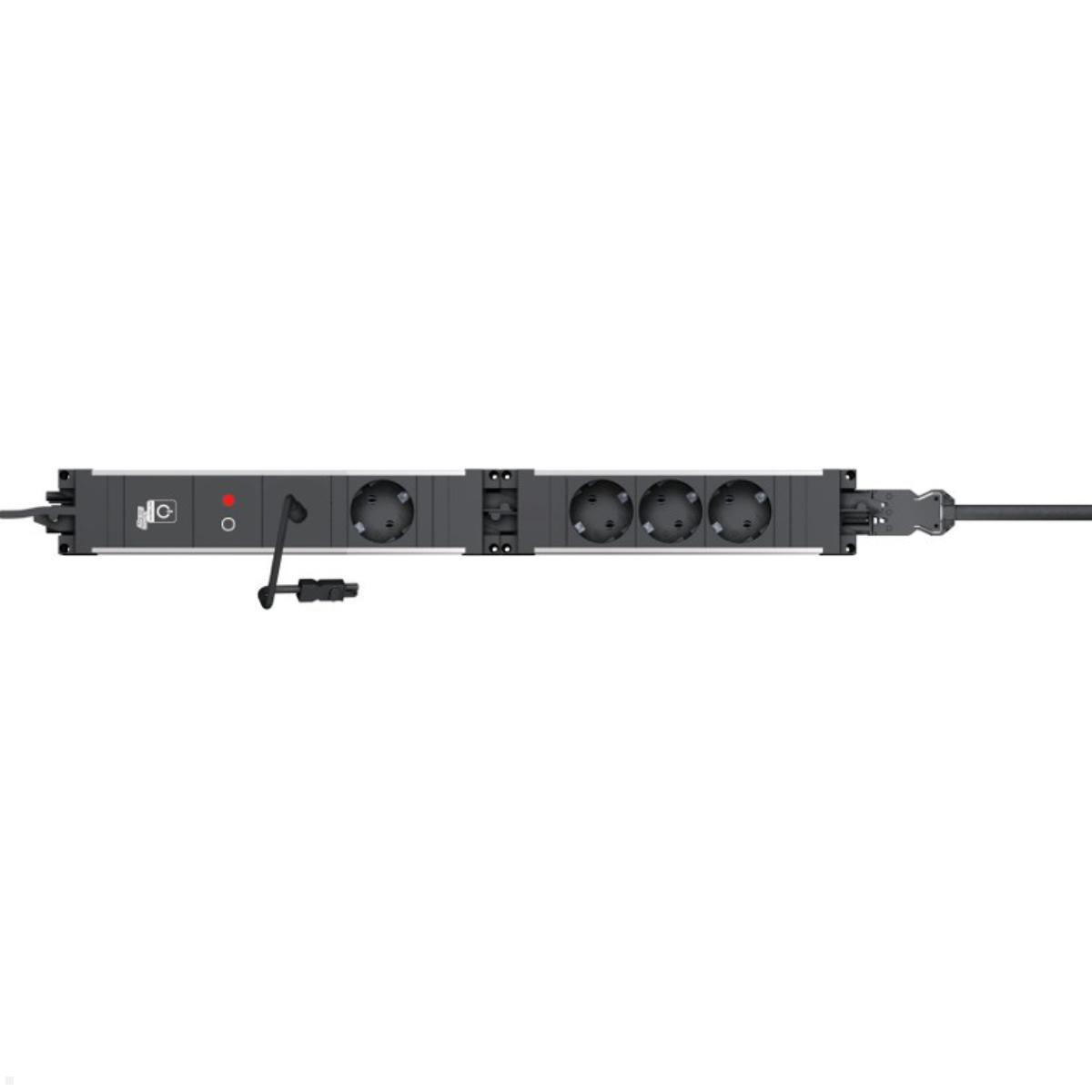

The Bachmann STEP Alu Master and Slave socket strip (906.18811) is equipped with a Master & Slave circuit. The threshold can be set from a quiescent power consumption of 10 watts. For the power supply, this step is equipped with GST18 as standard and can therefore be fed with different line inputs. Another option is to equip the bar with optional modules to meet individual requirements. The power bar can be connected to each other using device extensions to enable a daisy-chain power supply. Alternatively, the power can be fed in directly at the power connection with a device feed line or via feed-in modules. The STEP socket units can be used in a variety of ways, for example for mounting on T-slot rails and stand profiles from different suppliers, under table tops, in cable ducts and partitions. Various attachment options are available as accessories for this purpose.
Key features Bachmann socket strip 906.18811
- Socket strip with master and slave circuit
- Length approx. 240mm
- Width 52mm
- Cable: Wieland GST18i3 plug
- Rated Current: 16A / 250V
- Derivation: Coupling 1x Wieland GSt 18i3, 2-pin with protective contact
- Master & Slave circuit with threshold adjustment from 10W
- Power input: GST18i3 connector black
- Power output: GST18i3 socket black
- Including connector latch
- Aluminum profile silver, sockets black
- Successor to Article 336.006
Bachmann STEP connect / cascade socket strips
The modular socket units STEP from Bachmann have the appropriate coding and plug latching EN 61535 and can thus be installed in a fixed location and connected to one another. Bachmann uses gesis and GST18 from Wieland Electric as standard.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 515 kb] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 336.006 |
| Packaging dimensions (LxWxH in mm): | 50 x 220 x 40 |
| Scope of delivery: | 1 x Bachmann Step Alu Master und Slave |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
