Bachmann STEP BASE 3 x power strip, GST18 (906.18818)

3-way power strip - multiple socket

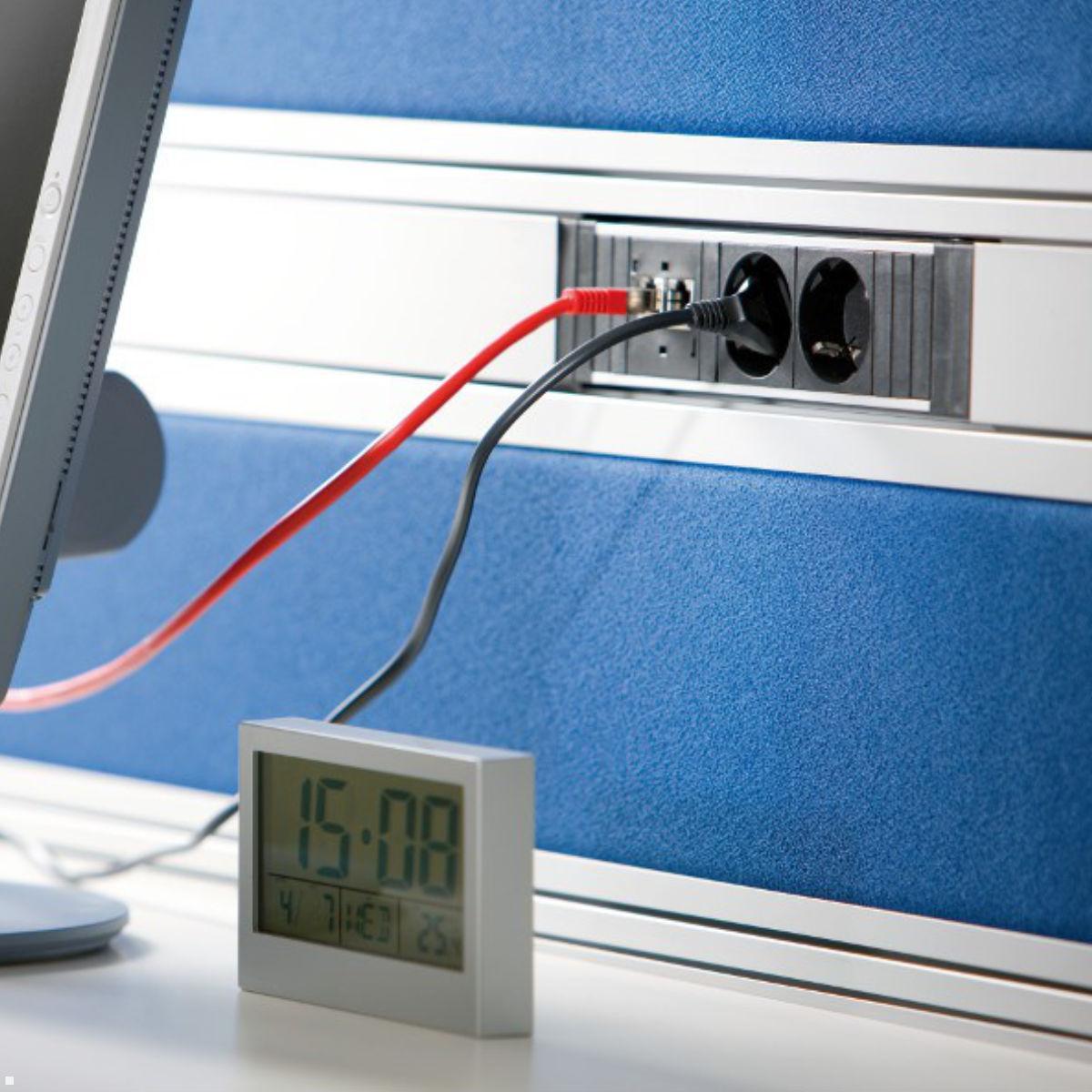

The modular multiple power strip STEP BASE (906.18818) from the Bachmann STEP Series implements the principle of adaptability with absolute consistency. The STEP system is ideal for flexible energy and data supply in partition wall systems, at workplaces, in double floors and other connection applications. The modularity of the STEP offers almost limitless possibilities. It has a power input and a power output, which are each integrated into the end caps on the front. For the power supply, it is equipped with a Wieland GST18i3 plug and a GST18i3 socket as standard. The device cable can be purchased separately to allow for different cable entries. The multiple socket has 3 sockets with earthing contact and the central insert of the strip is rotated by 35 degrees to make it easier to insert wide plugs. Permanently installed devices such as PCs, monitors, printers, etc. can be connected to the socket strip.

Key features Bachmann socket strip 906.18818

• 3x protective contact sockets
• 2-pole with protective contact, 35° twisted
• Rated current: 16A/250V, IP20
• Frequency: 50Hz
• Cascadable

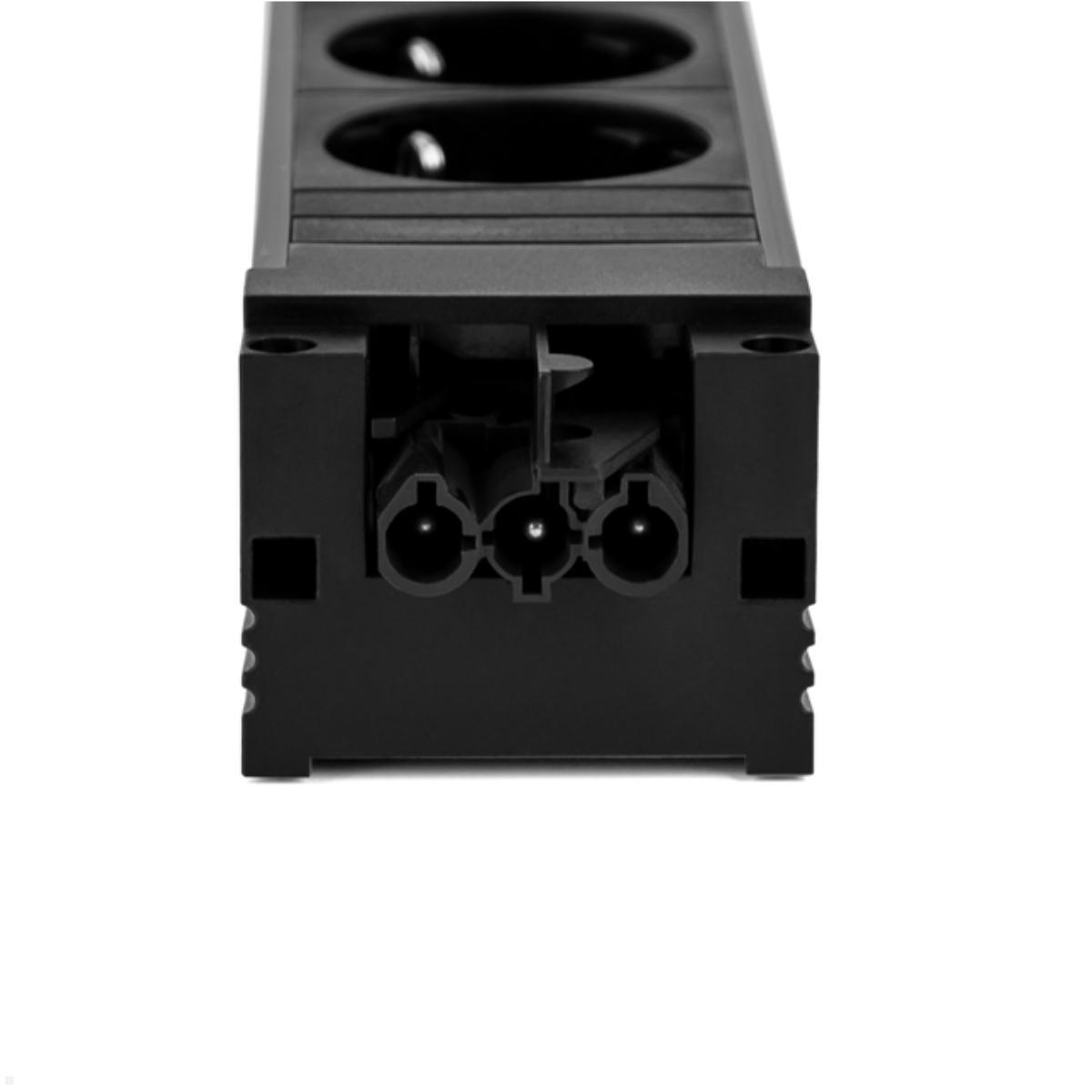

• Power input: Wieland GST18i3 plug
• Power output: Wieland GST18i3 socket (coupling)

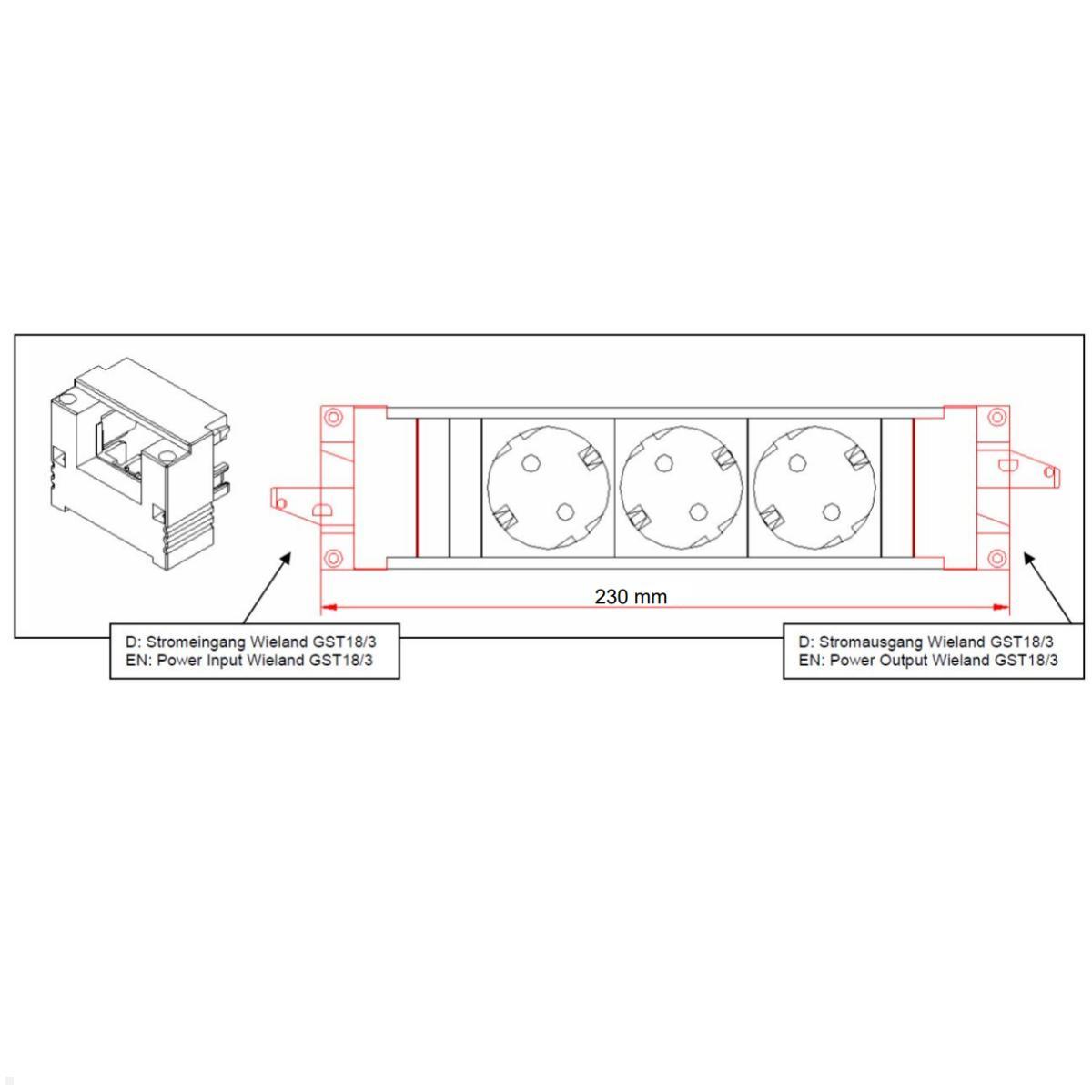

• Dimensions (WxHxD): 230 x 52 x 44 mm
• Incl. end caps + locking tabs
• Light gray plastic profile, black sockets
• Incl. Connector latching
• Mounting on T-slot profiles and stand profiles is possible

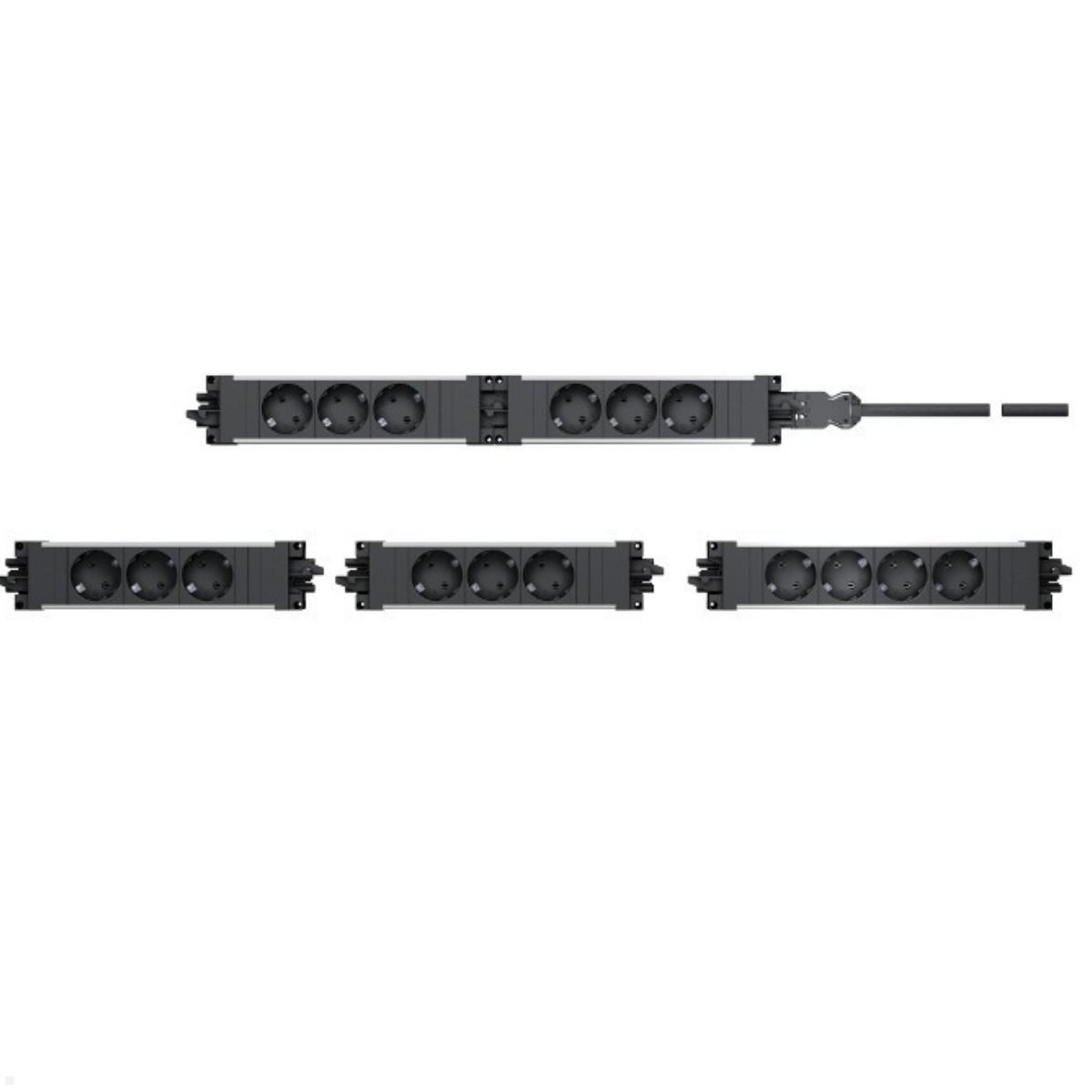

• Linking of the power strips to one another using device extensions
• One GST18 device supply line is not included in the scope of delivery, this is available in various lengths in our shop
• Colour: Black
• Successor to Bachmann Step Base 336.600

Bachmann STEP connect / cascade socket strips

The modular socket units STEP from Bachmann have the appropriate coding and plug latching EN 61535 and can thus be installed in a fixed location and connected to one another. Bachmann uses gesis and GST18 from Wieland Electric as standard.

Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
