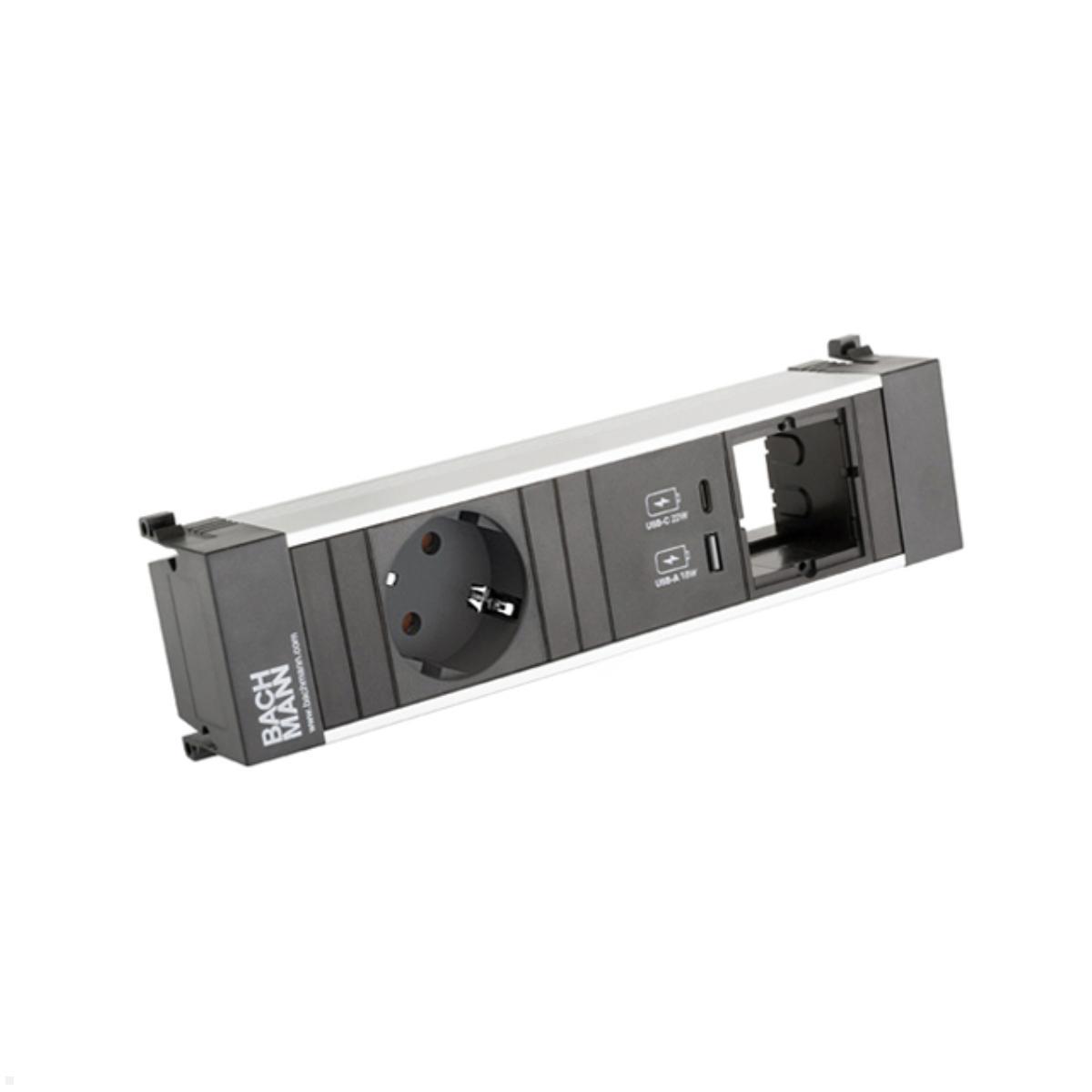

Bachmann Power Frame triple 1x socket 1x USB charger A/C 1x CM (916.503)
Built-in socket with USB and custom module

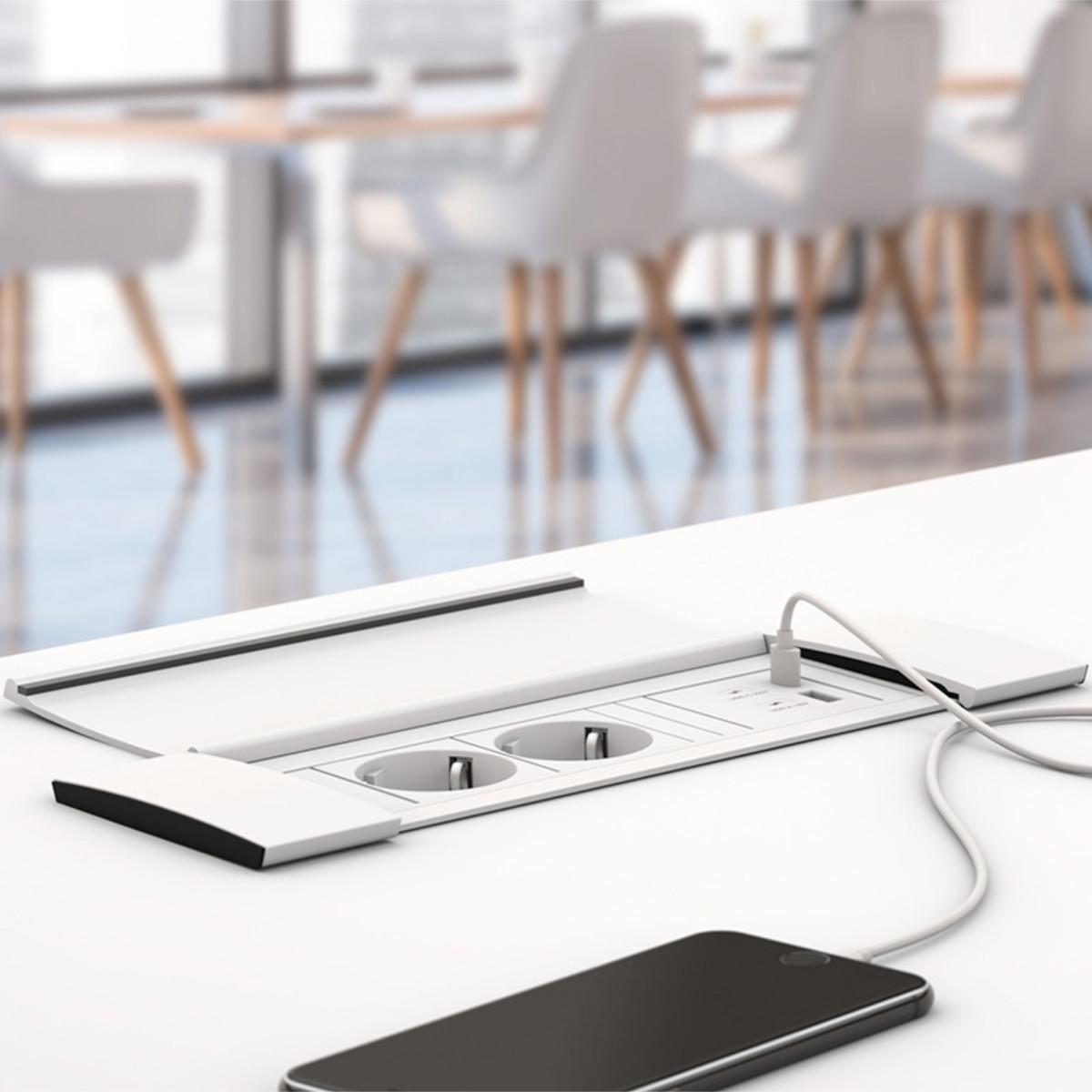

The Power Frame socket with USB and custom module (916.503) from Bachmann is ideal for Furnish office desks or conference tables to enable easy access to power and data from any seat. The desk connection panel has 1 protective contact socket with increased contact protection and a USB double charger with USB-A and USB- C connection. There is also a custom module that can be fitted with any keystone module. It is installed in combination with a standard frame of the same size. Here, the Power Frame socket strip is installed flush with the table top and is thus sunk into the table. With an associated Power Frame Cover, the multiple socket can be elegantly covered and protected from dust and dirt.
Key features Bachmann POWER FRAME 3-way socket strip (916.503)
- For conference tables and desks
- Power and data access from every seat
- 1x safety socket with increased contact protection, 35° twisted
- 1x USB double charger with USB-A and USB-C (22 W)
- 1x custom module (CM)
- Power input (length : 200 mm) with Wieland GST18i3 plug
- Length of socket strip: approx. 220 mm
- Material (housing): aluminium, anodised
- Colour: Black / Silver
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| RoHS / REACH: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann Power Frame mounting frame triple |
| Scope of delivery: | 1x Power Frame power strip |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Silver/Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
