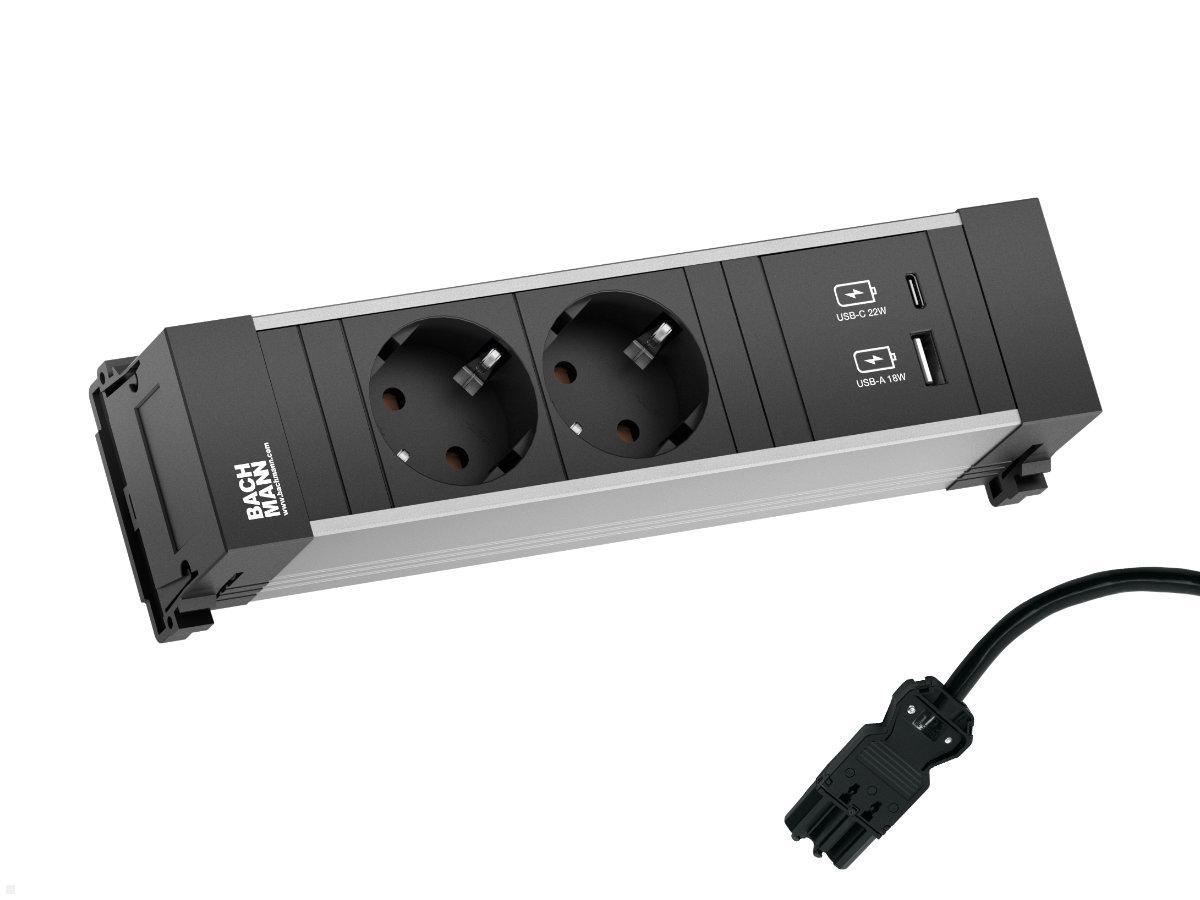

Bachmann Power Frame, 2x socket, 1 USB-C / USB-A Charger (916.501)
Specially built for the Power Frame installation frames, this Bachmann POWER Frame 3-fold contains 2x power socket, 1x USB-C (22W) and 1x USB-A (18W). Easy to install and can be covered with Power Frame Cover if required (available as an option).
Power Frame socket strip with USB chargers
Bachmann POWER FRAME desk connection panels can be quickly installed as complete units, but retrofitting is also possible without any problems. Their timeless design, compact dimensions and versatility open up almost unlimited application possibilities. The Power Frame socket strip with USB chargers contains 2x CEE 7/3 sockets and 1x USB-C and 1x USB-A charger each for common devices such as smartphones and tablets and can be easily inserted into the installation frame from below without tools. A compact and efficient solution for workstations, exhibition stands, sales rooms or wherever a secure and fast connection is required.
Technische Details Power Frame (916.501)
- Length: approx 220 mm
- Aluminium profile
- 2x socket outlet, black, rotated 35
- 1x USB C Charger 22W
- 1x USB A Charger 18W
- Power input 0.2m H05VV-F3G1.5mm² with GST18 plug
Advantages Bachmann Power Frame multiple socket outlet with USB-C
- Latest USB-C charging technology
- Fast charging via PD & QC
- Integrated current limitation
- Overtemperature protection
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 171 kb] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 223 kb] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann Power Frame installation frame |
| Accessories: | Bachmann Power Frame Cover |
| Contains installation material: | - |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Silver/Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
