Bachmann PIX built-in USB charger USB-C/USB-C, flush-mounted charger (BM939094)
Compact PIX module with integrated USB-C/C/C charging module and 180 W power supply. Three USB-C ports with Power Delivery (PD) and PPS ensure fast and safe charging of notebooks, tablets, and smartphones. Elegant design with interchangeable decorative rings in black and white, flexible mounting from the top or front possible.
Installing a USB-C / C / C charger in the Pix module
The BM939094 model from Bachmann combines elegant design with modern charging power. The round PIX module impresses with its compact design, flexible installation options, and a minimalist appearance that integrates harmoniously into furniture surfaces, worktops, or conference tables. With a diameter of only approximately 56 mm and a shallow installation depth, it is also suitable for tight installation situations. Interchangeable decorative rings in black and white also allow for individual visual customization.
Inside, a powerful USB-C/C/C charging module with a 180 W power supply ensures maximum functionality. Three USB-C ports provide reliable power for notebooks, tablets, and smartphones – even simultaneously and at full power. Thanks to support for Power Delivery (PD) and PPS, modern devices are charged quickly and safely. This makes the module a future-proof power supply solution for everyday office use, conference rooms, or the modern home workplace.
The combination of elegant appearance and high technical performance makes this PIX model a perfect choice for anyone who values convenience, speed, and stylish integration.
Key features Flush-mounted USB charger
- Max. Power: 140W
- Ports: 3x USB-C (PD/PPS)
- Front: USB-C port 1 and 3

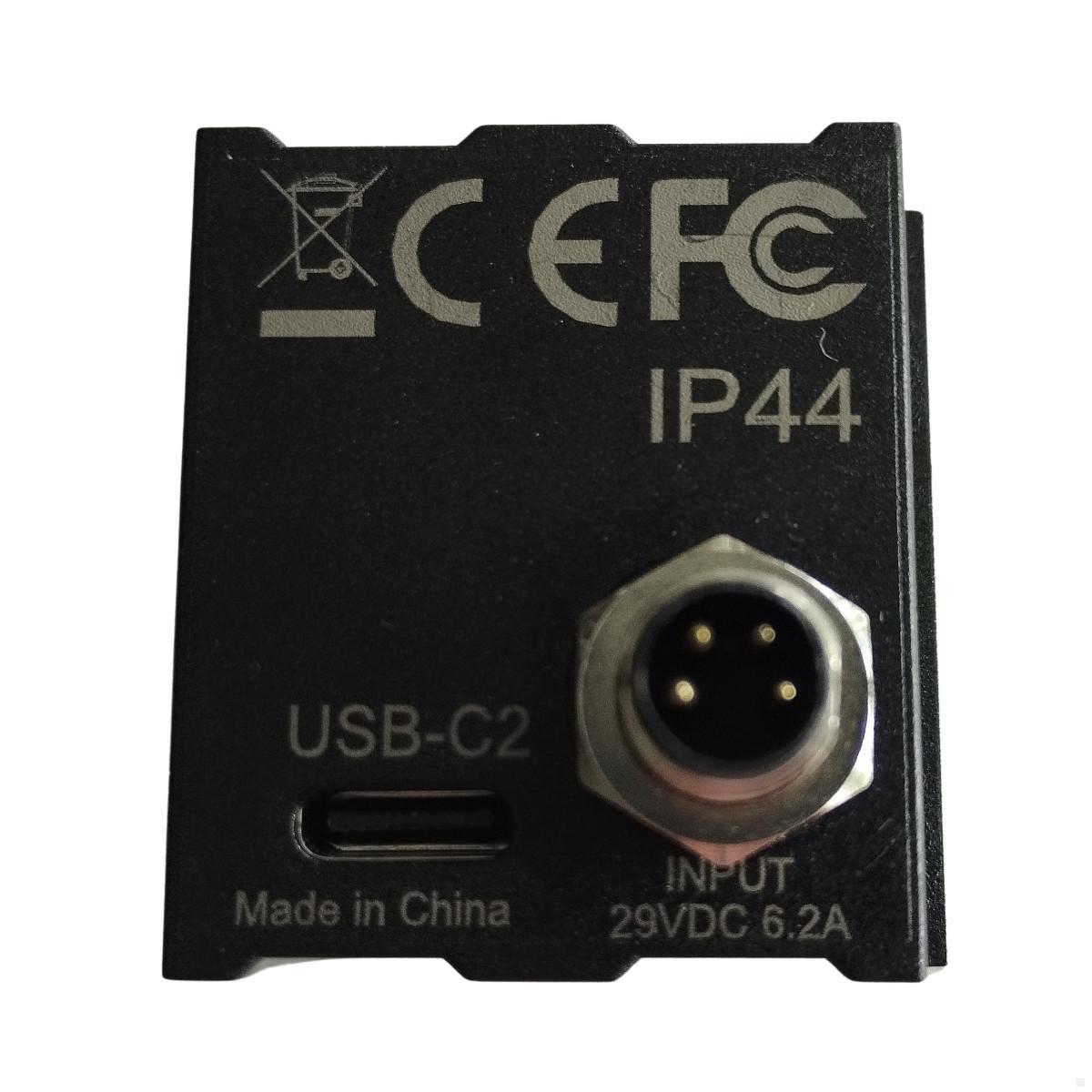

- Rear: USB-C port 2
- Power values:
- USB-C 1 & 2: up to 140 W (5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/5 A, 28 V/5 A)
- USB-C 3: up to 30 W (5 V/3 A, 9 V/3 A, 12 V/2.5 A, 15 V/2 A, 20 V/1.5 A)
- Intelligent load sharing for multiple connections
- Efficiency: >88% at all load ranges
- Integrated safety features: Protection against short circuit (OCP), overheating (OTP) and overvoltage (OVP)
- IP44 protection against dust and splash water
- Optional locking function for permanent connection
- Can be integrated individually or in individual combinations

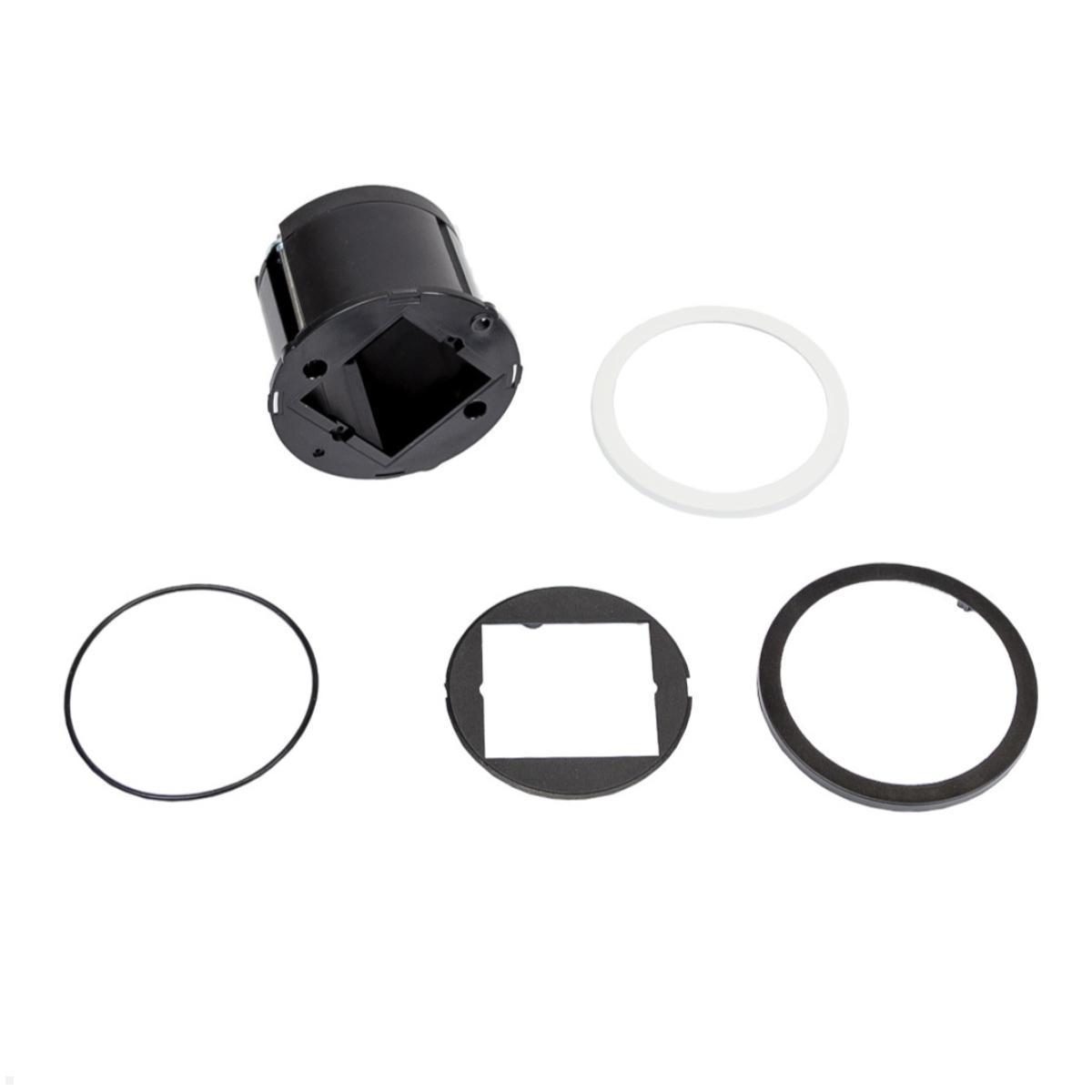

- Interchangeable decorative rings in black and white

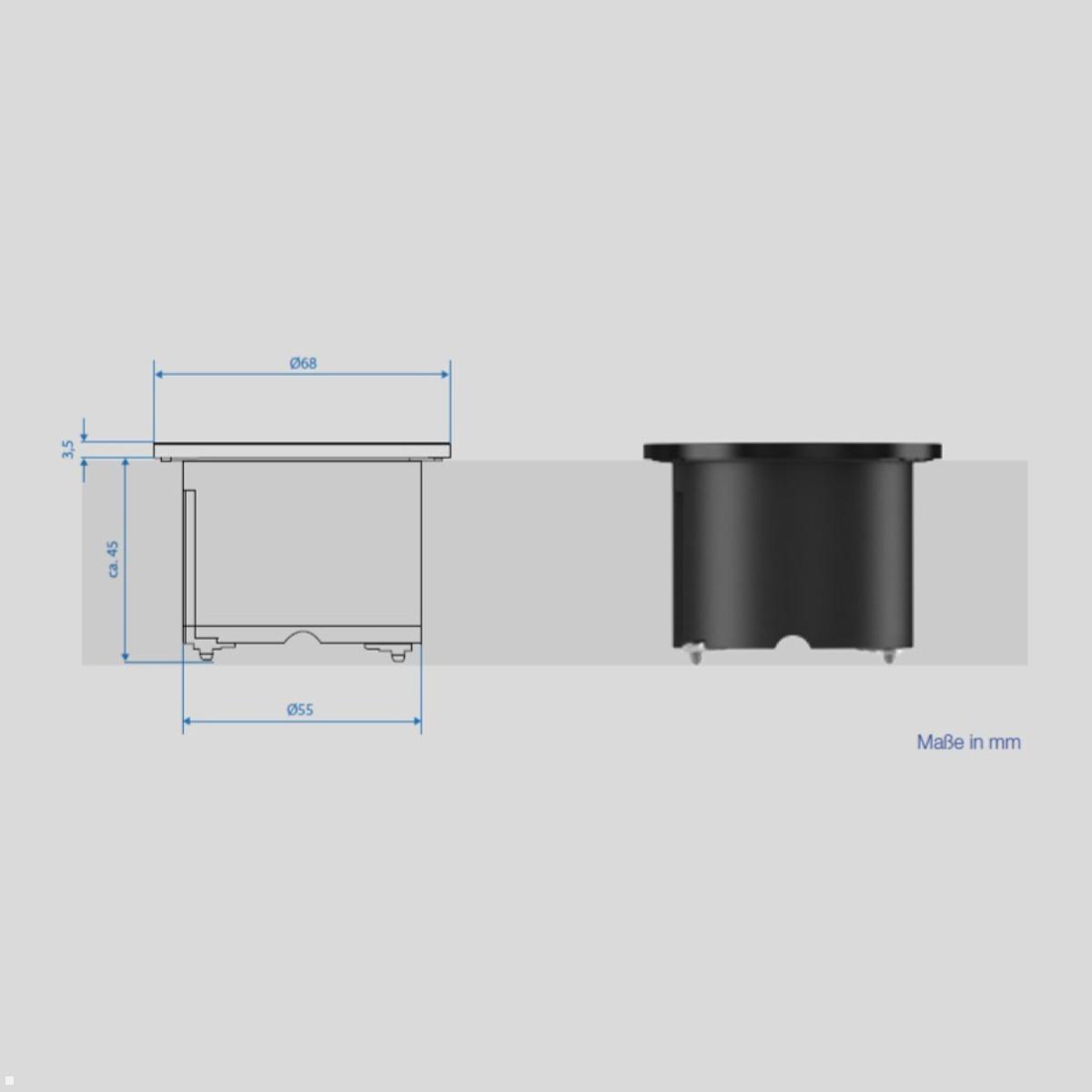

- Small installation diameter of 56 mm
- Panel thickness: 10 - 40 mm
- Optionally with a pivoting cover
- Caution: Only flat custom modules can be used with a cover!
Scope of delivery: Bachmann PIX connection unit BM939094:

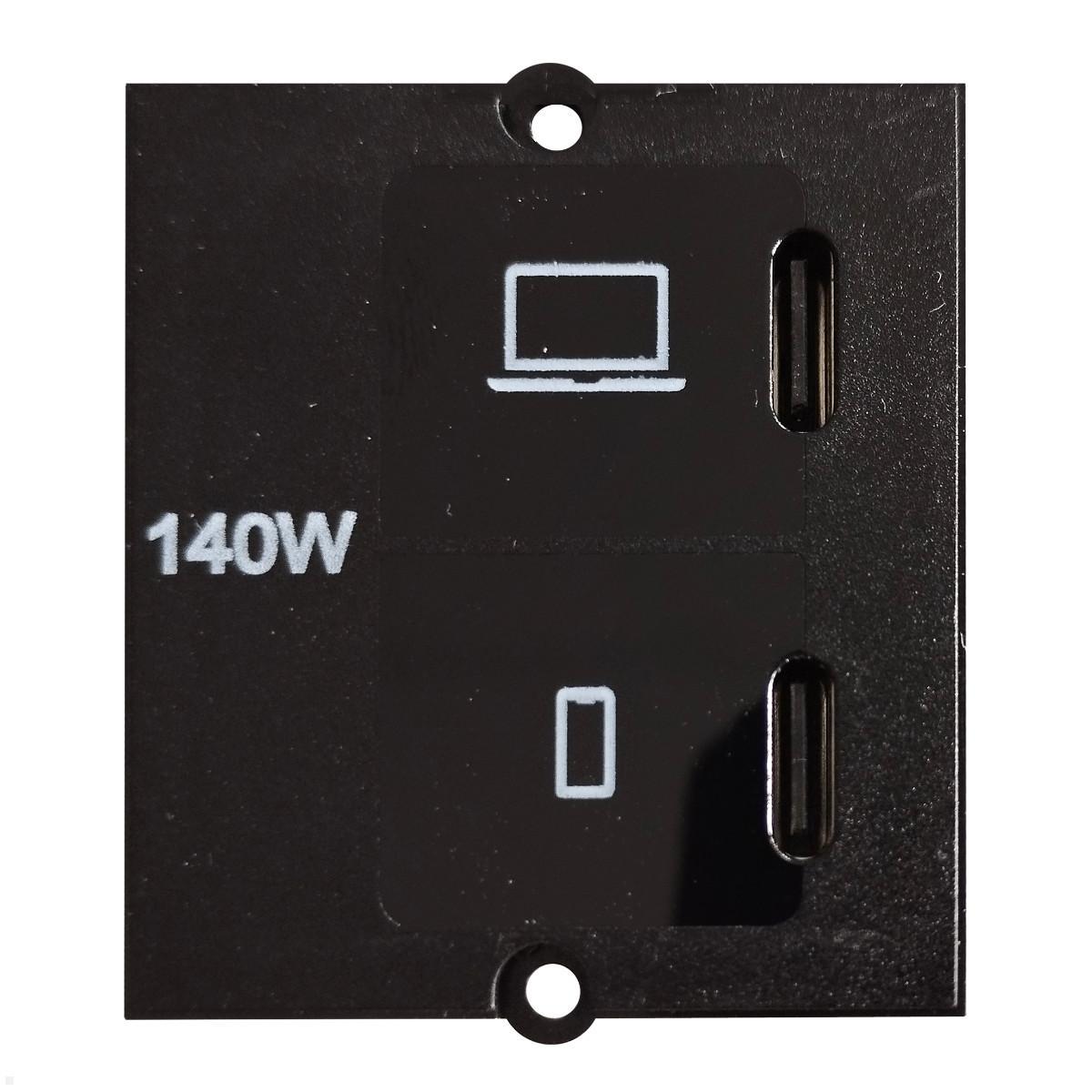

- 1× USB-C Charger 140W

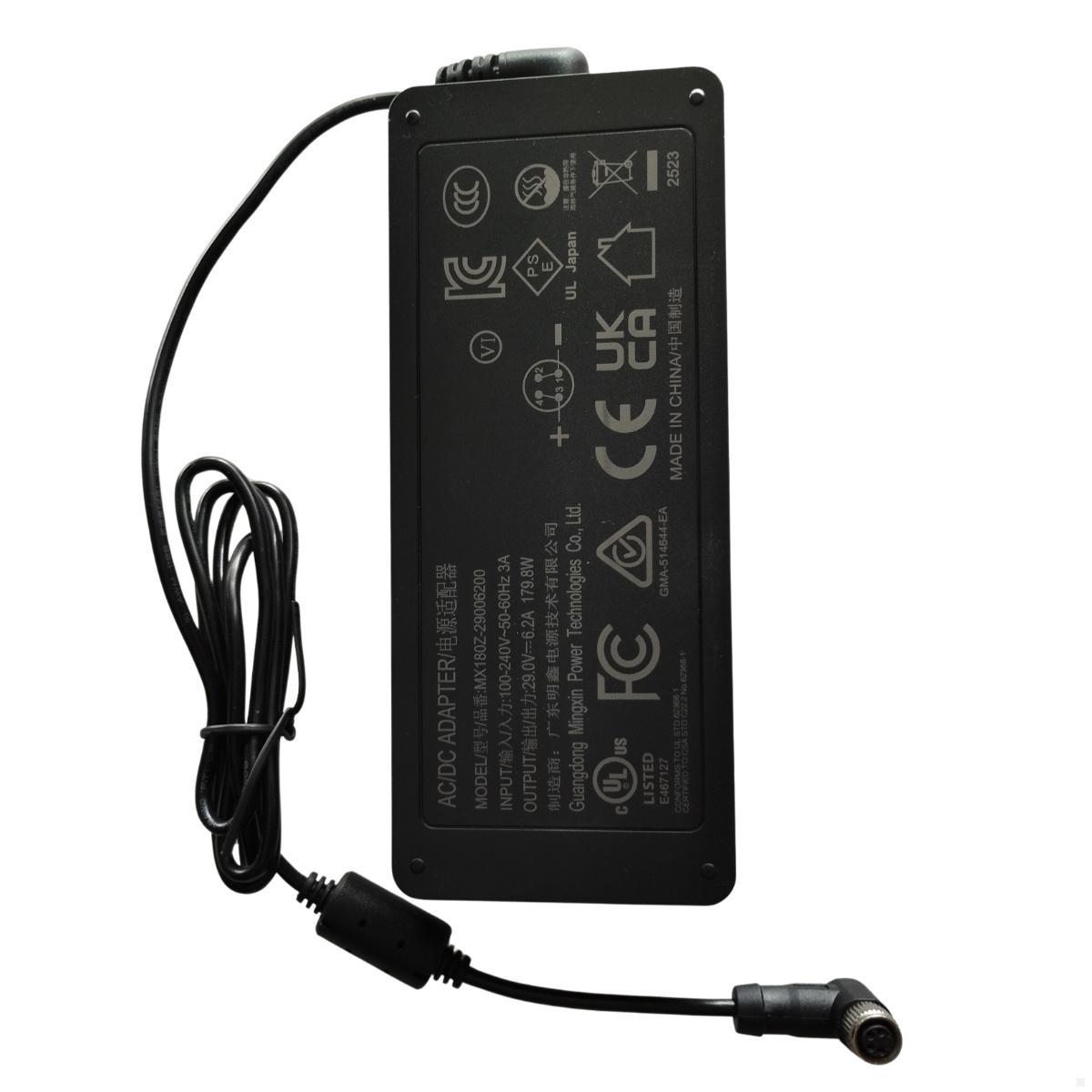

- 1× Power supply 180W AC

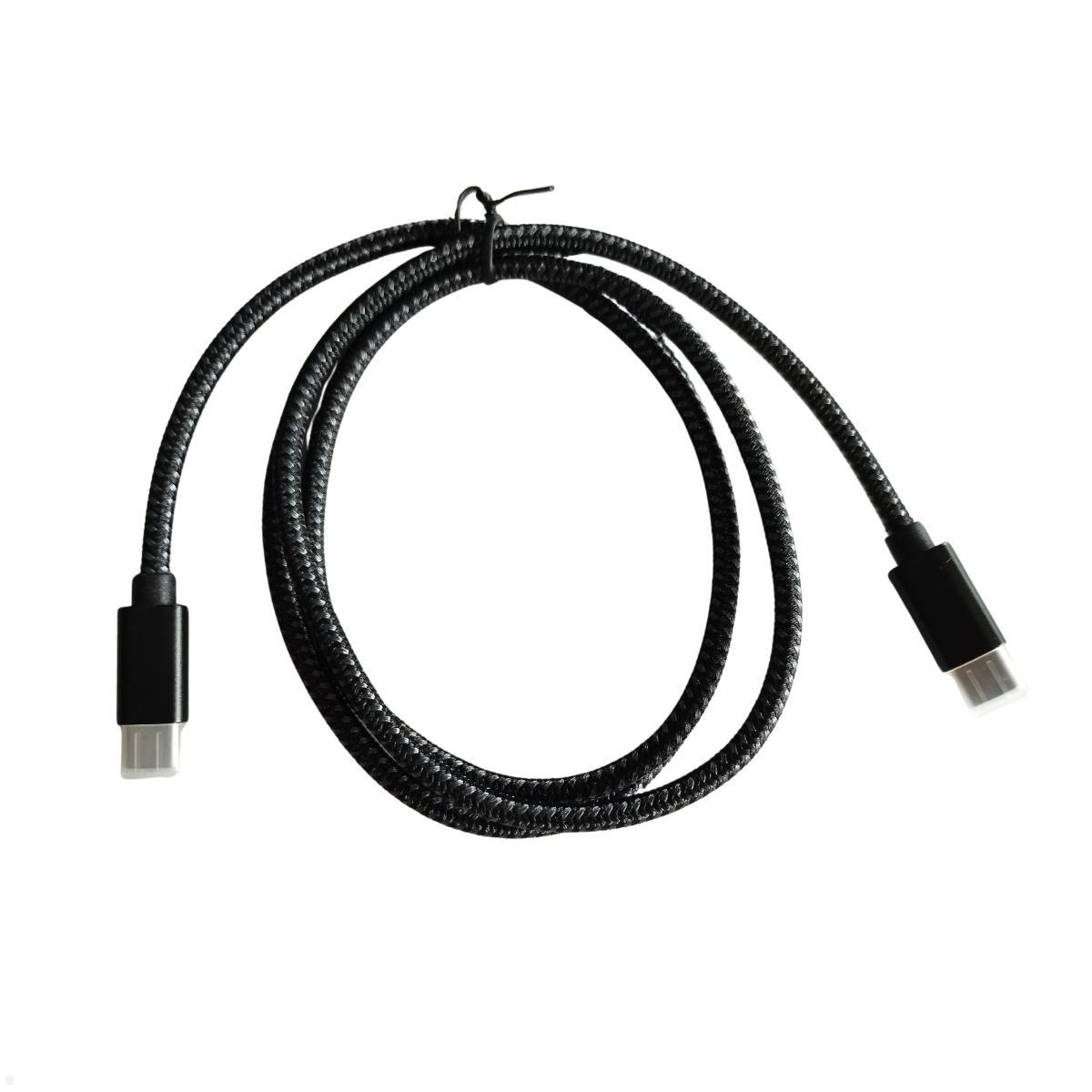

- 1× USB-C connection cable (1.0 m)

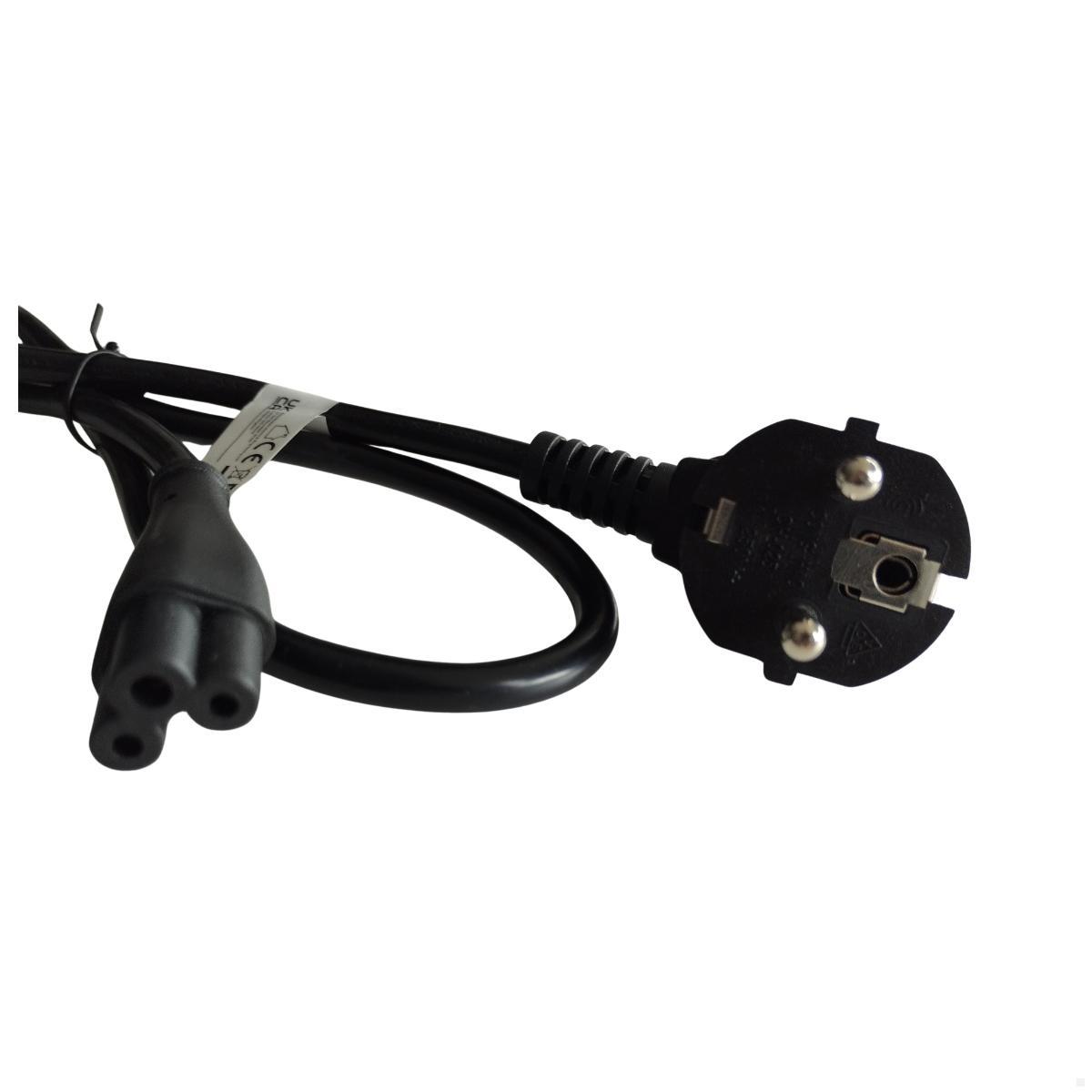

- 1× Connection cable CEE7/7 to IEC C5 (1.0 m)
- 2× Hex socket screws
- Bachmann PIX with custom module (926.010)
Note DGUV V3: According to DGUV V3, permanently screwed / fixed power strips must be inspected every four years by a qualified electrician in accordance with DIN VDE 0100-600. Mobile power strips must be inspected annually. Further information can be found in the download area under "Manufacturer Declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| USB-Charger: | USB C/C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BM939094 - PIX module with USB-C charging function, 180 W
Modern design meets powerful charging function
The BM939094 model is a high-quality solution for anyone who wants to combine design, functionality, and future-proofing in one product. The round PIX module from Bachmann impresses with its elegant design and the ability to invisibly integrate modern technology into furniture surfaces, worktops, or conference tables. With a diameter of only approximately 56 mm and a shallow installation depth, the module blends discreetly into any environment without visually overloading the room. The included decorative rings in black and white allow for a more elegant look. The design can be flexibly adapted to different furniture surfaces and styles. This makes the BM939094 the ideal choice for offices, conference rooms, lounges, or home offices.
Powerful USB-C charger for modern devices
Inside the module is an advanced USB-C/C/C charging module with an external power supply unit, providing a total output of up to 180 watts. Various devices can be charged simultaneously via three modern USB-C ports – from high-performance notebooks to tablets and smartphones. Thanks to support for current standards such as Power Delivery (PD) and Programmable Power Supply (PPS), users benefit from a fast, secure, and efficient power supply. This makes the BM939094 ideally equipped to meet the ever-growing demands of modern workplaces and conference rooms.
Flexible Integration into Furniture and Work Environments

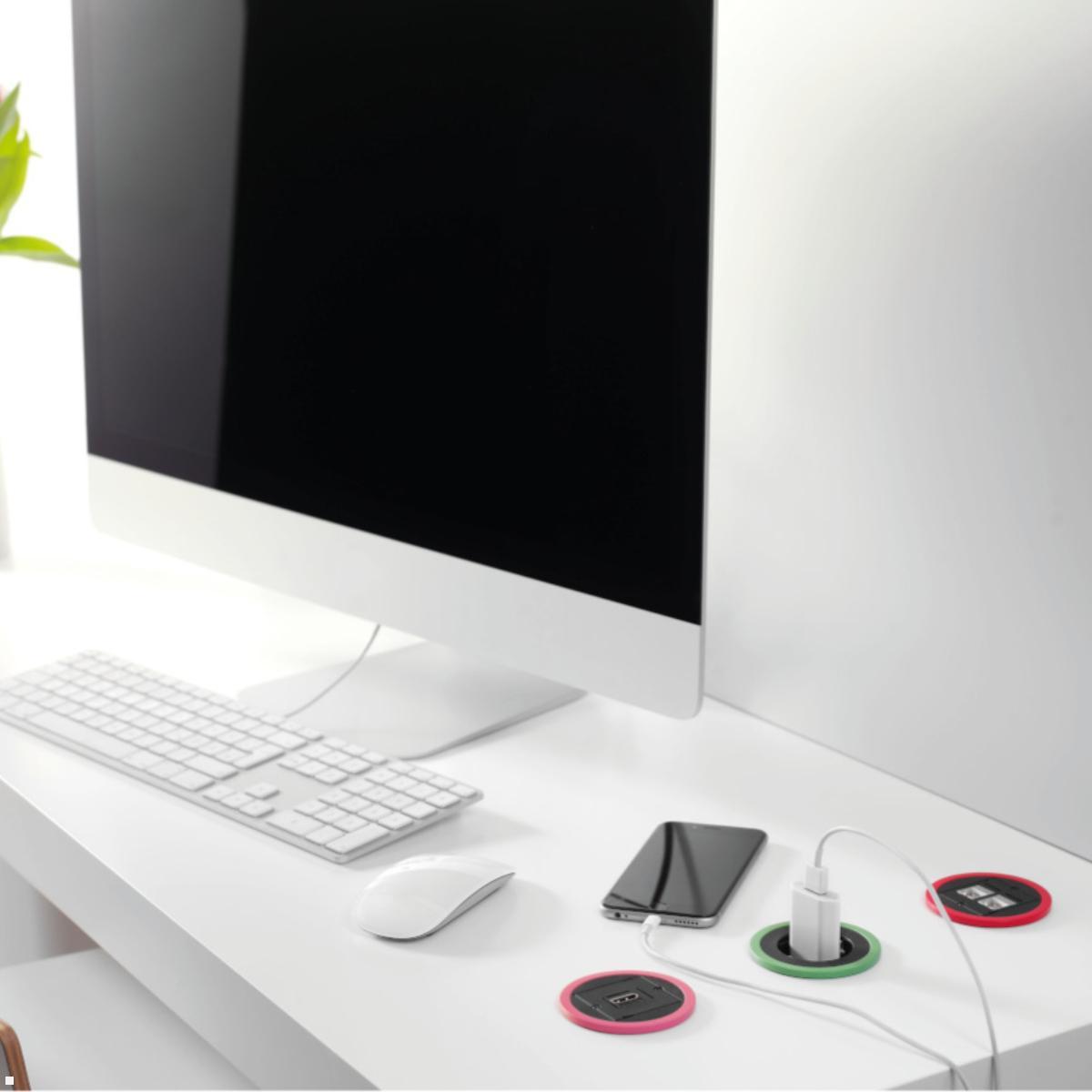

The BM939094 PIX module is not only technically powerful, but also particularly flexible in its installation. Its compact design and low installation depth make it suitable for both retrofitting and integration into new furniture concepts. Installation is possible from either the top or the front, creating a clean, flush surface. This allows the charging module to be elegantly integrated into conference tables, desks, kitchen countertops, or lounge tables. These features make it an ideal choice for modern office environments, hotels, or public areas where discreet access to high-performance charging ports is required.
Future-proof power solution
The combination of timeless design and modern USB-C charging technology makes the BM939094 a future-proof power solution. Traditional power adapters and chargers are no longer required, as notebooks, tablets, and smartphones can be charged directly via the integrated ports. The high 180 W output ensures convenience and efficiency, especially in environments where multiple people need power simultaneously—such as meeting rooms or coworking spaces. Thanks to the modular concept of the PIX system, the product remains expandable and adaptable to future requirements.
Benefits at a Glance
- Compact PIX module with a round design (approx. 56 mm)
- Three USB-C ports with Power Delivery and PPS
- Up to 180 W charging power via external power supply
- Interchangeable decorative rings in black and white
- Flexible installation from above or from the front
- Ideal for Office, conference room, home office, and public areas
With the Bachmann BM939094, you get a product that perfectly meets the requirements of modern desktop sockets, built-in modules, and USB-C chargers. It combines elegant design with high performance while offering a flexible solution for power supply in a wide variety of environments.
