Bachmann ELEVATOR 2 retractable outlet 2-socket, 1x CEE7/3, 1x USB-C, Wireless Charger, 0.5m, matte black (BM0020530)
€297.50*
delivery time: Delivery from manufacturer announced for week 26
Highlights
- Retractable built-in socket with 1x CEE 7/3, 1x USB-C and Qi2 wireless charger
- Soft opening mechanism for smooth, quiet extension
- Wireless charging with MagSafe compatibility directly on the countertop
- IP44 splash protection for safe use in the kitchen
- Elegant matte black design, 80 mm installation diameter

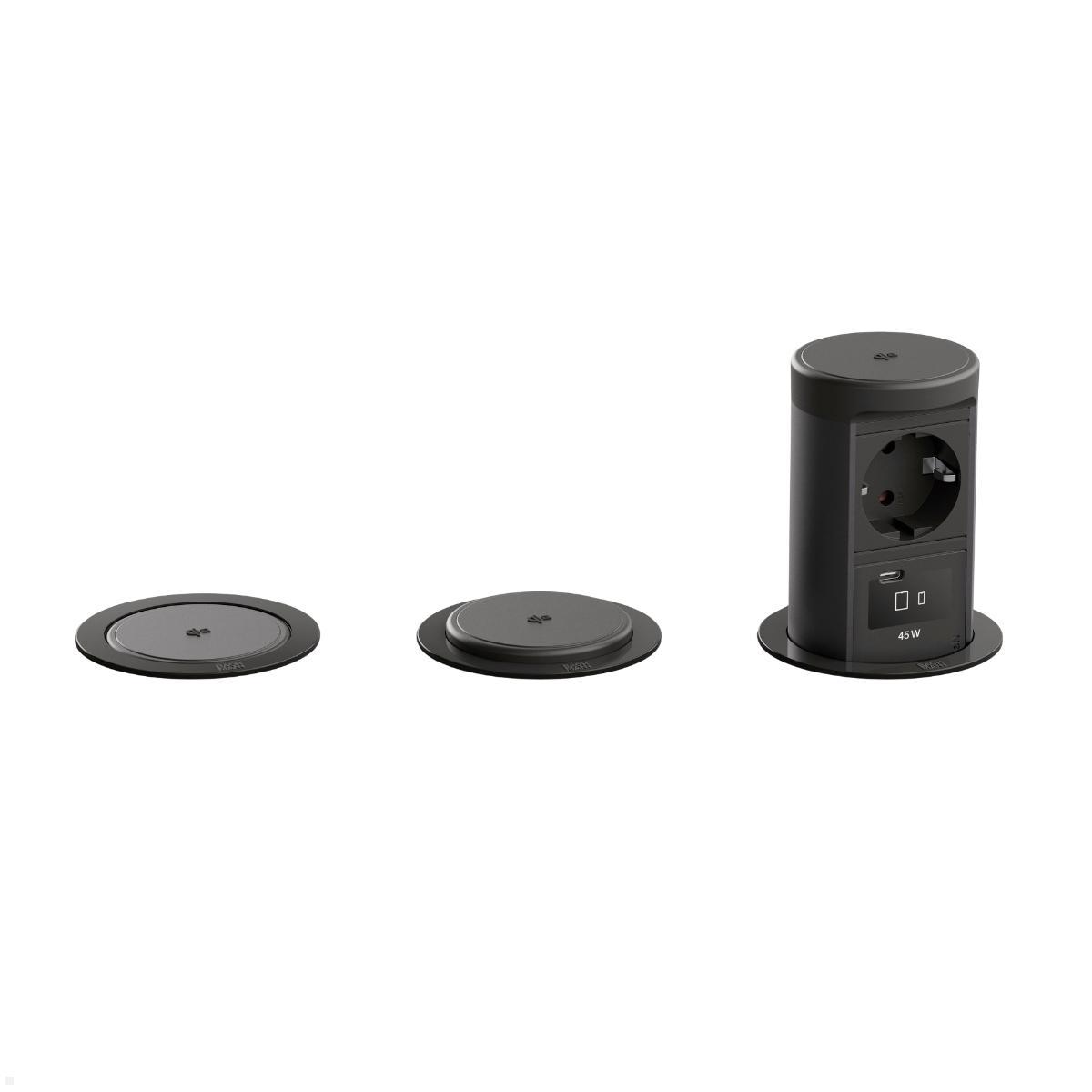

Bachmann ELEVATOR 2 with USB-C and Wireless Charger – retractable charging socket in matte black
The Bachmann ELEVATOR 2 built-in socket (BM0020530) combines power supply and wireless charging in an elegant matte black housing. In addition to a protective-earth socket CEE 7/3 it offers a 45-watt USB-C port as well as a Qi2 Wireless Charger with MagSafe compatibility. With a press of a finger the retractable socket gently rises out of the worktop thanks to a soft-opening mechanism and disappears just as discreetly back into it.
Smartphones and co. charge wirelessly directly on the kitchen worktop – a future-proof power hub for everyday life. The certified splash protection IP44 ensures safe operation even in damp environments. Thanks to the compact installation dimensions of only 80 mm diameter and 180 mm installation depth the built-in socket can be mounted in a space-saving way. The short 0.5 m connection cable is particularly suitable for direct connection near an existing flush-mounted box.
Technical details Bachmann ELEVATOR 2 USB-C Wireless Charger Matte black
- Configuration: 1x protective-earth socket CEE 7/3 (Type F) + 1x USB-C (45 W) + Qi2 Wireless Charger
- Wireless Charging: Qi2 with MagSafe compatibility
- Finish: Matte black
- Protection rating: IP44 (splash protection)
- Rated voltage: 250 V
- Rated current: 16 A
- Connection cable: 0.5 m
- Cut-out diameter: 80 mm (standard cut-out)
- Installation depth: 180 mm
- Mechanism: Soft opening by fingertip press
- Mounting: Installation in worktops, cabinets, kitchen islands
- Retrofit-capable: Yes
- Model number: BM0020530
| Product sheet: |  [pdf] |
|---|---|

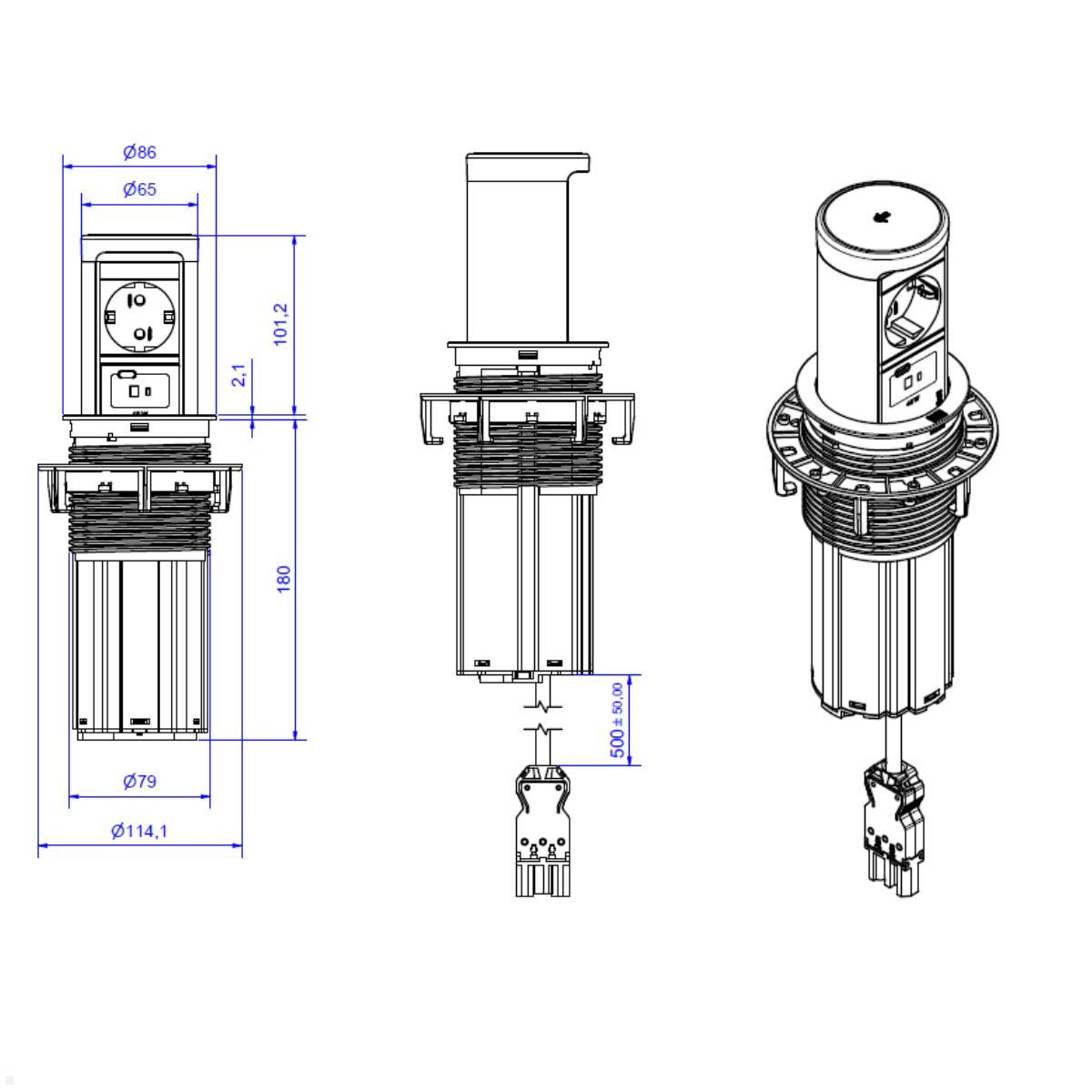

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| Steckerart: | C13 |
| color: | Schwarz matt |
| USB-Charger: | USB C/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What makes the Bachmann ELEVATOR 2 with USB-C and Wireless Charger the perfect wireless charging station?
The Bachmann ELEVATOR 2 built-in socket with USB-C and Qi2 wireless charger in matte black is far more than an ordinary retractable outlet. It combines classic power supply via a grounded socket (CEE 7/3) with state-of-the-art wireless charging in an elegant, retractable housing. The integrated Qi2 wireless charger with MagSafe compatibility enables charging smartphones directly on the countertop — just place the device down and charge, without cable clutter. Supplemented by a powerful 45-watt USB-C port, tablets, laptops and other USB-C devices can be charged quickly at the same time. With a fingertip press the outlet extends smoothly and quietly from the countertop thanks to the soft opening mechanism and retracts just as discreetly. When closed, only an unobtrusive matte black surface remains visible, which blends seamlessly into dark kitchen designs with countertops made of granite, quartz composite or ceramic. The ELEVATOR 2 is thus the future-proof power hub for digital everyday life in the kitchen, home office and conference room.
What advantages does the short 0.5 m connection cable offer compared to longer cable variants?
The Bachmann ELEVATOR 2 (BM0020530) with a 0.5 m connection cable is specifically designed for installations where a flush-mounted junction box is located in immediate proximity to the installation site. The short cable routing provides a tidy installation without excess cable in the base cabinet or behind the countertop. This not only reduces the space requirement in the installation area but also significantly simplifies mounting. The USB-C port delivers up to 45 watts of charging power for fast charging of smartphones, tablets and compact laptops. The Qi2 wireless charger is compatible with all Qi-enabled devices and, thanks to MagSafe support, offers optimal magnetic alignment for Apple iPhones from the 12 series onward. Android smartphones with Qi support are also reliably charged wirelessly. In combination with the grounded socket (CEE 7/3), the ELEVATOR 2 can power up to three devices simultaneously.
How safe and easy is the installation of the retractable charging outlet?
Even with an integrated wireless charger and USB-C port, the ELEVATOR 2 offers certified splash protection to IP44. This reliably protects the entire unit from water splashes from all directions — a crucial safety factor in the kitchen, where dishwater, cooking vapors and cleaning agents are common. In the retracted state, all connections are additionally protected against moisture, dust and dirt, which extends the service life of the contacts and charging technology. Installation is simple in the common 80 mm standard cut-out with only 180 mm installation depth — suitable for almost any kitchen countertop and base cabinet. This makes the ELEVATOR 2 suitable for both new installations and retrofitting in existing kitchens, kitchen islands, desks and conference furniture. The matte black finish resists fingerprints and rounds off the high-quality appearance of the retractable charging outlet perfectly.
For which installations is the version with a 0.5 m connection cable ideal?
The short 0.5 m connection cable of the Bachmann ELEVATOR 2 (BM0020530) is optimal for all installation situations where the junction box is located directly below or next to the installation site. This is particularly common with kitchen islands, where the electrical installation runs in the floor and the connection box sits directly in the plinth area. It is also the clean solution for desks with integrated electrification or reception counters with short cable runs. Less cable means less clutter in the base cabinet and a faster, easier installation. If a longer cable run is required, the 2.0 m variant (BM0020509) is available as an alternative. Both versions offer identical equipment with Qi2 wireless charger, USB-C fast charging and grounded socket — the only difference is the cable length.
