Bachmann ELEVATOR 2 retractable built-in outlet 2-socket, 2x CEE7/3
Highlights
- Retractable built-in outlet with 2x grounded sockets (CEE 7/3)
- Soft-opening mechanism for smooth, quiet extension
- IP44 splash protection for safe use in the kitchen
- Fits standard 80 mm cut-out, only 180 mm installation depth
- High-quality finish for seamless integration into any kitchen architecture
Bachmann ELEVATOR 2 – retractable socket for the modern kitchen
The Bachmann ELEVATOR 2 built-in socket combines powerful power supply with elegant design. At the press of a finger, the retractable socket thanks to the Soft Opening mechanism extends smoothly and quietly from the worktop and disappears just as discreetly back into it. When closed, only an unobtrusive surface remains visible – perfectly aligned with modern kitchen architecture and design requirements.
With 2 protective contact sockets CEE 7/3, the retractable kitchen connection box provides reliable power directly on the kitchen worktop. The certified IP44 splash protection ensures safe operation even in damp environments. Thanks to the compact installation dimensions of only 80 mm diameter and 180 mm installation depth, the built-in socket can be mounted space-savingly – also retrofitted into worktops, cabinets, and kitchen islands.
Technical details Bachmann ELEVATOR 2 retractable protective contact socket
- Configuration: 2x protective contact sockets CEE 7/3 (Type F)
- Protection rating: IP44 (splash protection)
- Rated voltage: 250 V
- Rated current: 16 A
- Connection cable: 2.0 m with AEH plug
- Cut-out diameter: 80 mm (standard opening)
- Installation depth: 180 mm
- Mechanism: Soft Opening by fingertip press
- Mounting: Built into worktops, cabinets, kitchen islands
- Retrofit: Yes
| Product sheet: |  [pdf] |
|---|---|

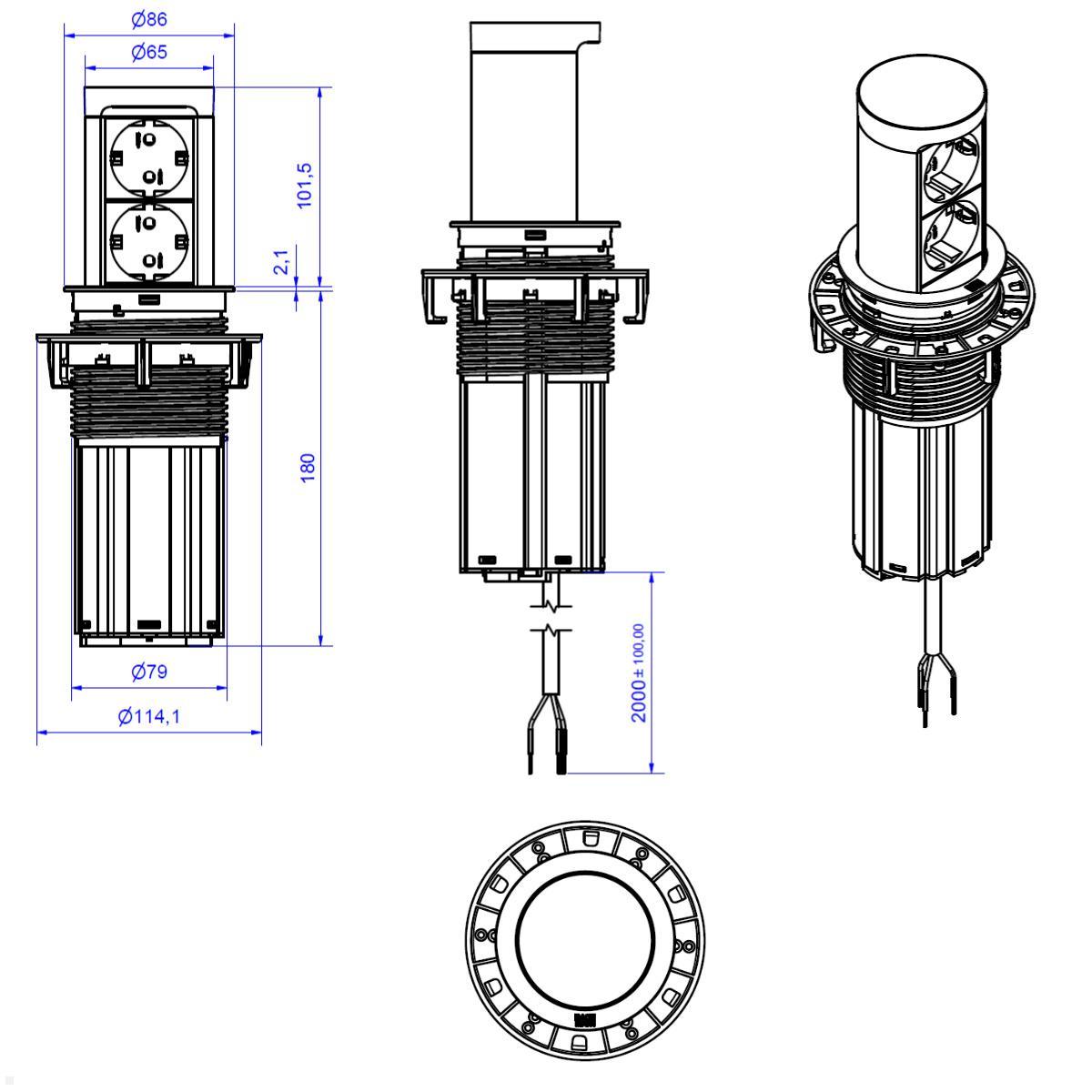

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What makes the Bachmann ELEVATOR 2 the ideal recessed pop-up outlet for the kitchen?
The Bachmann ELEVATOR 2 built-in socket was specially developed for use in modern kitchens. Unlike conventional power strips, the retractable outlet disappears completely into the worktop and only appears at the push of a finger. The soft-opening mechanism ensures a smooth, quiet extension—without any sudden snapping up. When retracted, only a discreet surface remains visible, which integrates seamlessly into any kitchen architecture. With two protective-contact sockets CEE 7/3 it offers sufficient connection options for kitchen appliances such as blenders, kettles, or coffee machines.
What safety features does the ELEVATOR 2 built-in socket offer for the kitchen?
In the kitchen, water and electricity regularly come into contact—especially on the worktop. The Bachmann ELEVATOR 2 is equipped with certified splash-water protection according to IP44. This reliably protects the socket from splashing water from all directions and allows safe use even in the immediate vicinity of the sink and hob. The type F protective-contact sockets comply with the German standard and ensure a safe electrical connection with grounding for all connected devices.
How easy is it to install and retrofit the recessed built-in socket?
Installation of the ELEVATOR 2 is very straightforward. The built-in socket fits the common 80 mm standard cut-out and requires only 180 mm installation depth. This makes it suitable for both new installations and retrofitting in existing kitchens. The socket can be integrated into worktops, cabinets, and kitchen islands. The 2.0 m long connection cable with AEH plug offers sufficient flexibility in positioning. This turns any work surface into a tidy, functional power supply solution with a high design standard.
