Bachmann DESK 2 - 2x socket with USB charger A/C 2x CAT7 (902.9351), white
The Bachmann DESK 2 desk connection panel in white includes 2 power sockets, a 22W USB-C charger, an 18W USB-A charger, two CAT 7 connections, and can be easily mounted to the desk using the supplied mounting brackets (or optionally with an adhesive base).
Desk connection panel with 2x socket, USB charger and 2x CAT7

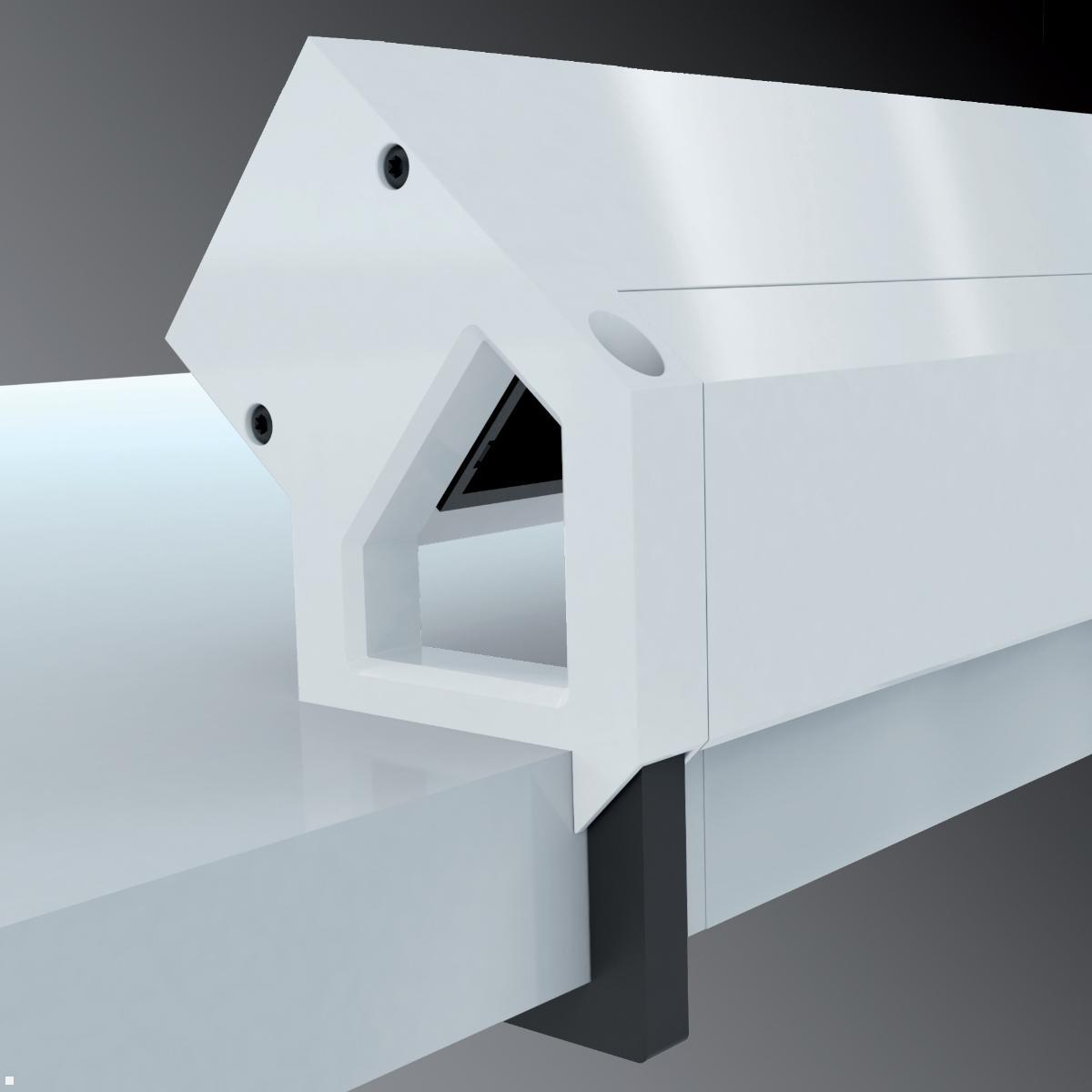

The DESK 2 desk connection panel in white is mounted quickly and easily on the edge of the desk using the mounting bracket set without causing any damage (an adhesive base is optionally available). The power strip consists of two grounding-type sockets, one USB-C 22W charger, one USB-A 18W charger as a charging station, and two CAT7 connections. The desk connection panel with 2x socket, USB charger and CAT7 connections has a clear and minimalist design, earning the DESK 2 both the Red Dot Design Award and the iF Product Design Award. The desk power outlet is made from high-quality, durable materials. If several DESK 2 desk connection panels are to be installed next to each other, a distribution block (e.g.: 375.102, 375.105, etc.) simplifies the connections and cable distribution.
Key features DESK 2 (902.9351) power strip with desk mounting
- Profile material: aluminum, socket plastic
- Painted in white, similar to RAL 9010
- 2x CAT 7 RJ45 jack/jack
- 1x USB-C charger 22W
- 1x USB-A charger 18W
- 2x black grounding-type sockets, rotated 35°
- Power cable: 0.2 m H05VV-F3G1.5mm² black with GST18i3 plug
- Includes mounting bracket set
- Installation: tabletop thickness 10 – 40 mm

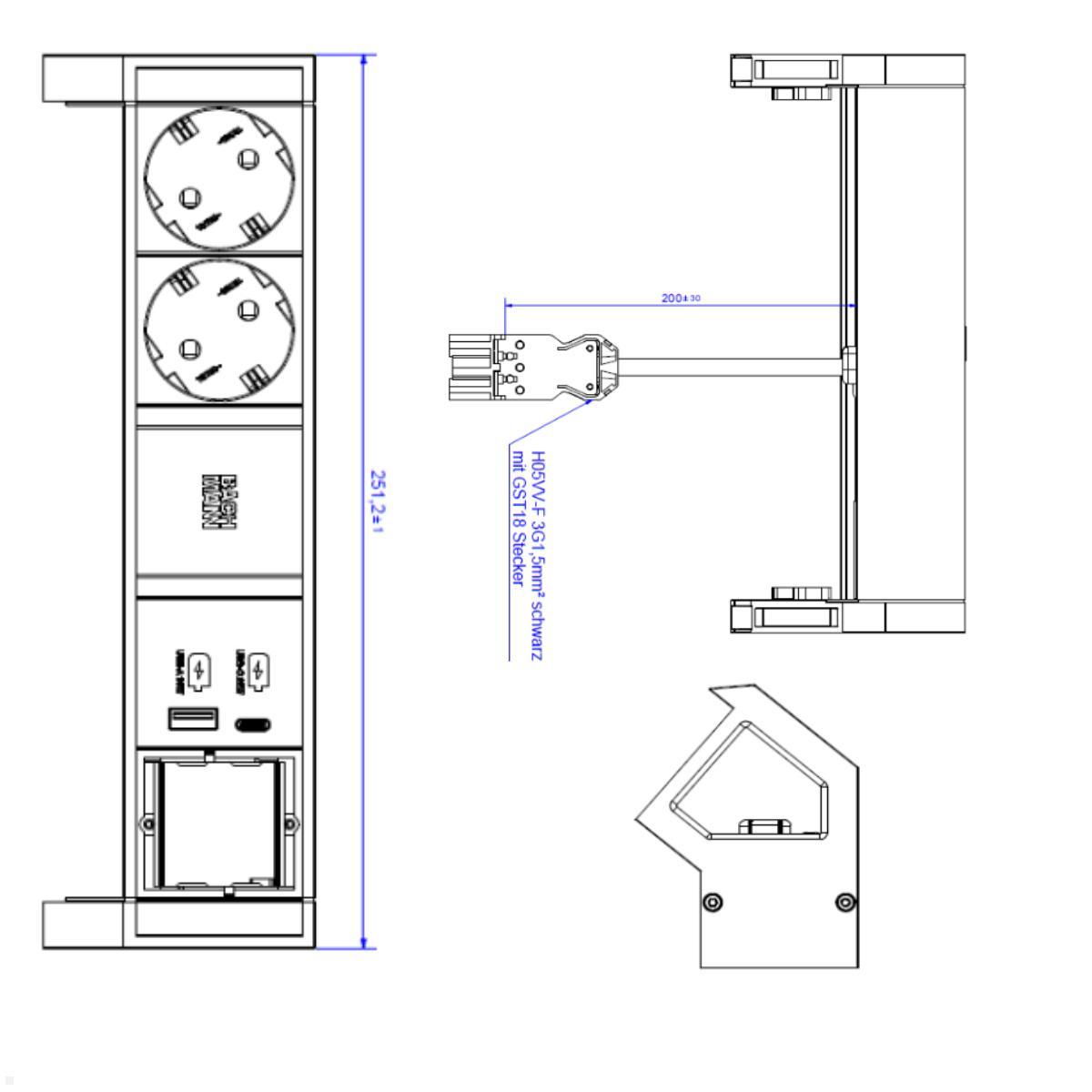

- Dimensions (LxWxH): approx. 251 x 74 x 93 mm
- Socket UV-resistant + colorfast
- Available in over 200 RAL colors upon request
- Item consists of:
- Bachmann DESK 2 power strip 902.935
- Bachmann frame 2x Keystone insert 917.000
- TecLines TKM015 Keystone module LAN CAT 7 RJ45 jack/jack
Advantages of Bachmann DESK 2 with USB-C
- Latest USB-C charging technology
- Fast charging via PD & QC
- Integrated current limiting
- Over-temperature protection
DGUV V3 note: Permanently installed / fixed power strips must be inspected every 4 years by a qualified electrician in accordance with DIN VDE 0100-600, according to DGUV V3. Portable power strips must be inspected annually. Further information can be found in the download section under "Manufacturer Declarations".
| Technical drawing: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | white/black |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
