Bachmann DESK 2 2x socket 1x USB charger A/C 1x CM (902.965), black

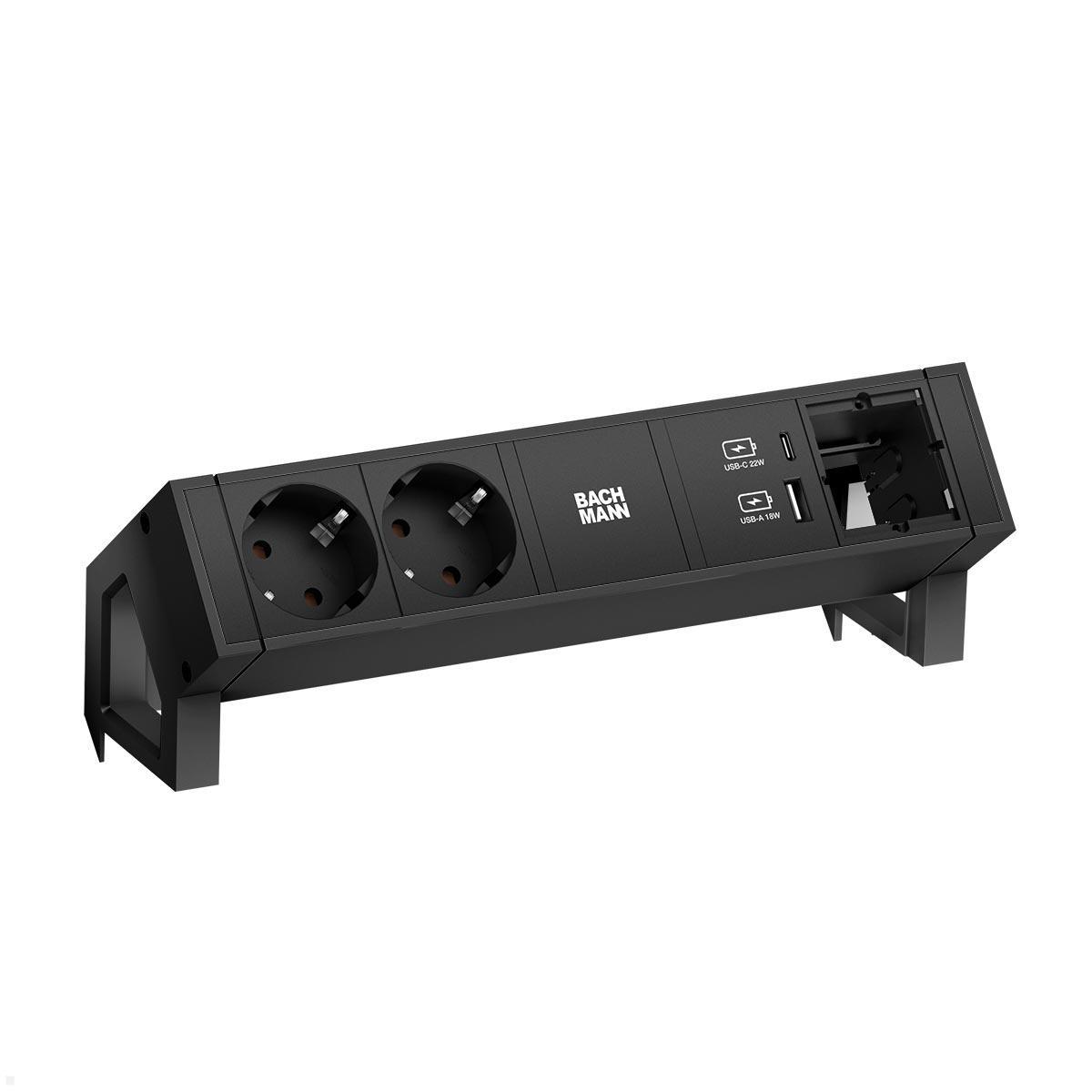

The Bachmann DESK 2 table connection panel in black contains 2 sockets, a USB-C charger 22W, a USB-A charger 18W and a custom module and can be easily attached with the included brackets (or optionally with an adhesive base) to the table.
Desk connection panel with 2x sockets, USB chargers and CM
The DESK 2 table connection panel in black is quickly and easily mounted on the edge of the table with the bracket set without damage (an adhesive base is optionally available). The configurable socket strip consists of two safety sockets, a USB-C 22W charger, a USB A 18W charger as a charging station and a custom module (CM). Custom modules can be easily attached with a screwdriver. In general, you can choose between preconfigured CM and individually configurable keystone frames with matching keystones. The desk connection panel with 2x sockets, USB chargers and CM has a clear and simple design and has already brought the DESK 2 the red dot design award and the IF Product Design Award. The table socket is made of high-quality and durable materials. If several DESK 2 desk connection panels are to be mounted side by side, a distribution block (e.g.: 375.102, 375.105, etc.) facilitates the connections and distribution of the cables.
Key features DESK 2 (902.965)
- Material profile: aluminium, plastic socket
- Lacquered in black, similar to RAL 9005
- Available in over 200 RAL colors on request
- 1x Custom Module (CM)
- 1x USB-C Charger 22W
- 1x USB-A Charger 18W
- 2x socket outlets with earthing contact, black, 35° rotated
- Power input: 0.2m black with GST18
- Including mounting bracket set
- Construction: table top thickness 10 - 40 mm
- Dimensions (LxWxH): approx. 251 x 85 x 100 mm
Advantages of Bachmann DESK 2 with USB-C
- Latest USB-C charging technology
- Fast charging via PD & QC
- Integrated current limit
- Over temperature protection
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Technical drawing: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | Bachmann Desk 2 902.965 including mounting bracket |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
