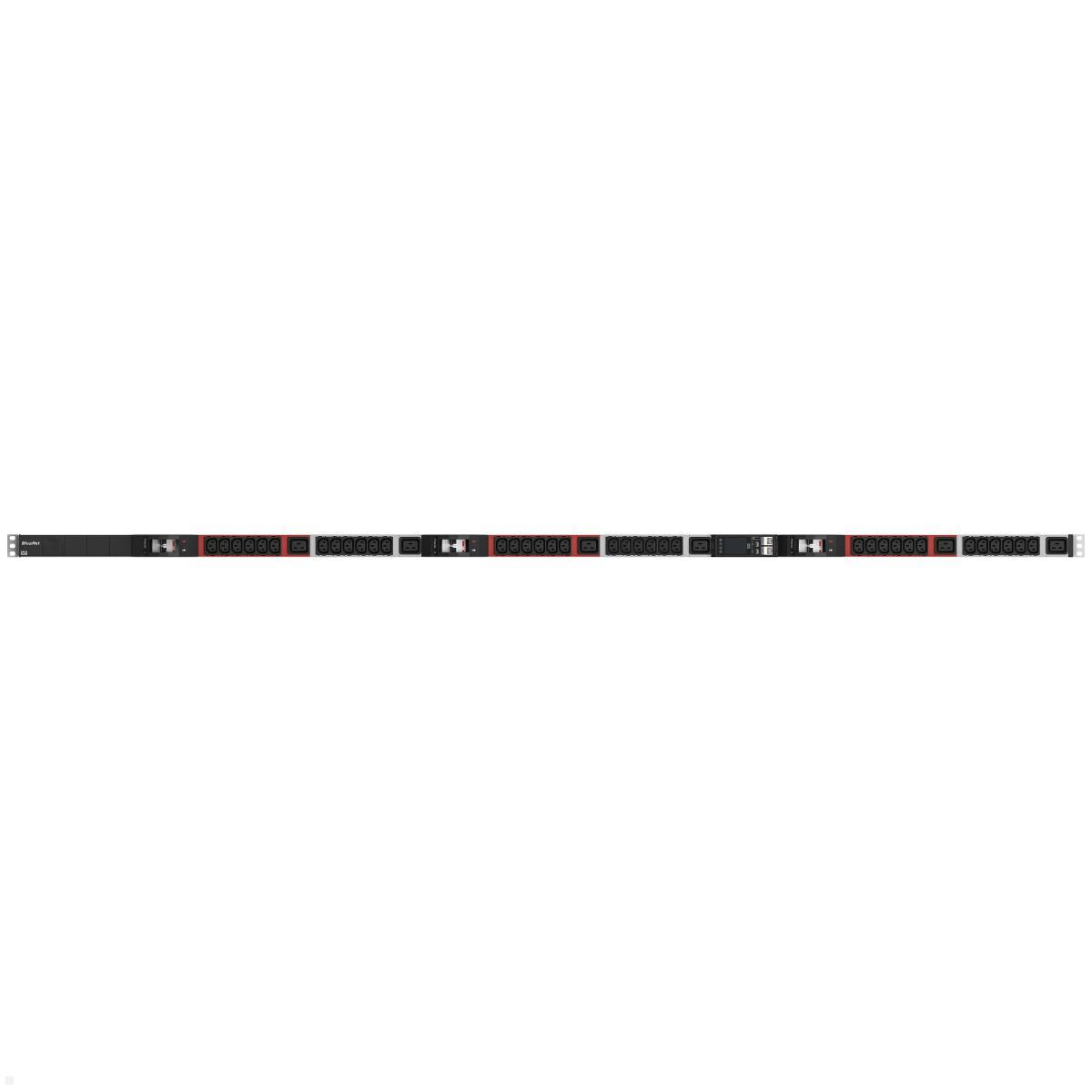

Bachmann BN ESSENTIAL Metered - 32/5p Rack PDU with 36xC13, 6xC19, 6xMCB & Display (BM0024230)
Highlights
- Three-phase PDU with 32A/400V input and 22 kW power
- 36x C13 (0°) and 6x C19 (90°) IEC appliance outlets, protected by 6x C16A circuit breakers
- Per-phase measurement: current, voltage, active, reactive, and apparent power
- Integrated web server, 2x 1 Gbit/s Ethernet, 1x USB-A, 2x sensor inputs
- 2.0" TFT color display, hot-swappable controller, incl. mounting brackets
Bachmann BN ESSENTIAL Metered PDU – high outlet density with 42 outputs and three-phase metering
The Bachmann BN ESSENTIAL Metered is a professional Power Distribution Unit for use in data centers, server rooms and demanding IT infrastructures. With an input of 32A/400V and 22 kW total power it reliably supplies critical systems. The 42 outputs – 36x C13 (0°) and 6x C19 (90°) – are distributed across three phases, with each phase divided into two blocks and each protected by its own C16A circuit breaker. The 3,0 m supply cable (4 mm²) with red CEE 32A plug ensures a safe and standards-compliant feed.
Ideal for data centers, server rooms and colocation environments with high outlet demand, where energy monitoring and remote monitoring are essential. The integrated measurement function records per phase current, voltage, reactive, apparent and active power, active energy, frequency and power factor. The PDU can be conveniently remotely monitored via the integrated web server with web interface and two 1Gbit/s Ethernet ports. The equipment is complemented by a 2.0" TFT color display, a hot-swappable controller, 1x USB-A port, 2x sensor interfaces and SNMP support.
Technical details Bachmann BN ESSENTIAL Metered PDU 42 outputs 32A three-phase
- Product group: Power Distribution Unit (PDU)
- Input: 32A / 400V | 22 kW
- Rated current: 32.00 A
- Supply voltage: 400 V
- Number of phases: 3
- Output: 36x C13 (0°) + 6x C19 (90°) IEC outlets
- Circuit breakers: 6x CB C16A
- Supply cable: 3,0 m | 4 mm² | CEE 32A plug, red
- Measurement: current, voltage, reactive, apparent, active power, active energy, frequency, power factor
- Per-phase measurement: Yes
- SNMP: Yes
- Display: 2.0" TFT color display
- Web server: integrated with web interface
- Ethernet: 2x 1Gbit/s
- USB: 1x USB-A
- Sensor interfaces: 2x
- Controller: hot-swappable
- Color: aluminum
- Mounting orientation: vertical
- Overvoltage category: 2
- Mounting dimension: 2.036,28 mm
- Dimensions (L×W×H): 2011 x 44 x 59 mm
- Scope of delivery: PDU, mounting brackets, with BACHMANN logo, packaging in carton
| Product sheet: |  [pdf] |
|---|---|

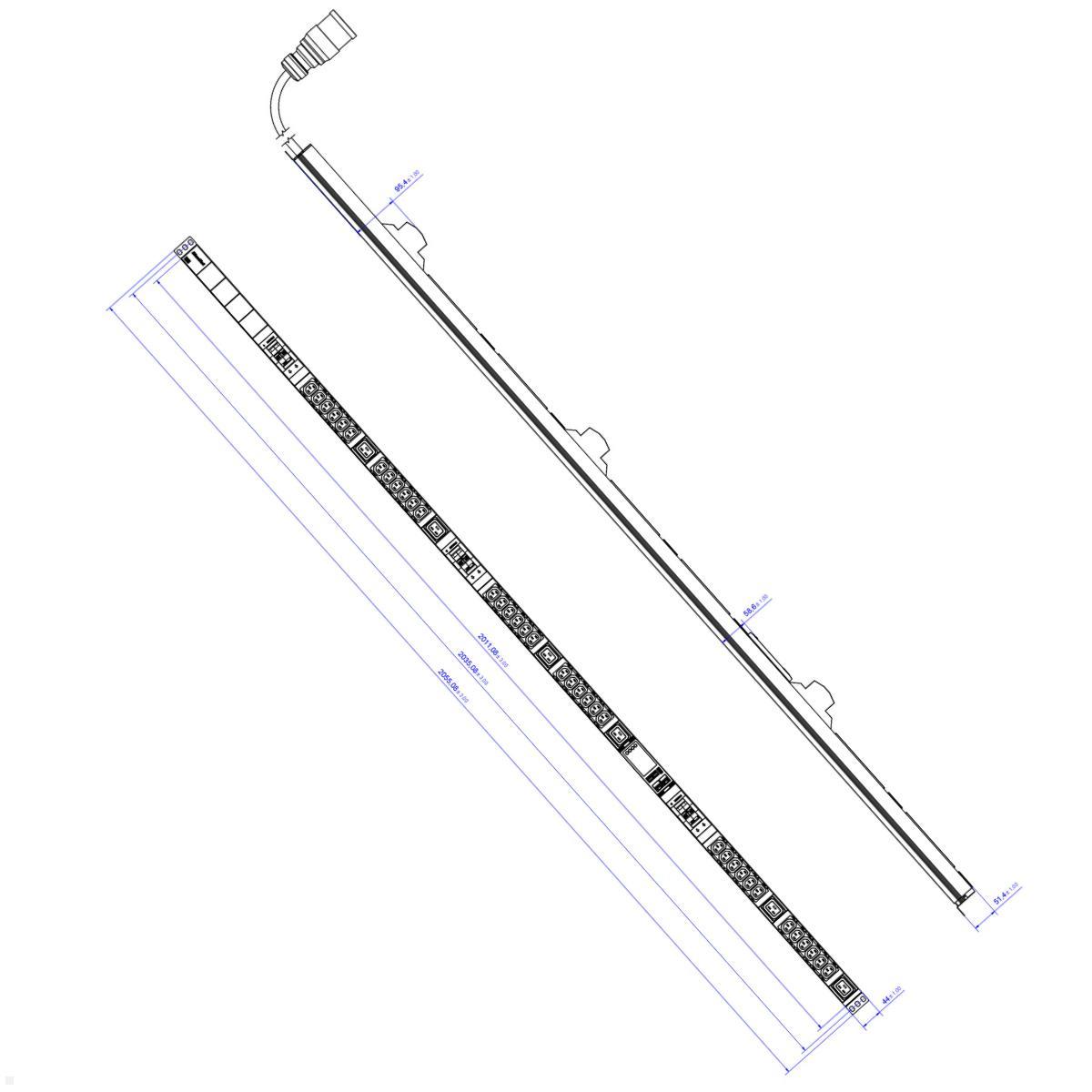

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | No |
| Größe PDU: | Vertikal |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 42 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black/Red |
| Form: | eckig |
| USB-Charger: | USB-A |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Bachmann BN ESSENTIAL Metered – three-phase PDU with 42 outlets for maximum connection density
The Bachmann BN ESSENTIAL Metered offers 36x C13 and 6x C19 outlets, providing one of the highest connection densities in its class and making it ideal for densely populated server rooms and data centers with high power requirements. With an input of 32A/400V and 22 kW total power, it distributes electricity across three phases, each subdivided into two blocks protected by C16A circuit breakers. In the event of a fault, only the affected block is switched off – all other outlets remain active. The 3.0 m supply cable with red CEE 32A plug (4 mm²) and the slim aluminium housing with dimensions 2011 x 44 x 59 mm allow space-saving vertical mounting in the server rack. The included mounting bracket simplifies installation and ensures a secure fit in the rack.
Which measurement functions does the Bachmann BN ESSENTIAL Metered PDU offer?
The BN ESSENTIAL Metered measures per phase: current, voltage, active power, apparent power, reactive power, active energy, frequency and power factor. This granular phase-level metering provides a detailed overview of the energy consumption of each individual phase and enables targeted load optimization. The integrated 2.0" TFT colour display shows all values directly on the device. The integrated web server with web interface and SNMP support enables full remote monitoring and management – without additional software infrastructure. Two 1 Gbit/s Ethernet ports provide redundant network connectivity, and a USB-A port plus two sensor interfaces allow connection of external temperature and humidity sensors for comprehensive environmental monitoring.
For which environments is the Bachmann BN ESSENTIAL Metered with 42 outlets suitable?
With 42 outlets, the Bachmann BN ESSENTIAL Metered - 32/5p Rack PDU with 36xC13, 6xC19, 6xMCB & Display (BM0024230) is specifically designed for high-density server environments where many devices need to be powered simultaneously. Whether colocation data centres, enterprise IT, hyperconverged infrastructures or hosting environments with many 1U servers – the combination of high port density, three-phase phase-level metering and the hot-swappable controller makes the Bachmann BN ESSENTIAL Metered the ideal choice for highly available environments where downtime is not an option. Firmware updates and maintenance on the controller can be performed without interrupting the power supply. Together with Bachmann quality standards, the robust aluminium housing and the included mounting bracket, the BN ESSENTIAL Metered is a future-proof investment for demanding data centre infrastructures.
