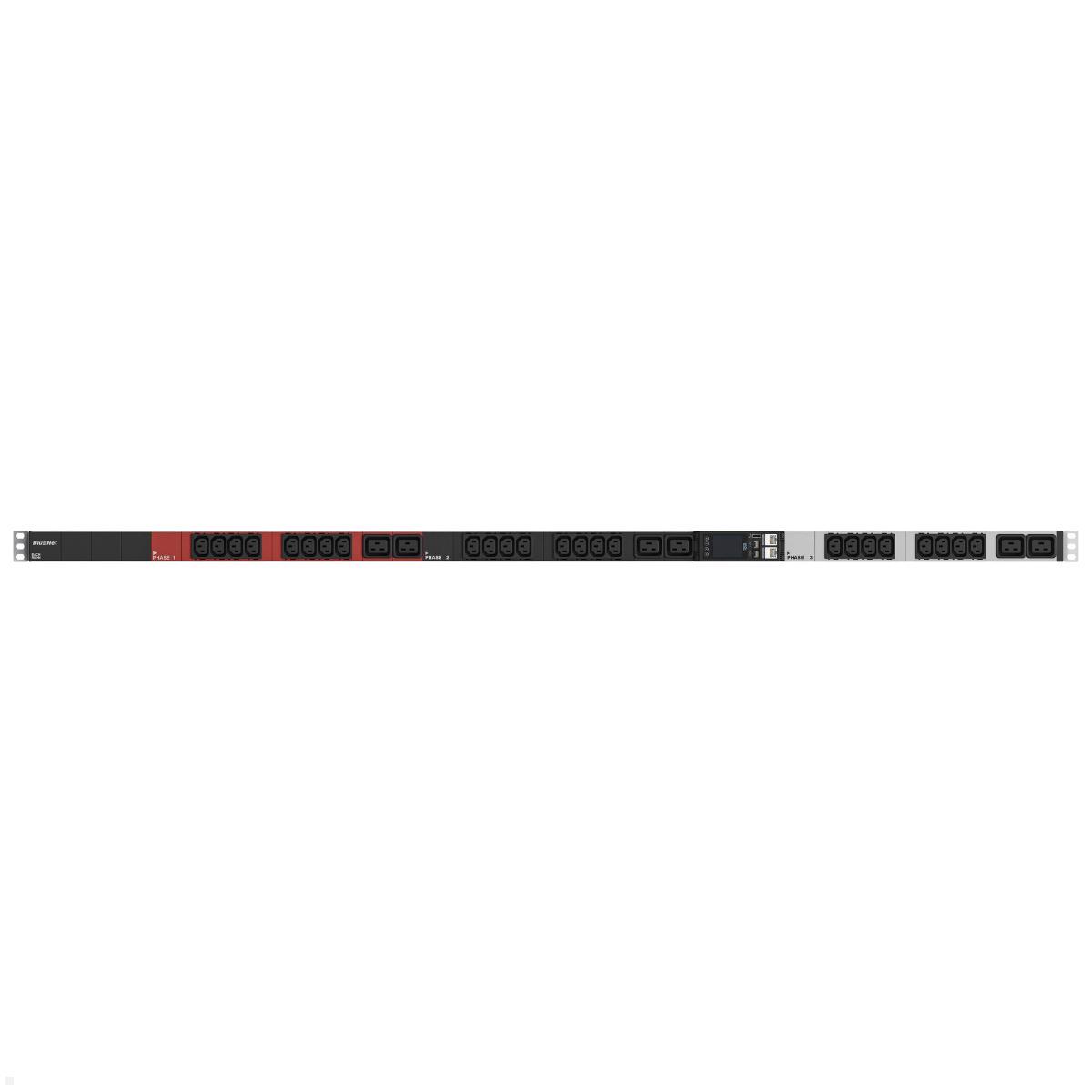

Bachmann BN ESSENTIAL Metered - 16/5p Rack PDU with 24xC13, 6xC19 & Display (BM0024223)
Highlights
- 3-phase power distribution (16A / 400V / 11 kW)
- 24x C13 and 6x C19 for high connection density
- Load distribution across three phases for optimal utilization
- SNMP & Web interface for remote monitoring
- 2x Gigabit Ethernet and TFT color display
BN ESSENTIAL Metered 16/3p Rack PDU – 24x C13 & 6x C19 for Data Center & Server Rack
The Bachmann BN ESSENTIAL Metered PDU is a powerful solution for professional power distribution in server racks and data centers. With 24x C13 and 6x C19 outlets and a 3-phase input, it offers maximum flexibility and performance for demanding IT environments. The load distribution across three phases ensures efficient use of available power and increases operational reliability.

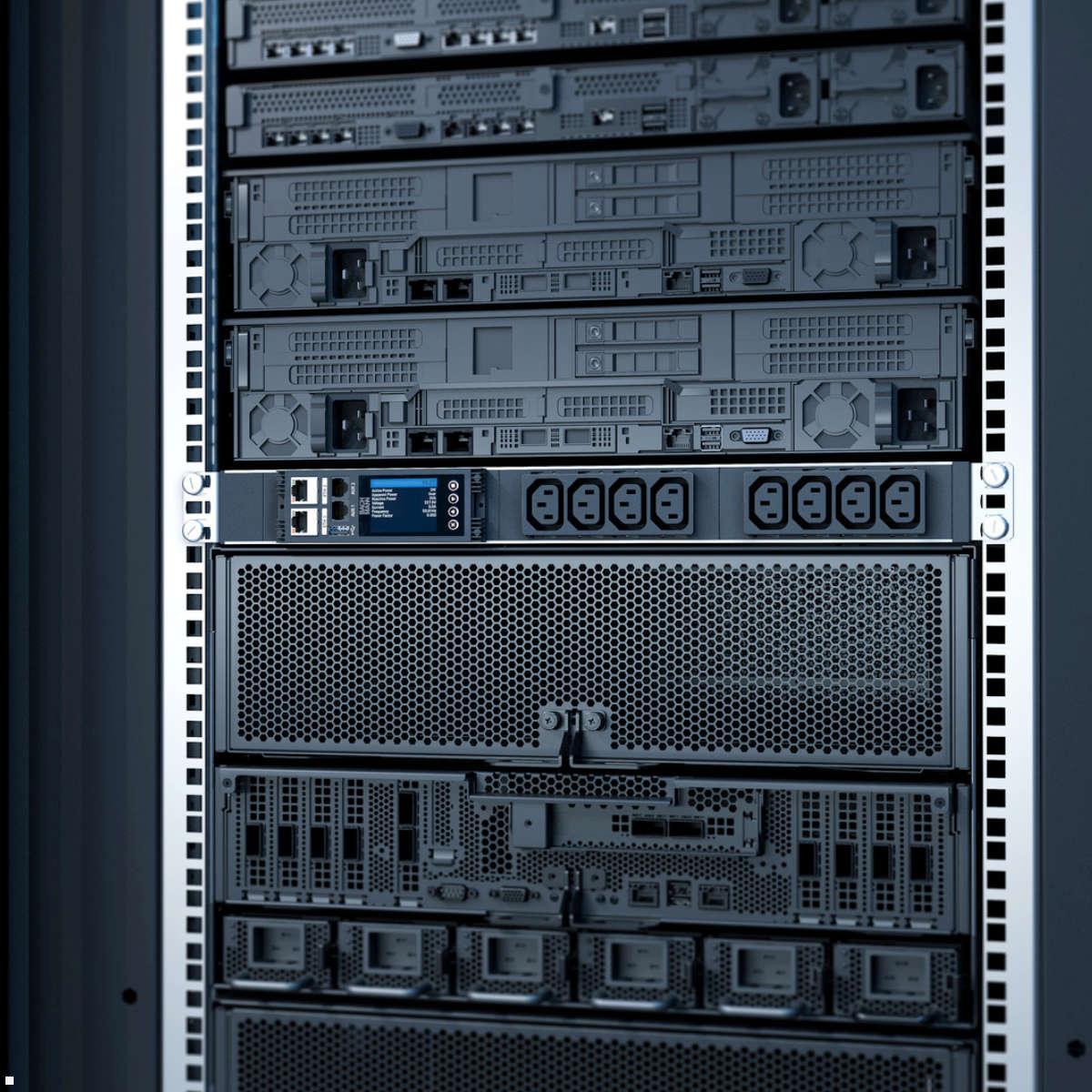

Thanks to the 3-meter supply cable with CEE 16A connector (red), the PDU is ready for immediate use and can be installed flexibly. Vertical mounting saves valuable rack space and enables structured power distribution in the server cabinet.
Technical Data & Features for 3-phase Rack PDU and Power Distribution in the Server Rack
- Product: Bachmann BN ESSENTIAL Metered Rack PDU
- Measurement per phase
- Input: 16A / 400V / 11 kW
- 3-phase power distribution
- Output: 24x C13 0° IEC outlets, 6x C19 90° IEC outlets
- Load distribution across three phases
- Supply cable: 3.0 m / 2.5 mm²
- Plug: CEE 16A (red)
- Measurement of current, voltage, reactive power, apparent power, active power, active energy, frequency and power factor
- Hot-swappable controller
- Integrated web server with web interface
- SNMP-capable
- 2x RJ45 (1 Gbit/s Ethernet)
- 1x USB-A port
- 2x interfaces for sensors
- 2.0" TFT color display
- Mounting orientation: vertical (0U)
- Color: aluminum

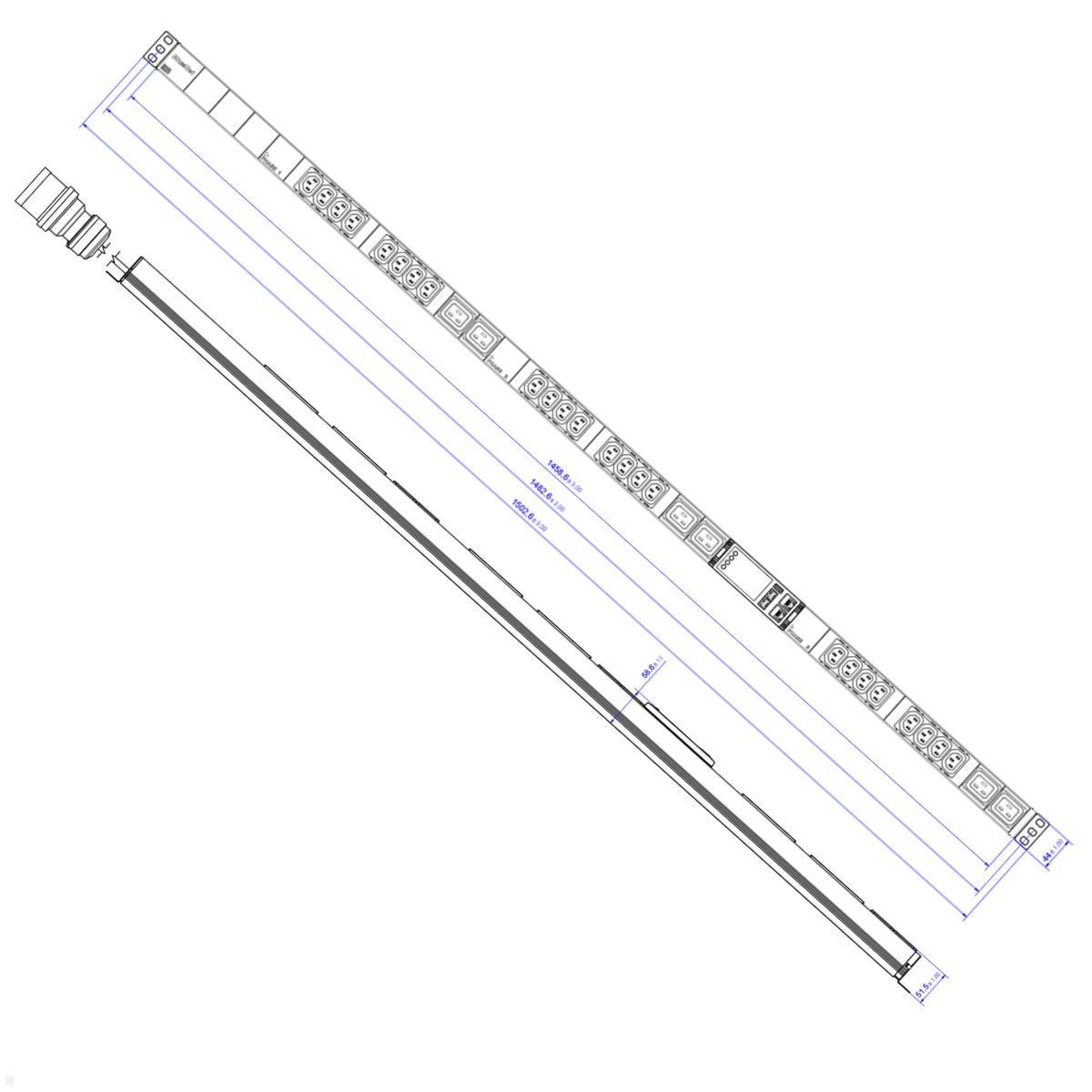

- Mounting dimension: 1483.8 mm
- Length: 1458.6 mm
- Width: 44 mm
- Depth: 58.6 mm
- Supply voltage: 400 V
- Rated current: 16 A
- Overvoltage category: CAT II
- Number of phases: 3
- With meter: Yes
- Switchable: No
- With display: Yes
- Temperature measurement integrated
- Includes mounting hardware
- RoHS compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| Größe PDU: | Vertikal |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black/Red |
| Form: | eckig |
| USB-Charger: | USB-A |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the BN ESSENTIAL Metered Rack PDU?
The BN ESSENTIAL Metered Rack PDU by Bachmann is a high-performance solution for professional power distribution in server racks and data centers. It provides 24x C13 outlets, 6x C19 outlets, a 3-phase input, and a 3 m lead with a CEE 16A (red) plug.
-
What ports and power does it provide?
Outputs: 24x C13 (0°) and 6x C19 (90°). Input: 400 V, 16 A, up to 11 kW, with three-phase distribution.
-
What about display and monitoring features?
Per-phase measurements of current, voltage, reactive power, apparent power, active power, energy, frequency and power factor are available. It also features an integrated web server and SNMP capability.
-
What interfaces does it offer?
2x RJ45 (1 Gbit/s Ethernet); 1x USB-A; 2x sensor interfaces.
-
What are the dimensions and mounting options?
Vertical 0U mounting; mounting footprint 1,483.8 mm; length 1,458.6 mm; width 44 mm; depth 58.6 mm.
-
What other features does it have?
Aluminium finish; RoHS-compliant; 3.0 m lead with a CEE 16A (red) plug; meter included; display; mounting hardware included.
-
Is it ready to use out of the box?
Yes — the 3.0 m lead with a CEE 16A (red) plug enables immediate use and flexible installation.
Why is a 3-phase rack PDU particularly useful in the data center?
The Bachmann BN ESSENTIAL Metered Rack PDU with 3-phase input is specifically designed for use in high-power IT environments. In data centers and server rooms, efficient power distribution is crucial to prevent outages and to make optimal use of available capacity. By distributing the load across three phases, the electrical infrastructure is evenly loaded, which increases operational reliability and improves efficiency. With a total capacity of up to 11 kW, this PDU provides sufficient headroom for modern server environments. The high outlet density with 24x C13 and 6x C19 allows numerous devices to be connected directly without the need for additional power strips.
What advantages does energy monitoring with phase measurement offer?
The integrated per-phase measurement provides detailed insights into energy consumption and the load of individual circuits. Measured parameters include current, voltage, active and reactive power, as well as total energy consumption. These data are essential for optimizing the efficiency of the IT infrastructure and for detecting potential weaknesses at an early stage. Continuous monitoring allows load spikes to be identified and redistributed. This reduces the risk of overloads and contributes to a stable and secure power supply within the server rack.
How is the PDU integrated into existing monitoring systems?
The BN ESSENTIAL Metered PDU features a built-in web server that enables easy management over the network. All measurements can be accessed and analyzed in real time via the web interface. In addition, the PDU supports SNMP, making it easy to integrate into existing monitoring and management systems. With two Gigabit Ethernet ports, a stable network connection is ensured. The equipment is complemented by USB and sensor interfaces that enable additional monitoring functions such as temperature measurement. The built-in TFT color display also offers a quick overview directly on the device.
For which applications is this rack PDU suitable?
This Bachmann BN ESSENTIAL Metered - 16/5p Rack PDU with 24xC13, 6xC19 & Display (BM0024223) is ideal for use in data centers, server rooms, and professional IT infrastructures. It is particularly suitable for environments with high power requirements and many connected devices. By combining high outlet density, efficient load distribution, and comprehensive energy monitoring, it is a future-proof solution for modern IT systems. Companies benefit from improved energy efficiency, increased reliability, and transparent control of their power distribution within the server rack.
