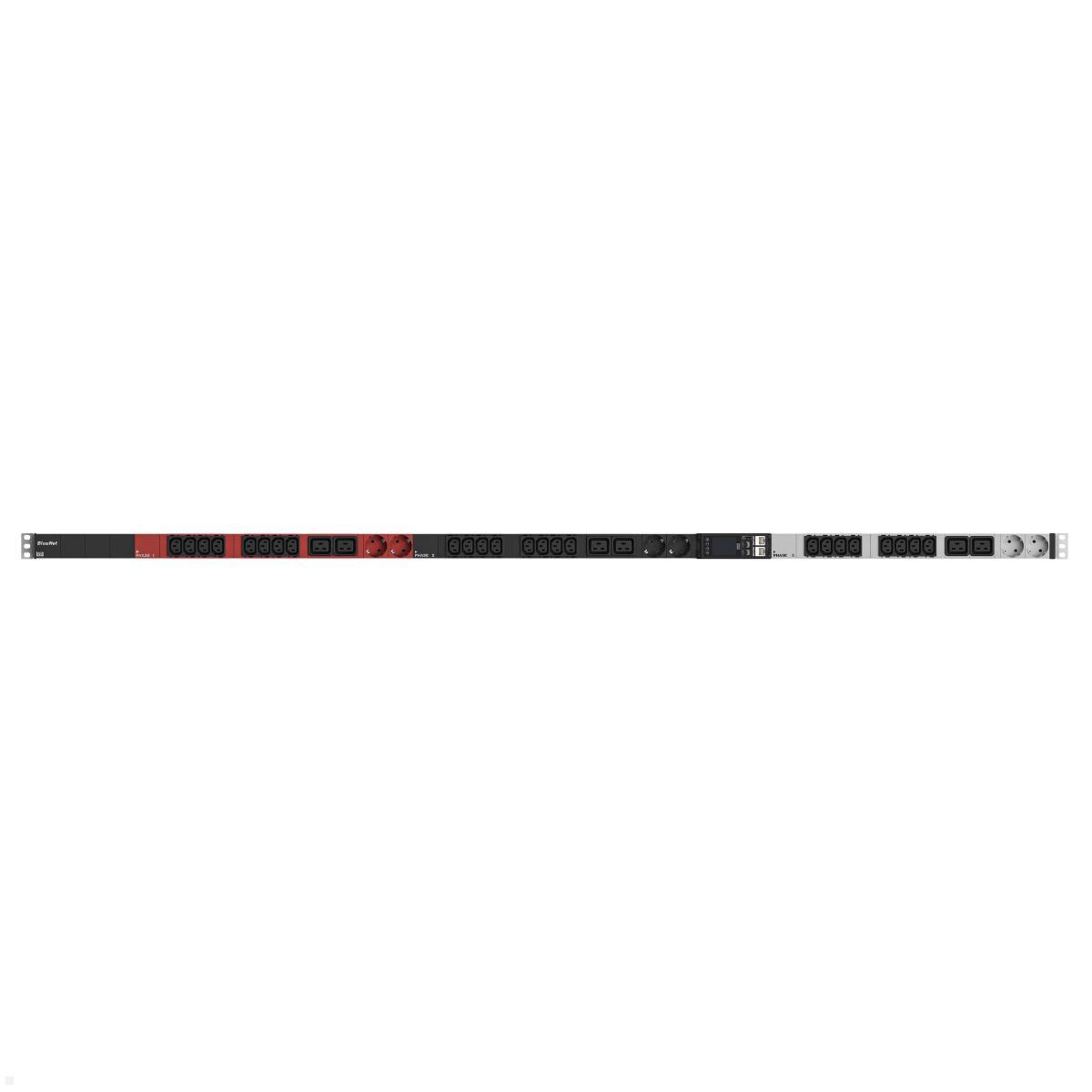

Bachmann BN ESSENTIAL Metered - 16/5p Rack PDU with 24xC13, 6xC19, 6xCEE7/3 & Display (BM0024225)
Highlights
- 3-phase power distribution (16A / 400V / 11 kW)
- 24x C13, 6x C19 and 6x Schuko sockets for maximum connection variety
- Ideal for mixed IT environments without the need for adapters
- Phase measurement for precise energy monitoring
- SNMP, web interface and 2x Gigabit Ethernet
BN ESSENTIAL Metered 16/3p Rack PDU – 24x C13, 6x C19 & 6x Schuko (CEE 7/3) for Server Rack & Data Center
The Bachmann BN ESSENTIAL Metered PDU is a powerful solution for professional power distribution in server racks and data centers. With a 3-phase input (16 A / 400 V / 11 kW) and a combination of 24x C13, 6x C19 and 6x Schuko sockets (CEE 7/3), it offers maximum flexibility for a wide range of IT and infrastructure components. This versatile outlet combination enables direct operation of servers, network devices and peripherals without additional adapters or external power strips. This simplifies installation and increases operational reliability.
Three-phase load distribution ensures even utilization of the power supply and enables efficient use of available power. This is a decisive advantage in modern high-density data centers to avoid overloads and to optimize energy use. Thanks to the 3 meter supply cable with CEE 16 A plug (red), the PDU is flexible in use and quick to install. The vertical mounting (0U) saves valuable rack space and provides structured power distribution.
Technical Data & Features for 3-phase Rack PDU with Energy Monitoring
- Product: Bachmann BN ESSENTIAL Metered Rack PDU
- Measurement per phase
- Input: 16 A / 400 V / 11 kW
- 3-phase power distribution
- Output: 24x C13 0° IEC socket, 6x C19 90° IEC socket, 6x CEE 7/3 Schuko (35°)
- Load distribution across three phases
- Supply cable: 3.0 m / 2.5 mm²
- Plug: CEE 16 A (red)
- Measurement of current, voltage, reactive power, apparent power, active power, active energy, frequency and power factor
- Hot-swappable controller
- Integrated web server with web interface
- SNMP-capable
- 2x RJ45 (1 Gbit/s Ethernet)
- 1x USB-A port
- 2x interfaces for sensors
- 2.0" color TFT display
- Mounting direction: vertical (0U)
- Color: Aluminum
- Mounting dimension: 1778.8 mm
- Length: 1753.6 mm
- Width: 44 mm
- Depth: 58.6 mm
- Supply voltage: 400 V
- Rated current: 16 A
- Number of phases: 3
- Overvoltage category: CAT II
- With meter: Yes
- Switchable: No
- With display: Yes
- Temperature measurement integrated
- With mounting hardware
| Product sheet: |  [pdf] |
|---|---|

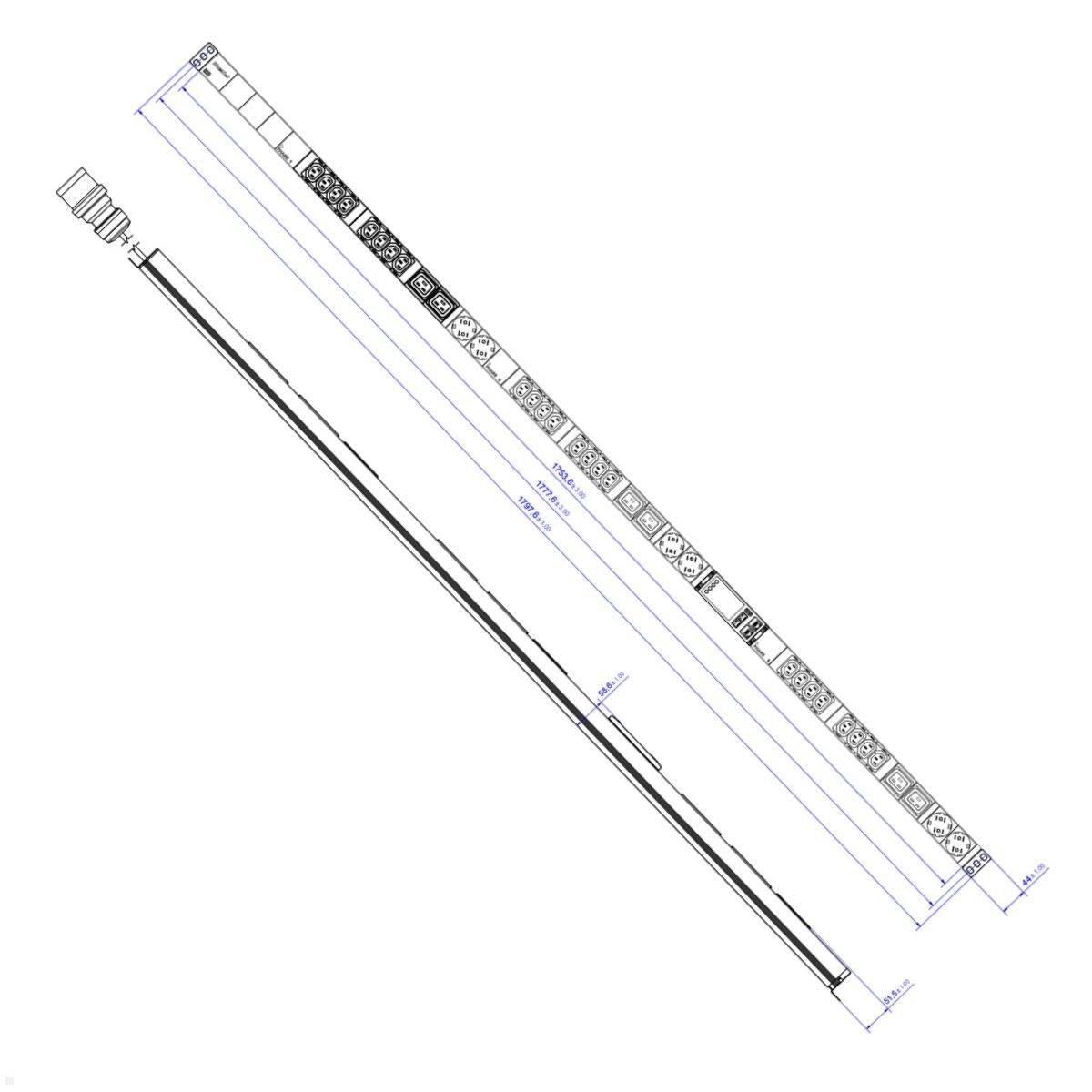

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| Größe PDU: | Vertikal |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black/Red |
| Form: | eckig |
| USB-Charger: | USB-A |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN ESSENTIAL Metered Rack PDU?
The BN ESSENTIAL Metered Rack PDU is a 3-phase power distribution solution for server racks with 16 A/400 V (11 kW) and outlets: 24x C13, 6x C19 and 6x CEE 7/3 protective-contact sockets, plus a display. It offers vertical 0U mounting and a 3.0 m supply lead with a red CEE 16 A plug.
-
What sockets does it provide?
It features 24x C13, 6x C19 and 6x CEE 7/3 sockets; also a 2.0-inch color TFT display and sensor/communication interfaces.
-
What monitoring features does it include?
It measures current, voltage, reactive power, apparent power, real power, active energy, frequency and power factor. The controller is swappable in operation, and it includes an integrated web server.
-
What are the input specs?
Input: 16 A, 400 V, 11 kW; 3-phase distribution.
-
What interfaces and networking does it have?
SNMP capable; 2x RJ45 (1 Gbit/s Ethernet); 1x USB-A; 2x sensor interfaces.
-
How is it mounted and what are the dimensions?
Mounting orientation: vertical (0U); mounting dimension: 1,778.8 mm; length: 1,753.6 mm; width: 44 mm; depth: 58.6 mm.
-
Any other notable features?
Colour: Aluminium; supply voltage: 400 V; nominal current: 16 A; Metering: Yes; Switchable: No; Temperature measurement integrated; mounting material included.
Why is a rack PDU with C13, C19 and protective-earth (Schuko) particularly versatile?
The Bachmann BN ESSENTIAL Metered Rack PDU offers a particularly flexible solution for power distribution in modern IT environments. By combining C13, C19 and protective-earth (Schuko) outlets, a wide range of devices can be connected directly. While C13 connections are typically used for servers and network components, C19 sockets are ideal for higher-power devices. Additionally, the integrated protective-earth sockets enable the connection of peripherals and auxiliary hardware. This versatility makes the PDU especially attractive for mixed infrastructures where different connector types are used in parallel. The use of additional adapters or external power strips is eliminated, making installation clearer and safer.
What are the advantages of three-phase power distribution in the server rack?
With a supply of 16A at 400V and a total power of up to 11 kW, this rack PDU provides sufficient power for demanding IT environments. Distributing the load across three phases ensures even utilization and reduces the risk of overloading individual circuits. Especially in data centers with high power density, efficient power distribution is crucial. By balancing the phases, not only is operational reliability increased, but energy efficiency is also improved.
How does the integrated energy monitoring support operation?
The integrated per-phase measurement enables a detailed analysis of all relevant electrical parameters. These include current, voltage, power values and energy consumption. This data helps optimize infrastructure utilization and detect potential problems early. Through continuous monitoring, peak loads can be identified and specifically balanced. This contributes to system stability and supports efficient use of available resources.
How is the PDU integrated into existing IT systems?
The Bachmann BN ESSENTIAL Metered - 16/5p Rack PDU with 24xC13, 6xC19, 6xCEE7/3 & Display (BM0024225) is equipped with an integrated web server and supports SNMP. This allows easy integration into existing monitoring and management systems. Administrators have access to current measurement data at any time and can centrally monitor power distribution. With two Gigabit Ethernet ports, a USB interface and sensor ports, the PDU offers numerous expansion options. The integrated TFT color display also enables quick on-device checks. This combination of flexible connector variety, powerful power distribution and comprehensive monitoring makes the PDU an ideal solution for professional server racks and data centers.
