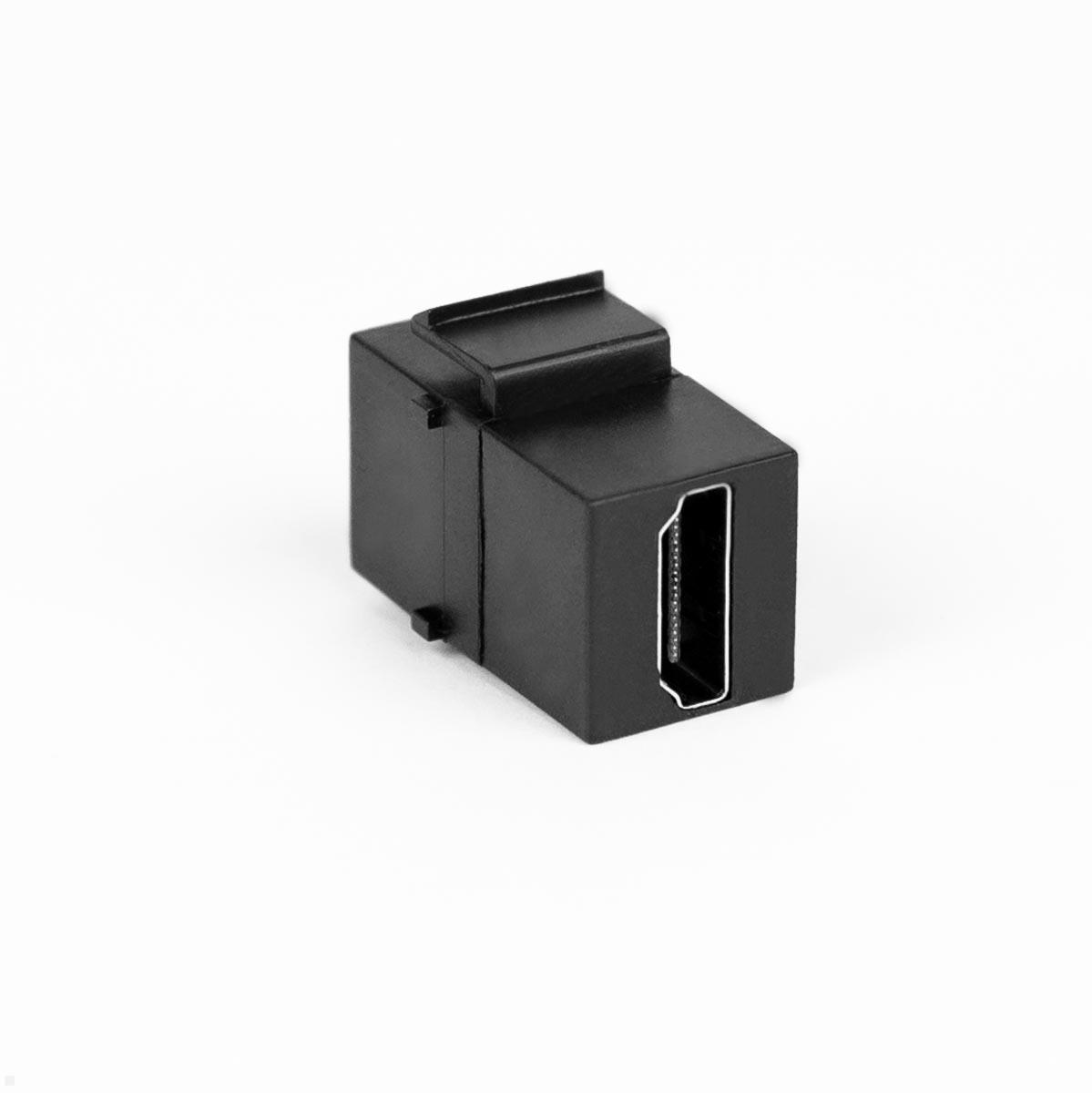

TecLines TKM004B keystone custom module HDMI 2.0 4K socket/socket
The TecLines TKM004B custom module HDMI 2.0 socket / socket keystone is a keystone module for mounting in keystone frames. Transmission up to a resolution of 3840x2160 (UHD/4K) is possible.
HDMI mocket module
Keystone modules offer a flexible way of combining technical interfaces in socket frames / power strips. TecLines custom modules are the central building blocks for video, audio and network connections. Their design allows for simple and flexible installation. The HDMI mocket module is equipped with a snap-in insert and is also suitable for installation in Keystone snap-in module plates or snap-in patch panels. A video transmission of a resolution up to 4k / 60 Hz is possible with the TecLines TKM004B keystone custom module. The gold-plated plug contacts protect against corrosion and increase conductivity.
Perfect for office and many other areas of application: The HDMI 2.0 4k module with 2x sockets is very well suited to bring sockets with custom modules at office workplaces, in conference rooms, entrance areas, exhibition halls, in hotels or at the private desk technically to a high level.Key features TecLines TKM004 HDMI 2. 0 4k keystone module
- Socket / socket (through-hole) for tool-free connection on front and rear side
- Integrable in power strips / socket frames such as the Bachmann Desk 2
- Front side: Type A socket HDMI 2.0
- Rear side: Type A socket HDMI 2. 0
- Data transmission: up to a resolution of 3840x216 (UHD/4K) possible
- Depth: 29 mm
- Outer dimensions: 29 x 16 x 15 mm
- Matching cables can be ordered separately
- Resolution: max. 4k / 60Hz
- Walking material: plastic
- Finish: Black
| Product sheet: |  [pdf] |
|---|---|
| Packaging dimensions (LxWxH in mm): | 280 x 200 x 15 |
| Scope of delivery: | 1x HDMI 2.0 4K keystone module |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
