What is a keystone module? Bachmann custom modules
Keystone Modules Explained Simply – Flexible Connection Solutions with a System from Bachmann
In an increasingly connected world, the demands on modern connection and cabling solutions are constantly growing. Whether in offices, conference rooms, data centers, or private living spaces, flexible, future-proof, and space-saving systems are more in demand than ever. This is exactly where Keystone modules come into play. They are regarded as a universal, modular connection system for network, audio, video, and multimedia applications and have long been established as a standard in professional electrical and media technology.
But what exactly is a Keystone module, why is this technology so popular, and what role do Bachmann’s custom modules play in this context? In this article, we explain in detail, clearly, and practically what distinguishes Keystone modules, where they are used, and what advantages they offer for modern working and living environments.
What Is a Keystone Module?
A Keystone module – also known as a Keystone jack or Keystone connection module – is a standardized connection element for electrical or optical signal transmission. It is a modular plug-in system that allows a wide variety of connections to be integrated into uniform frames or mounting brackets.
The special feature of Keystone modules is their standardized form factor. Regardless of whether it is a network connection, an HDMI socket, or a USB port, all Keystone modules have identical external dimensions. This allows them to be flexibly installed in designated Keystone frames, wall boxes, patch panels, connection panels, or power strips.
Originally known primarily from networking technology (e.g. RJ45 data jacks), the Keystone system has since evolved far beyond this area. Today, Keystone modules are available for almost every conceivable media and connection technology.
The Modular Principle Behind Keystone
The Keystone system follows a simple yet highly effective principle: one frame – many possibilities. Instead of installing fixed connection outlets with predefined sockets, users can configure the required connections individually. If today you need a LAN and a USB connection, and tomorrow HDMI and audio – no problem. The modules can be replaced or expanded at any time.
This modularity ensures:
- high flexibility
- easy adaptation to new technologies
- long-term investment security
Especially in times of rapid technological change, this is a decisive advantage.
What Advantages Do Keystone Modules Offer?
Keystone modules offer a wide range of benefits that make them highly attractive for both professional users and private individuals.
- High flexibility and versatility
Different types of connections can be combined in a single outlet or power strip. Network, USB, video, and audio connections can be used in parallel – precisely tailored to specific requirements. - Space and cost efficiency
Since multiple connections can be accommodated in a very small space, Keystone modules save space. At the same time, they reduce installation and material costs, as no separate outlets or special solutions are required. - Easy installation without tools
Most Keystone modules feature a snap-in click system. They are simply clicked into the appropriate frame – without any special tools. This saves time during installation and makes later changes easier. - Future-proofing
New connection standards can be retrofitted without difficulty. An outdated module is simply removed and replaced with a new one – without having to modify the entire installation. - Structured cabling
Keystone modules ensure order and clarity. Especially in professional environments such as offices or data centers, they contribute to clean, structured cabling.
Where Are Keystone Modules Used?
Thanks to their high level of modularity and flexibility, Keystone modules are used in a wide variety of environments, providing structured and future-proof connection solutions. In private households, they are increasingly used for multimedia connections, for example to connect televisions, sound systems, or network outlets. In home offices, Keystone modules ensure a clean and high-performance network infrastructure, while in smart homes they enable the connection of various systems such as lighting, security technology, or building control systems.
In offices and conference rooms, Keystone modules play a central role in modern workplace design. They are used in desk connection panels, floor boxes, or wall outlets and enable flexible connection of network, video, and presentation technology. This allows workspaces and meeting rooms to be adapted to new requirements at any time without extensive renovation work.
Keystone modules are also widely used in hotels and public buildings. In guest rooms, they provide reliable network and multimedia connections, while in conference rooms and lobbies they support professional media technology and flexible connection options. Public institutions benefit in particular from the ease of maintenance and the simple replacement of individual modules.
In workshops and industrial environments, Keystone modules are used for data and control technology. They enable structured cabling solutions for machines, systems, and control units, contributing to a clear and secure infrastructure. In data centers, Keystone modules are an integral part of racks, patch panels, and distribution cabinets, where they ensure high port density, clear organization, and easy expandability of the network infrastructure.
In addition, Keystone modules are used in electrical installations and smart home systems, where they combine different types of connections into a single, unified system. Wherever media and data connections need to be implemented flexibly, neatly, and in a future-proof manner, Keystone modules demonstrate their strengths.
What Types of Keystone Modules Are Available?
The range of Keystone modules continues to grow with the advancement of network and media technology. The most common variants include:
- RJ45 / CAT6A (female–female or male–female)
- HDMI (e.g. HDMI 2.0)
- USB-A, USB-B, USB-C
- Mini DisplayPort
- VGA
- Audio connections such as 3.5 mm jack or RCA
- ISDN
- Fiber optic
- Satellite and antenna connections
This makes it possible to implement almost all common standards for data, audio, and video transmission.
Bachmann Keystones – Custom Modules for Individual Solutions
Bachmann is one of the leading manufacturers of high-quality power strips, desk connection panels, and connection solutions for offices, industry, and residential spaces. Many of these products are deliberately equipped with blank slots to allow maximum flexibility. This is where Bachmann custom modules based on the Keystone system come into play.

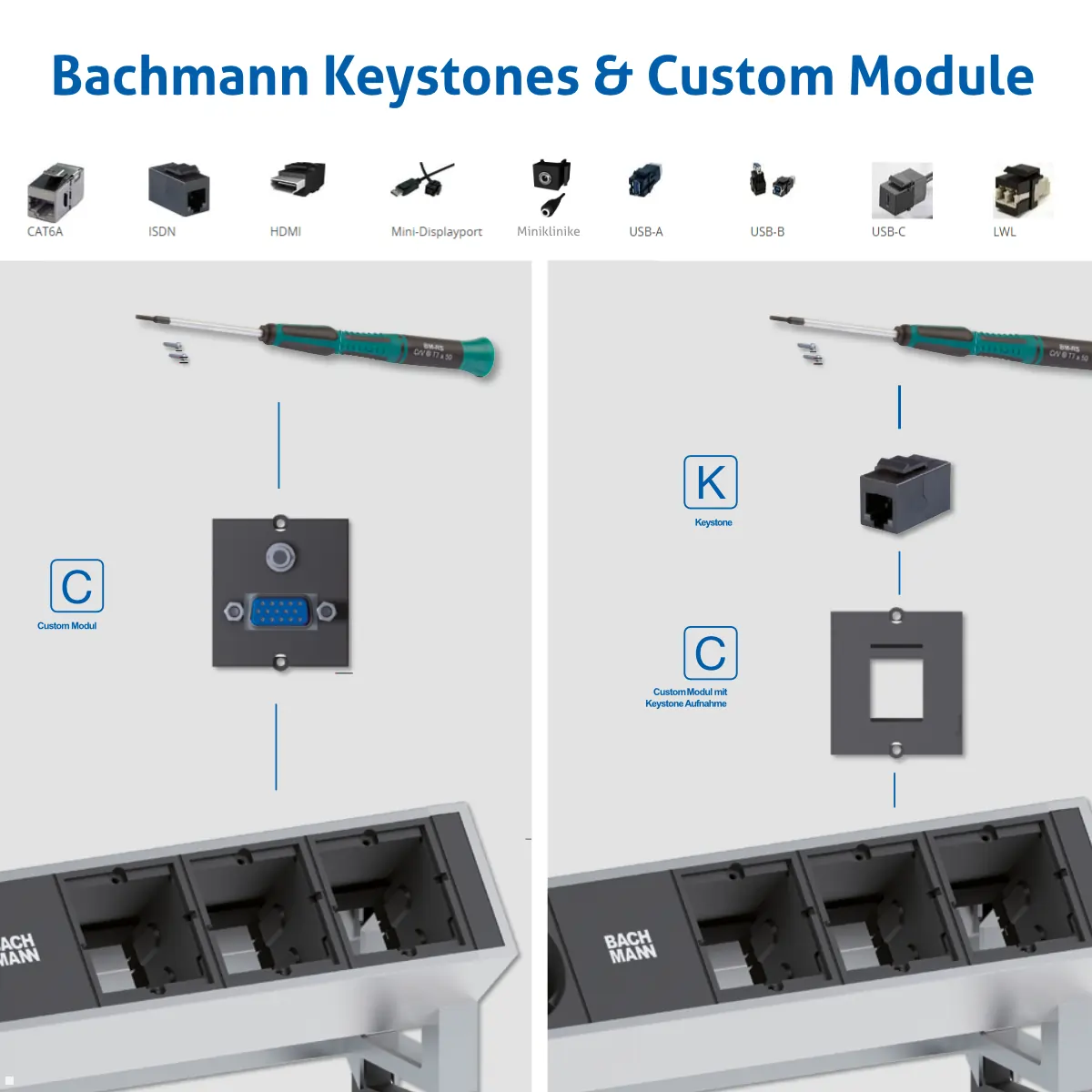

A Bachmann custom module always consists of two components:
- Keystone frame (chassis) – for holding the module
- Keystone module – the actual connection
Bachmann offers both preconfigured custom modules and the option to assemble modules individually.
Preconfigured or Individual Custom Modules
The preconfigured sets from Bachmann are ideal for users looking for a quick and proven solution. Each set consists of a Keystone frame and a matching module. The range includes:
Alternatively, users can configure their custom modules themselves and tailor them precisely to their requirements. This freedom makes the Bachmann system particularly attractive for planners, architects, and IT managers.
Individually Configuring Desk Connection Panels with Keystones

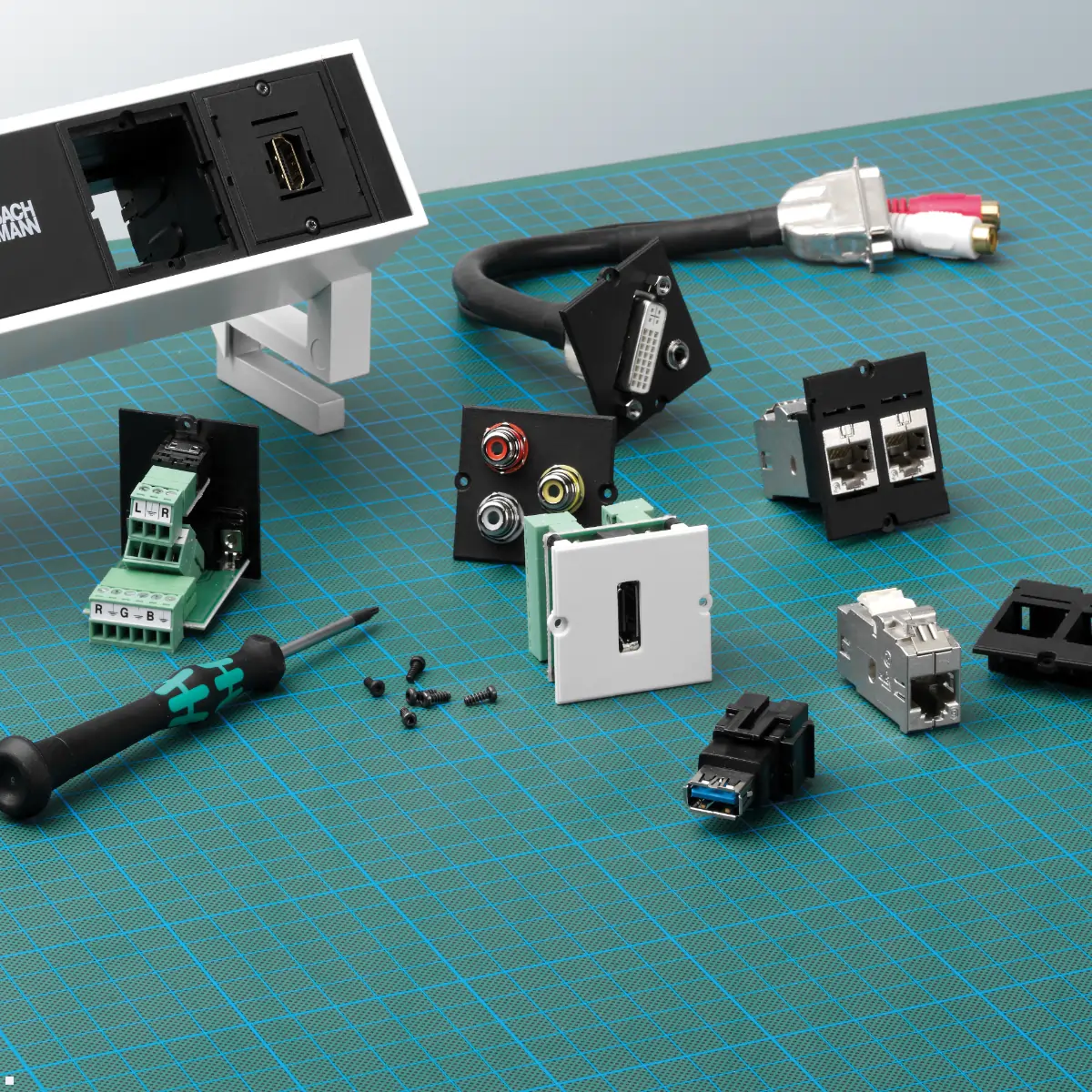

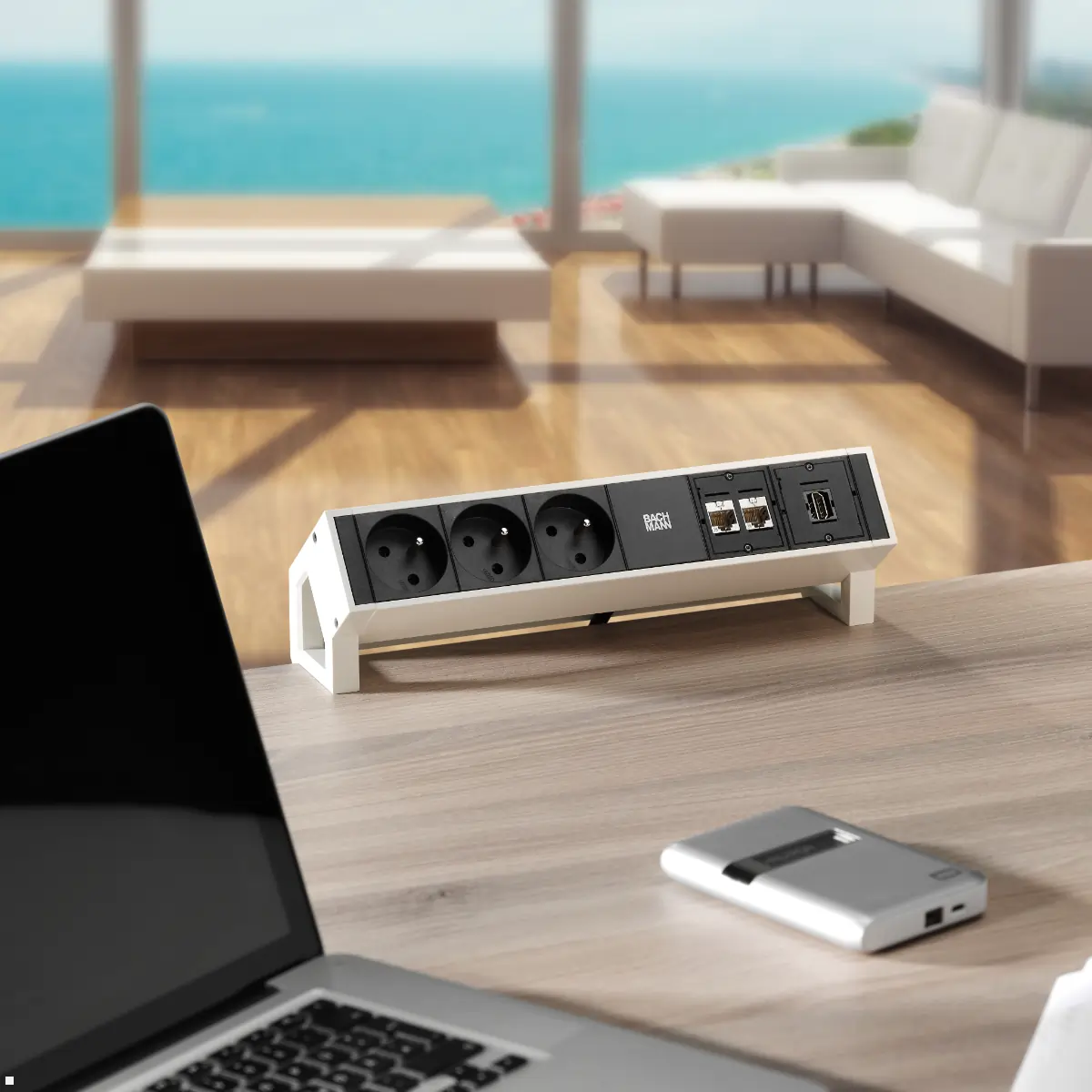

A particularly popular application for Bachmann Keystones is desk connection panels. A large proportion of Bachmann’s multi-socket outlets and connection solutions feature blank slots that can be individually equipped.
The Keystones are snapped into specially designed frames and integrated directly into the desk connection panel. This results in customized connection solutions for every workstation.
Compatible Bachmann Systems
Bachmann offers a wide range of desk connection panels and power strips that can be equipped with Keystone custom modules. These include, among others:
Venid, Conference, Top Frame, Coni, Coni Duo, Coneo, Power Frame, Kapsa, Due, Pix, Lift, Desk 1, Desk 2, Desk Rail, as well as the Step and Universal power strips.
These systems are used in conference rooms, offices, hotels, kitchens, and bathrooms, among other places. Some models can even be recessed into the desk at the push of a button, ensuring a clean and tidy appearance.
Universally Applicable – From Office to Home Entertainment
Whether in network installation, industry, or home entertainment, Keystone modules can be used universally. The combination of standardized Keystone modules and high-quality Bachmann frames offers users the highest level of quality, performance, and flexibility.
Especially in modern working environments where requirements change rapidly, such modular systems are a clear advantage.
Keystone Modules as the Key to Modern Connection Solutions
Keystone modules are far more than simple connectors. They are a well-thought-out, future-proof system that combines maximum flexibility with ease of use. In combination with Bachmann custom modules, they create tailored connection solutions for almost any application.
Whether in offices, conference rooms, hotels, or private living spaces, Keystone modules enable clean, efficient, and individualized implementation of media and network connections. Anyone who values structure, quality, and future-proofing cannot overlook Keystone solutions from Bachmann.
Frequently Asked Questions – Briefly Answered
- What are BACHMANN custom modules?
BACHMANN custom modules are individually adaptable functional units for power strips and desk connection panels. They allow the easy integration of audio, video, or network connections such as HDMI, USB, or RJ45 directly into connection panels. This enables optimal combination of power and data connections according to your needs. - How are the custom modules installed?
The modules can be easily inserted into the designated blank slots using a screwdriver – without any special tools. All modules are supplied ready for connection with T6 screws and can be replaced just as easily if required. Installation is quick and user-friendly. - What is the difference between preconfigured modules and Keystones?
Preconfigured custom modules are fully assembled modules with specific connections (e.g. HDMI or RJ45). Alternatively, you can assemble individual Keystone frames with suitable individual modules yourself. Both variants offer maximum flexibility when equipping your connection panels. - What are Keystone modules?
Keystone modules are modular connectors used in network cabling. They enable flexible configuration of network connections in wall outlets, patch panels, or other Keystone-compatible devices. - What types of connections are available for Keystone modules?
There are various types of connections for Keystone modules, including RJ45 (Ethernet), HDMI, USB, coaxial, audio, video, and many more. The selection depends on the specific requirements of the network or cabling. - How are Keystone modules installed?
Installing Keystone modules is relatively simple. They are inserted into the appropriate Keystone slot and secured with a locking mechanism. The manufacturer’s instructions or data sheet can provide further specific installation guidance.
