Bachmann ZG1 desk mount with clamp 17-34", white
€99.90*
% €256.91* (61.11%)
delivery time: 1 - 5 working days
The Bachmann ZG1 desk monitor mount in white impresses with ergonomics and easy adjustment. In terms of design, the screen table holder is a real highlight.
Desk display mount with clamp
The ZG1 945.002 desk monitor mount from Bachmann is functional and has a modern design. It mounts up large monitors up to 34 inches with a weight of 3 - 11 kg. Based on a spring force technology, the monitor arm can be adjusted flexibly and individually and scores with exceptional performance and durability. The 360° rotation with the smart 180° lock feature ensures an individual and safe setting. The ZG1 monitor arm can be conveniently installed behind the removable panels with its tool set. Concerning to the Clean Desk Policy, cables are simply covered by easily removable tabs. Magnetic panels complete the attractive and modern design look.
Key features Bachmann ZG1 swivel and tilt desk flatscreen mount
- Display sizes: 17 inches, 19", 21", 22", 23", 24", 26", 27", 28", 29", 30", 31", 32", 34 Zoll
- Capacity: min. 3 - max. 11 kg
- Installation: clamp
- Features: tilt, rotate and swivel
- Rotation: 360° landscape / portrait
- With 180° Lock Feature
- Height adjustable: 290 - 510 mm
- VESA compliant hole patterns: 75x75, 100x100 mm
- Installation tools are integrated in the arm
- Integrated cable management
- Finish: white
Does your display fit this VESA mount?
We will check whether your screen is suitable for this Bachmann ZG1 table holder in white. Please send us your model (manufacturer + model number) in the comment field at the end of the ordering process. We will check for you if your flatscreen, monitor or display fits and if not and contact you.
VESA standard - read more about VESA compliant monitor mounts!
| Product sheet: |  [pdf, 297 kb] |
|---|---|

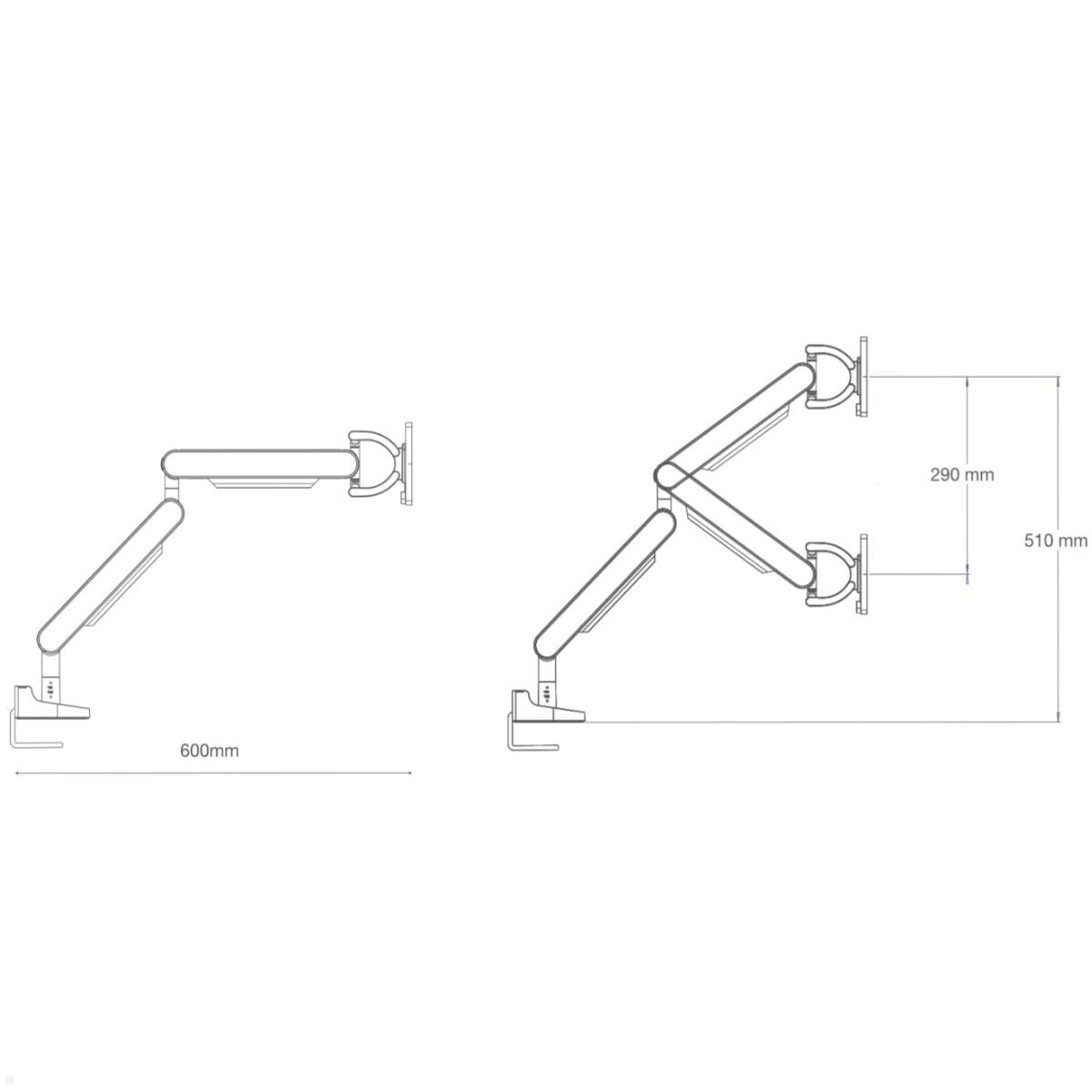

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Minimum weight: | 3 kg |
| Capacity: | 11 kg |
| Tilt: | Vorwärts 20° / Rückwärts 35° |
| Rotate: | 360° |
| Height range (mm): | 290 - 510 mm |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 600 |
| Screen size: | 17 - 34" |
| Thickness of table (mm): | 16-33 mm / 33-50 mm |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 37 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| color: | Weiß |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
25 October 2023 06:29
excellente Halterung
Nach einigen Recherchen und Versuchen mit anderen Halterungen bin ich bei dieser gelandet und angekommen. Ausgesprochen stabil und dabei durchaus filigran. Die Tischhalterung nicht mit Schraube zum Drehen, sondern 2 massiven Stangen, die über 2 Imbussysteme angelascht werden. Da rührt sich gar nichts mehr. Auch die Verwindung der 2 Arme ist marginal. Dafür sind sie leichtgängig und völlig easy auf das richtige Gewicht einzustellen. Und dann ist das Design auch noch wirklich ansprechend, es habt sich von den anderen eher maskulinen Formen ab, die anscheinend zeigen sollen, wie stabil sie sind. Diese Halterung ist es einfach. Und auch der Aufbau mit Anleitung und im Arm integrierten Impusschüsseln kinderleicht. Und das Ganze für zur Zeit 139,- - Solche Halterungen gibt es m. E. sonst erst für 100,- mehr. Ach ja; trotz Corona war das Paket in 2 Tagen da. Was soll 5 Sterne bekommen, wenn nicht diese Halterung?
