Bachmann USB-C Keystone Module USB 3.2 with Power Delivery 100 W, black (BM0022463)
Highlights
- USB-C 3.2 with PD 100W
- USB-C port on both sides
- Shielded housing
- Compact keystone format
- For keystone frames and floor boxes
USB Type-C built-in socket with snap-in for patch panel and floor box
The Bachmann USB-C Keystone Module USB 3.2 with Power Delivery 100 W, black (BM0022463) enables easy and structured integration of USB-C 3.2 ports into keystone frames and floor boxes. The compact module in black supports Power Delivery up to 100 W and is therefore suitable not only for fast data transfer but also for charging notebooks, tablets and other devices. Both sides are equipped with a USB-C 3.2 receptacle, ensuring a continuous USB-C pass-through connection.
Thanks to the shielded design, the Bachmann USB-C Keystone Module USB 3.2 with Power Delivery 100 W, black provides interference-free signal transmission. The plastic housing is robust and durable. Whether in offices, conference rooms or training rooms – this USB-C Snap-In Module can be flexibly integrated into existing network installations, power strips and 19-inch panels and is ideal for use in professional work environments.
Technical details USB-C pass-through coupling Keystone adapter
- Type: USB-C 3.2 keystone module
- Side 1: USB-C 3.2 socket
- Side 2: USB-C 3.2 socket
- Power Delivery: up to 100 W
- Color: black (RAL 9005)
- Material: plastic
- Sockets shielded: Yes
- Housing shielded: Yes
- Contact configuration: female

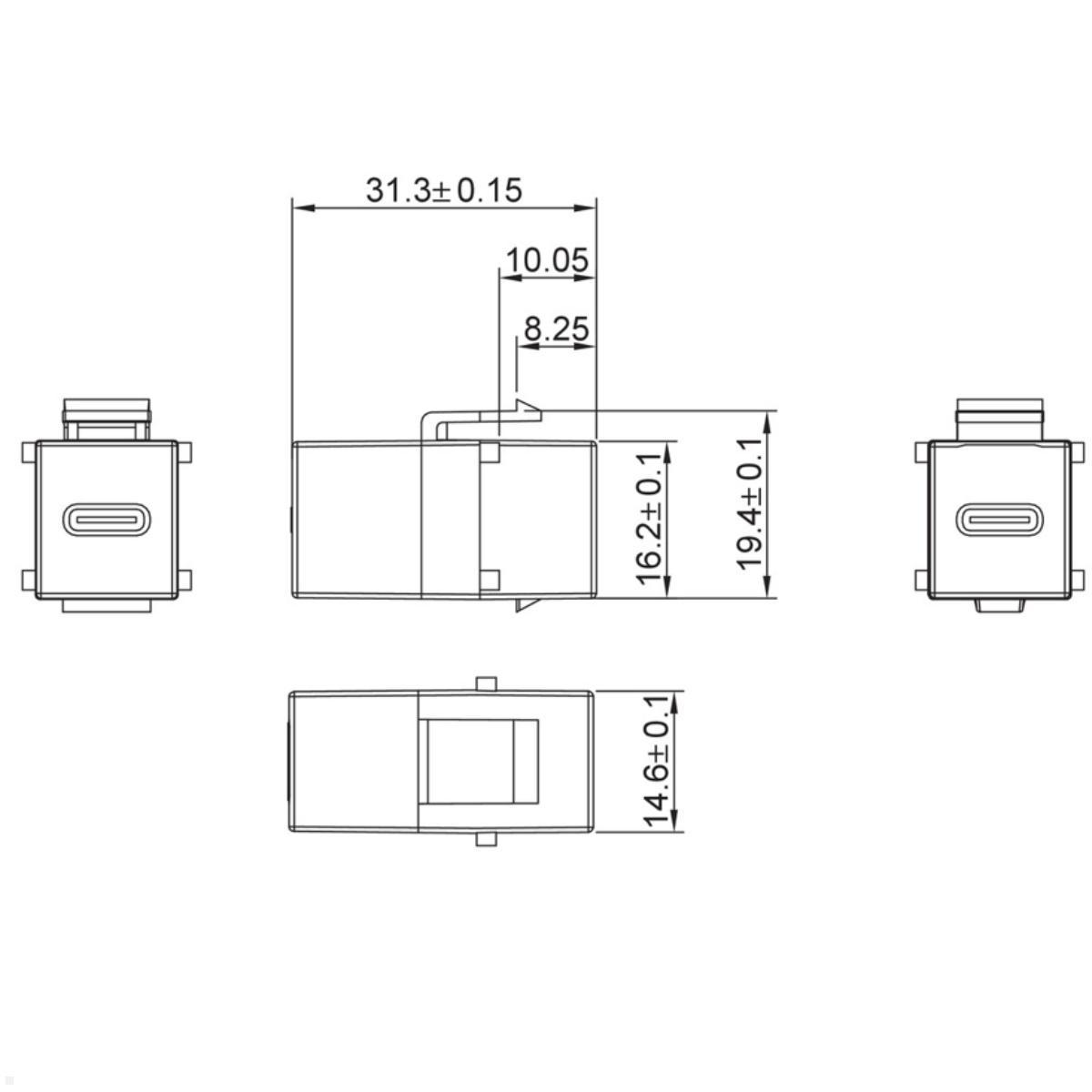

- Dimensions (L×W×H): 31.30 x 14.60 x 19.40 mm
- Min. depth of device box: 50 mm
- Packaging: polybag
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann USB-C Keystone Module USB 3.2 with Power Delivery 100 W?
It is a USB-C 3.2 Keystone module with Power Delivery up to 100 W, in black (BM0022463), designed for integration into Keystone frames and floor tanks.
-
What connectors does the module have on each side?
Each side has a USB-C 3.2 socket, providing a through-connection.
-
How much Power Delivery power does it support?
Power Delivery up to 100 W.
-
Where can it be used?
Suitable for offices, conference rooms, or training rooms, and can be integrated into existing network installations, power strips, and 19-inch panels.
-
Is the module shielded?
Yes, it is shielded to ensure a disturbance-free signal; the housing is plastic and robust.
-
What are the dimensions?
Dimensions (L×W×H): 31.30 × 14.60 × 19.40 mm; minimum depth of device box: 50 mm.
-
How is it packaged?
Packaging: Polybag.
What is a USB-C through coupler in Keystone format suitable for?
A USB-C through coupler in Keystone format is a compact insert that integrates USB-C ports into structured cabling systems. It is used in keystone frames, floor boxes, trunking channels or patch panels and thus enables a permanently installed USB-C connection. Especially in modern office environments, conference rooms and training rooms, USB-C as a universal standard for data transmission and power delivery is becoming increasingly important. With a keystone insert module these ports can be neatly and professionally integrated into the existing infrastructure without the need for loose cables or adapters. The Bachmann Keystone modules are specifically designed for commercial use and provide a reliable and durable solution for structured building cabling.
What advantages does a USB Type-C snap-in module with 100 W Power Delivery offer?
Power Delivery (PD) is a charging standard that can provide up to 100 watts over USB-C connections. This means that a single cable can not only transmit data but also charge notebooks, tablets and other devices at the same time. With a USB-C insert module with PD 100 W there is no need for separate charging cables or power supplies at the workstation. Employees can simply plug their devices into the permanently installed USB-C socket and start working and charging immediately. This reduces cable clutter on the desk and creates a tidy working environment. Especially in conference rooms and at flexible workplaces this function is a major advantage, as different devices from various manufacturers can be powered via the uniform USB-C standard.
How is a Bachmann Keystone module installed in a network outlet?
The installation of a Bachmann USB-C Keystone module is very simple and does not require any special tools. The module is simply snapped into a compatible keystone frame or adapter using the snap-in system. It fits into all common keystone openings and is therefore universally applicable—whether in wall boxes, floor boxes, power strips or 19-inch patch panels. The double-sided USB-C 3.2 sockets enable uncomplicated cable connection on both sides. The shielded design of the sockets and housing ensures interference-free transmission even in environments with electromagnetic interference. The compact dimensions of the module with a depth of only 31.30 mm ensure that it also fits in shallow installation situations, whereby a minimum depth of the device box of 50 mm should be observed. The module is supplied individually in a polybag and can be immediately integrated into existing installations.
