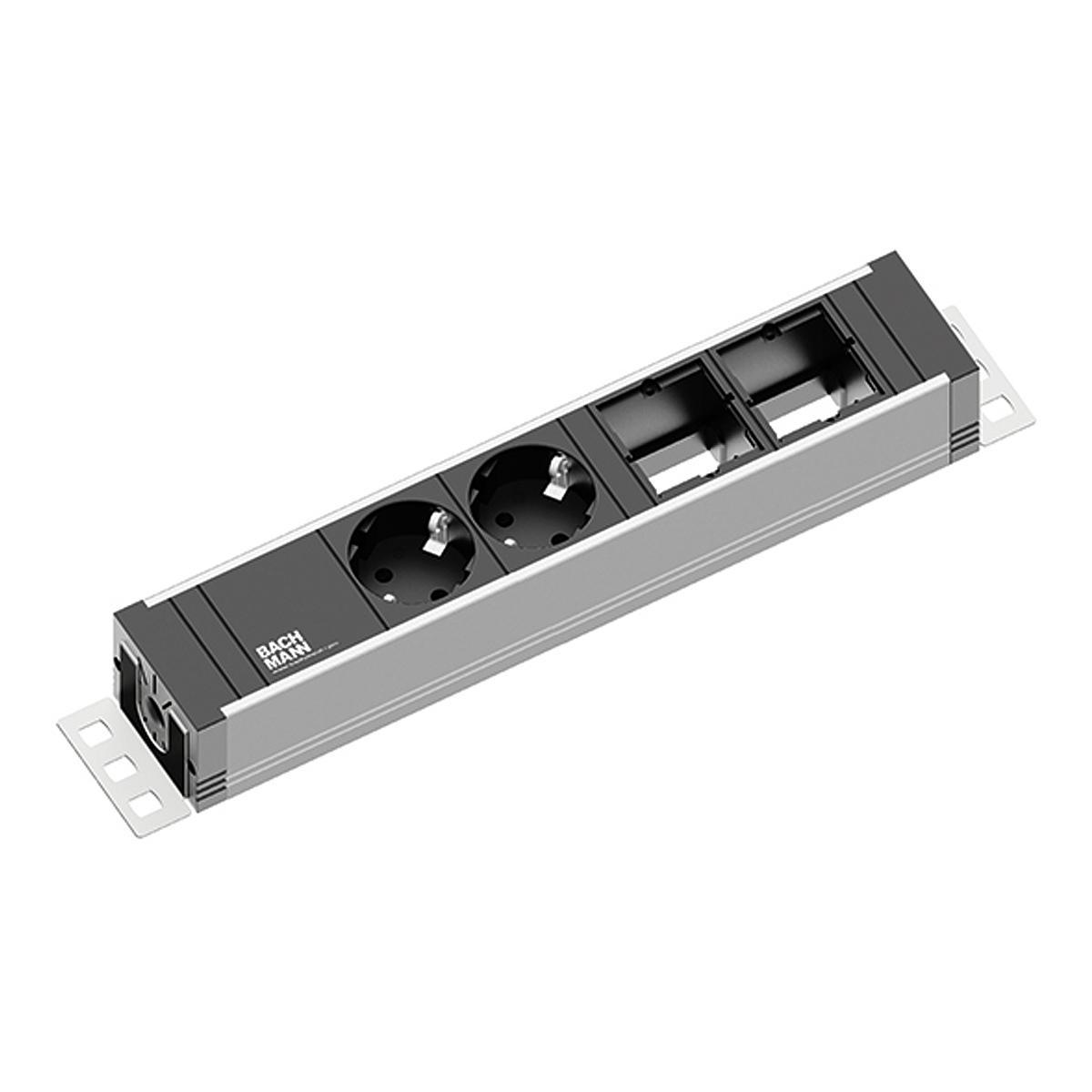

Bachmann UNIVERSAL 4-fach Steckdosenleiste 2x Steckdose 2x CM (922.0858)
The Bachmann UNIVERSAL power strip 2x socket 2x Custom Module (922.0858) is a complete unit for power, data and media connections on work and conference tables.
Bachmann UNIVERSAL power strip 2x socket 2x Custom Module 922.0858
Bachmann 922.0858 UNIVERSAL ensures free access to the media, power and data supply on the table. And thanks to its minimal installation depth, it provides absolute legroom under the table, even when installed close to the edge. Different standard surface designs also provide the necessary design freedom.
The configuration of the data connections (see Custom Module) can be freely selected for the UNIVERSAL 922.0858 table connection field ;held (see Custom Module). In addition, it is always possible to replace the respective socket unit quickly and without tools. Integrated functionality and flexibility not just for the present - but also for all future developments.
Technical details Bachmann UNIVERSAL power strip
- Length: 4-fold
- 2x protective contact socket with child protection, black, around 35° rotated
- 2x Custom module empty
- Power input: 3.0 m H05VV-F3G1.5mm² with 90 degree angle plug
- incl. Bracket
Advantages of power strip 922.0858
- Complete unit for power, data and media connections on work and conference tables
- incl . Power connection cable 3.0 m
- Very high flexibility thanks to the use of Bachmann custom modules
- Fastening using metal brackets in various positions / degree settings
- Optimal for placement in table channels suitable
- Minimal installation depth
- Robust frame design
- Integrated brush insert for closing with connected cables
- Free choice of configuration
- li>
- Quick replacement of the entire socket unit
- Subsequent installation possible

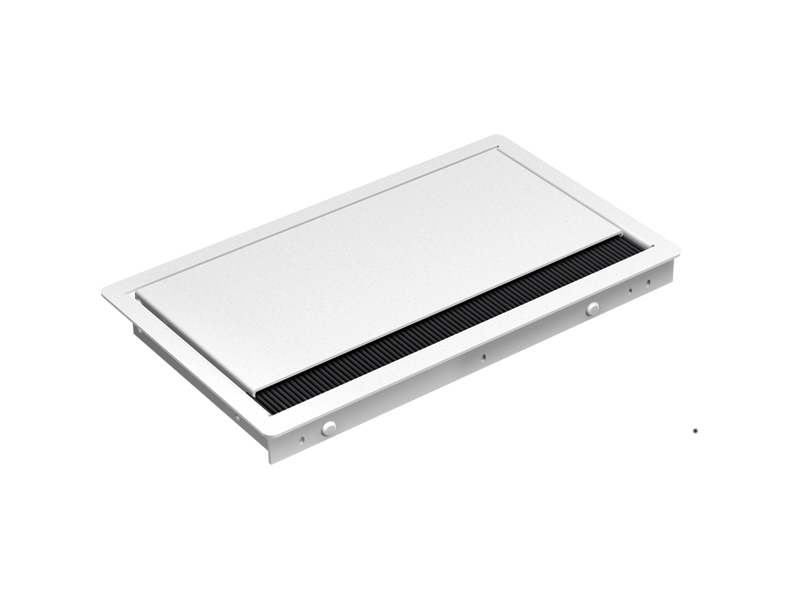

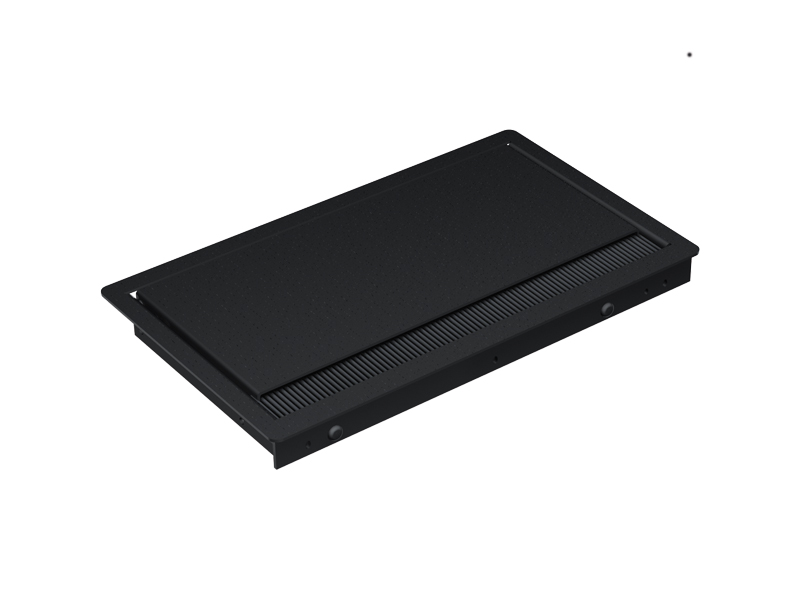

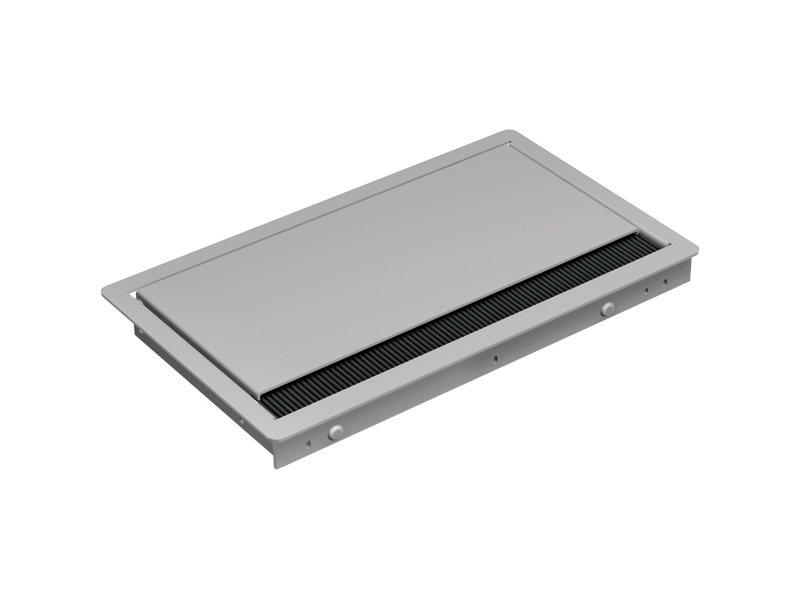

Bachmann CONI COVER and UNIVERSAL power strip 922.0858 – The functional combination. Bachmann CONI COVER is the elegant access to separate supply units or commercial cable laying systems under the table top.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips are used every 4 years a qualified electrician in accordance with DIN VDE 0100-600 must be checked. Portable power strips must be checked annually. Further information in the download area under "Manufacturer declarations"| RoHS / REACH: |  [pdf] |
|---|---|
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x UNIVERSAL power strip | 2x brackets | 2x sockets | 2x custom module |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 4 |
| color: | Silber |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
