Bachmann TWIST 2 2x socket, round (946.200) white
The Bachmann TWIST 2 built-in socket (946.200) in whiteß has two sockets and can be installed in offices, lounges and kitchens. The low installation depth and the compact design enable space-saving integration into desks or kitchen worktops. Supplied with a mounting plug and a 2.0 m long cable with wire end sleeves and mounting plug.
TWIST 2 built-in socket with two sockets in white
The Bachmann TWIST 2 built-in socket with two sockets in white (946.200) is ideal for kitchens, offices or lounges. With its round shape, it can be integrated into desks or kitchen worktops to save space. The power line is routed close to the housing and the installation depth is only about 40 mm. This enables problem-free installation, even above drawers.
The white surface fits perfectly into modern or organically lively shape and color concepts. The closure can be opened automatically at the push of a button and the cover is closed by hand after use. The removable cover makes cleaning easier and the new anti-fingerprint coating minimizes signs of use.
Key features Bachmann Twist 2 (946.200)
- Cover in white
- 2x socket, black

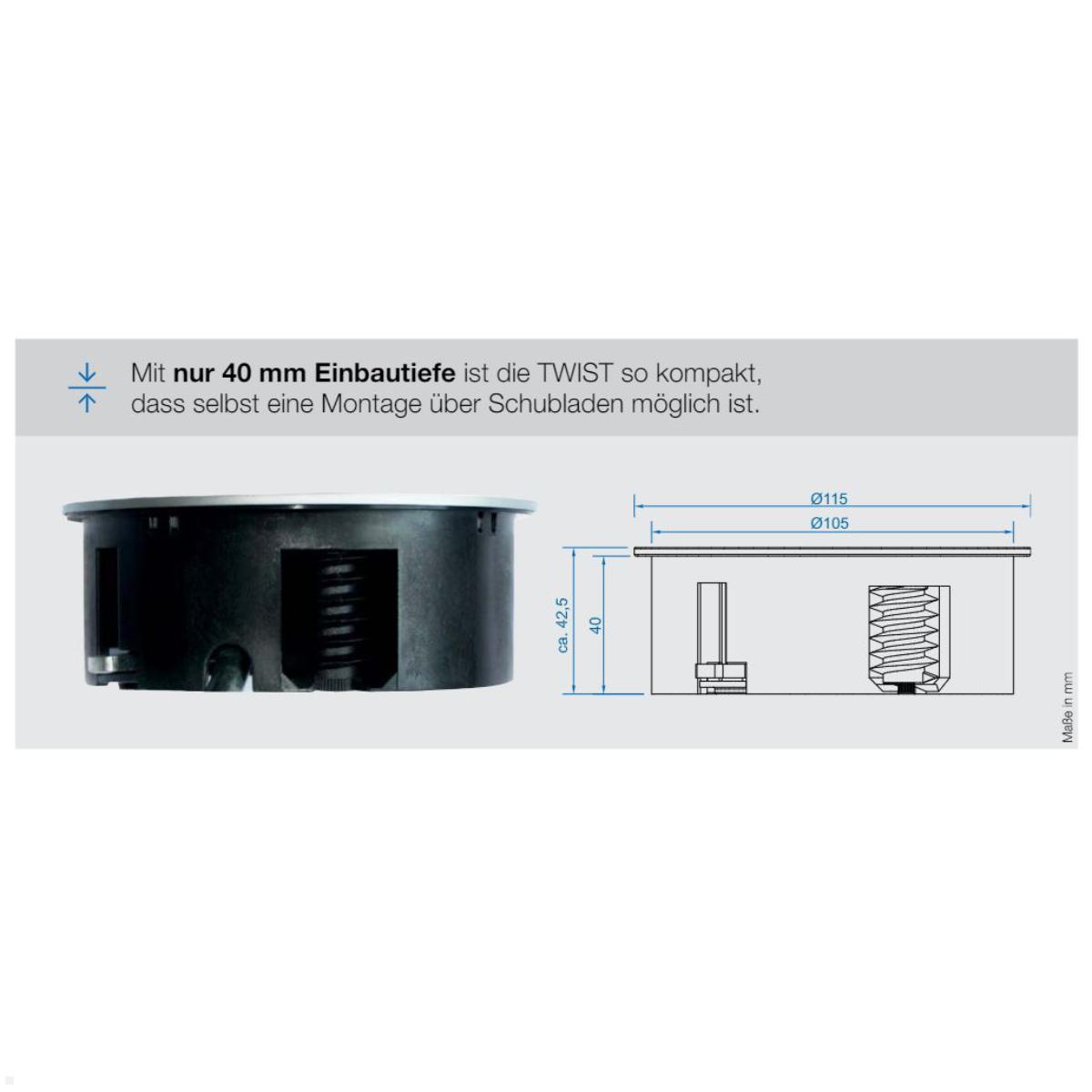

- Installation diameter approx. 104 mm, installation depth 40 mm
- For panel thicknesses from 6 mm to 40 mm
- Power input: 2.0 m cable black | H05VV-F |3G1.5mm²

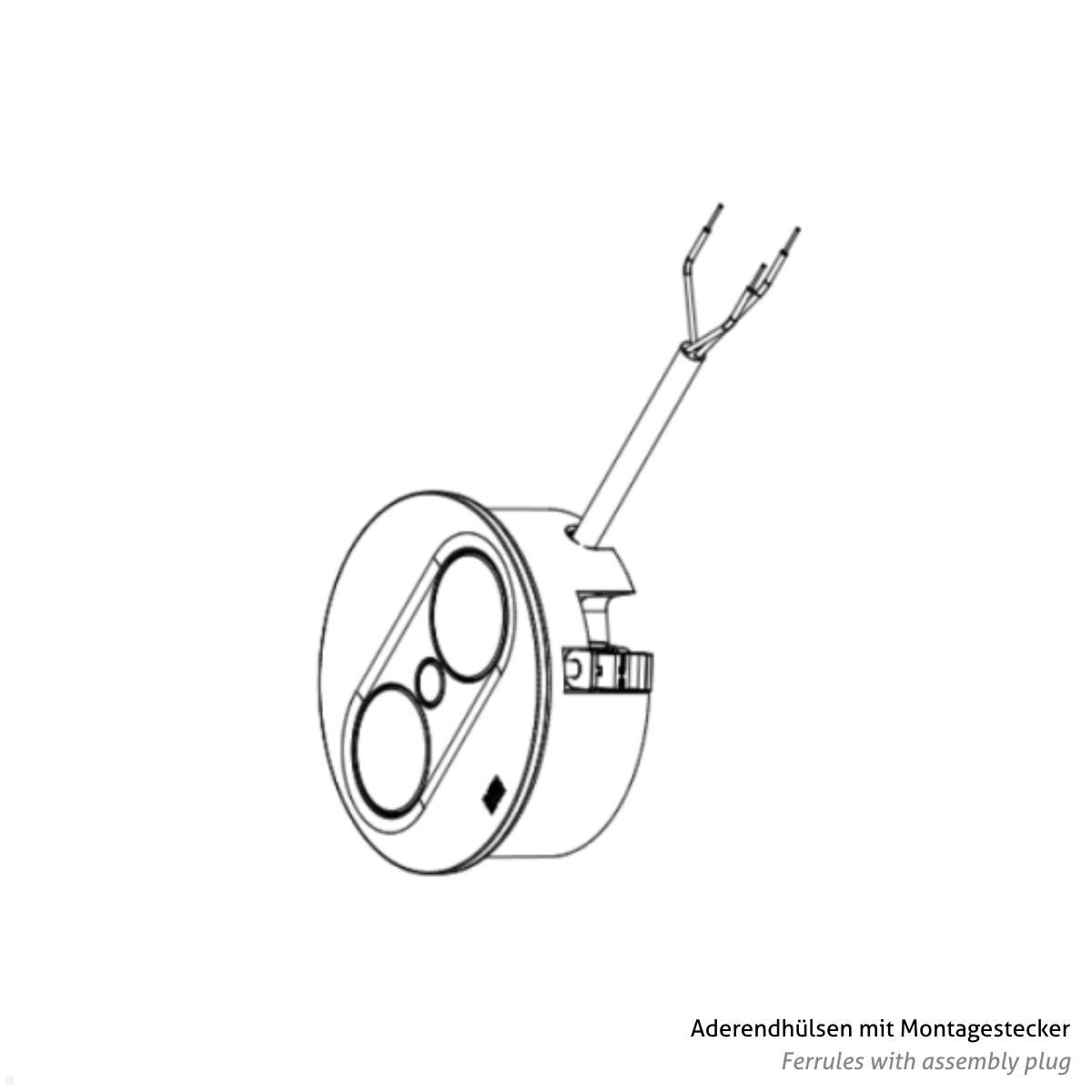

- With ferrules and assembly plug included
- Compact design (HxØ: approx. 42.5 x 115 mm)
- Space-saving cable routing
- Easy and quick assembly
- Protection class IP20
- Red Dot Product Design Award Winner 2022
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 185 x 185 x 95 |

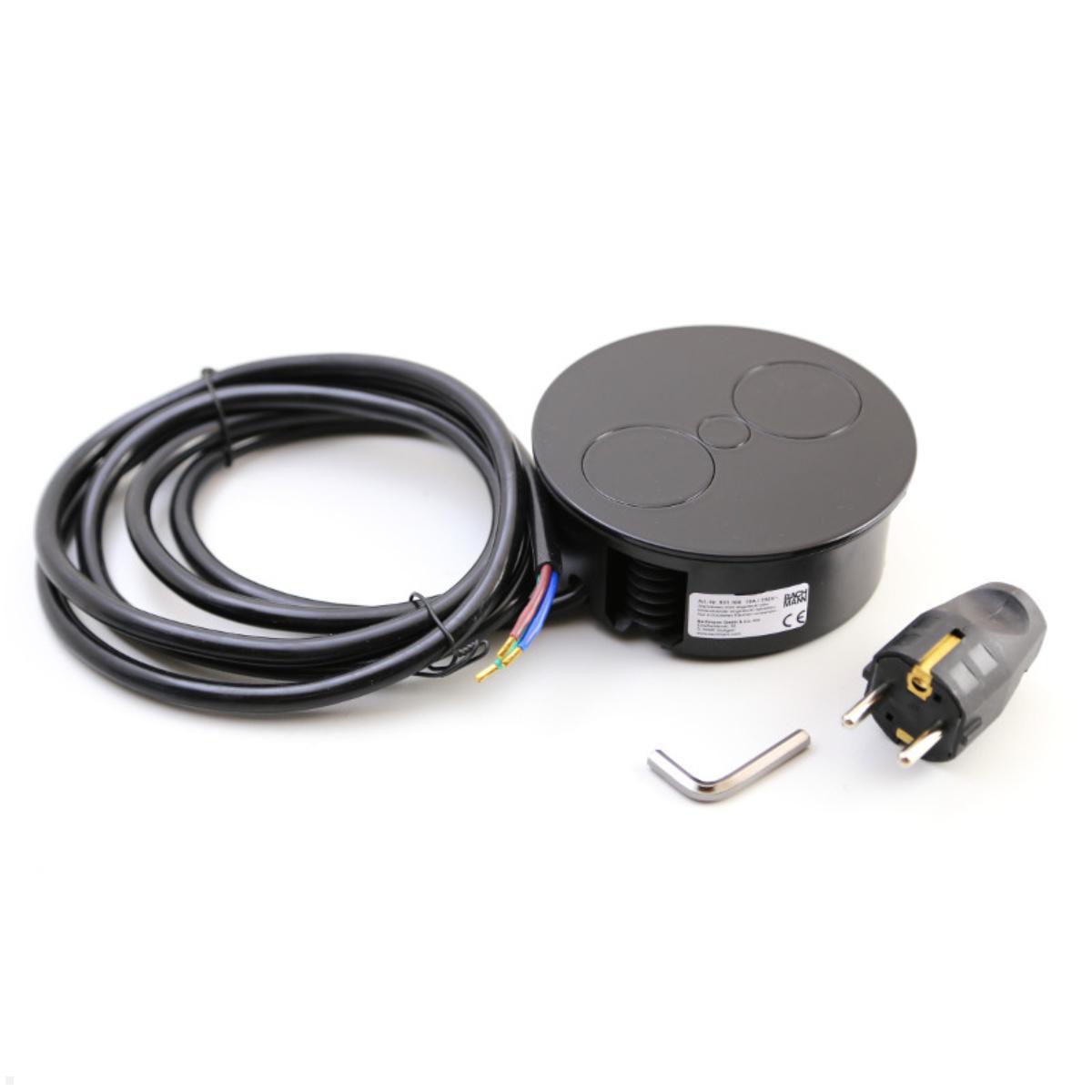

| Scope of delivery: | 1x TWIST2 incl. 2m cable with ferrules, 1x assembly plug, 1x assembly tool, 1x mounting plate for worktops from 6-24mm |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Weiß matt |
| Form: | rund |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
