Bachmann STEP ALU 5-way power strip, increased contact protection (906.19145)
The STEP ALU 5-way power strip impresses with its high-quality aluminum housing, compact design, and enhanced touch protection. With five safety sockets and installation connectors, it is the ideal solution for offices, home offices, and conference rooms.
STEP ALU 5-Way Power Strip, Black – Robust & Space-Saving
The STEP ALU 5-Way Power Strip from BACHMANN impresses with its high-quality aluminum housing, elegant design, and practical functionality. With five earthed sockets (CEE 7/3, Type F), it offers a safe and flexible power supply – ideal for offices, home offices, or conference rooms. Thanks to the power input and output via the installation connector, the strip can be easily expanded and integrated into existing systems. The compact design saves space in the workplace, while the increased touch protection ensures additional safety. With the visible BACHMANN logo, the power strip stands for tested quality and durability.
Technical Details STEP ALU 5-Way Power Strip (906.19145)
- STEP ALU Power Strip with Increased Touch Protection
- 5x Schuko Socket Outlets (CEE 7/3, Type F)
- Power Input & -output via installation connector
- High-quality aluminum housing with a modern design
- Increased contact protection
- Dimensions (W x H x D): 315 x 52 x 44 mm
- Multi-table socket (EC002759)
- Protection class: IP20 (for indoor use)
- Nominal voltage: 250 V
- Operating temperature: 0 - 35°C
- Design: Surface-mounted
- Shape: Rectangular
- Material: Aluminum
- Color: Black

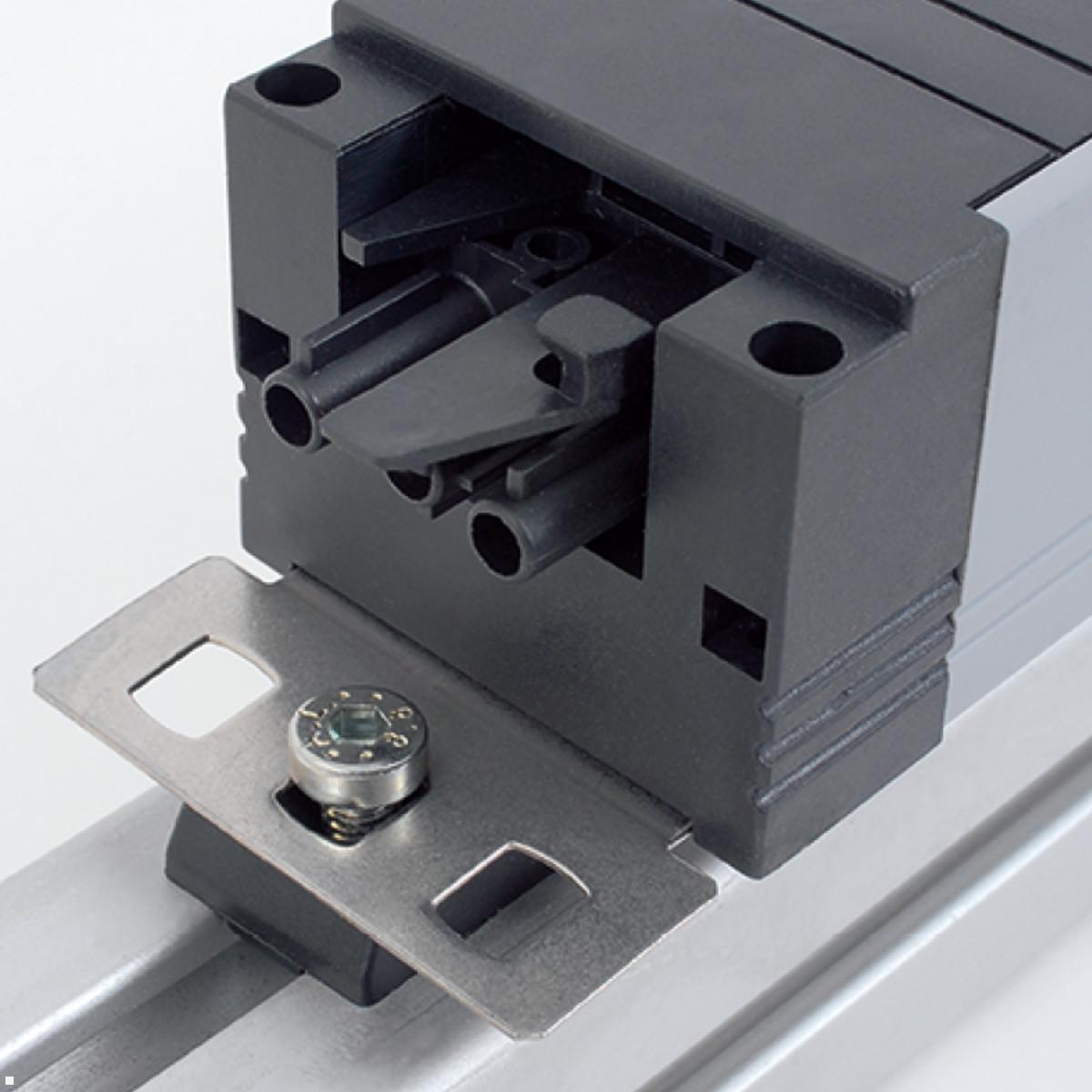

Connecting / Cascading Bachmann STEP Power Strips
Bachmann's modular STEP power strips feature the appropriate coding and plug locking mechanism according to EN 61535 and can therefore be permanently mounted and connected to one another. Bachmann uses gesis and GST18 from Wieland Electric as standard.
DGUV V3 Note: According to DGUV V3, permanently screwed / stationary power strips must be inspected every four years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be inspected annually. Further information is available in the download area under "Manufacturer Declarations"
| Product sheet: |  [pdf] |
|---|---|

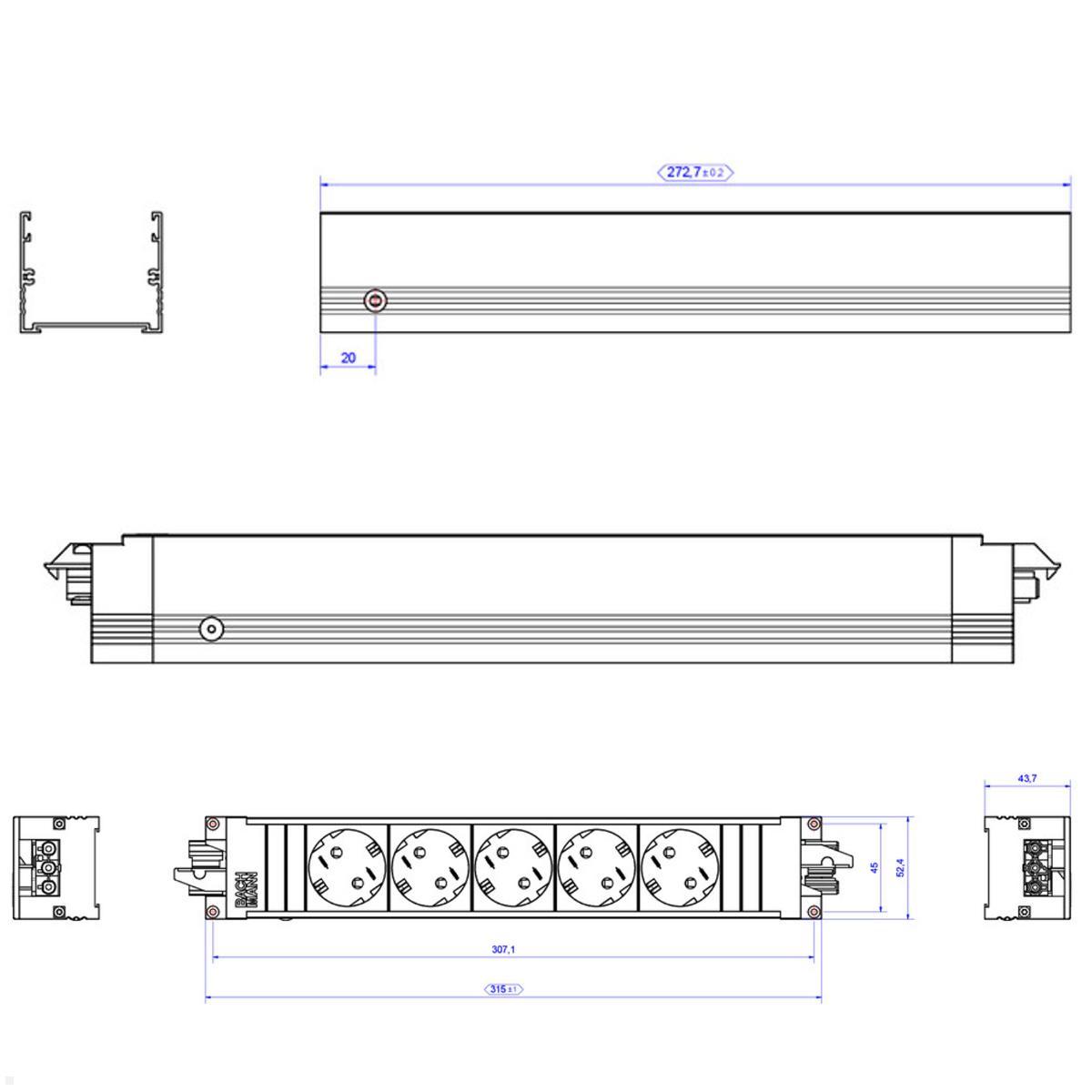

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 315 x 52 x 44 |
| Scope of delivery: | 1x STEP power strip |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 5 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
STEP ALU 5-Way Power Strip Black – compact, robust, and safe
The STEP ALU 5-Way Power Strip Black from BACHMANN is the ideal solution for anyone looking for a high-quality aluminum power strip for the office, home office, or conference room. With five earthed sockets (CEE 7/3, Type F), increased contact protection, and a robust aluminum housing, it combines safety, durability, and modern design in one product. Unlike simple plastic strips, the Bachmann aluminum power strip impresses with its solid and stable construction. The black aluminum housing is not only particularly durable but also blends harmoniously into any modern work environment – Whether on the desk in a home office or in professionally equipped conference rooms.
Made for daily use
Thanks to its durable materials, the power strip is ideal for regular use. It can withstand even higher loads while remaining dimensionally stable and reliable. The STEP ALU 5-way power strip is equipped with enhanced touch protection. This ensures safe operation in the office or at home, even in environments where multiple people access the power supply. The five safety sockets (Type F) are arranged so that even larger power supplies or angled plugs can easily fit. This makes the 5-way aluminum power strip ideal for computers, printers, monitors, chargers, and many other electrical devices.

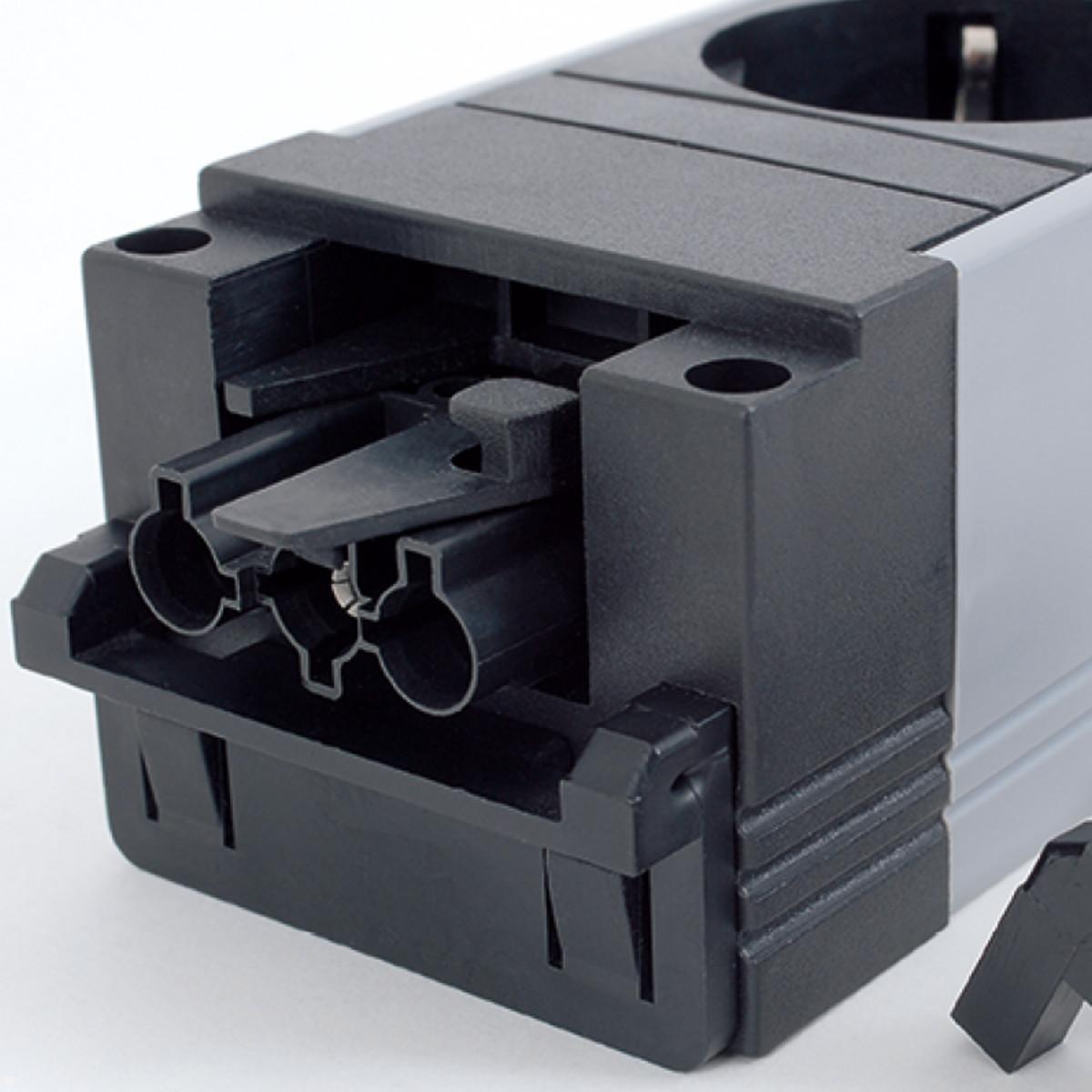

Expandable with installation connectors
A special feature of this Bachmann office power strip is the power input and output via installation connectors. This allows the strip to be expanded quickly and easily. Several power strips can be connected to each other, allowing even workstations with high energy requirements to be flexibly equipped. This modular design saves space while ensuring a tidy power supply. The STEP ALU power strip in black complies with all common standards and is RoHS-compliant, meaning it is free of hazardous substances. With protection class IP20, it is ideal for indoor use.
Technical specifications at a glance
- 5x earthed sockets (CEE 7/3, Type F)
- Increased contact protection
- Aluminum housing in black
- Power input & output via installation connector
- Dimensions: 315 x 52 x 44 mm
- Volume: 720.72 cm³ (0.72 l)
- Protection class: IP20
- Operating temperature: 0 - 35°C
- Rated voltage: 250 V
- Product group: Multi-socket table socket (EC002759)
- RoHS compliant, unlimited durability
The Bachmann STEP ALU 5-way power strip is the perfect combination of design, functionality, and safety. With its high-quality aluminum housing, five safety sockets with touch protection, and the option for modular expansion, it is the ideal choice for offices, home offices, and conference rooms. Anyone looking for a compact and durable aluminum power strip is making the right choice.
