Bachmann STEP ALU 4x Steckdosenleiste CEE7/3 KS GST18i3 (906.18802)
Compact built-in socket with 2 earthed sockets in an elegant aluminum/black design – the Bachmann STEP 906.18802 impresses with flexible installation, high-quality workmanship, and a modern look for the office, home office, or conference table.
Built-in socket for modern workplaces
The Bachmann STEP 906.18802 is a high-quality, design-oriented built-in socket that perfectly combines functionality and aesthetics. Ideal for use in office workstations, conference tables, or modern living spaces, it offers a space-saving and elegant power supply solution.
Socket unit can be mounted horizontally or vertically

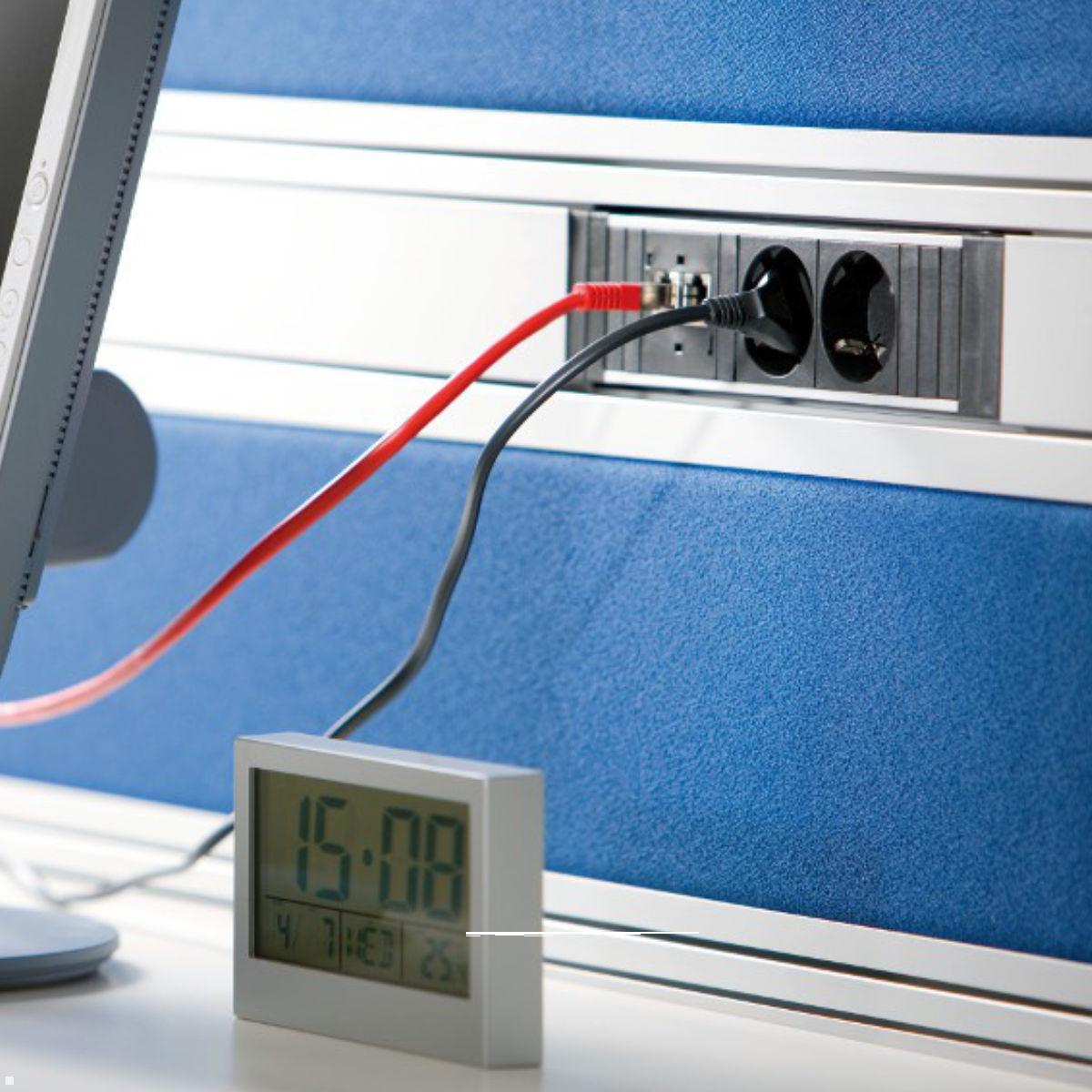

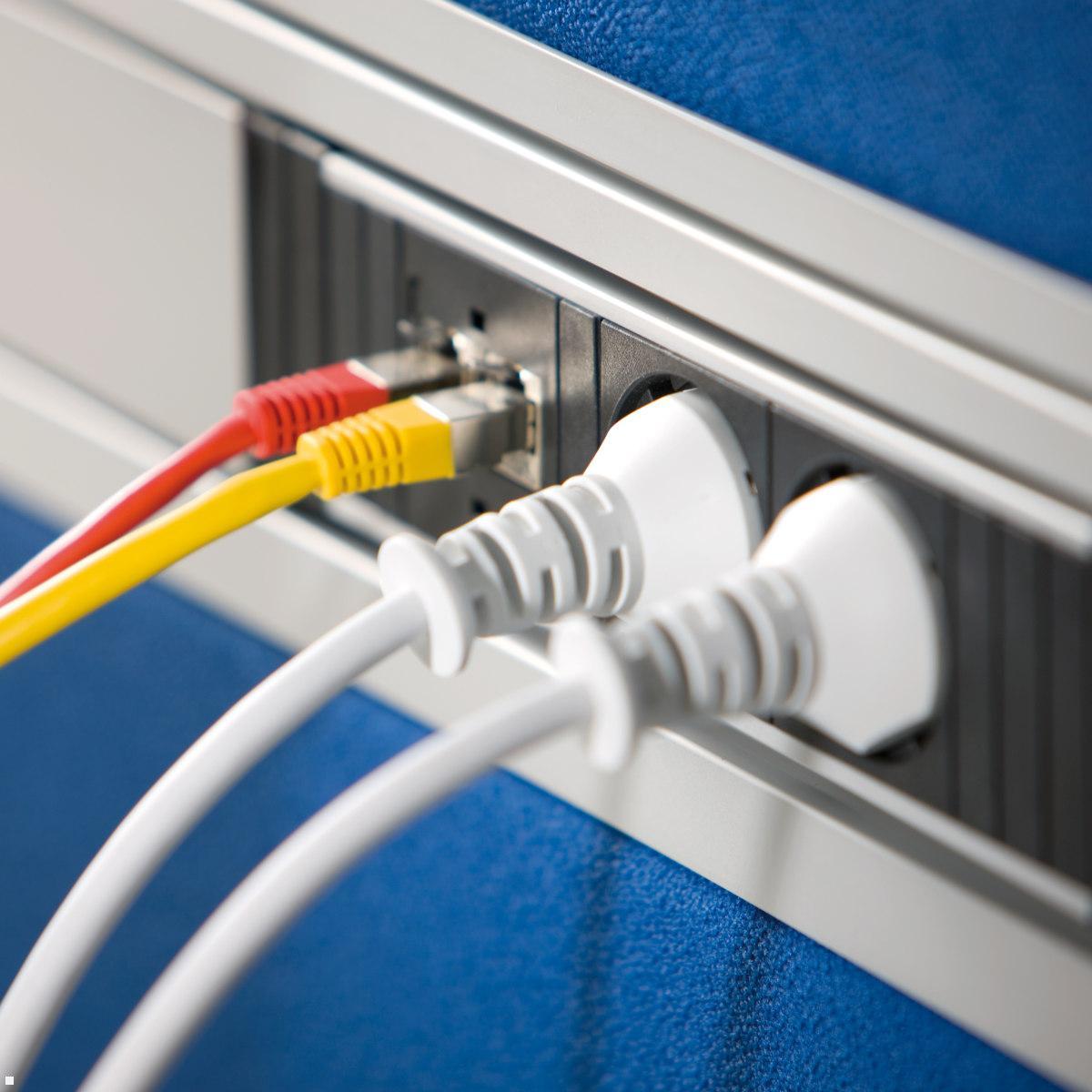

The Bachmann STEP ALU 906.18802 is the ideal solution for all areas where a reliable and unobtrusive power supply is required. In office workstations, it ensures clean cable routing and ergonomic power usage. In home offices, it blends stylishly into modern desk solutions. The STEP also scores points in conference rooms with its discreet design and practical functionality – ideal for presentations or meetings with multiple participants. The socket unit can even be elegantly integrated into kitchens or living rooms without disrupting the style of the room.
Technical Details: Built-in socket with aluminum profile
- 4x CEE7/3 (Type F) sockets
- Supply cable plug: GST18i3 installation plug
- Incl. Increased contact protection
- Socket color: Black, similar to RAL 9005
- Housing material: Anodized aluminum
- Cover: PA6 GF30 850°, black, similar to RAL 9005
- Rated voltage: 250 V
- Protection class (IP): IP20
- Operating temperature: 5 - 35 °C
- Dimensions (LxWxH): 272.2 x 52.4 x 43.7 mm
- Outlet coupling: 1x installation coupling, 2-pole with protective contact
- Sockets can be cascaded (KS)
Perfectly prepared for the best connections

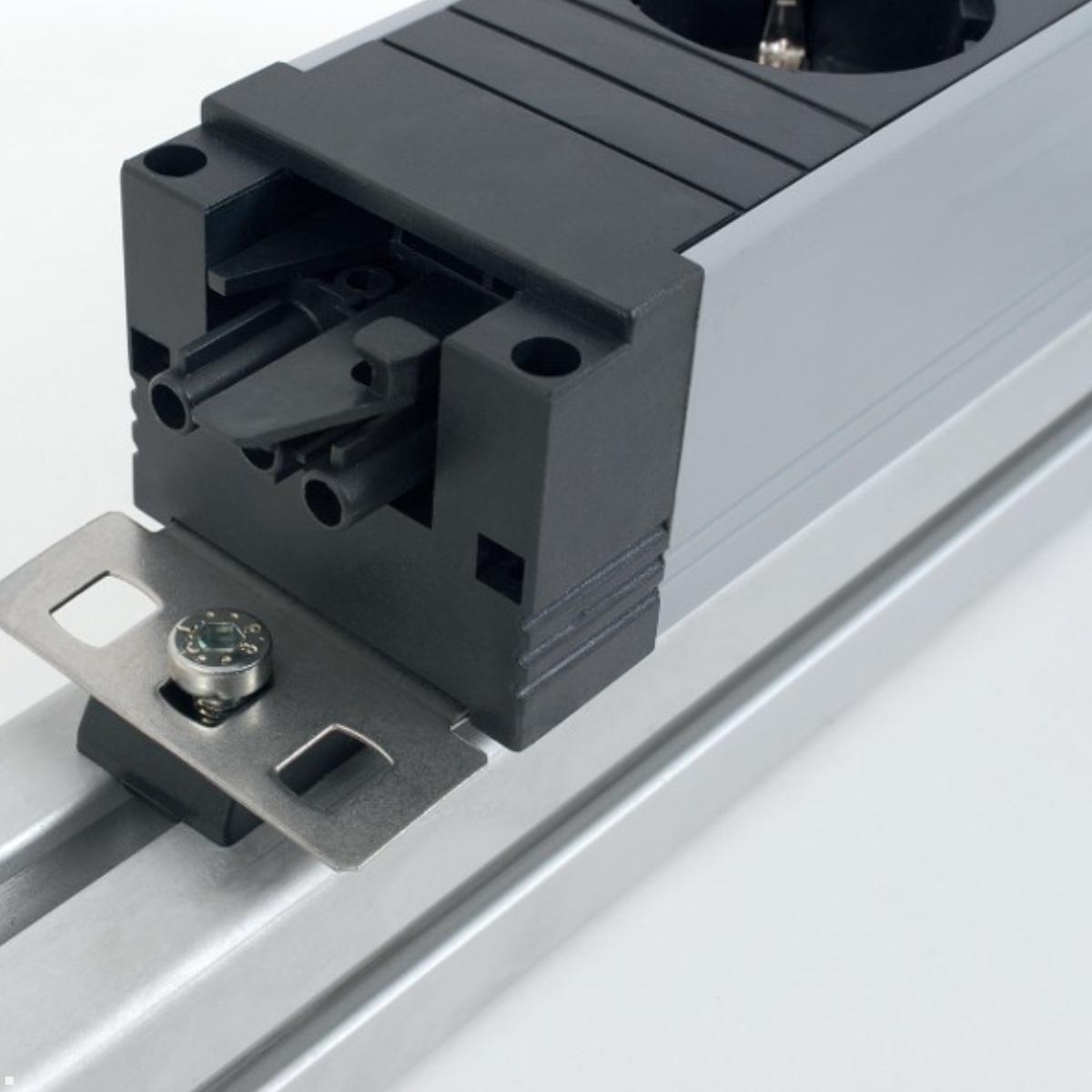

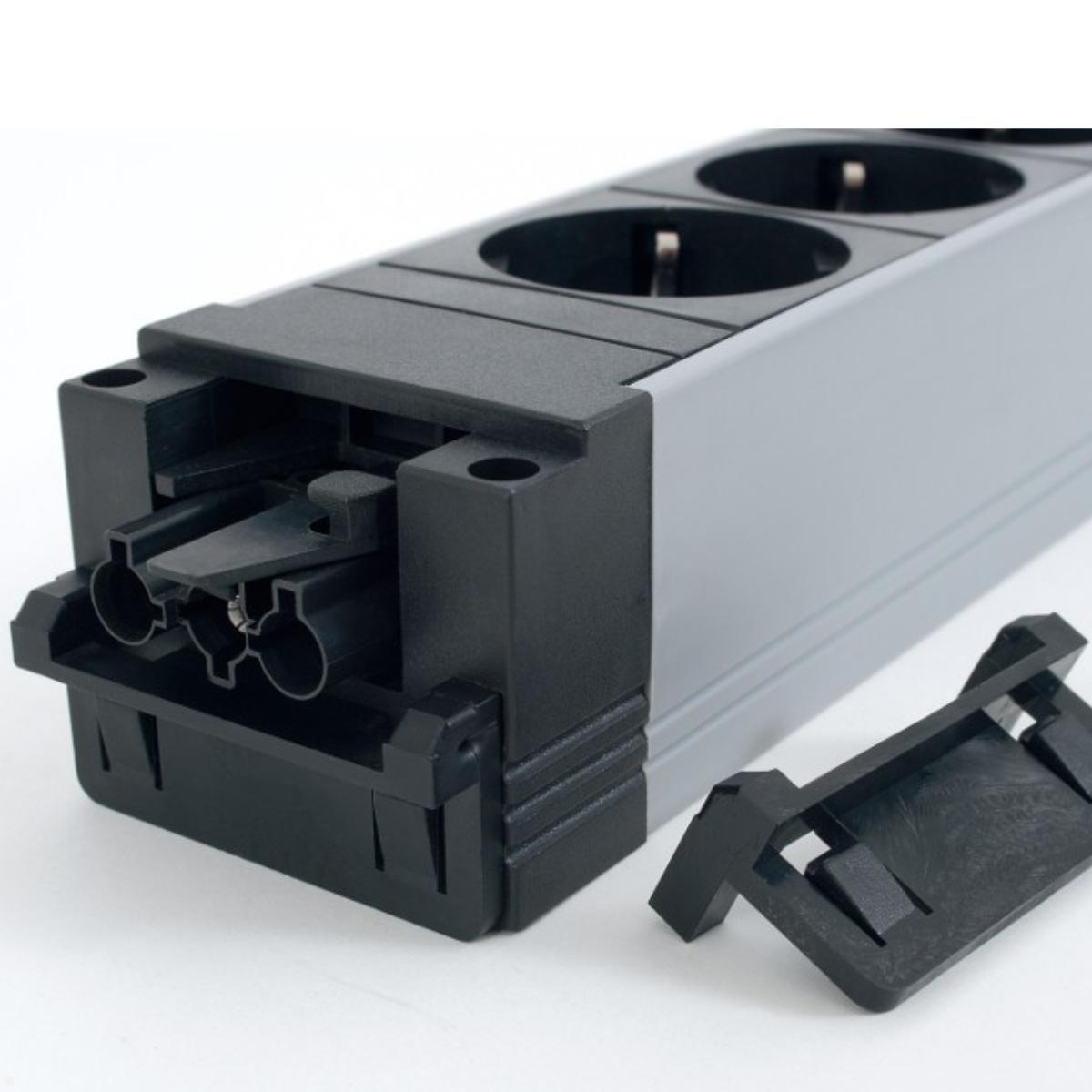

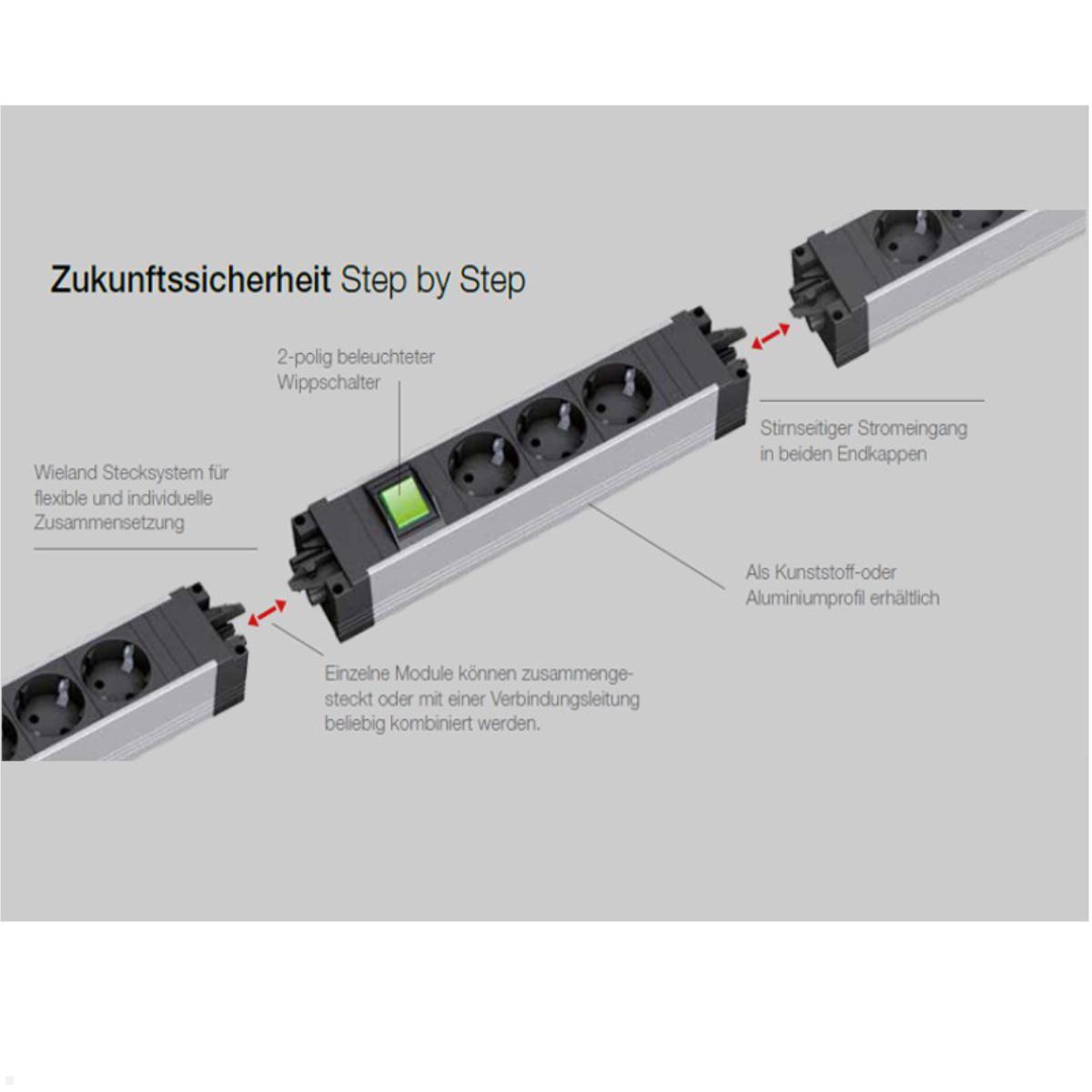

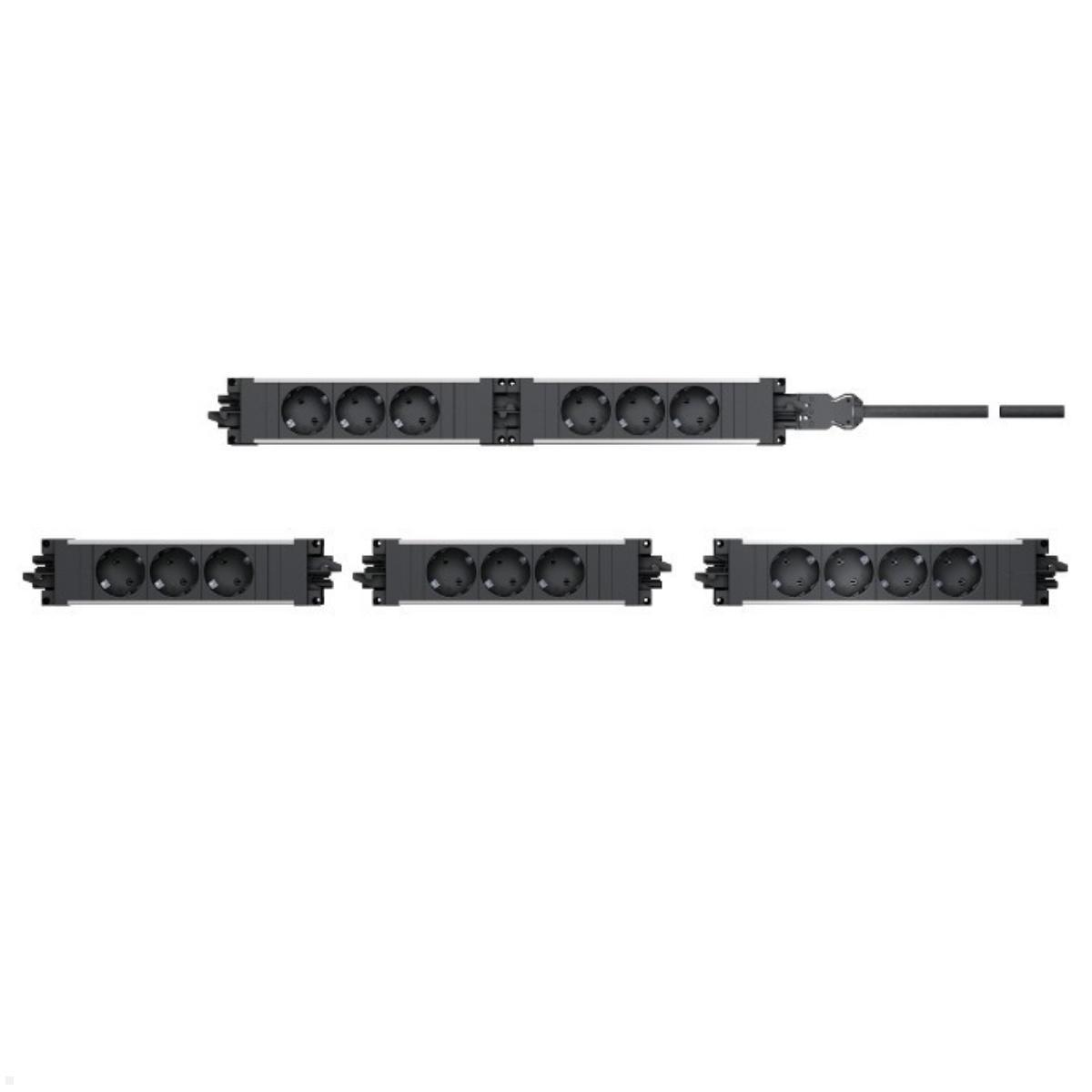

The Bachmann STEP power strip is available with aluminum or plastic profiles. Multiple power strips can be connected to each other as a modular system. Bachmann STEP is primarily designed as a simple power supply unit for office workstations. Permanently installed devices such as PCs, monitors, printers, etc. can be connected to Bachmann STEP. Bachmann STEP power strips have a power input and a power output, each integrated into the end caps on the front. The built-in GST18 connectors from Wieland are particularly proven connectors for office use and feature the appropriate coding and plug locking according to applicable standards. Bachmann STEP Combination Options: Individual modules can be plugged together or combined as desired with a connecting cable. This transforms Bachmann STEP into a customized power distribution system. Other plug-in connection systems, such as Wago Winsta, Woertz, and Ensto, are available upon request.
Note DGUV V3: According to DGUV V3, permanently screwed/stationary power strips must be inspected every four years by a qualified electrician in accordance with DIN VDE 0100-600. Mobile power strips must be inspected annually. Further information can be found in the download area under "Manufacturer Declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf, 110 kb] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 52 x 272 x 44 |
| Scope of delivery: | 1x STEP power strip |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 4 |
| color: | Silver/Anthracite |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Bachmann STEP 906.18802 – The elegant built-in socket for modern spaces
The Bachmann STEP 906.18802 is the perfect choice for anyone looking for a high-quality, compact, and design-oriented built-in socket. Whether in the office, home office, conference room, or living area – with its clean lines and flexible installation, this power strip can be used in a variety of ways.
Design meets function – A power strip with style
The STEP series from Bachmann stands for timeless, functional design. The 906.18802 model impresses with an elegant aluminum profile combined with black plastic end caps. The understated aluminum/black color scheme makes it the ideal solution for modern interiors.
Compact design for more organization
With its slim, elongated design, the Bachmann STEP can be discreetly integrated into furniture or work surfaces. It creates order in the workplace and ensures a clear power supply without visually disrupting the room.
Four earthed sockets – Safe and reliable
Equipped with four protective contact sockets, the device offers convenient connection options for various electrical devices. The sockets are of high quality and offer reliable protection in daily use.
Flexible installation – vertical or horizontal

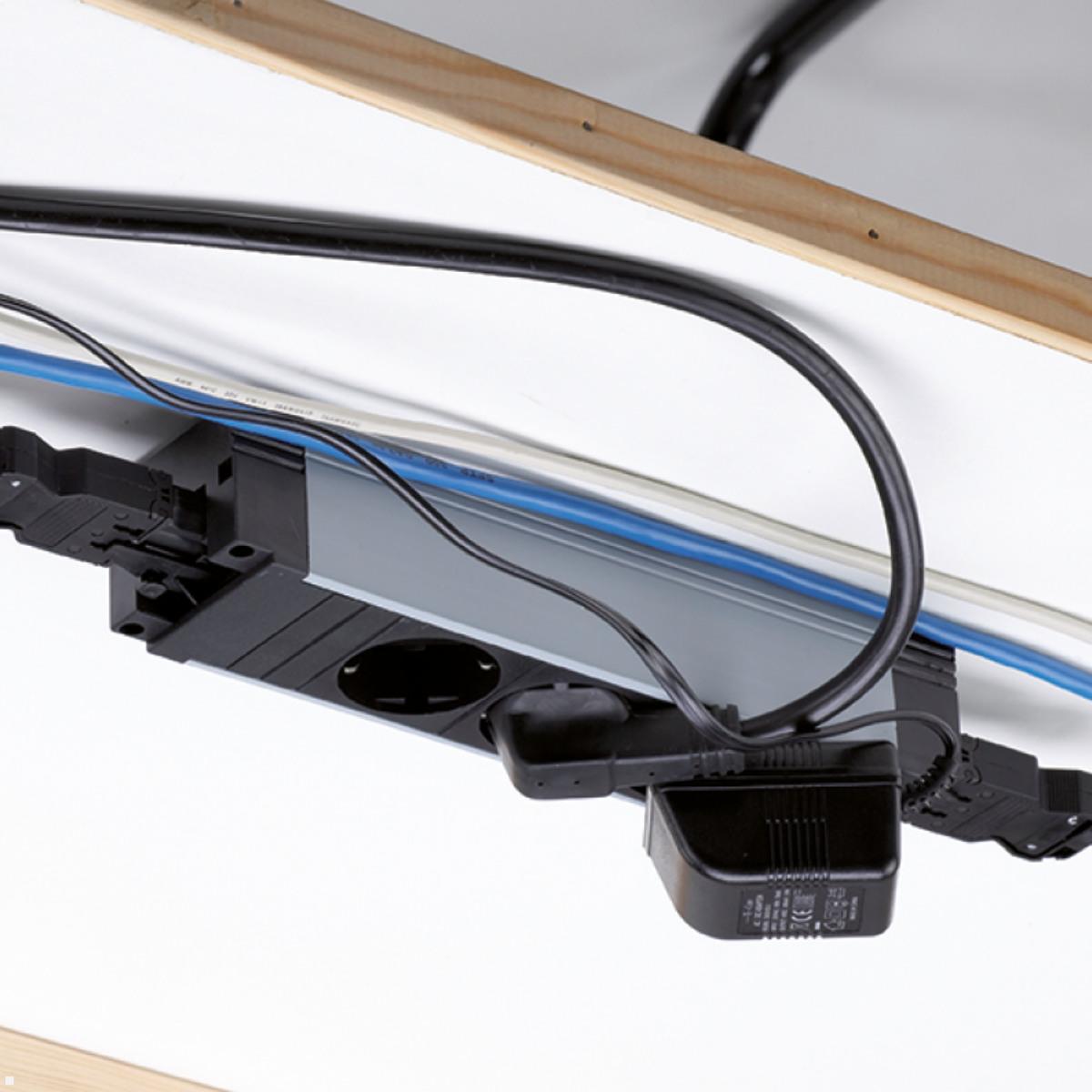

Another advantage is the flexible mounting: The Bachmann STEP 906.18802 can be mounted horizontally under the tabletop or vertically on the side. This makes it the perfect solution for individual room concepts.
Areas of application – Versatile
Perfect for offices, conference rooms, and home offices
The Bachmann STEP 906.18802 is ideal for modern workplaces. In offices, it ensures a tidy, secure power supply. In conference rooms, it offers discreet access to power sources for presentations or meetings. It also blends discreetly into the interior design concept of a home office. Thanks to its unobtrusive design, the STEP can also be used in kitchens or living rooms, for example, as an additional socket on work surfaces, in sideboards, or TV cabinets. The Bachmann STEP 906.18802 impresses with a successful interplay of design, functionality, and quality. With two earthed sockets, flexible mounting options, and high-quality workmanship, it is a well-thought-out solution for anyone who values order, security, and aesthetics.
