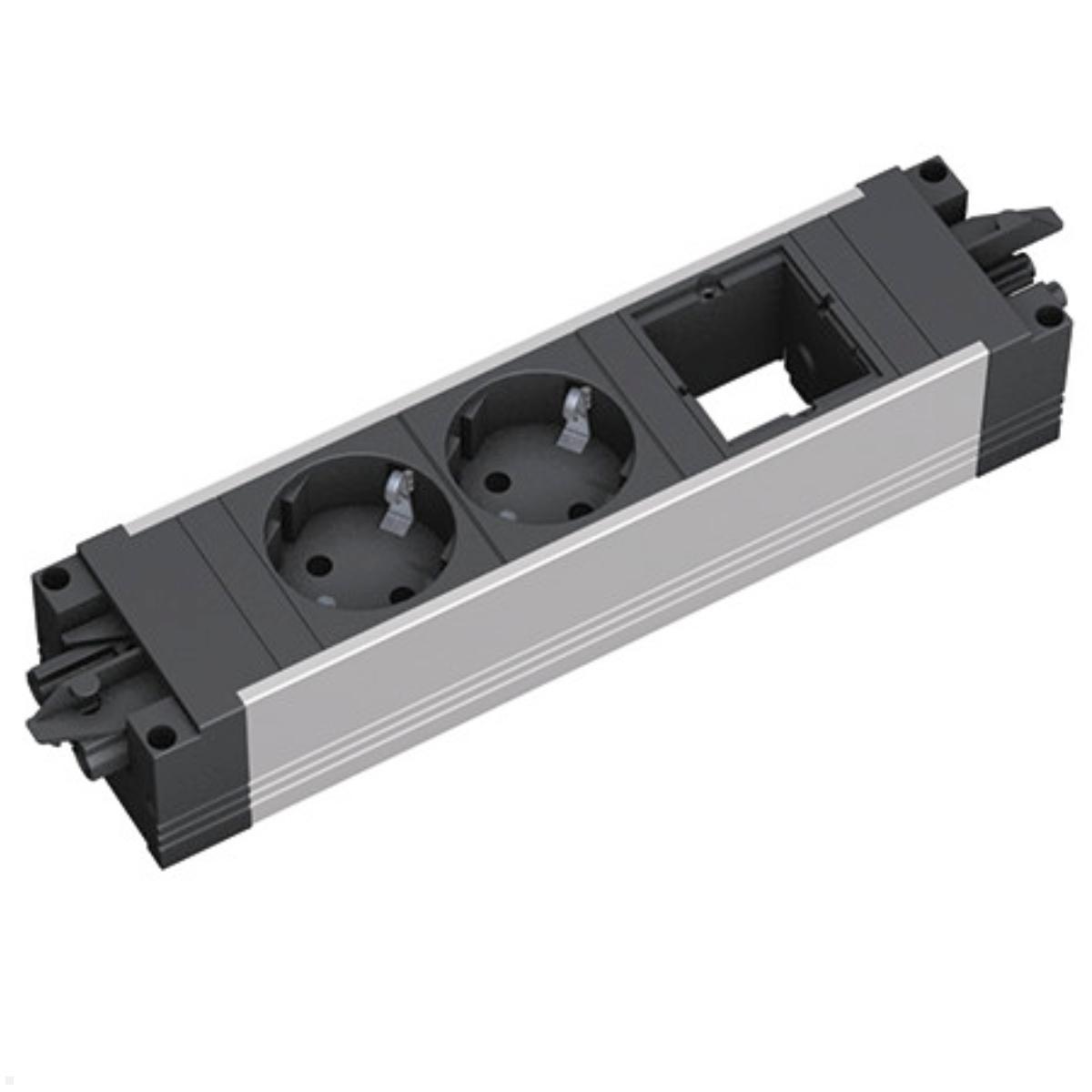

Bachmann STEP ALU 2x power strip, 1x custom module (906.09528)

Multiple socket with custommodule insert

The Bachmann 906.09528 Step Alu powerstrip is a modular 2- fold socket with additional custom module insert. This combination offers you a practical solution for powering electronic devices in your office, home or other work environment. The multiplesocket can be easily installed in desks, worktops or on T-slot profiles and stand profiles from different suppliers. It can be easily fixed with special, ESD-compatible brackets. Both the power input and the power output are via the Wieland GST18 connector system. The power strips can be linked by using device extensions. The energy is fed in either directly at the power connection with a device supply line or via feed-in modules. The custom module insert allows you to customize the socket to your specific requirements. For example, you can equip the module with USB ports, network jacks, HDMI ports, or other ports, depending on the devices you connect want to connect.

Key features of power strip

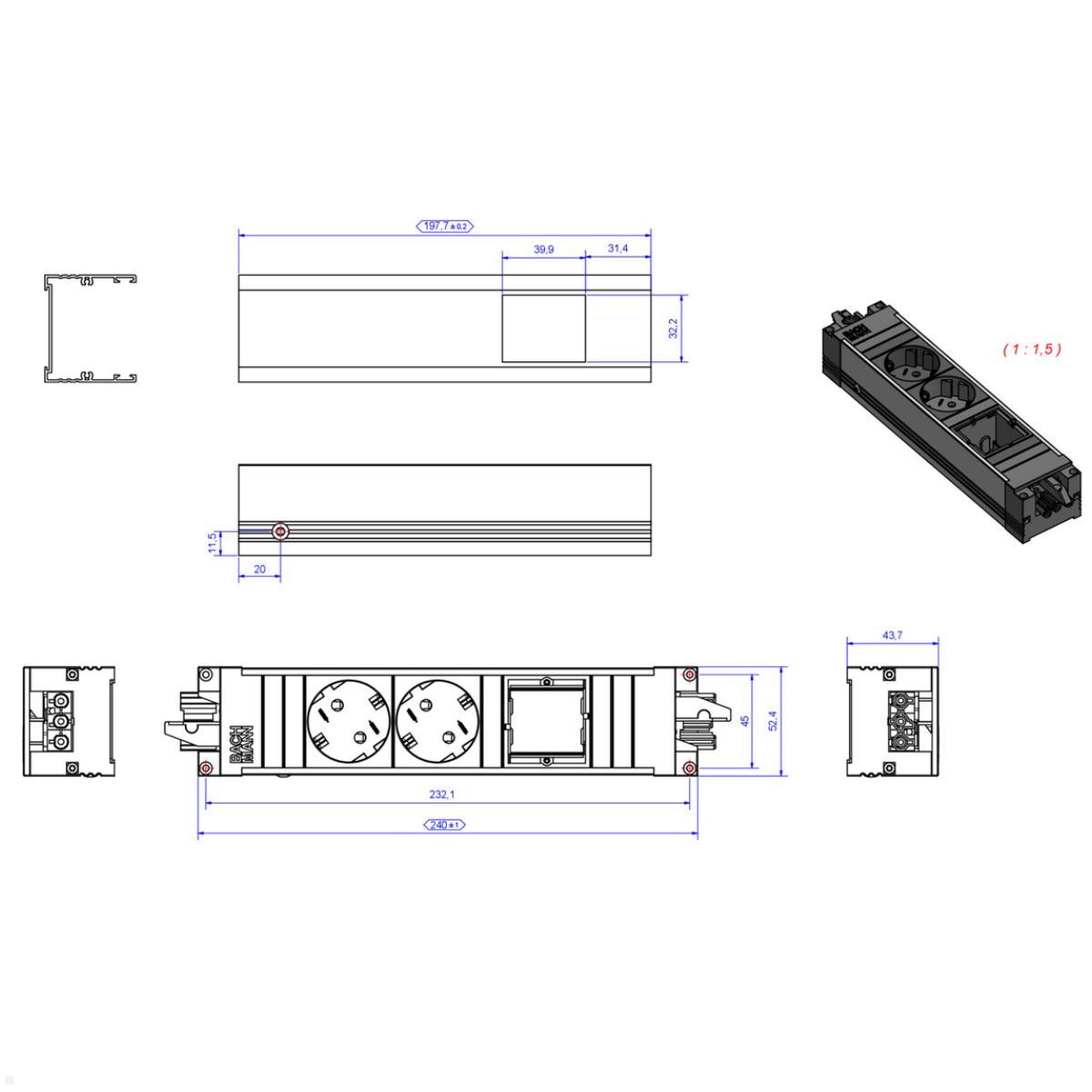

• Socket strip 2 x CEE7/3 and 1 x CM
• Length approx. 240 mm
• Width 52 mm
• Height: 44 mm
• Rated current: 16A / 250V~
• IP20 protection class (protection against contact , dust, water)
• Aluminium profile silver, sockets black
• 2x sockets, 2-pole with earthing contact, 35° twisted, 20A / 250V
• 1x custom module (insert without content)

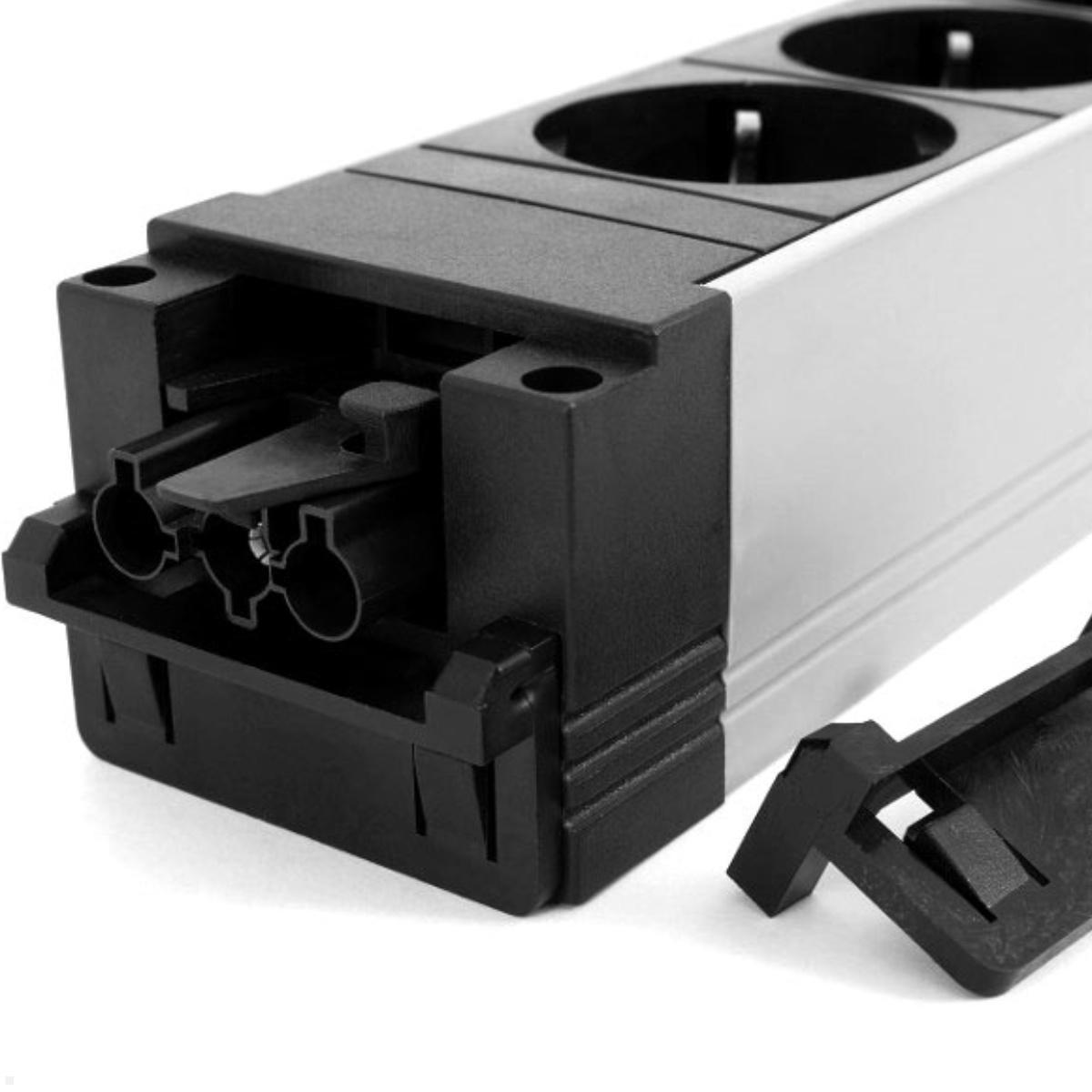

• Power input: GST18i3 plug black
• Power output: GST18i3 socket black
• incl. Plug latching
• Successor to 906.000

Perfectly prepared for the best connections

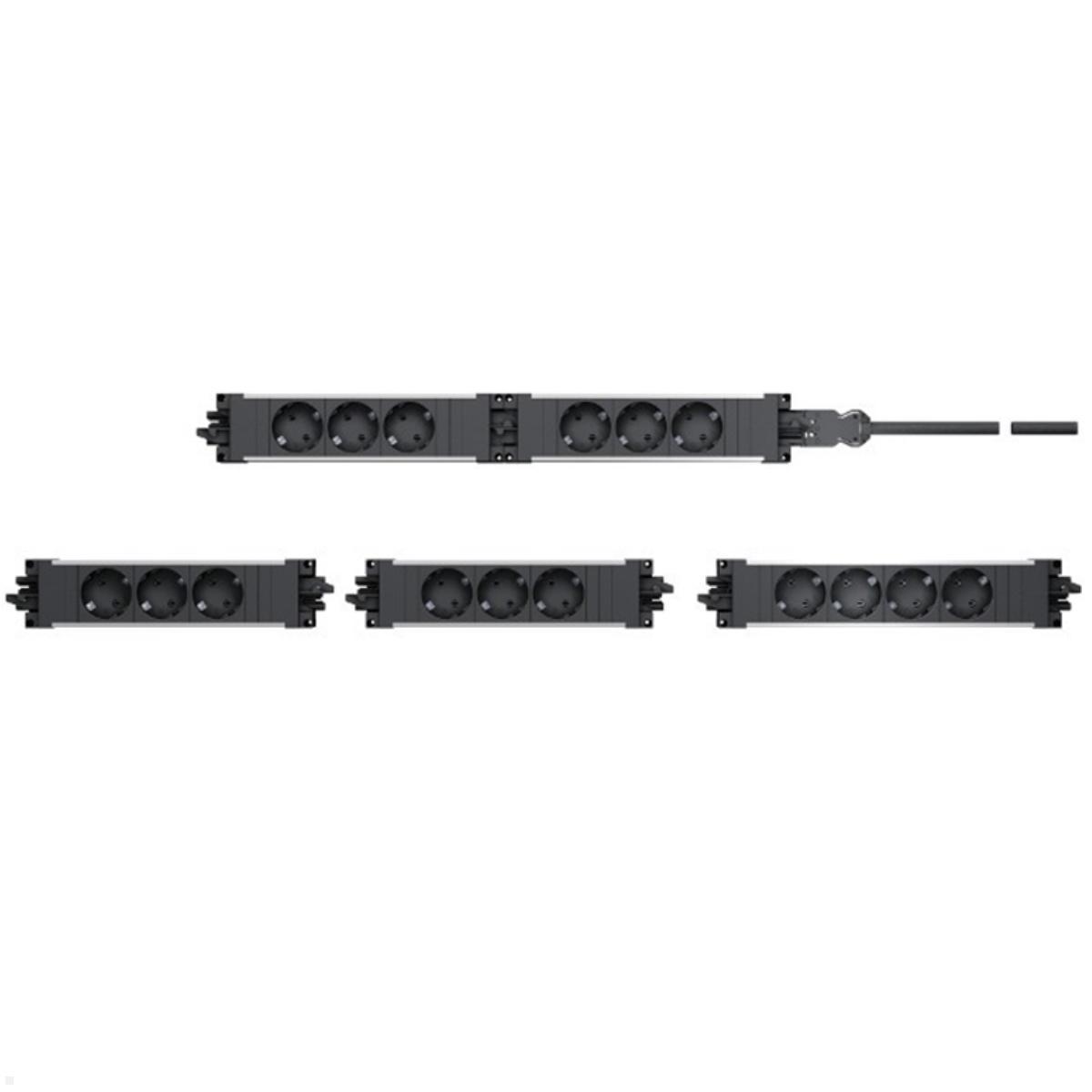

The Bachmann STEP socket unit is made of aluminium - or plastic profile available. Several socket units can be connected to each other as a modular system. Bachmann STEP is primarily designed as a simple electrification unit for the office workplace. Permanently installed devices such as PCs, monitors, printers, etc. can be connected to Bachmann STEP. Bachmann STEP power strips have a power input and a power output, each integrated in the end caps on the front. The built-in GST18 connectors from Wieland are particularly tried and tested connectors for office use and have the appropriate coding and connector latching in accordance with the applicable standard. Bachmann STEP Combination options Individual modules can be plugged together or combined with a connecting cable as desired. This turns Bachmann STEP into an individual power distribution system. Other connector systems such. B. Wago Winsta, Woertz, Ensto can be realized on request.

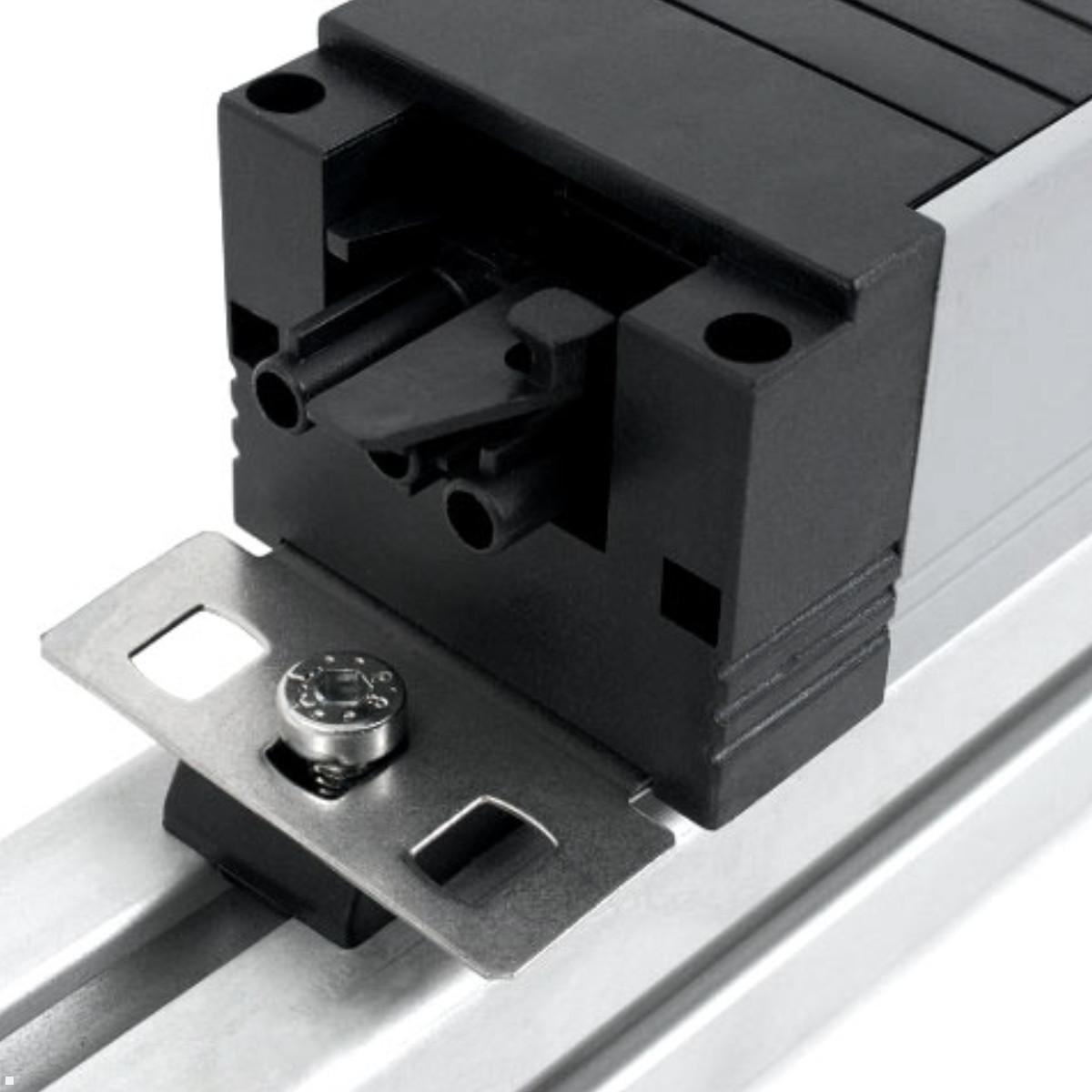

Many mounting options

Bachmann STEP socket units can be used in many different ways. For example for mounting under tabletops, in cable ducts and partitions. Various fastening options are available for assembly for the different applications.
