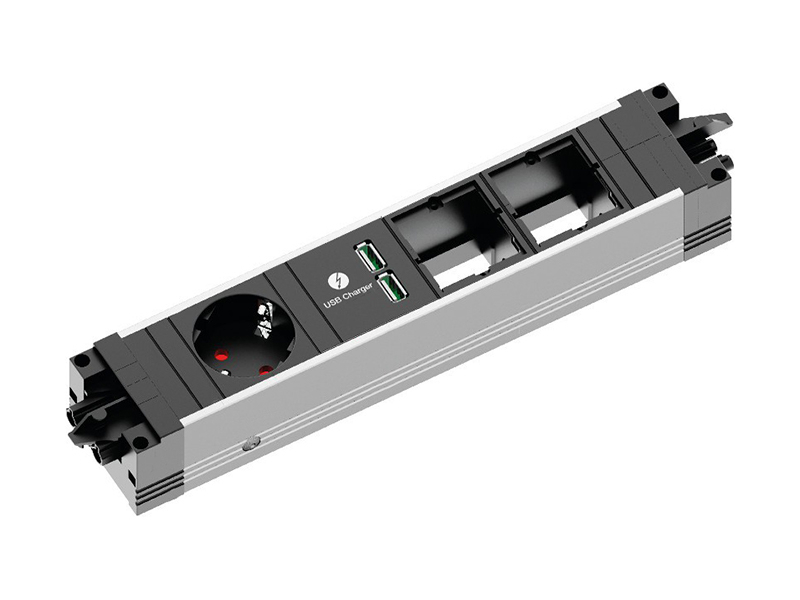

Bachmann STEP ALU 1x socket 1x USB, 2x custom module, GST18 (906.0208)

Bachmann STEP ALU 1x socket 1x USB, 2x custom module, GST18 906.0208

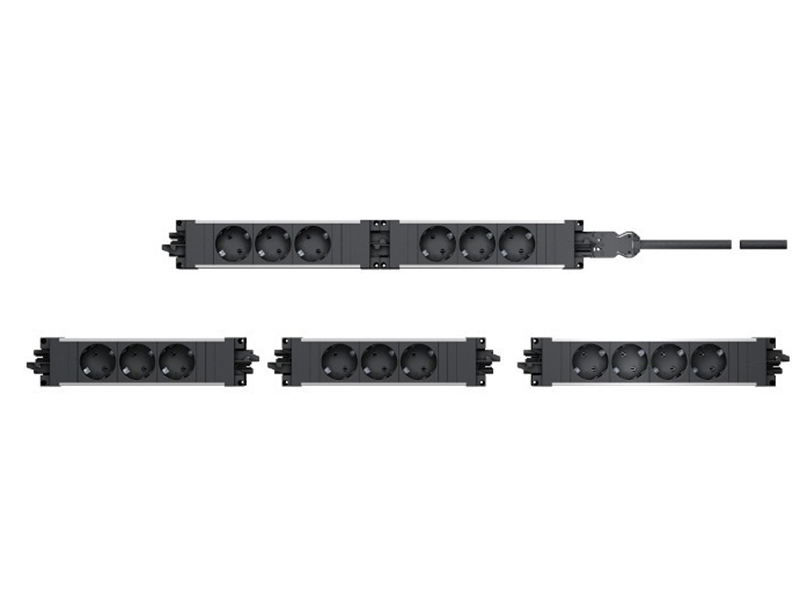

Bachmann power strip STEP ALU with aluminum profile (52 mm height) as a simple, modular electrification kit. Several power strips can be connected together as a modular system. First and foremost, Bachmann STEP is designed as a simple electrification unit for the office workplace. At Bachmann STEP permanently installed devices such as PC, monitor, printer, etc. can be connected.

Modular electrification outlet

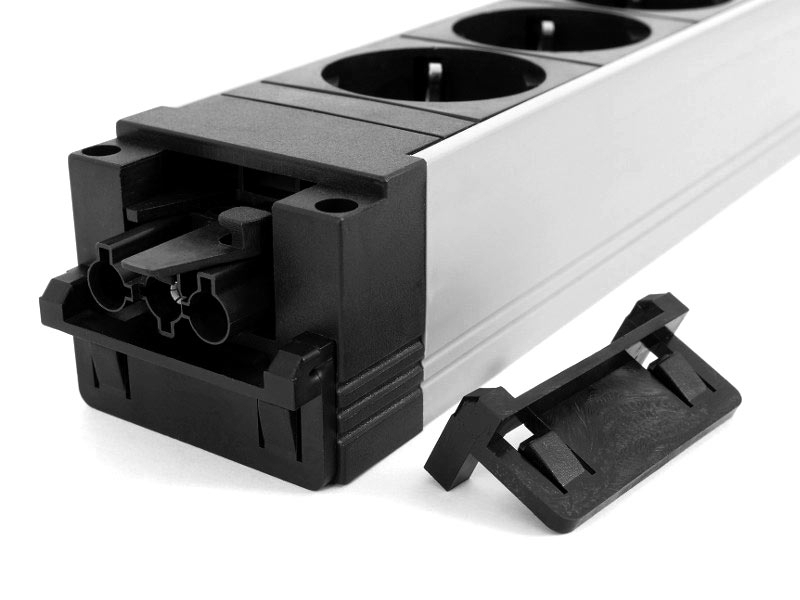

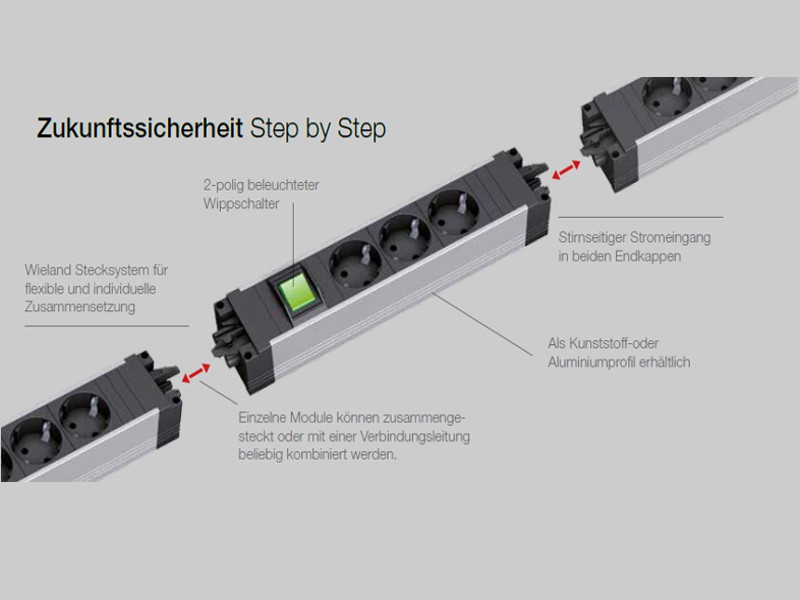

Bachmann STEP power strips have a power input and a power output, each integrated in the end caps. The built-in GST18 connectors from Wieland are particularly well-proven connectors for office use and have the appropriate coding and plug locking according to the valid standard. Individual modules can be plugged together or combined with a connection cable. This makes Bachmann STEP the individual power distribution system. Other connector systems such. B. Wago Winsta, Woertz, Ensto are available on request.

Key features Bachmann STEP ALU 1x socket, 1x USB, 2x Custom 906.0208

• Height bar: 52 mm
• Max. 16A / 230V ~ / 3.680W
• Aluminum profile silver, sockets black
• 1x socket outlets with child protection, turned 35°
• 2x custom module
• 1x USB dual charger (5.2V / 2.15A)
• Power input: GST18i3 plug black
• Power output: GST18i3 socket black
• Incl. safety plug
• Compact dimensions and sturdy housing
• Mounting option on T-slot profiles and stand profiles from different suppliers
• Easy installation with adapted brackets (ESD-compatible)
• Power input and output with Wieland GST18 plug-in system
• Optional fitting of the strips with modules

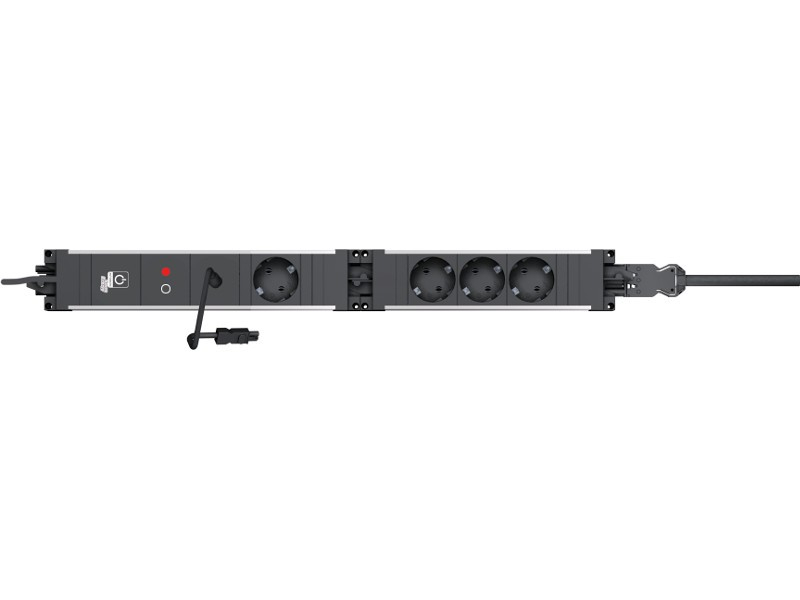

• Interlinking of energy bars with each other by means of device extensions
• Infeed directly at the power connection with device supply line or via feed modules

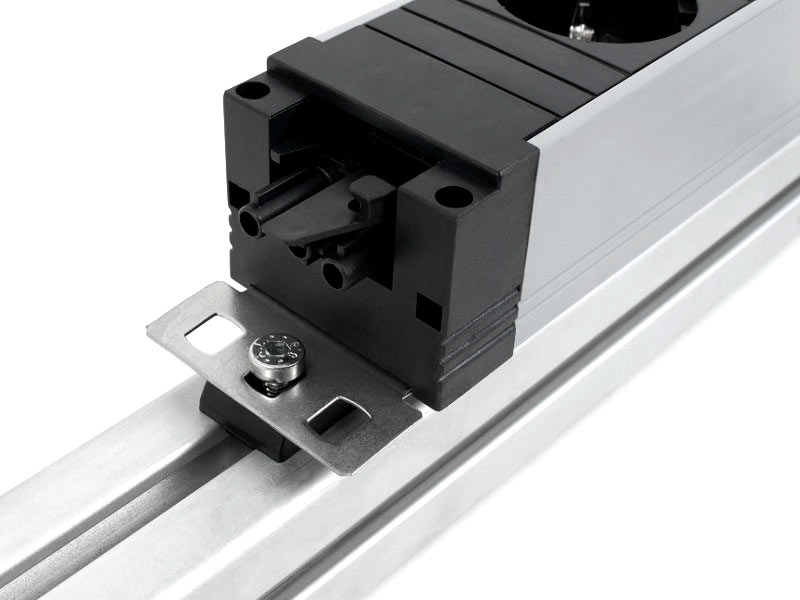

Various mounting options

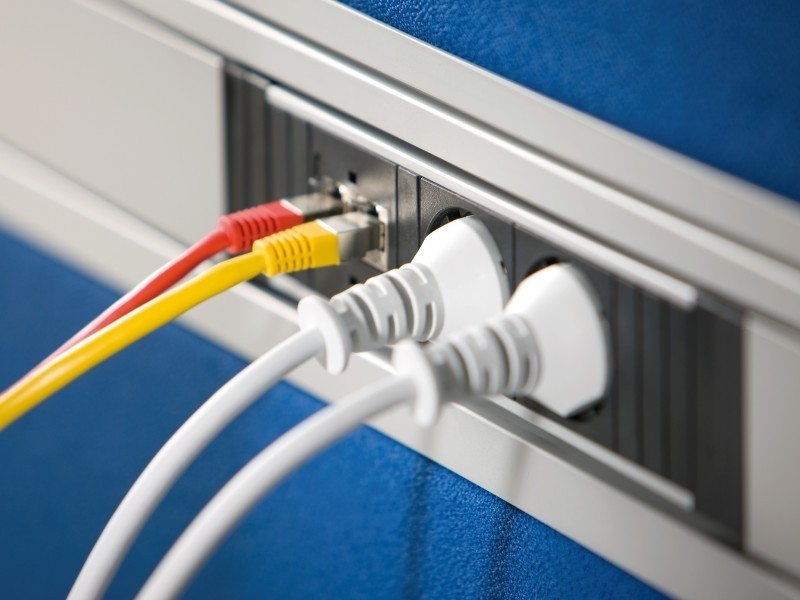

There are many possible applications for the Bachmann STEP power strip units. For example, for installation in cable ducts, under table tops and partitions. Various mounting options are available for mounting for different applications.

Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
