Bachmann PIX UP retractable built-in socket, 19 mm installation depth, 0.5 m, black (BM0031088)
Highlights
- Retractable built-in socket for furniture
- Only 19 mm installation depth
- 90° rotation mechanism, flush-mounted
- Suitable for material thicknesses from 1 mm
- Awarded the German Design Award
Retractable Built-in Socket with 19 mm Installation Depth for Furniture Integration

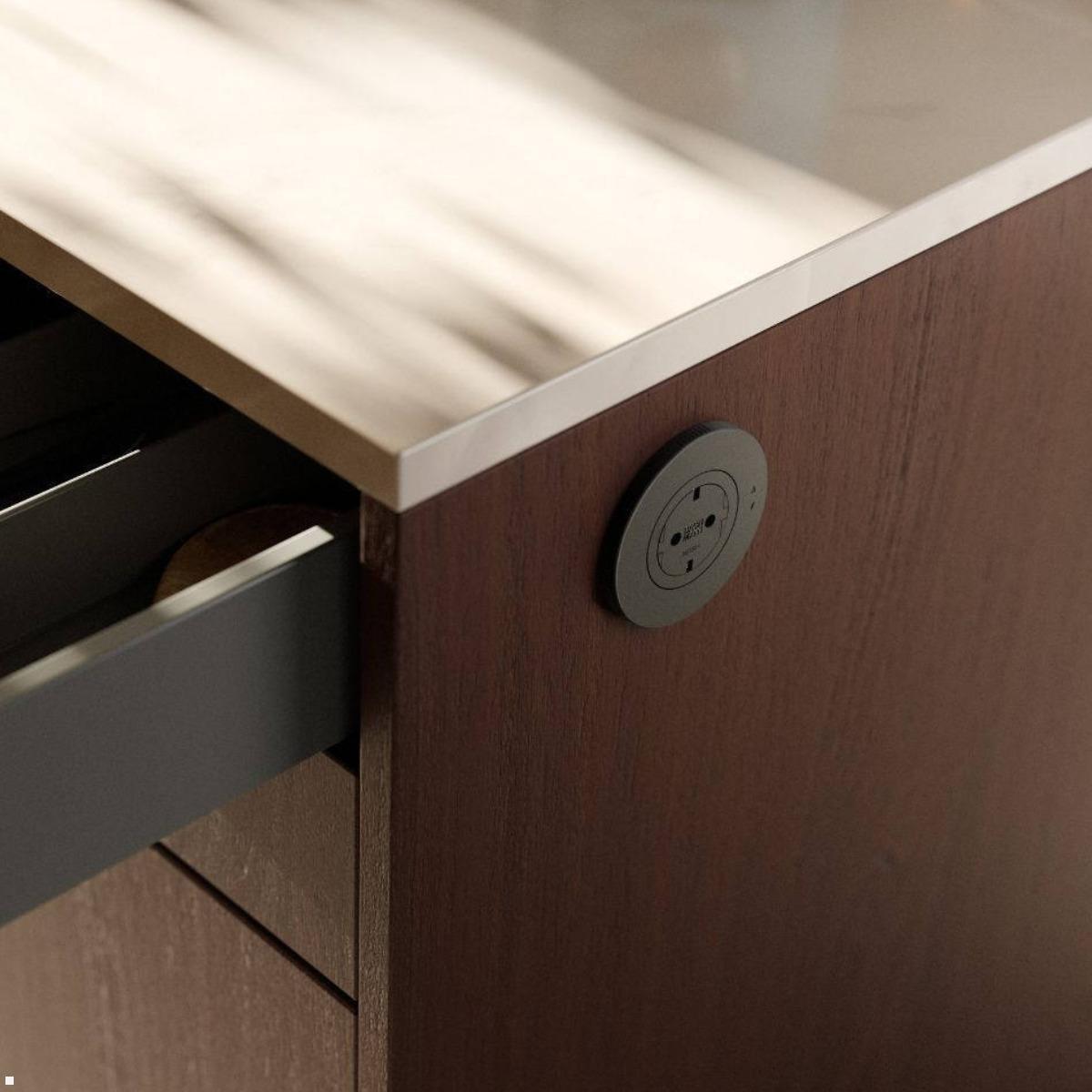

The Bachmann PIX UP retractable built-in socket, 19 mm installation depth, 0.5 m, black (BM0031088) is an extremely flat solution for power supply in furniture and tight installation situations. With just 19 mm installation depth, the PIX UP socket is among the slimmest available solutions and was awarded the German Design Award for its innovative design. It is suitable for placement in side panels, worktops, drawers or gaps – anywhere conventional sockets cannot be used due to their installation depth.

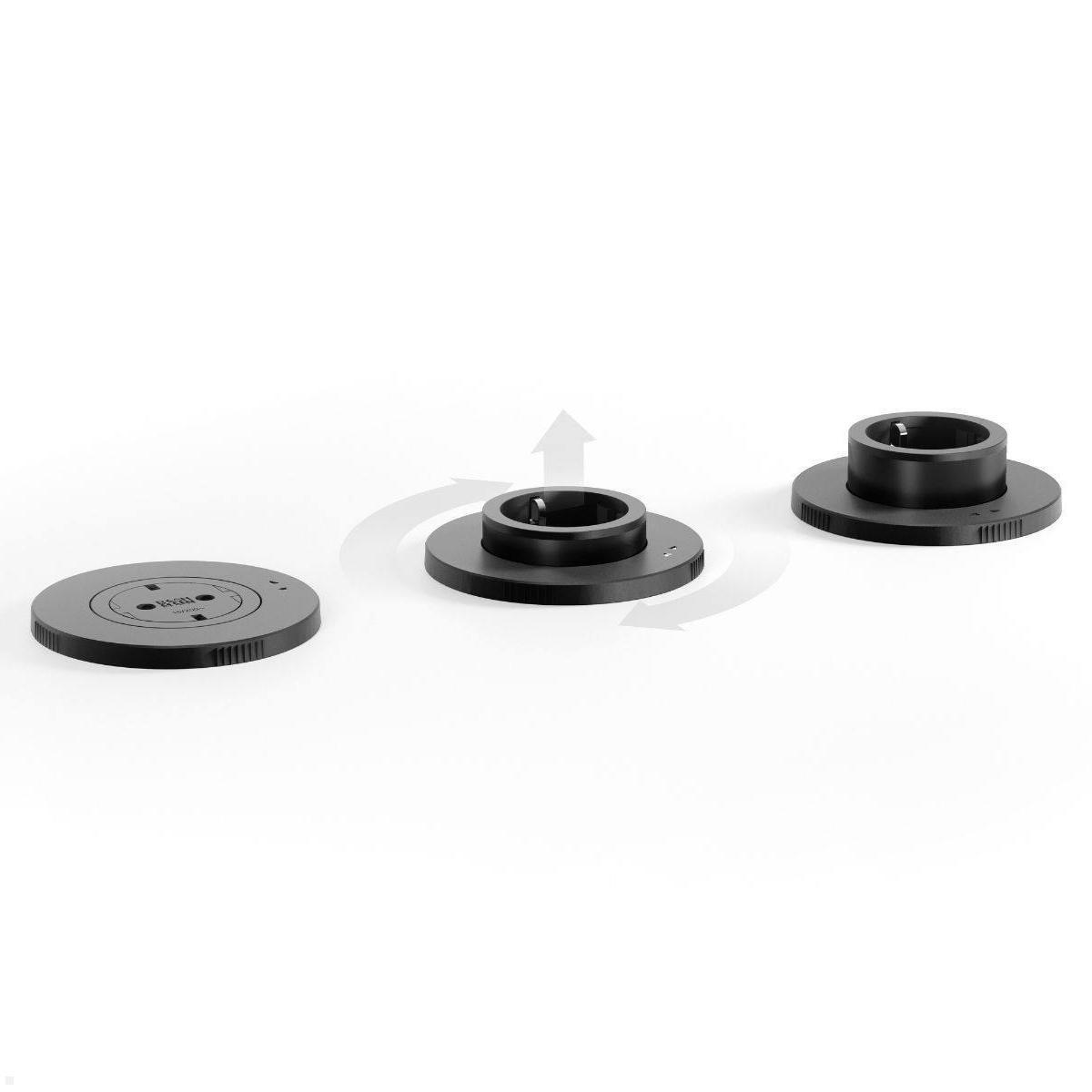

A precise 90° rotation mechanism allows the socket to be extended by turning the ring and, after use, recessed flush with the surface. Thanks to its innovative construction, the PIX UP can be integrated with material thicknesses starting at 1 mm – ideal for delicate structures and slim furniture designs. Installation is carried out via a standard 80 mm diameter hole; the side cable routing supports the minimal installation depth and simplifies installation in confined conditions. Application areas include kitchen islands, room-in-room systems, office partitions, and slim tabletops.
Technical Details for the Bachmann PIX UP Retractable Built-in Socket
- Cover plate: Plastic
- Socket: Plastic
- Profile: Metal
- Installation depth: 19 mm
- Mounting hole: 80 mm diameter
- Material thickness: from 1 mm
- Cable routing: side
- Supply cable: 0.5 m
- Power input: ISV
- Color: Matte black
- Dimensions (L×W×H): 85 × 85 × 44 mm
| Contains installation material: | + |
|---|---|
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann PIX UP retractable in-wall socket BM0031088?
An ultra-flat retractable furniture socket with 19 mm installation depth; flush with the surface and space-saving.
-
How deep is the installation depth?
It has an installation depth of 19 mm, making it one of the flattest options.
-
Where can it be installed?
Suitable for side panels, worktops, drawers or gaps—anywhere traditional sockets won’t fit due to depth.
-
How does the retract mechanism work?
A precise 90-degree rotation allows the socket to extend via a ring turn and retract flush after use.
-
What material thickness can it be integrated into?
Can be integrated from 1 mm material thickness.
-
What mounting hole size is required?
Mounted via an 80 mm diameter mounting hole; side cable routing supports the minimal installation depth.
-
What materials and color does it use?
Cover plate and socket are plastic, the profile is metal; color is matt black.
-
What are the recommended use cases?
Ideal for kitchen islands, room-in-room systems, office partitions, and slim tabletop surfaces.
Why is the Bachmann PIX UP built-in socket ideal for furniture integration?
Modern furniture concepts place high demands on integrated power supply solutions. The Bachmann PIX UP built-in socket was developed specifically for these requirements: with an installation depth of just 19 mm it enables integration into side panels, worktops and drawers where conventional sockets have no room. Thanks to the precise 90° rotation mechanism the retractable socket extends when the knob is turned and can be returned flush with the surface after use. This keeps the furniture surface calm and tidy — a decisive advantage for upscale interiors and high-quality office environments. For its innovative design, PIX UP was awarded the German Design Award. The combination of minimal installation depth, elegant rotation mechanism and high-quality materials makes the PIX UP the first choice for planners, cabinetmakers and interior fitters who want to reconcile functionality and aesthetics.
For which material thicknesses and installation situations is the PIX UP suitable?
The Bachmann PIX UP retractable socket for furniture is designed for thin material thicknesses and can be used from a material thickness of just 1 mm. This makes it ideal for delicate panel materials, slim tabletops and thin-walled furniture constructions where conventional built-in sockets are simply too deep. Installation is straightforward using a standard 80 mm diameter hole — a dimension that is widespread in the furniture industry and significantly simplifies planning. The lateral cable routing supports the extremely flat design and greatly facilitates installation even in confined cavities. Thanks to the supplied mounting system, the PIX UP can be fixed securely and permanently. This built-in socket for tight installation situations thus convinces both in planning and in practical implementation through its thoughtful construction and easy handling.
In which areas is the Bachmann PIX UP used?

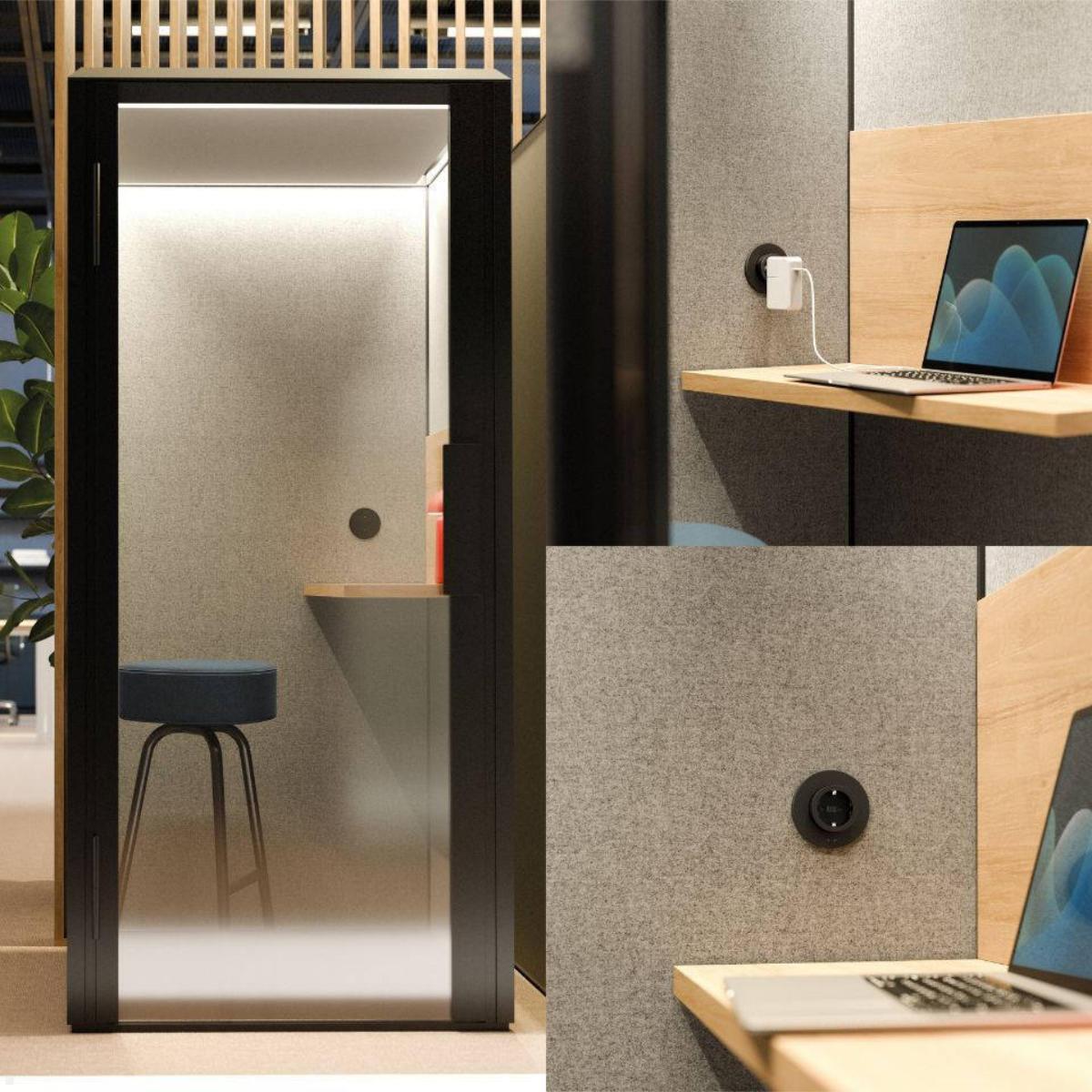

The PIX UP built-in socket from Bachmann is versatile: in the kitchen area for kitchen islands, work surfaces and side walls, in the office for room-in-room systems, partition walls and slim tabletops, and in the living area for sideboards, shelving systems or media furniture. Wherever lack of space, aesthetics and functionality must be brought into harmony, the Bachmann PIX UP offers the appropriate solution as a retractable built-in socket for furniture. The PIX UP is also predestined for use in public areas such as hotel lobbies, lounges or conference rooms — it blends seamlessly into high-quality interiors while still providing a reliable power connection at all times. With the PIX UP, Bachmann sets a new standard for invisible but always available power supply in furniture construction.
The Bachmann PIX UP retractable built-in socket is the result of consistent engineering and was developed specifically for the demands of modern furniture and interior architecture. Anyone who has worked with the PIX UP appreciates the smooth installation, the precise rotation mechanism and the high-quality finish of plastic and metal. As a socket for furniture, it addresses precisely those situations where other solutions fail: in flat, space-critical installation situations where compromises on design or function are unacceptable. With the PIX UP, Bachmann offers a future-proof solution for everyone who wants to give their furniture a permanently functional and aesthetically convincing power supply.
