Bachmann PIX HOLDER SINGLE socket for furniture with 1x custom module (BM0020086)
Rahmen
Keystone
Your set selection:
Highlights
- 1x custom module for individual connections
- Flexible configuration options
- Metal bracket 926.501 required separately
- Compact black plastic housing
- Dimensions: 75 x 59 x 78 mm

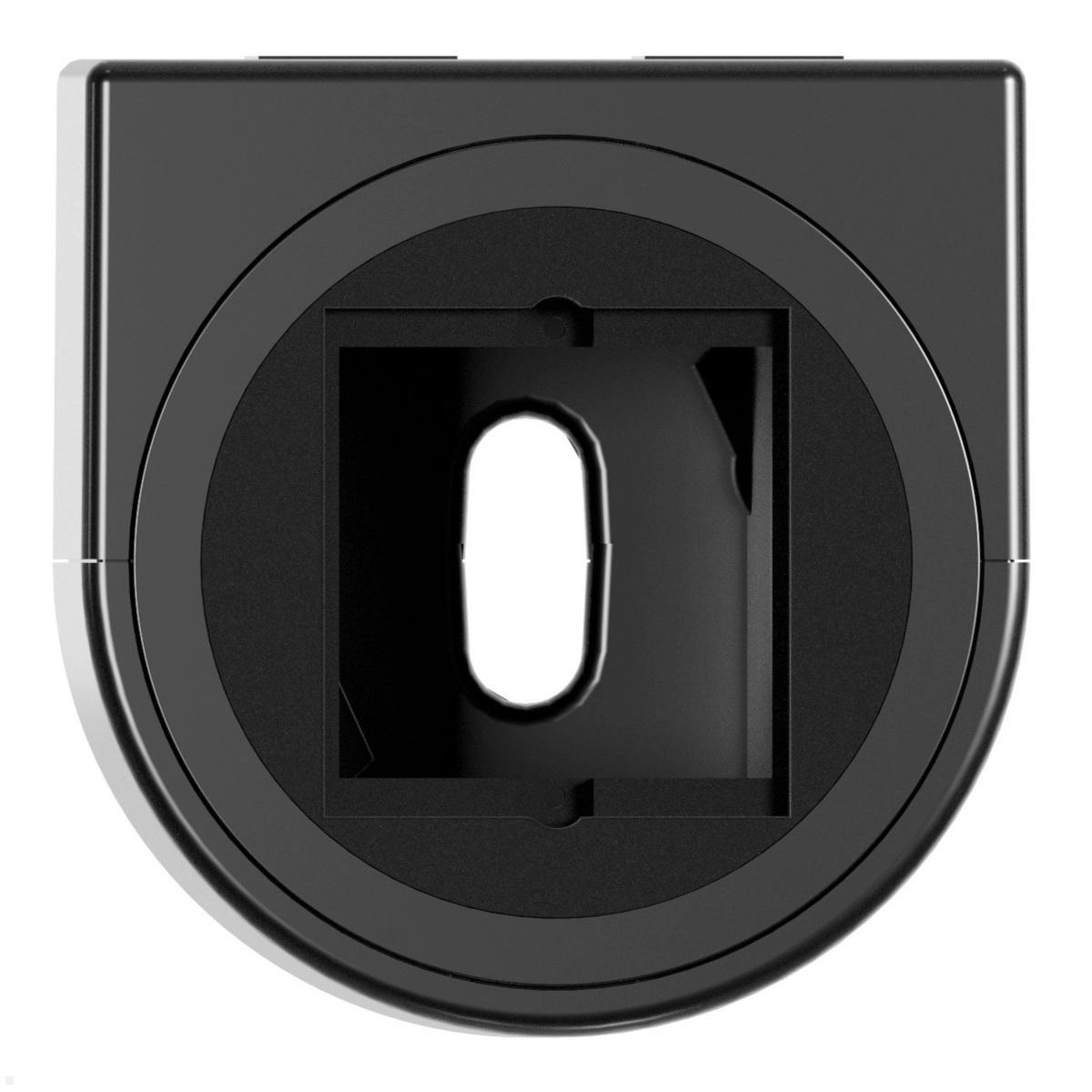

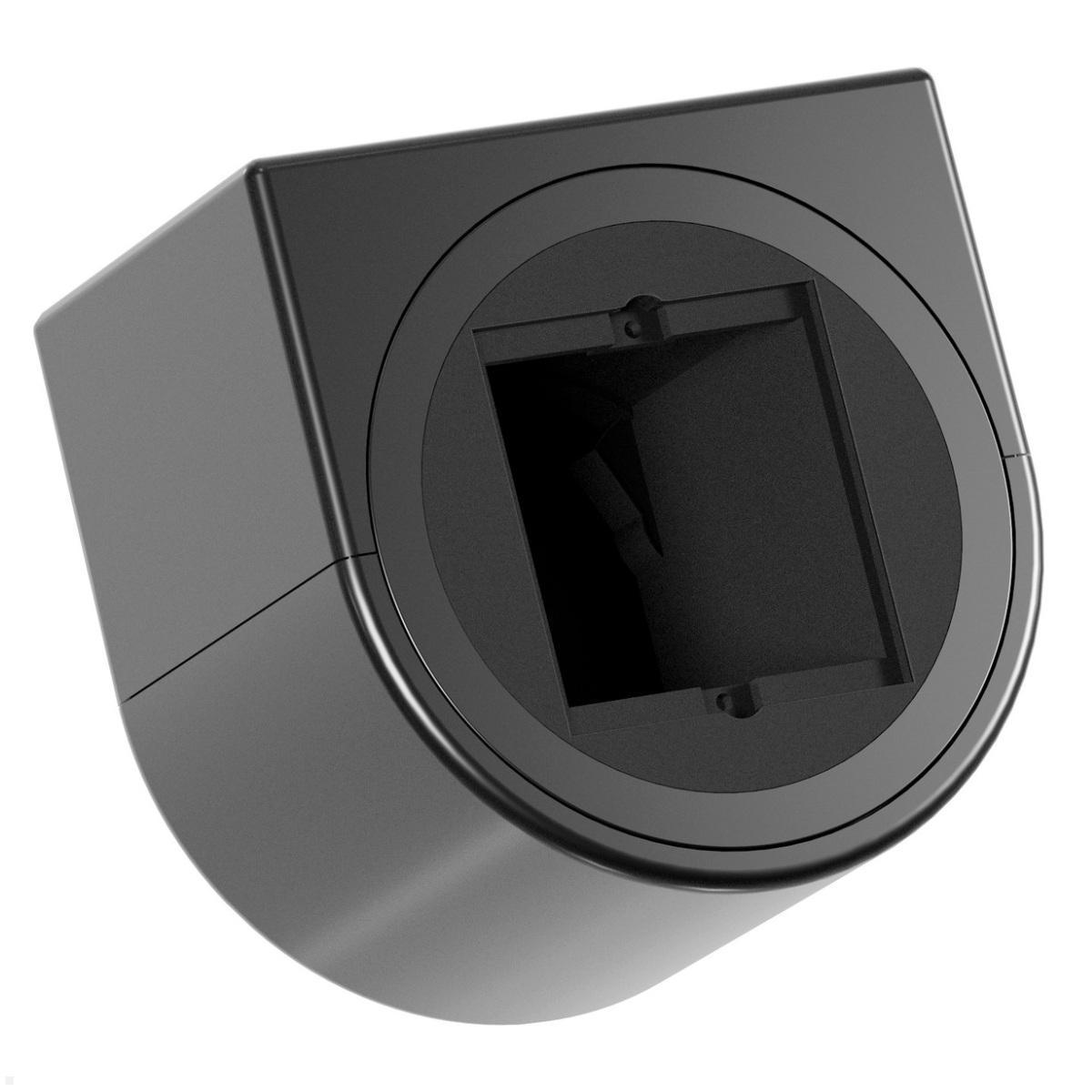

Flexible socket unit with Custom Module as furniture holder
The Bachmann PIX HOLDER SINGLE socket for furniture with 1x Custom Module (BM0020086) offers maximum flexibility for retrofitting furniture with power. The Custom Module allows individual configuration with various connector types according to requirements. The compact plastic housing in black blends discreetly into any furniture design.

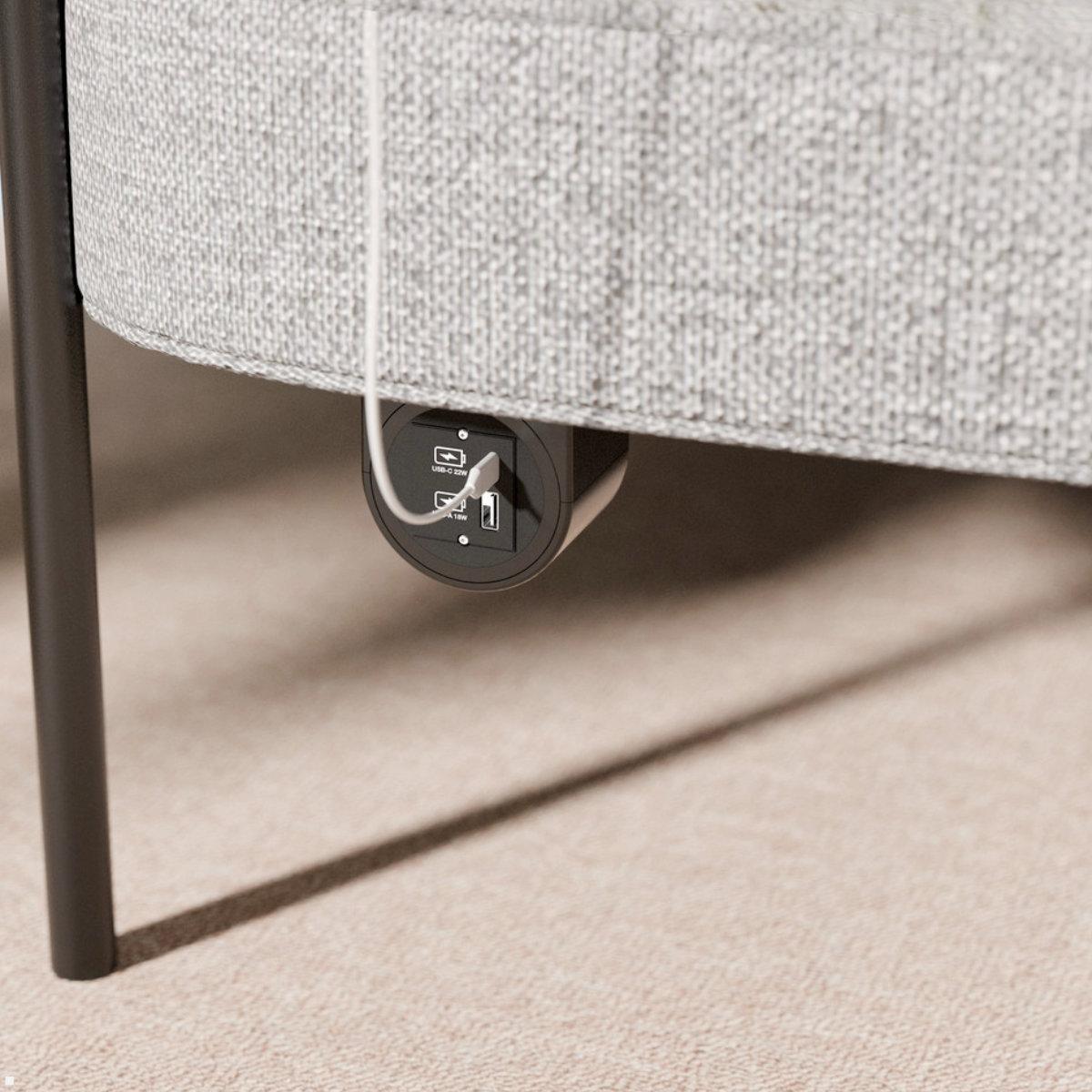

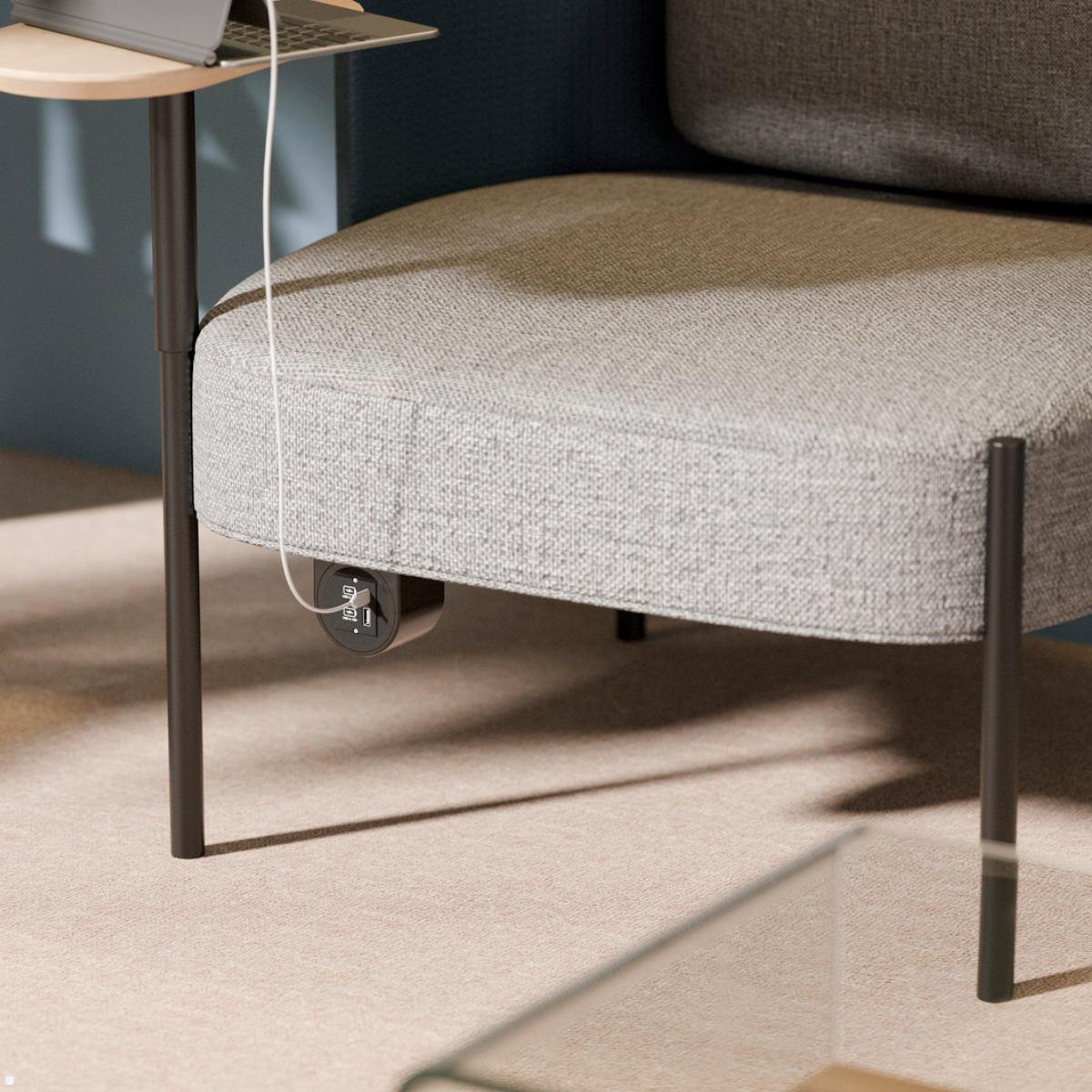

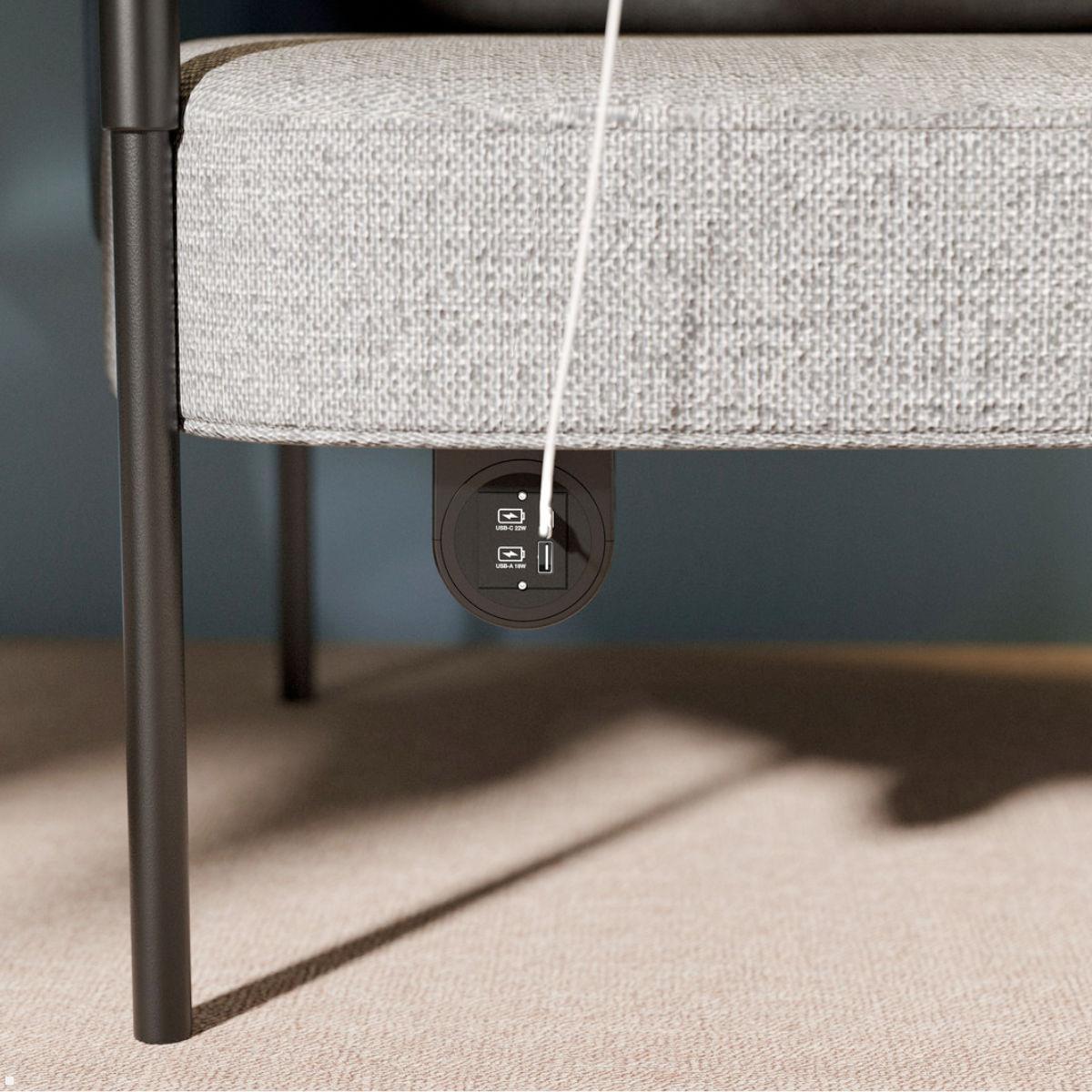

For attachment to the underside of the furniture, the separately available PIX HOLDER metal bracket (926.501) is required as a furniture holder. The metal bracket is fixed with screws and the socket unit is then inserted – without cutting into the furniture. Together they form an elegant solution for lounge areas, waiting areas, libraries, hotels and residential spaces.
Technical details Bachmann PIX HOLDER Custom Module furniture holder
- Connection: 1x Custom Module
- Individual configuration possible
- Housing material: plastic
- Color: black with trim ring similar to RAL9005
- The PIX HOLDER metal bracket 926.501 is required as a furniture holder for mounting (sold separately)

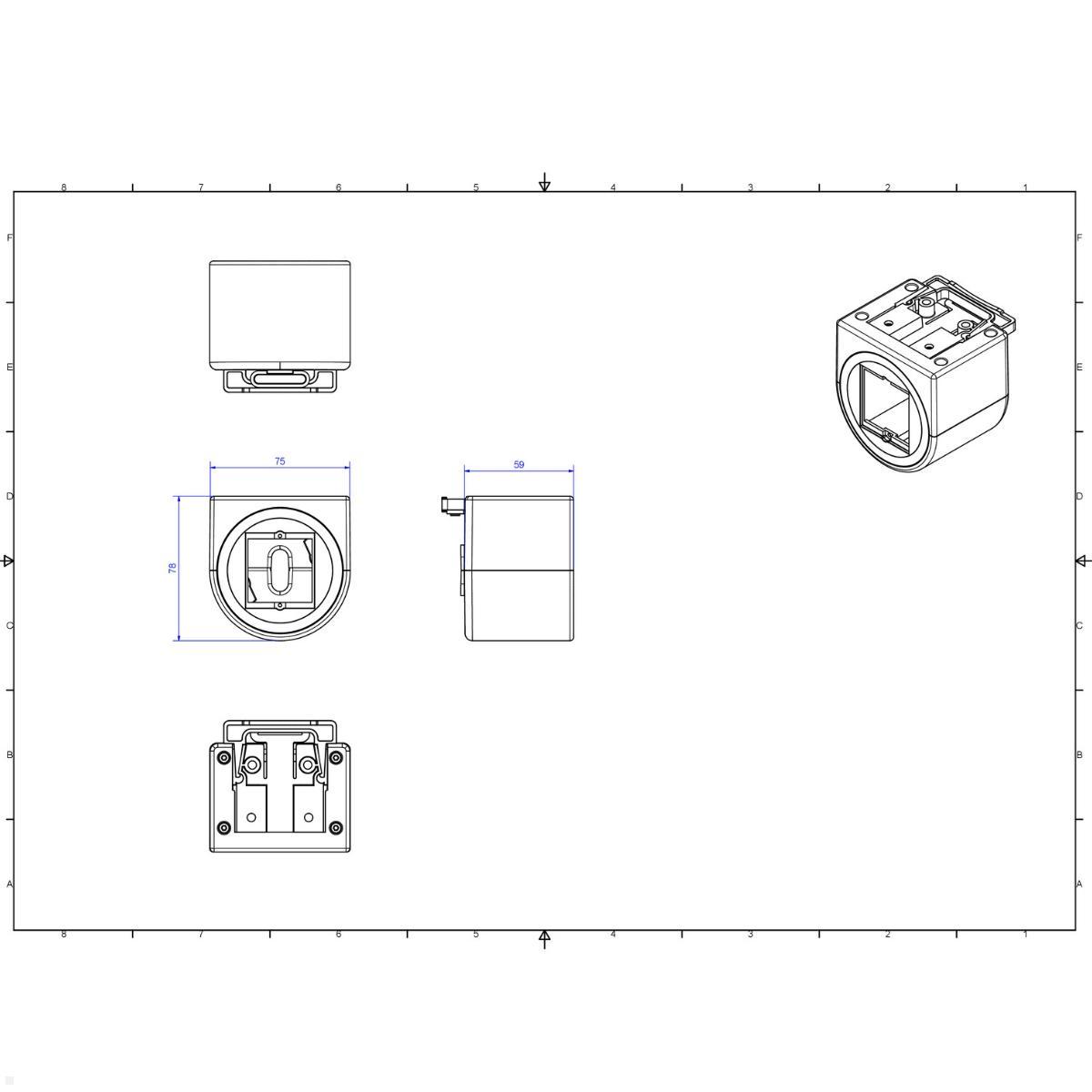

- Dimensions (L×W×H): 75 x 59 x 78 mm
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | 51102578 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann PIX HOLDER SINGLE socket for furniture with 1x Custom Module (BM0020086)?
A flexible socket unit with a Custom Module for post-installation electrification of furniture.
-
What does the Custom Module do?
It enables the individual fitting with different connection types according to requirements.
-
What are the dimensions?
Dimensions (L×W×H): 75 × 59 × 78 mm.
-
What is the housing made of and what color is it?
Housing material is plastic; color is black with a ring similar to RAL9005.
-
How is it mounted to furniture?
To mount to the underside of the furniture, the separate PIX HOLDER metal bracket (926.501) is required; the bracket is fixed with screws, and the socket unit is inserted – no cutout in the furniture.
-
What settings is it suitable for?
Together they form an elegant solution for lounge areas, waiting zones, libraries, hotels and living areas.
-
What is the connection/number of modules?
Connection: 1x Custom Module; individual configuration possible.
-
What is the model/part number?
BM0020086.
What does the PIX HOLDER socket unit with Custom Module offer?
The Bachmann PIX HOLDER SINGLE socket unit BM0020086 with Custom Module is the flexible basic solution for individual connection requirements in furniture. The Custom Module system from Bachmann allows equipping with various connection types such as sockets, USB charging ports or data connections. This way the socket unit can be tailored exactly to the respective requirements. The compact plastic housing in black is mounted together with the separately available PIX HOLDER metal holder (926.501) on the underside of seating furniture or tabletops. The metal holder is mounted with four screws, the socket unit is then inserted. This creates a functional connection point without a cut-out in the furniture. The Custom Module furniture holder black - Bachmann PIX HOLDER is thus the suitable choice for a wide range of application scenarios.
For which applications is the Custom Module suitable?
Thanks to the Custom Module system the socket unit is extremely versatile. In office environments data and power connections can be retrofitted directly at the workplace. In hotels and gastronomy seating furniture can be equipped with individual charging solutions. In lounge areas and waiting zones there is the possibility to provide exactly the connections needed on site. Also in the private residential sector sofas and armchairs can be expanded with tailored connection options. The fastening via the metal holder protects the furniture and enables residue-free removal.
How is the Custom Module configured?
The Custom Module system from Bachmann is based on a standardized slot that can accommodate different inserts. Depending on requirements protective contact sockets, USB charging modules or other connection types can be installed. Changing the modules is uncomplicated and can also be done retrospectively, so that the socket unit can be flexibly adapted to changing requirements. The robust plastic housing with trim ring in black similar to RAL9005 and the compact dimensions of 75 x 59 x 78 mm offer a durable and unobtrusive solution for professional and private use.
